Watertight LED multipurpose luminaire, surface
The 1445 LED watertight multipurpose luminaire is designed for workshops, stores, holds, passage ways etc. DNV Certified and made according to rules of maritime classification societies, additional VDE and IEC / EN. The 1445 Z - has a housing in zinc coated steel (for indoor use only. non corrosive environment). The 1445 S - here the housing is in deep drawn stainless steel AISI 316. Perfect for Outdoor use. The 1445 is powder coated white RAL 9016 and enameled up to 70 μm thickness.
Key features:
- Deep drawn 316 stainless-steel luminaire for harsh environments
- High impact resistant polycarbonate diffuser
- IP66 / IP67 construction
- Lumen output: 1300lm - 5000lm
- Emergency versions are available with integrated battery - 3 hours battery duration
Available in two sizes

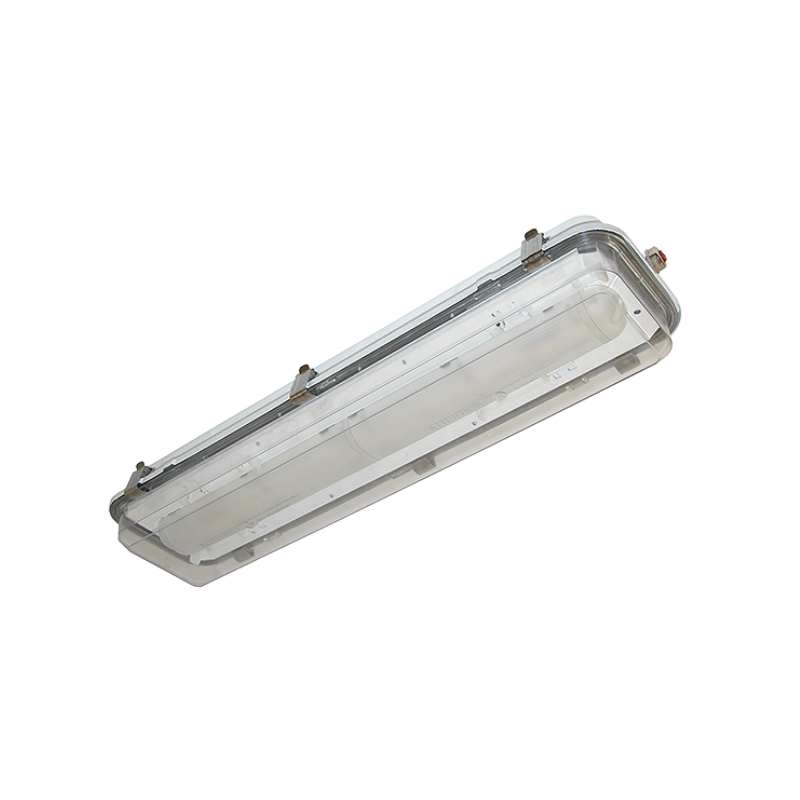

600mm

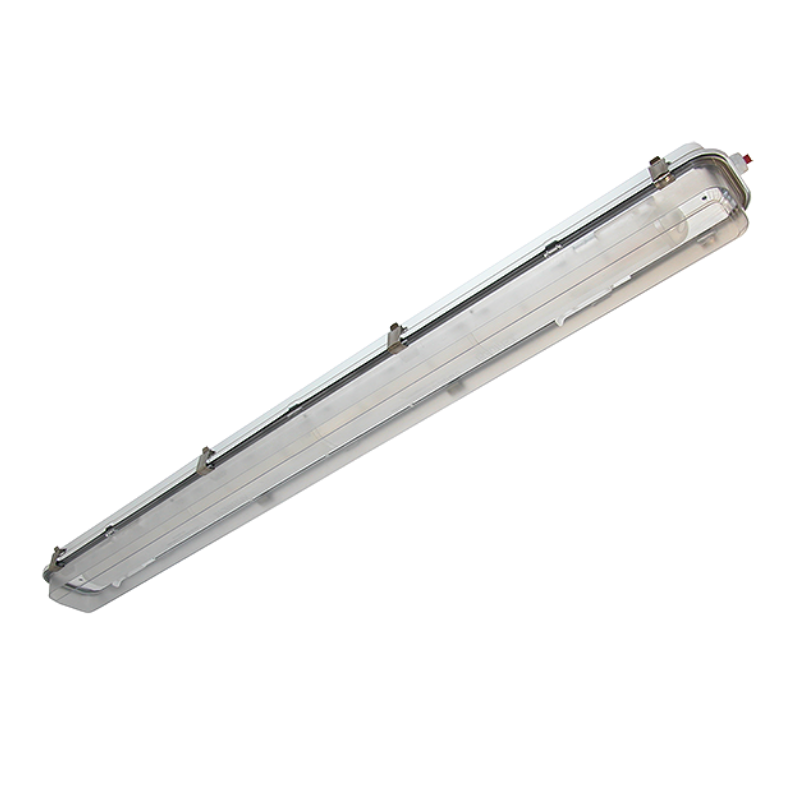

1200mm
Luminaire overview
Design
Marine grade 316 stainless steel, deep drawn, seamless housing, with fast-installing external mounting feet to keep structural integrity, finished in white powder-coat. Marine-grade 316 stainless steel diffuser clips.
Two cable entries at each end; luminaire supplied standard with 1 x M20 nickel-plated brass cable gland and 3 x M20 nickel-plated brass blind plugs. Additional cable glands may be ordered as required.
Optic
High impact resistant clear polycarbonate diffuser, fully gasketed to housing via silicone 'O'-ring, fixed with positive retention clips. LEDs covered by diffusing lens for improved visual comfort.
Electrical
Integral electronic driver. A maintained emergency version is available on request.
11W - 38W
Light Source
High-efficiency 4000K CRI Ra80 LED source.
After data on 1445?
We recognise there is no data here. The 1445 data will be available shortly.
In the meantime, if you're after a data sheet or more information please fill out the form below and we will be in contact.
