Como ALAV Family

Quick links

Download brochure Download family photometry Go to product configurator

Anti-Vandal & Anti-Ligature

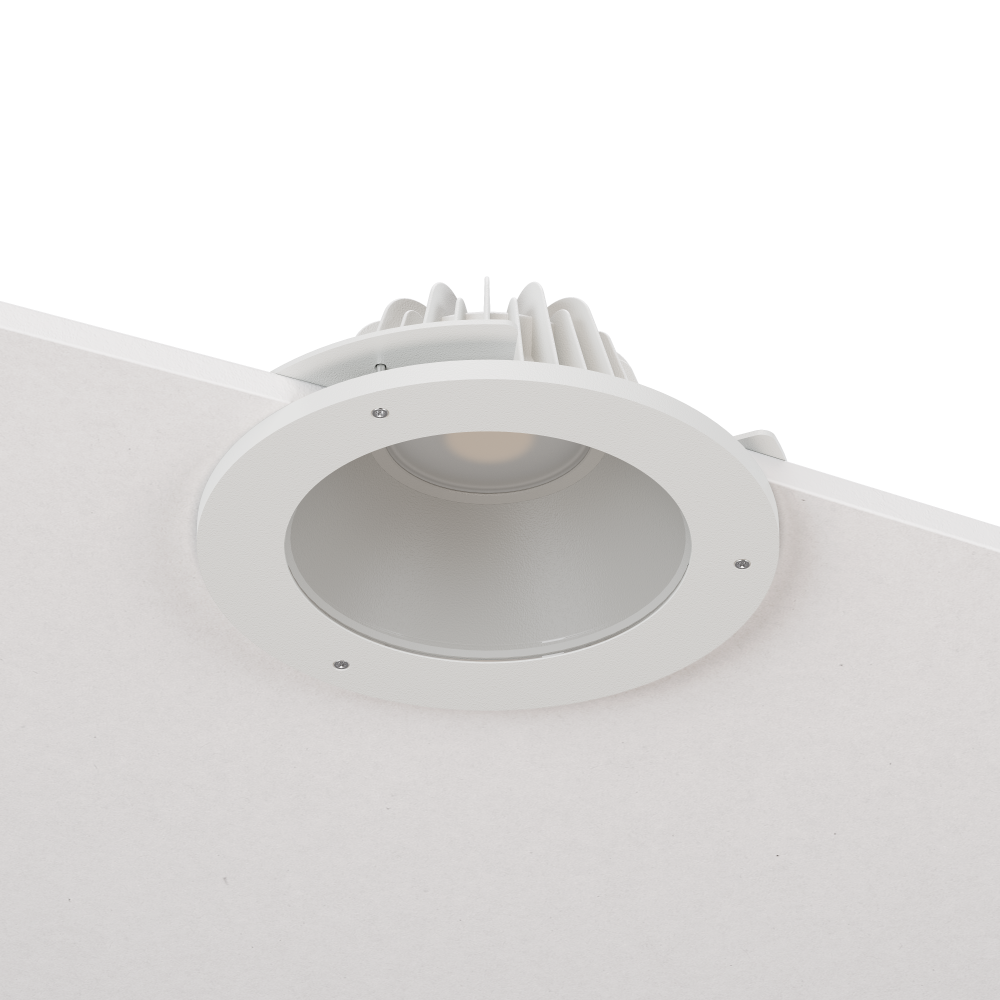

The Como ALAV transforms the premium Como downlight range into a robust, anti-ligature and anti-vandal solution suitable for high-risk environments, public spaces, health facilities and custodial settings. Designed to achieve IK10 and IP66 ratings, it combines strength and durability with refined aesthetics, thanks to a die-cast aluminium trim. Featuring stainless steel tamper-proof fixings, simple ceiling installation, and compatibility with ceilings up to 22mm (with options for deeper), the ALAV ensures security without compromising on design.

Available in multiple sizes, offering a wide range of colour temperatures from 2200K–4200K and excellent colour rendering, it also supports the integration of MelaGen® technology, delivering both performance and wellbeing benefits where they are most needed such as correctional facilities.

Three available sizes

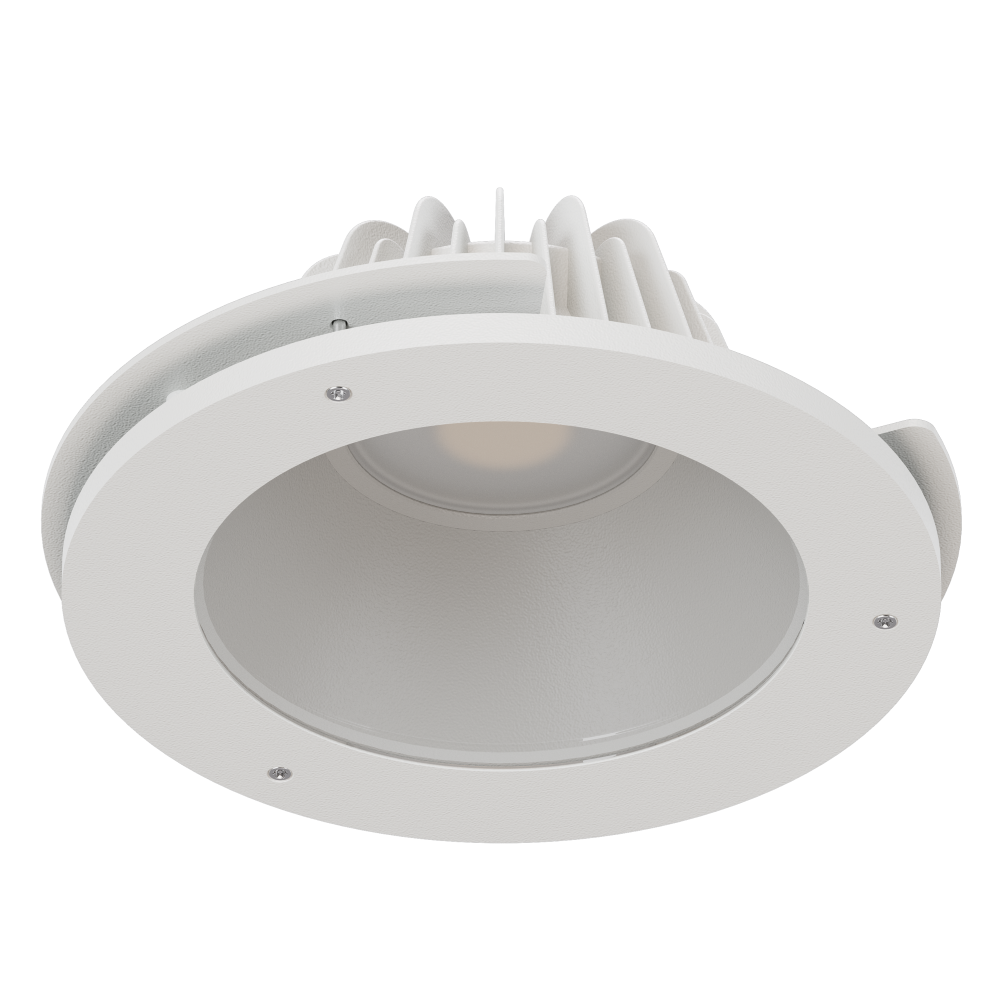

Como S & M

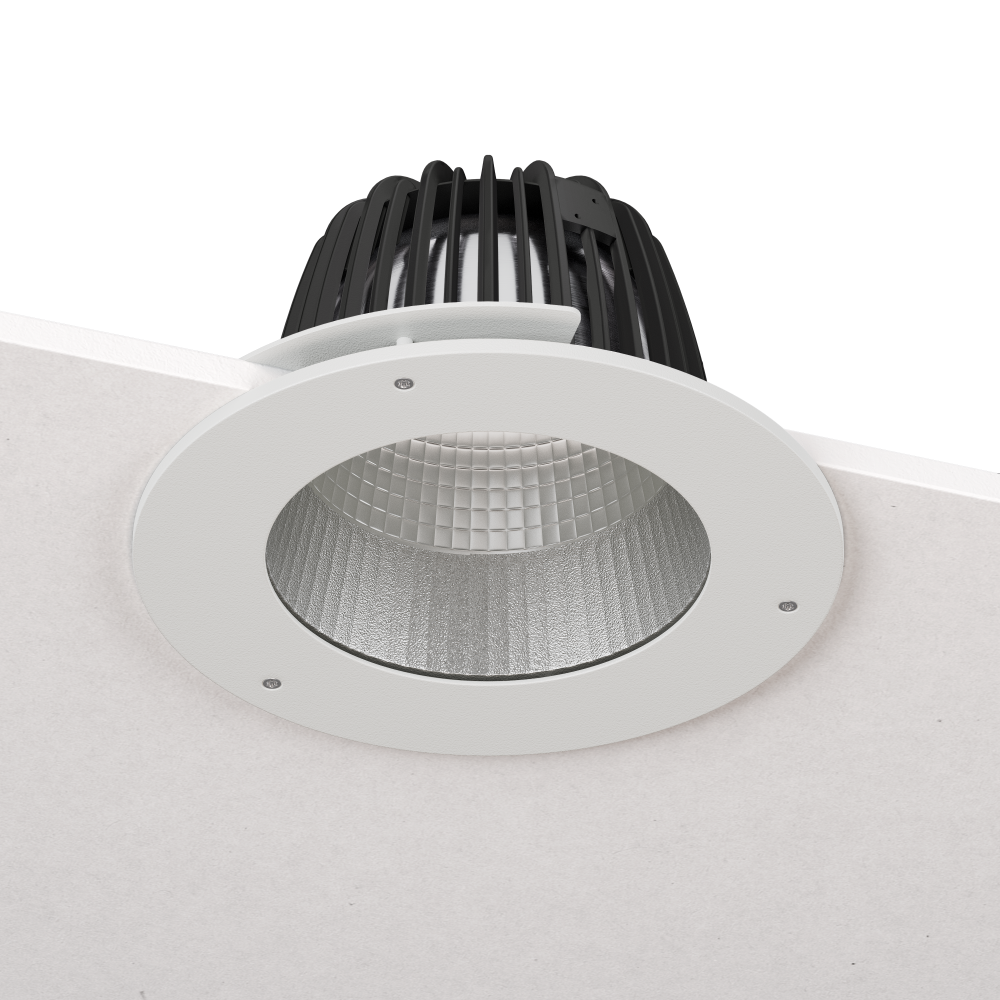

Como L

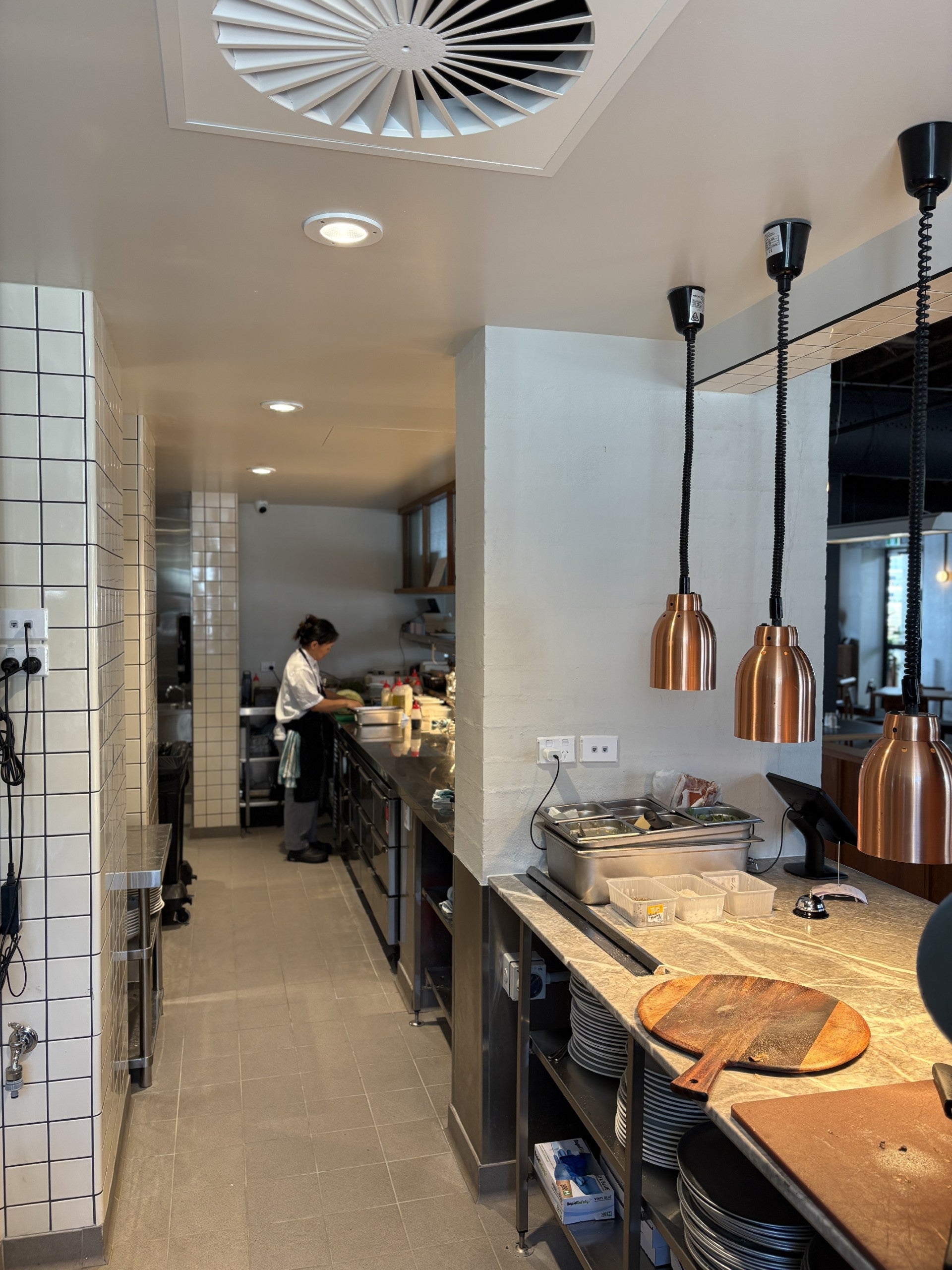

Como ALAV in more than just custodial environments

This luminaire serves more than just a durable luminaire option for high impact and risky environments. It is the perfect alternative to a clean downlight in an environment where water, food or anything else may be splashed on it. The ALAV housing kit allows for easy wipe down without the stress of damaging your luminaire.

Luminaire overview

Design

Luminaire body, trim, and fastening retaining clips in die-cast enamelled aluminium. LED module directly mounted on the luminaire housing to dissipate the heat for efficient thermal management. Torx-screw fixing of the lens trim.

Optic

A choice of a white or faceted reflector for Como S and M and a high purity aluminium reflectors in optimised two-part multi-faceted design for the Como L. Clear polycarbonate lens for vandal-resistant and splash-proof IP44 optics from the underside of the fixture.

Electrical

Remote electronic high frequency driver, fixed output, phase-cut dimmable or DALI dimmable drivers. Standard power settings providing highly functional lumen output packages. MelaGen® ReGen luminaires will require DALI DT8 control systems & drivers to perform the required light transition function.

Wattage: 8W - 38W

Light source

Highly energy efficient LED module with excellent luminous flux maintenance. With up to 20% increase in performance over previous versions, SDCM3.
CRI90+ as standard.

MelaGen® Active at 4200K, MelaGen® Calm at 2200K, or MelaGen® ReGen LEDs which has the ability to transition between Blue and Refresh either on a timer or manually.

Lumen output: 500lm - 3900lm

Product Configurator

Product	Family	Finish Colour	Output (lm)	CCT	Control	Actions
Como L Anti-Ligature Anti-Vandal Faceted Reflector 1050mA Casambi 3000K Ra90 White trim COML.ALFR00.1050CS.3090A.1	Como ALAV L	White trim	3710	3000K	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 1050mA Casambi 4000K Ra90 White trim COML.ALFR00.1050CS.4090A.1	Como ALAV L	White trim	3820	4000K	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 1050mA Casambi MelaGen® Active Ra90 White trim COML.ALFR00.1050CS.BL90A.1	Como ALAV L	White trim	3020	4200K	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 1050mA Casambi MelaGen® Calm Ra90 White trim COML.ALFR00.1050CS.RF90A.1	Como ALAV L	White trim	2830	2200K	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 1050mA DALI Dimmable 3000K Ra90 White trim COML.ALFR00.1050DD.3090A.1	Como ALAV L	White trim	3710	3000K	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 1050mA DALI Dimmable 4000K Ra90 White trim COML.ALFR00.1050DD.4090A.1	Como ALAV L	White trim	3820	4000K	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 1050mA DALI Dimmable MelaGen® Active Ra90 White trim COML.ALFR00.1050DD.BL90A.1	Como ALAV L	White trim	3020	4200K	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 1050mA DALI Dimmable MelaGen® Calm Ra90 White trim COML.ALFR00.1050DD.RF90A.1	Como ALAV L	White trim	2830	2200K	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 1050mA DT8 DALI Dimmable MelaGen ReGen Ra90 White trim COML.ALFR00.1050D8.RG90A.1	Como ALAV L	White trim	—	2200K/4200K	DALI DT8 Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 1050mA Fixed Output 3000K Ra90 White trim COML.ALFR00.1050FO.3090A.1	Como ALAV L	White trim	3710	3000K	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 1050mA Fixed Output 4000K Ra90 White trim COML.ALFR00.1050FO.4090A.1	Como ALAV L	White trim	3820	4000K	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 1050mA Fixed Output MelaGen® Active Ra90 White trim COML.ALFR00.1050FO.BL90A.1	Como ALAV L	White trim	3020	4200K	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 1050mA Fixed Output MelaGen® Calm Ra90 White trim COML.ALFR00.1050FO.RF90A.1	Como ALAV L	White trim	2830	2200K	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 1050mA Phase Cut Dimmable 3000K Ra90 White trim COML.ALFR00.1050PC.3090A.1	Como ALAV L	White trim	3710	3000K	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 1050mA Phase Cut Dimmable 4000K Ra90 White trim COML.ALFR00.1050PC.4090A.1	Como ALAV L	White trim	3820	4000K	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 1050mA Phase Cut Dimmable MelaGen® Active Ra90 White trim COML.ALFR00.1050PC.BL90A.1	Como ALAV L	White trim	3020	4200K	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 1050mA Phase Cut Dimmable MelaGen® Calm Ra90 White trim COML.ALFR00.1050PC.RF90A.1	Como ALAV L	White trim	2830	2200K	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 180mA Casambi 3000K Ra90 White trim COML.ALFR00.0180CS.3090A.1	Como ALAV L	White trim	740	3000K	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 180mA Casambi 4000K Ra90 White trim COML.ALFR00.0180CS.4090A.1	Como ALAV L	White trim	760	4000K	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 180mA Casambi MelaGen® Active Ra90 White trim COML.ALFR00.0180CS.BL90A.1	Como ALAV L	White trim	600	4200K	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 180mA Casambi MelaGen® Calm Ra90 White trim COML.ALFR00.0180CS.RF90A.1	Como ALAV L	White trim	560	2200K	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 180mA DALI Dimmable 3000K Ra90 White trim COML.ALFR00.0180DD.3090A.1	Como ALAV L	White trim	740	3000K	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 180mA DALI Dimmable 4000K Ra90 White trim COML.ALFR00.0180DD.4090A.1	Como ALAV L	White trim	760	4000K	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 180mA DALI Dimmable MelaGen® Active Ra90 White trim COML.ALFR00.0180DD.BL90A.1	Como ALAV L	White trim	600	4200K	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 180mA DALI Dimmable MelaGen® Calm Ra90 White trim COML.ALFR00.0180DD.RF90A.1	Como ALAV L	White trim	560	2200K	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 180mA DT8 DALI Dimmable MelaGen ReGen Ra90 White trim COML.ALFR00.0180D8.RG90A.1	Como ALAV L	White trim	—	2200K/4200K	DALI DT8 Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 180mA Fixed Output 3000K Ra90 White trim COML.ALFR00.0180FO.3090A.1	Como ALAV L	White trim	740	3000K	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 180mA Fixed Output 4000K Ra90 White trim COML.ALFR00.0180FO.4090A.1	Como ALAV L	White trim	760	4000K	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 180mA Fixed Output MelaGen® Active Ra90 White trim COML.ALFR00.0180FO.BL90A.1	Como ALAV L	White trim	600	4200K	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 180mA Fixed Output MelaGen® Calm Ra90 White trim COML.ALFR00.0180FO.RF90A.1	Como ALAV L	White trim	560	2200K	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 180mA Phase Cut Dimmable 3000K Ra90 White trim COML.ALFR00.0180PC.3090A.1	Como ALAV L	White trim	740	3000K	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 180mA Phase Cut Dimmable 4000K Ra90 White trim COML.ALFR00.0180PC.4090A.1	Como ALAV L	White trim	760	4000K	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 180mA Phase Cut Dimmable MelaGen® Active Ra90 White trim COML.ALFR00.0180PC.BL90A.1	Como ALAV L	White trim	600	4200K	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 180mA Phase Cut Dimmable MelaGen® Calm Ra90 White trim COML.ALFR00.0180PC.RF90A.1	Como ALAV L	White trim	560	2200K	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 350mA Casambi 3000K Ra90 White trim COML.ALFR00.0350CS.3090A.1	Como ALAV L	White trim	1370	3000K	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 350mA Casambi 4000K Ra90 White trim COML.ALFR00.0350CS.4090A.1	Como ALAV L	White trim	1410	4000K	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 350mA Casambi MelaGen® Active Ra90 White trim COML.ALFR00.0350CS.BL90A.1	Como ALAV L	White trim	1110	4200K	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 350mA Casambi MelaGen® Calm Ra90 White trim COML.ALFR00.0350CS.RF90A.1	Como ALAV L	White trim	1040	2200K	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 350mA DALI Dimmable 3000K Ra90 White trim COML.ALFR00.0350DD.3090A.1	Como ALAV L	White trim	1370	3000K	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 350mA DALI Dimmable 4000K Ra90 White trim COML.ALFR00.0350DD.4090A.1	Como ALAV L	White trim	1410	4000K	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 350mA DALI Dimmable MelaGen® Active Ra90 White trim COML.ALFR00.0350DD.BL90A.1	Como ALAV L	White trim	1110	4200K	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 350mA DALI Dimmable MelaGen® Calm Ra90 White trim COML.ALFR00.0350DD.RF90A.1	Como ALAV L	White trim	1040	2200K	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 350mA DT8 DALI Dimmable MelaGen ReGen Ra90 White trim COML.ALFR00.0350D8.RG90A.1	Como ALAV L	White trim	—	2200K/4200K	DALI DT8 Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 350mA Fixed Output 3000K Ra90 White trim COML.ALFR00.0350FO.3090A.1	Como ALAV L	White trim	1370	3000K	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 350mA Fixed Output 4000K Ra90 White trim COML.ALFR00.0350FO.4090A.1	Como ALAV L	White trim	1410	4000K	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 350mA Fixed Output MelaGen® Active Ra90 White trim COML.ALFR00.0350FO.BL90A.1	Como ALAV L	White trim	1110	4200K	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 350mA Fixed Output MelaGen® Calm Ra90 White trim COML.ALFR00.0350FO.RF90A.1	Como ALAV L	White trim	1040	2200K	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 350mA Phase Cut Dimmable 3000K Ra90 White trim COML.ALFR00.0350PC.3090A.1	Como ALAV L	White trim	1370	3000K	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 350mA Phase Cut Dimmable 4000K Ra90 White trim COML.ALFR00.0350PC.4090A.1	Como ALAV L	White trim	1410	4000K	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Como L Anti-Ligature Anti-Vandal Faceted Reflector 350mA Phase Cut Dimmable MelaGen® Active Ra90 White trim COML.ALFR00.0350PC.BL90A.1	Como ALAV L	White trim	1110	4200K	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
