Robust utility luminaire
Multi-purpose utility light with high-impact IK10, polycarbonate refractor. In a cast aluminium housing fully sealed to IP65, this robust utility luminaire has high performance diffused optics for a wide range of applications.
Key features
- Surface mounted or suspended
- High impact rated
- Cast aluminium housing fully sealed to IP65
- Wide dispersal for optimised spacing
Project highlight

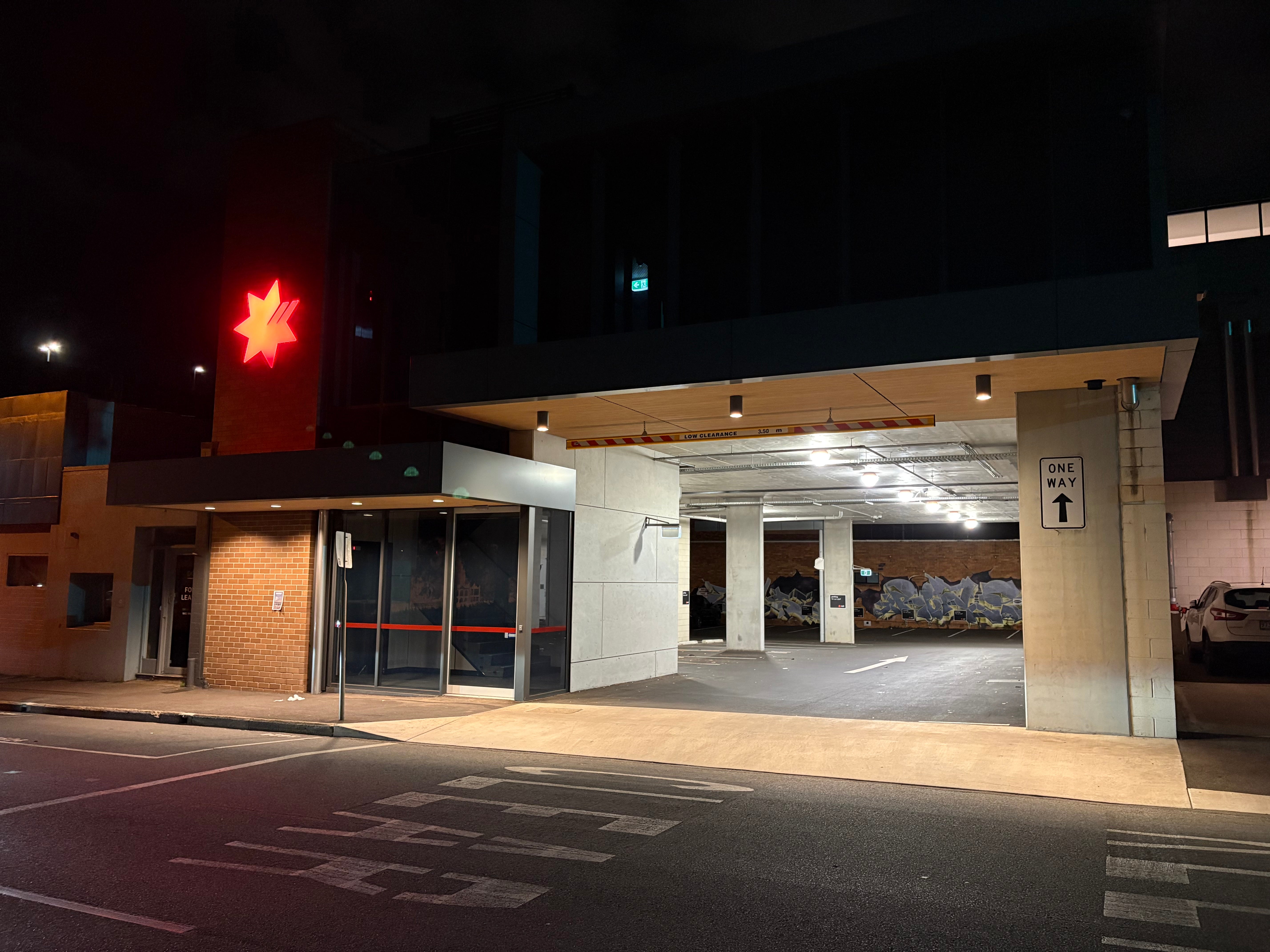

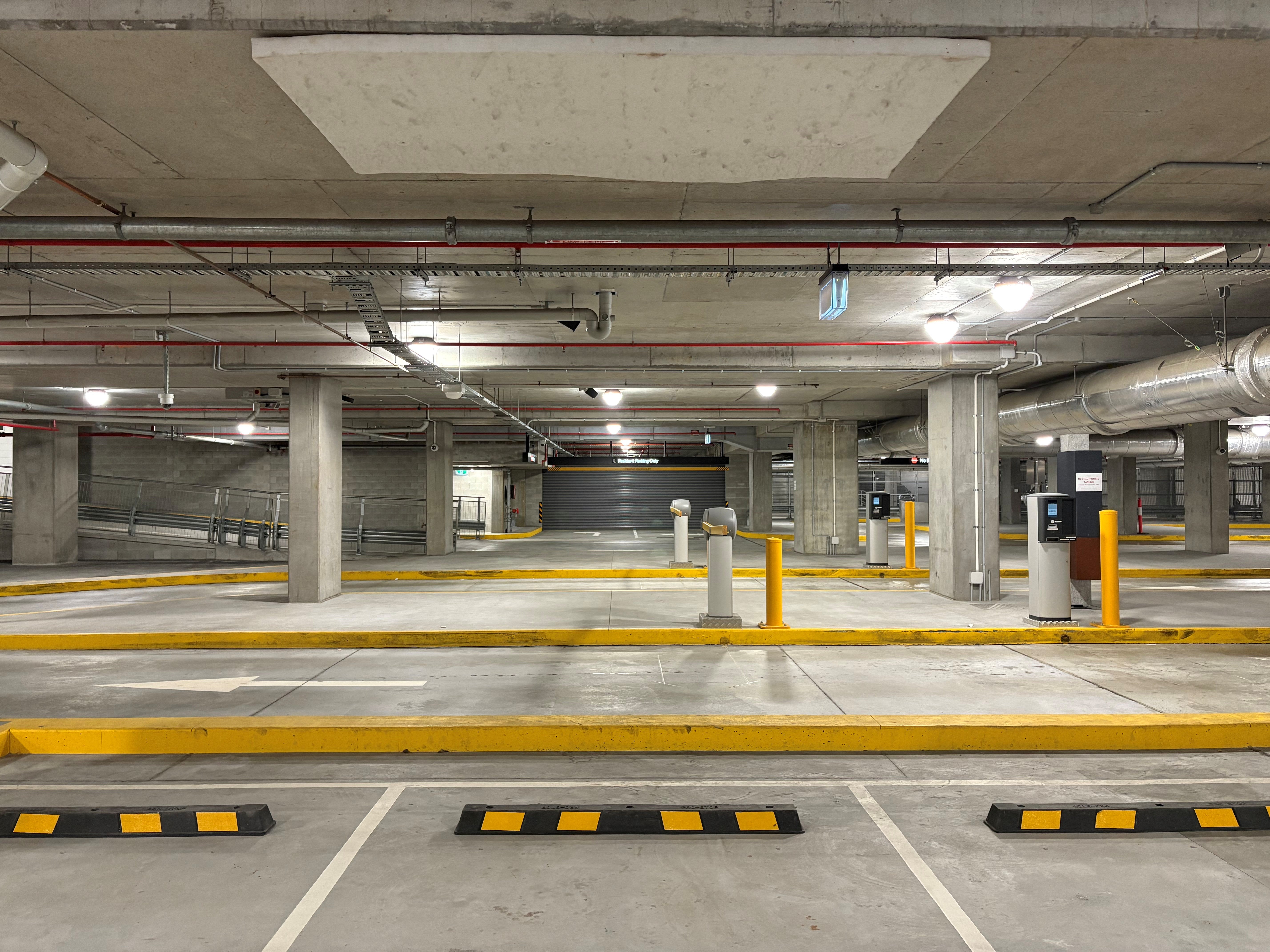

How our Aura gave new life to this carpark and saved dollars on install and energy costs.
Generic lighting
Versalux quality lighting
Luminaire overview
Design
Die-cast aluminium LED module housing with highly-efficient heat sink, finished in black powdercoat. Surface mounted as standard, optional 'eyelet' loop available for suspended applications. 4.6kg.
Optic
Precision engineered, high-impact resistant, polycarbonate refractor, designed for low glare and high performance.
Electrical
Choice of fixed output or DALI dimmable electronic drivers.
Wattage: 47W
Emergency
Maintained emergency option available with external battery box.
Classification (0.2lx) C0:D50 C90:D50
Classification (1lx) C0:D50 C90:D50
Light Source
Highly efficient LED 3000K or 4000K sources, CRI Ra80.
Lumen output: 5300lm - 5700lm
Product Configurator
| Product | CCT | Output (lm) | Mounting Type | Control | Watts | Actions |
|---|---|---|---|---|---|---|
Aura Suspended Polycarbonate Lens 900mA DALI Dimmable 4000K Ra80 Black
AURAPP.0900DD.4080AA.2
| 4000K | 6600 | Suspended | DALI Dimmable | 39 |
Add to Project Briefcase
|
|
Aura Suspended Polycarbonate Lens 900mA DALI Dimmable 3000K Ra80 Black
AURAPP.0900DD.3080AA.2
| 3000K | 6200 | Suspended | DALI Dimmable | 39 |
Add to Project Briefcase
|
|
Aura Suspended Polycarbonate Lens 650mA DALI Dimmable 4000K Ra80 Black
AURAPP.0650DD.4080AA.2
| 4000K | 4900 | Suspended | DALI Dimmable | 28 |
Add to Project Briefcase
|
|
Aura Suspended Polycarbonate Lens 650mA DALI Dimmable 3000K Ra80 Black
AURAPP.0650DD.3080AA.2
| 3000K | 4600 | Suspended | DALI Dimmable | 28 |
Add to Project Briefcase
|
|
Aura Suspended Polycarbonate Lens 400mA DALI Dimmable 4000K Ra80 Black
AURAPP.0400DD.4080AA.2
| 4000K | 3100 | Suspended | DALI Dimmable | 17 |
Add to Project Briefcase
|
|
Aura Suspended Polycarbonate Lens 400mA DALI Dimmable 3000K Ra80 Black
AURAPP.0400DD.3080AA.2
| 3000K | 2900 | Suspended | DALI Dimmable | 17 |
Add to Project Briefcase
|
Aura Surface Mounted Polycarbonate Lens 900mA DALI Dimmable 4000K Ra80 Black
AURASP.0900DD.4080AA.2
| 4000K | 6600 | Surface mounted | DALI Dimmable | 39 |
Add to Project Briefcase
|
|
Aura Surface Mounted Polycarbonate Lens 900mA DALI Dimmable 3000K Ra80 Black
AURASP.0900DD.3080AA.2
| 3000K | 6200 | Surface mounted | DALI Dimmable | 39 |
Add to Project Briefcase
|
|
Aura Surface Mounted Polycarbonate Lens 650mA DALI Dimmable 4000K Ra80 Black
AURASP.0650DD.4080AA.2
| 4000K | 4900 | Surface mounted | DALI Dimmable | 28 |
Add to Project Briefcase
|
|
Aura Surface Mounted Polycarbonate Lens 650mA DALI Dimmable 3000K Ra80 Black
AURASP.0650DD.3080AA.2
| 3000K | 4600 | Surface mounted | DALI Dimmable | 28 |
Add to Project Briefcase
|
|
Aura Surface Mounted Polycarbonate Lens 400mA DALI Dimmable 4000K Ra80 Black
AURASP.0400DD.4080AA.2
| 4000K | 3100 | Surface mounted | DALI Dimmable | 17 |
Add to Project Briefcase
|
|
Aura Surface Mounted Polycarbonate Lens 400mA DALI Dimmable 3000K Ra80 Black
AURASP.0400DD.3080AA.2
| 3000K | 2900 | Surface mounted | DALI Dimmable | 17 |
Add to Project Briefcase
|
|
Aura Suspended Polycarbonate Lens 900mA Fixed Output 4000K Ra80 Black
AURAPP.0900FO.4080AA.2
| 4000K | 6600 | Suspended | Fixed Output | 39 |
Add to Project Briefcase
|
|
Aura Suspended Polycarbonate Lens 900mA Fixed Output 3000K Ra80 Black
AURAPP.0900FO.3080AA.2
| 3000K | 6200 | Suspended | Fixed Output | 39 |
Add to Project Briefcase
|
|
Aura Suspended Polycarbonate Lens 650mA Fixed Output 4000K Ra80 Black
AURAPP.0650FO.4080AA.2
| 4000K | 4900 | Suspended | Fixed Output | 28 |
Add to Project Briefcase
|
|
Aura Suspended Polycarbonate Lens 650mA Fixed Output 3000K Ra80 Black
AURAPP.0650FO.3080AA.2
| 3000K | 4600 | Suspended | Fixed Output | 28 |
Add to Project Briefcase
|
|
Aura Suspended Polycarbonate Lens 400mA Fixed Output 4000K Ra80 Black
AURAPP.0400FO.4080AA.2
| 4000K | 3100 | Suspended | Fixed Output | 17 |
Add to Project Briefcase
|
|
Aura Suspended Polycarbonate Lens 400mA Fixed Output 3000K Ra80 Black
AURAPP.0400FO.3080AA.2
| 3000K | 2900 | Suspended | Fixed Output | 17 |
Add to Project Briefcase
|
|
Aura Surface Mounted Polycarbonate Lens 900mA Fixed Output 3000K Ra80 Black
AURASP.0900FO.3080AA.2
| 3000K | 6200 | Surface mounted | Fixed Output | 39 |
Add to Project Briefcase
|
|
Aura Surface Mounted Polycarbonate Lens 900mA Fixed Output 4000K Ra80 Black
AURASP.0900FO.4080AA.2
| 4000K | 6600 | Surface mounted | Fixed Output | 39 |
Add to Project Briefcase
|
|
Aura Surface Mounted Polycarbonate Lens 400mA Fixed Output 4000K Ra80 Black
AURASP.0400FO.4080AA.2
| 4000K | 3100 | Surface mounted | Fixed Output | 17 |
Add to Project Briefcase
|
|
Aura Surface Mounted Polycarbonate Lens 650mA Fixed Output 4000K Ra80 Black
AURASP.0650FO.4080AA.2
| 4000K | 4900 | Surface mounted | Fixed Output | 28 |
Add to Project Briefcase
|
|
Aura Surface Mounted Polycarbonate Lens 400mA Fixed Output 3000K Ra80 Black
AURASP.0400FO.3080AA.2
| 3000K | 2900 | Surface mounted | Fixed Output | 17 |
Add to Project Briefcase
|
|
Aura Surface Mounted Polycarbonate Lens 650mA Fixed Output 3000K Ra80 Black
AURASP.0650FO.3080AA.2
| 3000K | 4600 | Surface mounted | Fixed Output | 28 |
Add to Project Briefcase
|
