Brescia

Quick links

Download family photometry Go to product configurator

Rotate and tilt downlight

A range of round recessed LED downlights available in three different sizes featuring a white finish outer reflector that blends seamlessly and unobtrusively into the ceiling allowing architecture to take centre stage.

The three beam distribution options, and the adjustable feature of the optical enclosure of 350° rotation and up to 75° tilt makes this range ideal for retail spaces and commercial centres. The depth of the LED positioning provides pleasant visual comfort.

Three available sizes

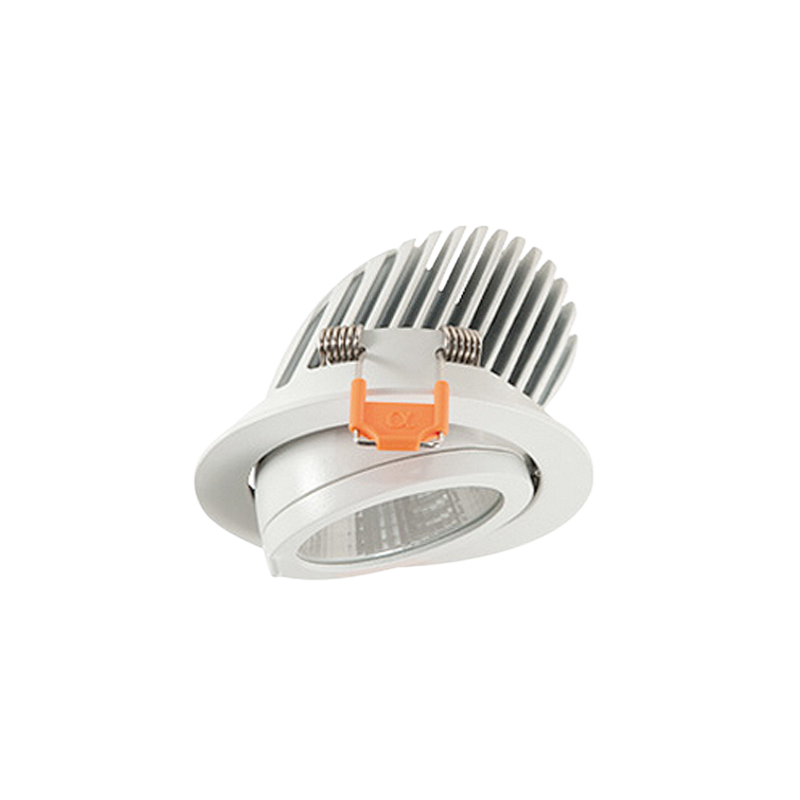

Brescia S

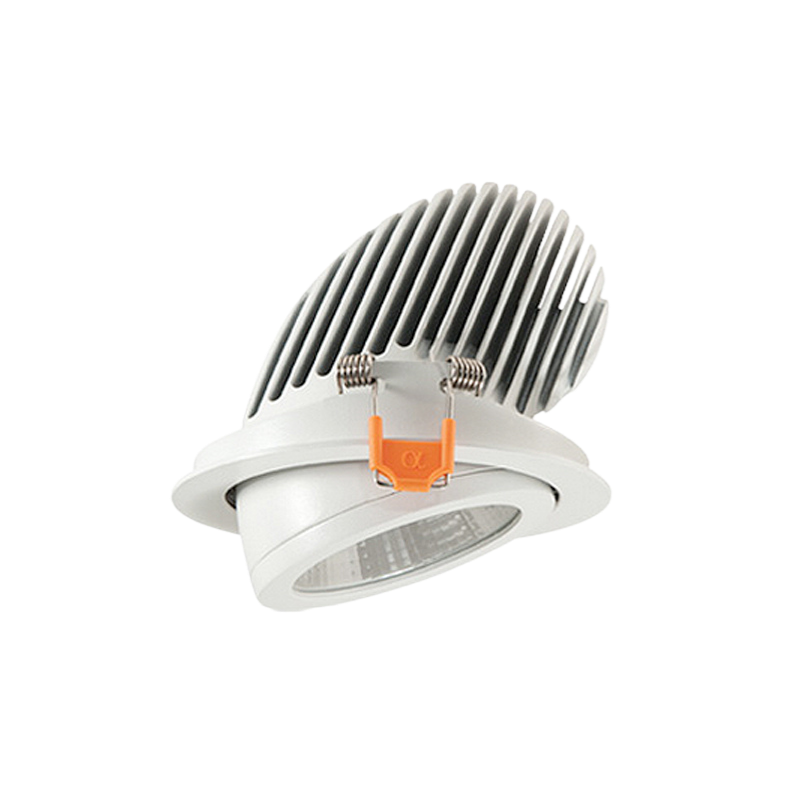

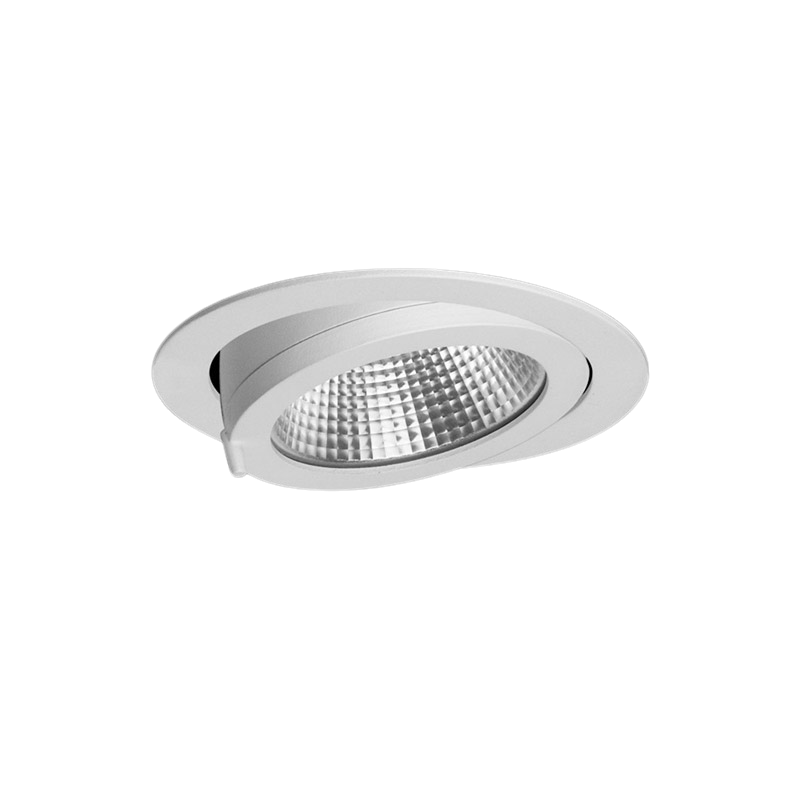

Brescia M

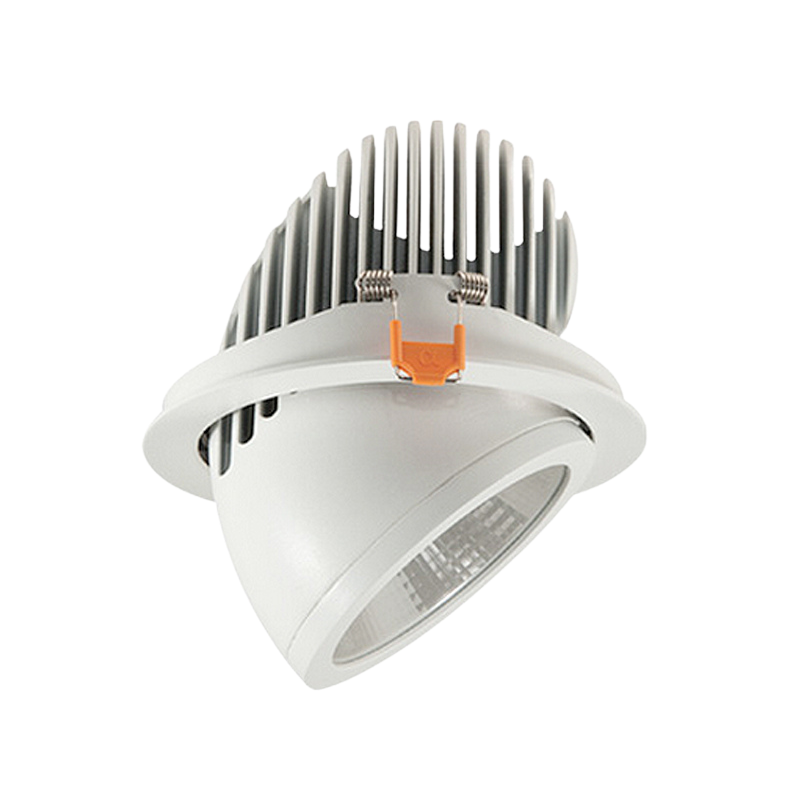

Brescia L

Luminaire overview

Design

Die cast aluminium housing in matt powdercoat finish. Superior cast aluminium multi-post heat sink to optimise the heat management. Extractable body is tiltable up to 75° to achieve wall washer effects. Spring loaded retaining clips to secure the downlight to the ceiling.

Optic

High purity faceted aluminium reflector. Three optic options to choose from: spot, flood and medium-wide flood.

Electrical

Remote fixed-output driver as standard, DALI dimmable driver optional.

Wattage: 14W - 42W

Light source

Energy effcient 3000K warm white or 4000K cool white LED modules, CRI90.

Lumen output: 1150lm - 3900lm

Product Configurator

Product	Family	Output (lm)	Watts	CCT	Optical Description	Finish Colour	Actions
Brescia Small Recessed Downlight SP 4000K Ra80 DALI Dimmable Fixed Output Black KBS03.0215.4080.2	Brescia Small	1200	14	4000K	Spot	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight SP 3000K Ra80 DALI Dimmable Black KBS03.0215.3080.2/DALIDIM	Brescia Small	1000	14	3000K	Spot	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight SP 4000K Ra80 DALI Dimmable Fixed Output White KBS03.0215.4080.1	Brescia Small	1200	14	4000K	Spot	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight SP 4000K Ra80 DALI Dimmable Black KBS03.0215.4080.2/DALIDIM	Brescia Small	1200	14	4000K	Spot	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight SP 3000K Ra80 DALI Dimmable Fixed Output Black KBS03.0215.3080.2	Brescia Small	1000	14	3000K	Spot	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight SP 4000K Ra80 DALI Dimmable White KBS03.0215.4080.1/DALIDIM	Brescia Small	1200	14	4000K	Spot	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight MWFL 4000K Ra80 DALI Dimmable Black KBS03.0415.4080.2/DALIDIM	Brescia Small	1200	14	4000K	Medium-Wide Flood	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight MWFL 4000K Ra80 DALI Dimmable Fixed Output White KBS03.0415.4080.1	Brescia Small	1200	14	4000K	Medium-Wide Flood	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight MWFL 4000K Ra80 DALI Dimmable Fixed Output Black KBS03.0415.4080.2	Brescia Small	1200	14	4000K	Medium-Wide Flood	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight SP 3000K Ra80 DALI Dimmable White KBS03.0215.3080.1/DALIDIM	Brescia Small	1000	14	3000K	Spot	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight SP 3000K Ra80 DALI Dimmable Fixed Output White KBS03.0215.3080.1	Brescia Small	1000	14	3000K	Spot	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight MWFL 3000K Ra80 DALI Dimmable White KBS03.0415.3080.1/DALIDIM	Brescia Small	1100	14	3000K	Medium-Wide Flood	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight MWFL 3000K Ra80 DALI Dimmable Fixed Output Black KBS03.0415.3080.2	Brescia Small	1100	14	3000K	Medium-Wide Flood	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight MWFL 4000K Ra80 DALI Dimmable White KBS03.0415.4080.1/DALIDIM	Brescia Small	1200	14	4000K	Medium-Wide Flood	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight FL 4000K Ra80 DALI Dimmable Black KBS03.0315.4080.2/DALIDIM	Brescia Small	1200	14	4000K	Flood	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight FL 4000K Ra80 DALI Dimmable Fixed Output White KBS03.0315.4080.1	Brescia Small	1200	14	4000K	Flood	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight MWFL 3000K Ra80 DALI Dimmable Fixed Output White KBS03.0415.3080.1	Brescia Small	1100	14	3000K	Medium-Wide Flood	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight MWFL 3000K Ra80 DALI Dimmable Black KBS03.0415.3080.2/DALIDIM	Brescia Small	1100	14	3000K	Medium-Wide Flood	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight FL 4000K Ra80 DALI Dimmable White KBS03.0315.4080.1/DALIDIM	Brescia Small	1200	14	4000K	Flood	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight SP 4000K Ra80 DALI Dimmable Black KBM03.0230.4080.2/DALIDIM	Brescia Medium	2400	27	4000K	Spot	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight FL 4000K Ra80 DALI Dimmable Fixed Output Black KBS03.0315.4080.2	Brescia Small	1200	14	4000K	Flood	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight FL 3000K Ra80 DALI Dimmable Black KBS03.0315.3080.2/DALIDIM	Brescia Small	1000	14	3000K	Flood	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight FL 3000K Ra80 DALI Dimmable Fixed Output White KBS03.0315.3080.1	Brescia Small	1000	14	3000K	Flood	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight FL 3000K Ra80 DALI Dimmable White KBS03.0315.3080.1/DALIDIM	Brescia Small	1000	14	3000K	Flood	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Small Recessed Downlight FL 3000K Ra80 DALI Dimmable Fixed Output Black KBS03.0315.3080.2	Brescia Small	1000	14	3000K	Flood	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight SP 4000K Ra80 DALI Dimmable White KBM03.0230.4080.1/DALIDIM	Brescia Medium	2400	27	4000K	Spot	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight SP 3000K Ra80 DALI Dimmable Fixed Output White KBM03.0230.3080.1	Brescia Medium	2300	27	3000K	Spot	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight MWFL 4000K Ra80 DALI Dimmable Black KBM03.0430.4080.2/DALIDIM	Brescia Medium	2300	27	4000K	Medium-Wide Flood	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight SP 4000K Ra80 DALI Dimmable Fixed Output Black KBM03.0230.4080.2	Brescia Medium	2400	27	4000K	Spot	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight SP 3000K Ra80 DALI Dimmable White KBM03.0230.3080.1/DALIDIM	Brescia Medium	2300	27	3000K	Spot	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight SP 4000K Ra80 DALI Dimmable Fixed Output White KBM03.0230.4080.1	Brescia Medium	2400	27	4000K	Spot	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight MWFL 4000K Ra80 DALI Dimmable Fixed Output White KBM03.0430.4080.1	Brescia Medium	2300	27	4000K	Medium-Wide Flood	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight MWFL 3000K Ra80 DALI Dimmable White KBM03.0430.3080.1/DALIDIM	Brescia Medium	2200	27	3000K	Medium-Wide Flood	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight MWFL 4000K Ra80 DALI Dimmable Fixed Output Black KBM03.0430.4080.2	Brescia Medium	2300	27	4000K	Medium-Wide Flood	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight SP 3000K Ra80 DALI Dimmable Fixed Output Black KBM03.0230.3080.2	Brescia Medium	2300	27	3000K	Spot	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight SP 3000K Ra80 DALI Dimmable Black KBM03.0230.3080.2/DALIDIM	Brescia Medium	2300	27	3000K	Spot	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight MWFL 4000K Ra80 DALI Dimmable White KBM03.0430.4080.1/DALIDIM	Brescia Medium	2300	27	4000K	Medium-Wide Flood	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight FL 4000K Ra80 DALI Dimmable Black KBM03.0330.4080.2/DALIDIM	Brescia Medium	2400	27	4000K	Flood	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight MWFL 3000K Ra80 DALI Dimmable Fixed Output White KBM03.0430.3080.1	Brescia Medium	2200	27	3000K	Medium-Wide Flood	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight FL 4000K Ra80 DALI Dimmable Fixed Output Black KBM03.0330.4080.2	Brescia Medium	2400	27	4000K	Flood	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight FL 4000K Ra80 DALI Dimmable White KBM03.0330.4080.1/DALIDIM	Brescia Medium	2400	27	4000K	Flood	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight MWFL 3000K Ra80 DALI Dimmable Black KBM03.0430.3080.2/DALIDIM	Brescia Medium	2200	27	3000K	Medium-Wide Flood	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight MWFL 3000K Ra80 DALI Dimmable Fixed Output Black KBM03.0430.3080.2	Brescia Medium	2200	27	3000K	Medium-Wide Flood	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight FL 3000K Ra80 DALI Dimmable Black KBM03.0330.3080.2/DALIDIM	Brescia Medium	2200	27	3000K	Flood	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight FL 3000K Ra80 DALI Dimmable White KBM03.0330.3080.1/DALIDIM	Brescia Medium	2200	27	3000K	Flood	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Large Recessed Downlight SP 4000K Ra80 DALI Dimmable White KBL03.0245.4080.1/DALIDIM	Brescia Large	3800	42	4000K	Spot	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight FL 3000K Ra80 DALI Dimmable Fixed Output Black KBM03.0330.3080.2	Brescia Medium	2200	27	3000K	Flood	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Large Recessed Downlight SP 4000K Ra80 DALI Dimmable Fixed Output Black KBL03.0245.4080.2	Brescia Large	3800	42	4000K	Spot	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Medium Recessed Downlight FL 4000K Ra80 DALI Dimmable Fixed Output White KBM03.0330.4080.1	Brescia Medium	2400	27	4000K	Flood	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Brescia Large Recessed Downlight SP 4000K Ra80 DALI Dimmable Fixed Output White KBL03.0245.4080.1	Brescia Large	3800	42	4000K	Spot	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
