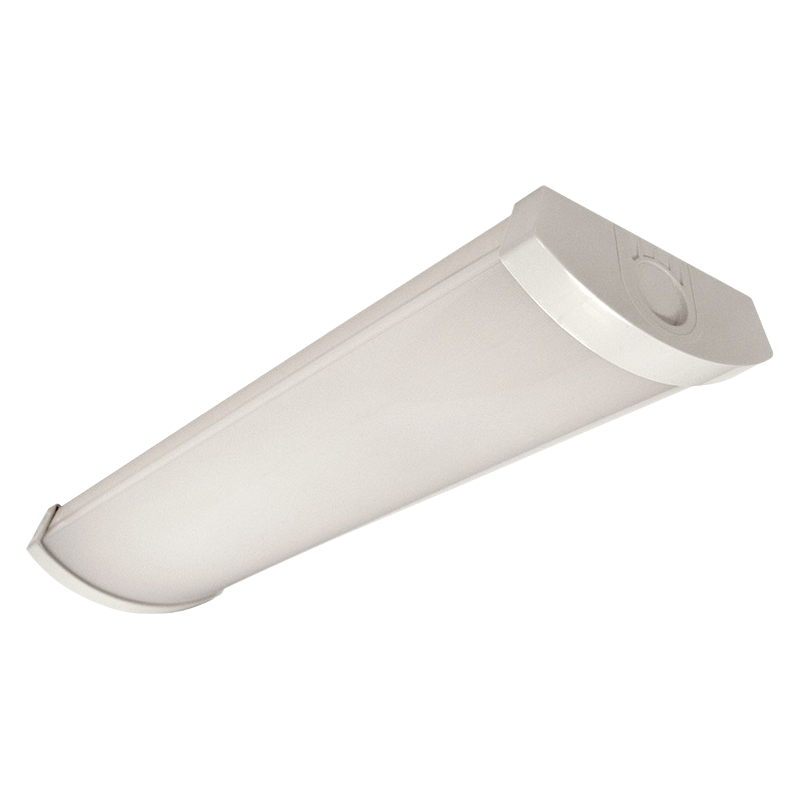

Linear luminaire
Surface mount LED luminaires featuring low profile design and efficient functionality designed for a wide variety of applications.
COI compliant CRI90 fixture and IP44 protection in either 600mm or 1200mm.
Luminaire overview
Design
Luminaire housing in white powder coated mild-steel, with white technopolymer end-caps.
Optic
One-piece injection-moulded opal acrylic diffuser with opposing direction LED arrays for highly uniform luminance across the lens.
Electrical
Integral driver in fixed output or DALI dimmable options.
Wattage: 22W - 39W
Emergency
1200mm version available with maintained emergency kit, either single point or DALI monitored. Classification C0:D40 C90:D25.
Light Source
Energy efficient 4000K Neutral White LEDs module, CRI 90, Cyanosis Observation compliant.
Lumen output: 1990lm - 3620lm
Product Configurator
| Product | Control | Output (lm) | CCT | Mounting Type | Actions |
|---|---|---|---|---|---|
Carmela 600 Fixed Output 4000K Ra90
CARMELA.06FHSW.4090
| Fixed Output | 1990 | 4000K | Surface mounted |
Add to Project Briefcase
|
|
Carmela 1200 DALI Dimmable 4000K Ra90
CARMELA.12DDSW.4090
| DALI Dimmable | 3620 | 4000K | Surface mounted |
Add to Project Briefcase
|
|
Carmela 1200 Fixed Output 4000K Ra90
CARMELA.12FHSW.4090
| Fixed Output | 3620 | 4000K | Surface mounted |
Add to Project Briefcase
|
|
Carmela 600 DALI Dimmable 4000K Ra90
CARMELA.06DDSW.4090
| DALI Dimmable | 1990 | 4000K | Surface mounted |
Add to Project Briefcase
|
