Clinic Family

Quick links

Download family photometry Go to product configurator

COI compliant IP65 (from below) LED panel luminaire

The Clinic series of LED panel luminaires deliver high performance and low glare in an IP65 (below ceiling) solution. Anti-microbial treatment applied to exposed underside of fixture. Supplied standard for plaster recessing, or suitable for Bondor ceilings with extended mounting bracket accessory.

Key features

COI compliant IP65 (from below)
Anti-microbial treatment to underside of fixture
Mounting options for plaster and Bondor recessing
IK04

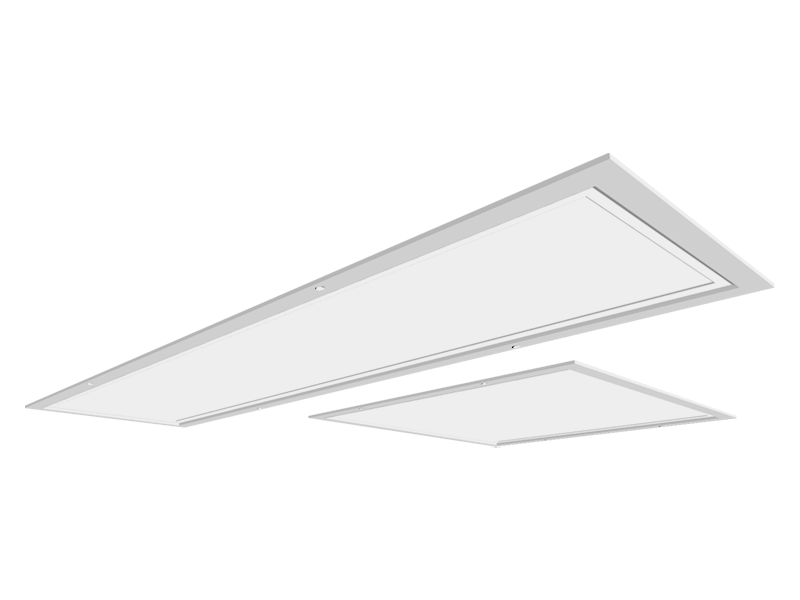

Two available sizes

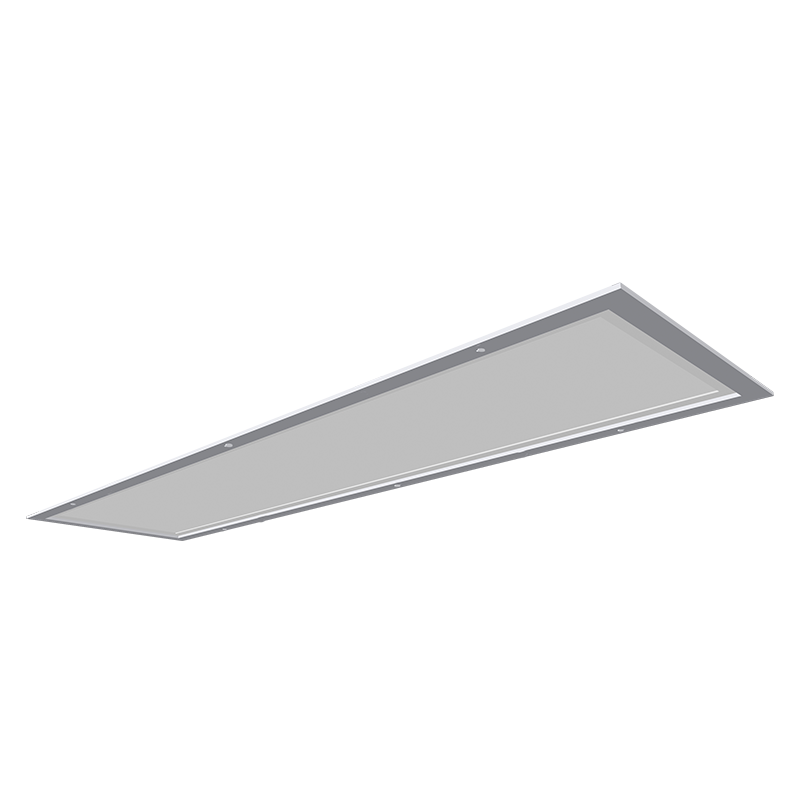

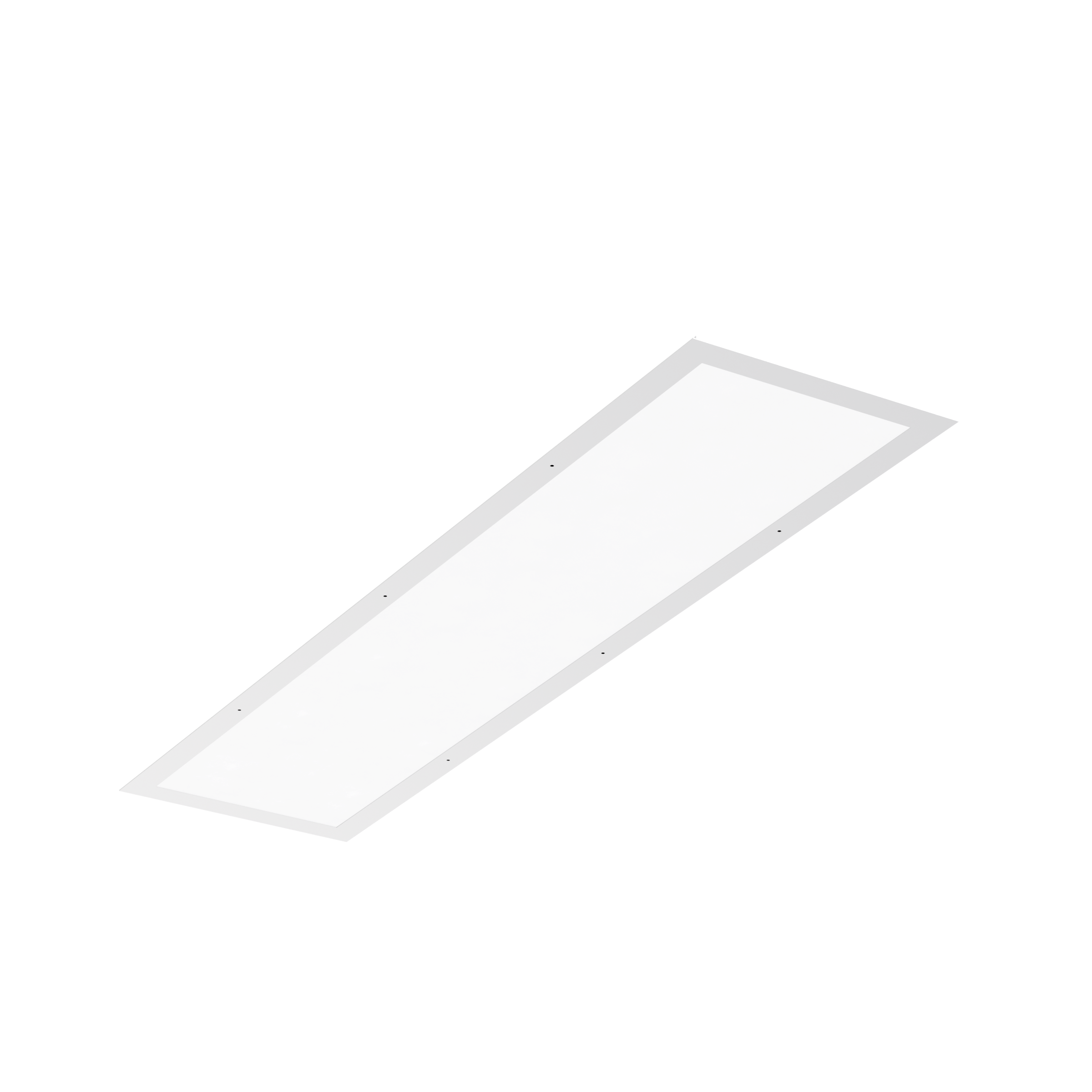

1200mm x 300mm

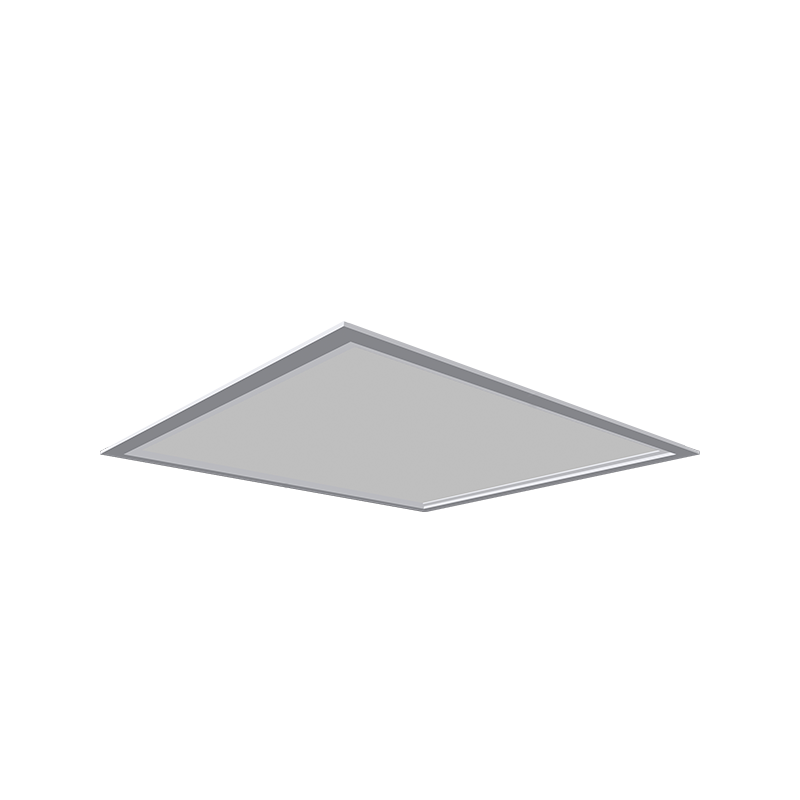

600mm x 600mm

Luminaire overview

Design

Low profile extruded aluminium luminaire frame, double gasketed, white powdercoated. Anti-microbial treatment applied to exposed underside of luminaire.

Optic

Low glare, high output opalescent optic.

Electrical

Choice of either fixed output, trailing-edge dimmable, or DALI dimmable remote electronic driver, with quick-connect plug.

Wattage: 21W - 42W

Light source

Highly efficient LED source, 4000K, CRI 90, Cyanosis Observation Compliant.

Lumen output: 1800lm - 4000lm

Product Configurator

Product	Family	Output (lm)	CCT	Mounting Type	Control	Actions
Clinic Surface Mounted 600x600mm (nom.) Phase-Cut Dimmable 700mA Opalescent 4000K Ra90 CLINIC.SM.MTM.4090.22	Clinic 600x600	2600	4000K	Surface Mounted	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Surface Mounted 600x600mm (nom.) Phase-Cut Dimmable 500mA Opalescent 4000K Ra90 CLINIC.SM.MTL.4090.22	Clinic 600x600	1900	4000K	Surface Mounted	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Surface Mounted 600x600mm (nom.) Fixed Output 700mA Opalescent 4000K Ra90 CLINIC.SM.M1M.4090.22	Clinic 600x600	2600	4000K	Surface Mounted	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Surface Mounted 600x600mm (nom.) Phase-Cut Dimmable 1050mA Opalescent 4000K Ra90 CLINIC.SM.MTH.4090.22	Clinic 600x600	3900	4000K	Surface Mounted	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Surface Mounted 600x600mm (nom.) Fixed Output 500mA Opalescent 4000K Ra90 CLINIC.SM.M1L.4090.22	Clinic 600x600	1900	4000K	Surface Mounted	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Surface Mounted 600x600mm (nom.) Fixed Output 1050mA Opalescent 4000K Ra90 CLINIC.SM.M1H.4090.22	Clinic 600x600	3900	4000K	Surface Mounted	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Surface Mounted 600x600mm (nom.) DALI Dimmable 700mA Opalescent 4000K Ra90 CLINIC.SM.MDM.4090.22	Clinic 600x600	2600	4000K	Surface Mounted	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Surface Mounted 600x600mm (nom.) DALI Dimmable 500mA Opalescent 4000K Ra90 CLINIC.SM.MDL.4090.22	Clinic 600x600	1900	4000K	Surface Mounted	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Surface Mounted 600x600mm (nom.) DALI Dimmable 1050mA Opalescent 4000K Ra90 CLINIC.SM.MDH.4090.22	Clinic 600x600	3900	4000K	Surface Mounted	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Surface Mounted 1200x300mm (nom.) Phase-Cut Dimmable 700mA Opalescent 4000K Ra90 CLINIC.SM.LTM.4090.22	Clinic 1200x300	2600	4000K	Surface Mounted	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Surface Mounted 1200x300mm (nom.) Phase-Cut Dimmable 500mA Opalescent 4000K Ra90 CLINIC.SM.LTL.4090.22	Clinic 1200x300	1900	4000K	Surface Mounted	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Surface Mounted 1200x300mm (nom.) Phase-Cut Dimmable 1050mA Opalescent 4000K Ra90 CLINIC.SM.LTH.4090.22	Clinic 1200x300	4000	4000K	Surface Mounted	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Surface Mounted 1200x300mm (nom.) Fixed Output 700mA Opalescent 4000K Ra90 CLINIC.SM.L1M.4090.22	Clinic 1200x300	2600	4000K	Surface Mounted	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Surface Mounted 1200x300mm (nom.) Fixed Output 500mA Opalescent 4000K Ra90 CLINIC.SM.L1L.4090.22	Clinic 1200x300	1900	4000K	Surface Mounted	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Surface Mounted 1200x300mm (nom.) Fixed Output 1050mA Opalescent 4000K Ra90 CLINIC.SM.L1H.4090.22	Clinic 1200x300	4000	4000K	Surface Mounted	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Surface Mounted 1200x300mm (nom.) DALI Dimmable 700mA Opalescent 4000K Ra90 CLINIC.SM.LDM.4090.22	Clinic 1200x300	2600	4000K	Surface Mounted	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Surface Mounted 1200x300mm (nom.) DALI Dimmable 500mA Opalescent 4000K Ra90 CLINIC.SM.LDL.4090.22	Clinic 1200x300	1900	4000K	Surface Mounted	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Surface Mounted 1200x300mm (nom.) DALI Dimmable 1050mA Opalescent 4000K Ra90 CLINIC.SM.LDH.4090.22	Clinic 1200x300	4000	4000K	Surface Mounted	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Plaster Recessed 600x600mm (nom.) Phase-Cut Dimmable 700mA Opalescent 4000K Ra90 CLINIC.MTM.4090.22	Clinic 600x600	2600	4000K	Plaster Recessed	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Plaster Recessed 600x600mm (nom.) Phase-Cut Dimmable 500mA Opalescent 4000K Ra90 CLINIC.MTL.4090.22	Clinic 600x600	1900	4000K	Plaster Recessed	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Plaster Recessed 600x600mm (nom.) Phase-Cut Dimmable 1050mA Opalescent 4000K Ra90 CLINIC.MTH.4090.22	Clinic 600x600	3900	4000K	Plaster Recessed	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Plaster Recessed 600x600mm (nom.) Fixed Output 700mA Opalescent 4000K Ra90 CLINIC.M1M.4090.22	Clinic 600x600	2600	4000K	Plaster Recessed	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Plaster Recessed 600x600mm (nom.) Fixed Output 500mA Opalescent 4000K Ra90 CLINIC.M1L.4090.22	Clinic 600x600	1900	4000K	Plaster Recessed	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Plaster Recessed 600x600mm (nom.) Fixed Output 1050mA Opalescent 4000K Ra90 CLINIC.M1H.4090.22	Clinic 600x600	3900	4000K	Plaster Recessed	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Plaster Recessed 600x600mm (nom.) DALI Dimmable 700mA Opalescent 4000K Ra90 CLINIC.MDM.4090.22	Clinic 600x600	2600	4000K	Plaster Recessed	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Plaster Recessed 600x600mm (nom.) DALI Dimmable 500mA Opalescent 4000K Ra90 CLINIC.MDL.4090.22	Clinic 600x600	1900	4000K	Plaster Recessed	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Plaster Recessed 600x600mm (nom.) DALI Dimmable 1050mA Opalescent 4000K Ra90 CLINIC.MDH.4090.22	Clinic 600x600	3900	4000K	Plaster Recessed	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Plaster Recessed 1200x300mm (nom.) Phase-Cut Dimmable 700mA Opalescent 4000K Ra90 CLINIC.LTM.4090.22	Clinic 1200x300	2600	4000K	Plaster Recessed	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Plaster Recessed 1200x300mm (nom.) Phase-Cut Dimmable 500mA Opalescent 4000K Ra90 CLINIC.LTL.4090.22	Clinic 1200x300	1900	4000K	Plaster Recessed	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Plaster Recessed 1200x300mm (nom.) Phase-Cut Dimmable 1050mA Opalescent 4000K Ra90 CLINIC.LTH.4090.22	Clinic 1200x300	4000	4000K	Plaster Recessed	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Plaster Recessed 1200x300mm (nom.) Fixed Output 700mA Opalescent 4000K Ra90 CLINIC.L1M.4090.22	Clinic 1200x300	2600	4000K	Plaster Recessed	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Plaster Recessed 1200x300mm (nom.) Fixed Output 500mA Opalescent 4000K Ra90 CLINIC.L1L.4090.22	Clinic 1200x300	1900	4000K	Plaster Recessed	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Plaster Recessed 1200x300mm (nom.) Fixed Output 1050mA Opalescent 4000K Ra90 CLINIC.L1H.4090.22	Clinic 1200x300	4000	4000K	Plaster Recessed	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Plaster Recessed 1200x300mm (nom.) DALI Dimmable 700mA Opalescent 4000K Ra90 CLINIC.LDM.4090.22	Clinic 1200x300	2600	4000K	Plaster Recessed	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Plaster Recessed 1200x300mm (nom.) DALI Dimmable 500mA Opalescent 4000K Ra90 CLINIC.LDL.4090.22	Clinic 1200x300	1900	4000K	Plaster Recessed	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Plaster Recessed 1200x300mm (nom.) DALI Dimmable 1050mA Opalescent 4000K Ra90 CLINIC.LDH.4090.22	Clinic 1200x300	4000	4000K	Plaster Recessed	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Bondor Recessed 600x600mm (nom.) Phase-Cut Dimmable 700mA Opalescent 4000K Ra90 CLINIC.MTM.4090.22/BONDOR	Clinic 600x600	2600	4000K	Bondor Recessed (max. ceiling depth 100mm)	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Bondor Recessed 600x600mm (nom.) Phase-Cut Dimmable 500mA Opalescent 4000K Ra90 CLINIC.MTL.4090.22/BONDOR	Clinic 600x600	1900	4000K	Bondor Recessed (max. ceiling depth 100mm)	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Bondor Recessed 600x600mm (nom.) Fixed Output 700mA Opalescent 4000K Ra90 CLINIC.M1M.4090.22/BONDOR	Clinic 600x600	2600	4000K	Bondor Recessed (max. ceiling depth 100mm)	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Bondor Recessed 600x600mm (nom.) Fixed Output 500mA Opalescent 4000K Ra90 CLINIC.M1L.4090.22/BONDOR	Clinic 600x600	1900	4000K	Bondor Recessed (max. ceiling depth 100mm)	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Bondor Recessed 600x600mm (nom.) Phase-Cut Dimmable 1050mA Opalescent 4000K Ra90 CLINIC.MTH.4090.22/BONDOR	Clinic 600x600	3900	4000K	Bondor Recessed (max. ceiling depth 100mm)	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Bondor Recessed 600x600mm (nom.) Fixed Output 1050mA Opalescent 4000K Ra90 CLINIC.M1H.4090.22/BONDOR	Clinic 600x600	3900	4000K	Bondor Recessed (max. ceiling depth 100mm)	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Bondor Recessed 600x600mm (nom.) DALI Dimmable 700mA Opalescent 4000K Ra90 CLINIC.MDM.4090.22/BONDOR	Clinic 600x600	2600	4000K	Bondor Recessed (max. ceiling depth 100mm)	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Bondor Recessed 600x600mm (nom.) DALI Dimmable 1050mA Opalescent 4000K Ra90 CLINIC.MDH.4090.22/BONDOR	Clinic 600x600	3900	4000K	Bondor Recessed (max. ceiling depth 100mm)	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Bondor Recessed 1200x300mm (nom.) Phase-Cut Dimmable 700mA Opalescent 4000K Ra90 CLINIC.LTM.4090.22/BONDOR	Clinic 1200x300	2600	4000K	Bondor Recessed (max. ceiling depth 100mm)	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Bondor Recessed 600x600mm (nom.) DALI Dimmable 500mA Opalescent 4000K Ra90 CLINIC.MDL.4090.22/BONDOR	Clinic 600x600	1900	4000K	Bondor Recessed (max. ceiling depth 100mm)	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Bondor Recessed 1200x300mm (nom.) Phase-Cut Dimmable 500mA Opalescent 4000K Ra90 CLINIC.LTL.4090.22/BONDOR	Clinic 1200x300	1900	4000K	Bondor Recessed (max. ceiling depth 100mm)	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Bondor Recessed 1200x300mm (nom.) Phase-Cut Dimmable 1050mA Opalescent 4000K Ra90 CLINIC.LTH.4090.22/BONDOR	Clinic 1200x300	4000	4000K	Bondor Recessed (max. ceiling depth 100mm)	Phase-Cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Bondor Recessed 1200x300mm (nom.) Fixed Output 700mA Opalescent 4000K Ra90 CLINIC.L1M.4090.22/BONDOR	Clinic 1200x300	2600	4000K	Bondor Recessed (max. ceiling depth 100mm)	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Clinic Bondor Recessed 1200x300mm (nom.) Fixed Output 500mA Opalescent 4000K Ra90 CLINIC.L1L.4090.22/BONDOR	Clinic 1200x300	1900	4000K	Bondor Recessed (max. ceiling depth 100mm)	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
