A new light, in the centre of the city
Big cities, huge spaces and green areas, in order to be valued in the right way and in total safety, need a great ally: the light. Cities are growing rapidly, leading to an uninterrupted increase in mobility of its population. Urban areas are becoming spaces where attractive poles are being used for several reasons: for work, for leisure, for tourism, for study, representing the nerve centre of the most various interests. To improve the everyday quality life of citizens and meet the increasingly and complex urban needs.
Specifically designed for urban lighting, this new collection combines the architectural and aesthetic needs to the most concrete needs of public administration, safeguarding the environment through energy saving plans and management costs, and those of citizens, contributing to the improvement of the quality of life, the increase of safety and liveability, thanks to services advanced connectivity and mobility.
Two options

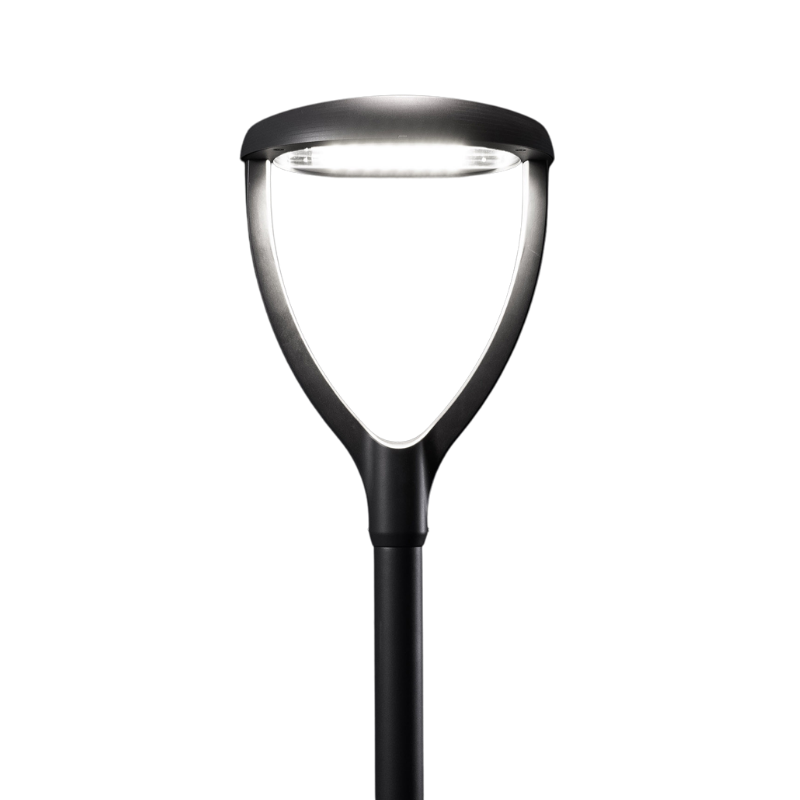

Dea Park

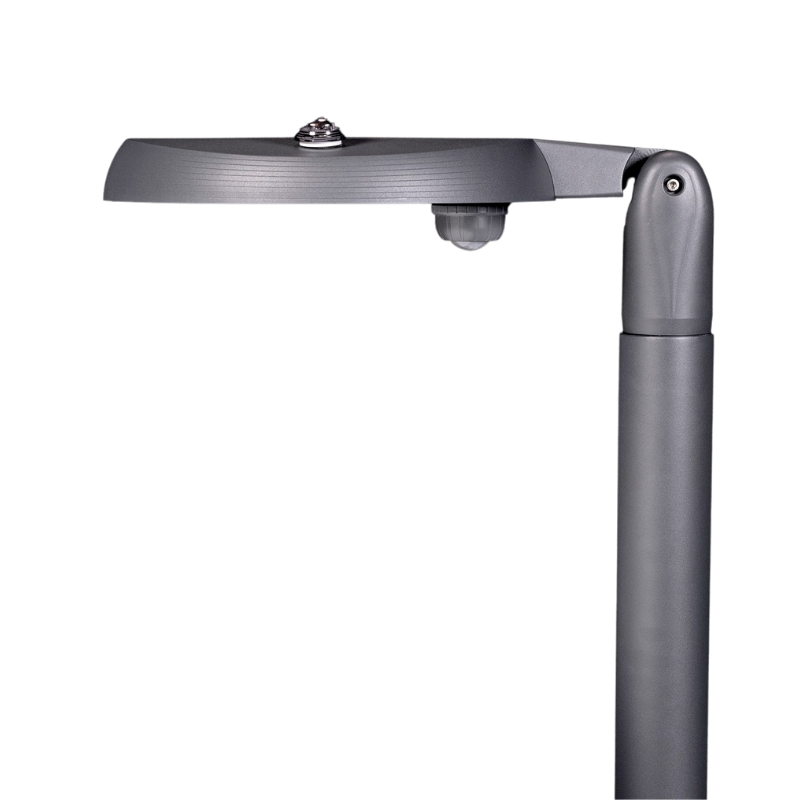

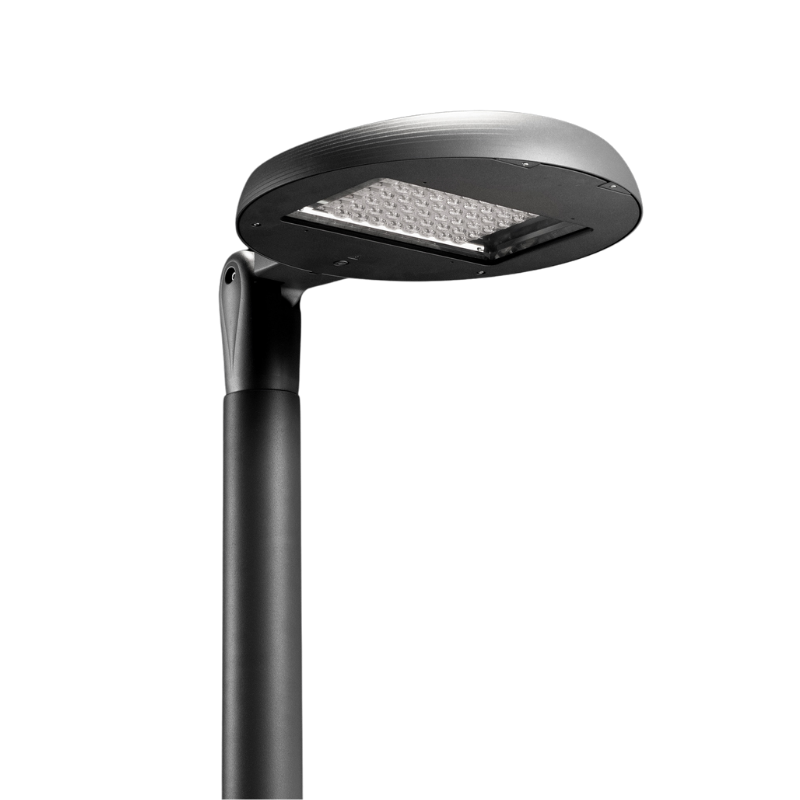

Dea Street
Key features:
Available to use spectral transition. Please contact our sales team to find out more.
Luminaire overview
Design
Upper cover and glass holder in die-cast aluminum with minimum EN 47100 title with low content copper and high resistance to atmospheric agents. Upper cover with smooth finish of highly aesthetic aspect. Coated under the AION process, in silver-colored polyester powders (RAL 7021). This process certifies the luminaire’s resistance to UV radiation according to ASTM D4587:2011, to salt spray according to EN ISO 9227:2017 with a minimum exposure time of 3000 hours and to corrosion according to ISO 12944 for class C5HD.
Device locking system on pole by means of two grub screws in stainless steel. Pressure compensation filter in Teflon. Gaskets in anti-aging rubber, removable. Extra-clear tempered safety glass protection screen, 4mm thick. Stainless steel external captive screws.
Optic
SAFE•WAY and SAFE•PED optic system, refraction system. FHS = 0%, with glass parallel to the ground. Optic group easily replaceable. LED Technology on a pressed aluminum circuit, highly dissipating MCPCB (Metal Core Printed Circuit Board).
Electrical
Power supply unit consisting of a programmable driver with a lifespan greater than 100,000h. Electronic power supply with integrated thermal protection with high efficiency and durability intended for external use. All versions are protected against overloads and surges to protect components and LEDs. The system is equipped with a knife switch to interrupt the power supply at the device’s opening. Power supply cable with an IP68 sealed fast connector: thus is not necessary open the streetlight with an overall protection degree of IP66. Power correction factor at full load > 0.9. Power supply 220 - 240V / 50 - 60 Hz VAC.
Light Source
LED colour temperature 3000K CRI>70
Street lights are available with PC Amber
After data on Dea?
We recognise there is no data here. The Dea data will be available shortly.
In the meantime, if you're after a data sheet or more information please fill out the form below and we will be in contact.
