Droid Family

Quick links

Download family photometry Go to product configurator

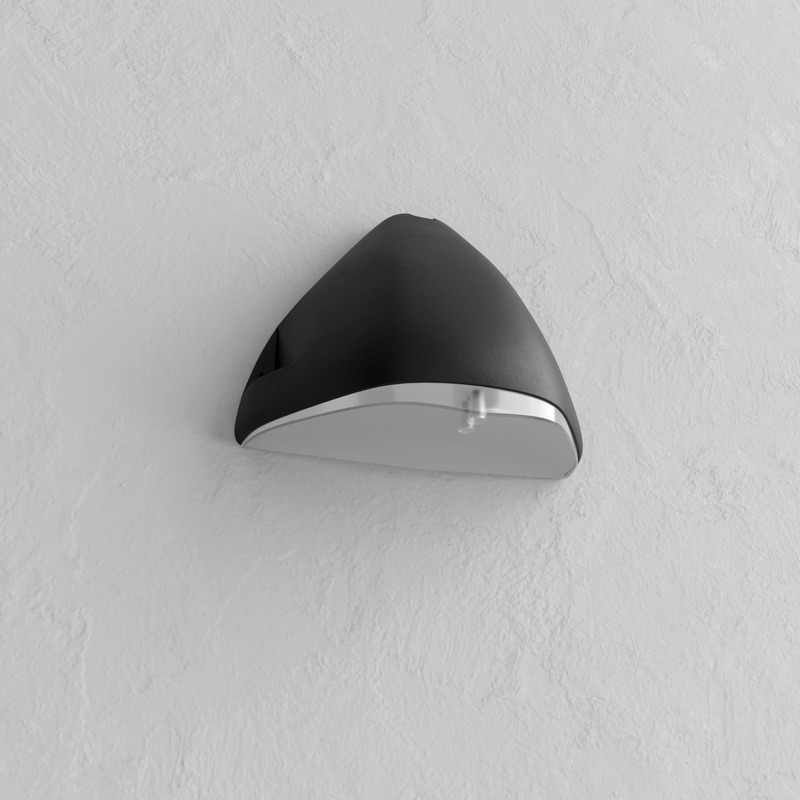

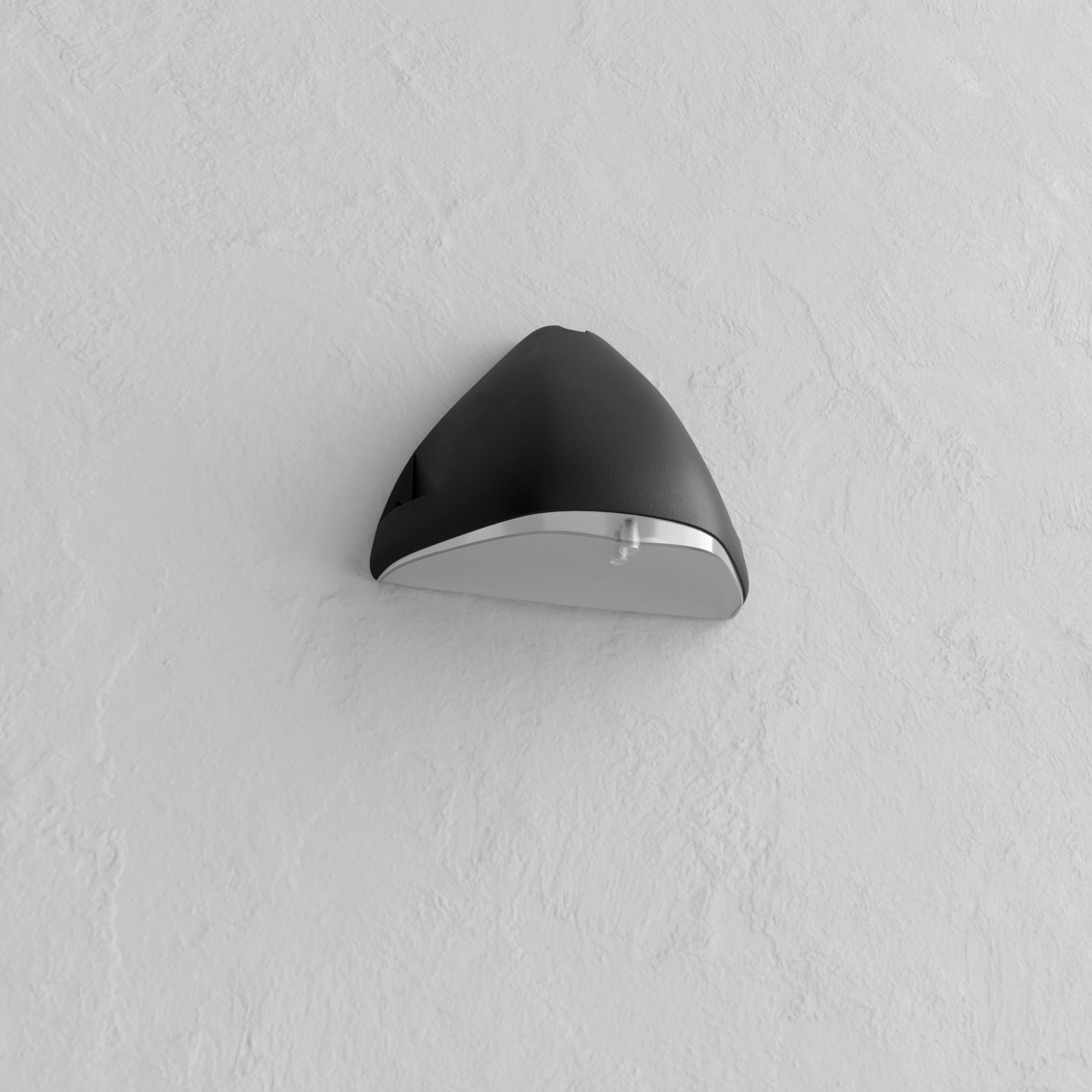

High impact resistant wall luminaire

Rugged IK11 LED luminaire for high, medium, and low-risk secure services.

Key features:

IK11 & tamperproof screws for security-conscious locations
IP65 protection
Up to 3600lm
Three sizes available: L - 320mm, M - 260mm, S - 130mm

Luminaire overview

Design

Heavy-duty die-cast aluminium housing, reduced ligature risk when wall mounted and using anti-pick mastic sealant.

Optic

Clear polycarbonate optic cover with fine stipple frosting, sealed to IP65 with tamper-resistant screws. Standard as broad Symmetrical downlight beam; DROID L versions with optional Asymmetric beam spread.

Electrical

Integral electronic driver in choice of fixed output or DALI dimmable.

Wattage: 5W - 27W

Light source

Energy efficient LEDs in 3000K or 4000K, CRI Ra80. (3000K not available in Asymmetric versions)

Lumen output: 550lm - 3600lm

Product Configurator

Product	Family	CCT	Watts	Output (lm)	Efficacy (lm/W)	Control	Actions
Droid S Standard Output Fixed Output 4000K Ra80 DROIDS1.OPFO.4080	Droid S	4000K	5	590	128	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid S Standard Output Fixed Output 3000K Ra80 DROIDS1.OPFO.3080	Droid S	3000K	5	560	122	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid M Low Output DALI Dimmable 4000K Ra80 with PE Cell DROIDM1.OPDD.4080.PE	Droid M	4000K	7	980	140	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid M Low Output DALI Dimmable 4000K Ra80 DROIDM1.OPDD.4080	Droid M	4000K	7	980	140	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid M Mid Output DALI Dimmable 4000K Ra80 with PE Cell DROIDM2.OPDD.4080.PE	Droid M	4000K	8	1180	142	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid M Mid Output DALI Dimmable 4000K Ra80 DROIDM2.OPDD.4080	Droid M	4000K	8	1180	142	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid M High Output DALI Dimmable 4000K Ra80 with PE Cell DROIDM4.OPDD.4080.PE	Droid M	4000K	12	1600	137	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid M High Output DALI Dimmable 4000K Ra80 DROIDM4.OPDD.4080	Droid M	4000K	12	1600	137	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid M Low Output Fixed Output 4000K Ra80 with PE Cell DROIDM1.OPFO.4080.PE	Droid M	4000K	7	980	140	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid M Low Output Fixed Output 4000K Ra80 DROIDM1.OPFO.4080	Droid M	4000K	7	980	140	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid M Mid Output Fixed Output 4000K Ra80 with PE Cell DROIDM2.OPFO.4080.PE	Droid M	4000K	8	1180	142	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid M Mid Output Fixed Output 4000K Ra80 DROIDM2.OPFO.4080	Droid M	4000K	8	1180	142	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid M High Output Fixed Output 4000K Ra80 with PE Cell DROIDM4.OPFO.4080.PE	Droid M	4000K	12	1600	137	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid M High Output Fixed Output 4000K Ra80 DROIDM4.OPFO.4080	Droid M	4000K	12	1600	137	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid M Low Output DALI Dimmable 3000K Ra80 with PE Cell DROIDM1.OPDD.3080.PE	Droid M	3000K	7	930	133	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid M Low Output DALI Dimmable 3000K Ra80 DROIDM1.OPDD.3080	Droid M	3000K	7	930	133	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid M Mid Output DALI Dimmable 3000K Ra80 with PE Cell DROIDM2.OPDD.3080.PE	Droid M	3000K	8	1120	135	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid M Mid Output DALI Dimmable 3000K Ra80 DROIDM2.OPDD.3080	Droid M	3000K	8	1120	135	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid M High Output DALI Dimmable 3000K Ra80 with PE Cell DROIDM4.OPDD.3080.PE	Droid M	3000K	12	1520	130	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid M High Output DALI Dimmable 3000K Ra80 DROIDM4.OPDD.3080	Droid M	3000K	12	1520	130	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid M Low Output Fixed Output 3000K Ra80 with PE Cell DROIDM1.OPFO.3080.PE	Droid M	3000K	7	930	133	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid M Low Output Fixed Output 3000K Ra80 DROIDM1.OPFO.3080	Droid M	3000K	7	930	133	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid M High Output Fixed Output 3000K Ra80 with PE Cell DROIDM4.OPFO.3080.PE	Droid M	4000K	13	1830	139	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid M High Output Fixed Output 3000K Ra80 DROIDM4.OPFO.3080	Droid M	4000K	13	1830	139	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L Low Output Assymetric DALI Dimmable 4000K Ra80 with PE Cell DROIDL1.ASDD.4080.PE	Droid L	4000K	18	2540	140	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L Low Output Assymetric DALI Dimmable 4000K Ra80 DROIDL1.ASDD.4080	Droid L	4000K	18	2540	140	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L Mid Output Assymetric DALI Dimmable 4000K Ra80 with PE Cell DROIDL2.ASDD.4080.PE	Droid L	4000K	27	3600	131	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L Mid Output Assymetric DALI Dimmable 4000K Ra80 DROIDL2.ASDD.4080	Droid L	4000K	27	3600	131	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L Low Output Assymetric Fixed Output 4000K Ra80 with PE Cell DROIDL1.ASFO.4080.PE	Droid L	4000K	13	1830	139	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L Low Output Assymetric Fixed Output 4000K Ra80 DROIDL1.ASFO.4080	Droid L	4000K	13	1830	139	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L Mid Output Assymetric Fixed Output 4000K Ra80 with PE Cell DROIDL2.ASFO.4080.PE	Droid L	4000K	18	2540	140	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L Mid Output Assymetric Fixed Output 4000K Ra80 DROIDL2.ASFO.4080	Droid L	4000K	18	2540	140	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L High Output Assymetric Fixed Output 4000K Ra80 with PE Cell DROIDL3.ASFO.4080.PE	Droid L	4000K	27	3600	131	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L High Output Assymetric Fixed Output 4000K Ra80 DROIDL3.ASFO.4080	Droid L	4000K	27	3600	131	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L Low Output DALI Dimmable 4000K Ra80 with PE Cell DROIDL1.OPDD.4080.PE	Droid L	4000K	13	1760	135	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L Low Output DALI Dimmable 4000K Ra80 DROIDL1.OPDD.4080	Droid L	4000K	13	1760	135	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L Medium Output DALI Dimmable 4000K Ra80 with PE Cell DROIDL2.OPDD.4080.PE	Droid L	4000K	18	2450	136	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L Medium Output DALI Dimmable 4000K Ra80 DROIDL2.OPDD.4080	Droid L	4000K	18	2450	136	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L High Output DALI Dimmable 4000K Ra80 with PE Cell DROIDL3.OPDD.4080.PE	Droid L	4000K	26	3490	132	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L Low Output Fixed Output 4000K Ra80 with PE Cell DROIDL1.OPFO.4080.PE	Droid L	4000K	13	1760	135	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L High Output DALI Dimmable 4000K Ra80 DROIDL3.OPDD.4080	Droid L	4000K	26	3490	132	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L Low Output Fixed Output 4000K Ra80 DROIDL1.OPFO.4080	Droid L	4000K	13	1760	135	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L Medium Output Fixed Output 4000K Ra80 with PE Cell DROIDL2.OPFO.4080.PE	Droid L	4000K	18	2450	136	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L Medium Output Fixed Output 4000K Ra80 DROIDL2.OPFO.4080	Droid L	4000K	18	2450	136	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L High Output Fixed Output 4000K Ra80 with PE Cell DROIDL3.OPFO.4080.PE	Droid L	4000K	26	3490	132	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L High Output Fixed Output 4000K Ra80 DROIDL3.OPFO.4080	Droid L	4000K	26	3490	132	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L Low Output DALI Dimmable 3000K Ra80 with PE Cell DROIDL1.OPDD.3080.PE	Droid L	3000K	13	1670	128	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L Low Output DALI Dimmable 3000K Ra80 DROIDL1.OPDD.3080	Droid L	3000K	13	1670	128	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L Medium Output DALI Dimmable 3000K Ra80 with PE Cell DROIDL2.OPDD.3080.PE	Droid L	3000K	18	2330	129	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Droid L Medium Output DALI Dimmable 3000K Ra80 DROIDL2.OPDD.3080	Droid L	3000K	18	2330	129	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
