Enduralux Family

Quick links

Download family photometry Go to product configurator

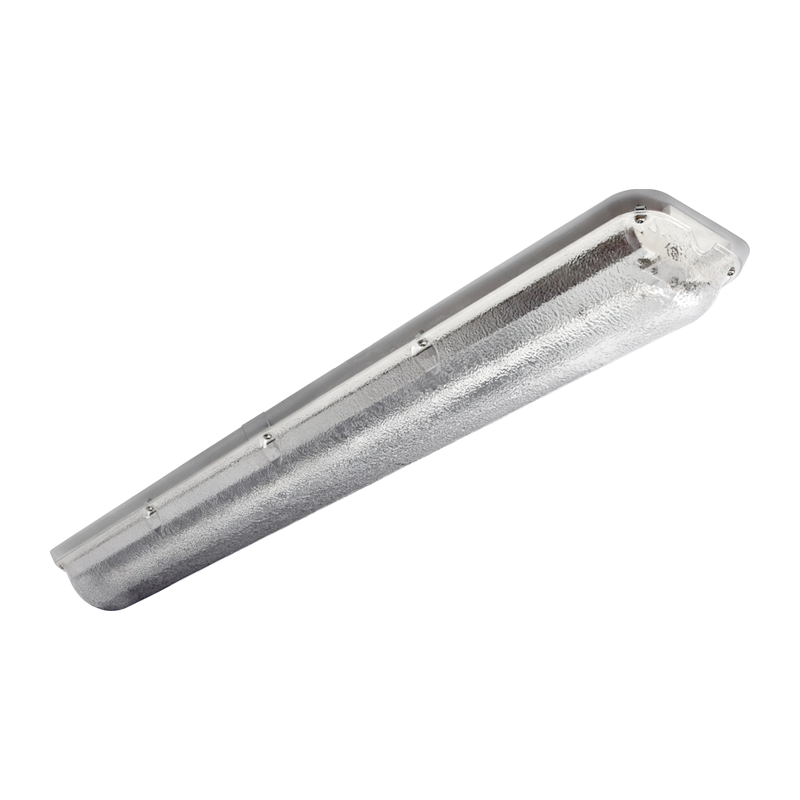

High risk correctional facility cell luminaire

Surface-mounted prison cell luminaire approved for ceiling fixing, available in three linear lengths and a square bulkhead with heavy-duty opal or clear frosted lenses.

Key features:

IP54, 50 joule impact resistance (IK10 'plus') construction
Multiple options for lenses, sizes and more
Anti-ligature design
Opal or clear frosted glass
Length: 675mm, 975mm, 1275mm

Luminaire overview

Design

Body constructed from 1.5mm pre-treated mild steel and powder coated to RAL9010 semi-gloss encapsulated by lens, c/w 0.8-0.9mm internal specular aluminium reflector.

Optic

5mm UV-certified polycarbonate lens (50 joule impact resistant IK10+) in clear frosted or opal, fastened by TORX stainless steel fasteners.

Electrical

Integral electronic gear. Dimmable options available. Emergency and night-light options available.

Wattage: 24W - 96W

Light Source

Highly efficient LED 4000K sources, CRI >80.

Lumen output: 3200lm - 13200lm

Product Configurator

Product	Family	CCT	Control	Watts	Electrical Class	Efficacy (lm/W)	CRI	Stock Status	Actions
Enduralux Linear Large 5mm Frosted Lens 400mA Casambi MelaGen Calm Ra90 ENLUXLL.F5.0400CS.RF90MA	Enduralux Large	2200K	Casambi	113	Class I	102	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 400mA Casambi MelaGen Active Ra90 ENLUXLL.F5.0400CS.BL90MA	Enduralux Large	4200K	Casambi	110	Class I	118	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 400mA Casambi 4000K Ra90 ENLUXLL.F5.0400CS.4090MB	Enduralux Large	4000K	Casambi	77	Class I	140	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 400mA Casambi 3000K Ra90 ENLUXLL.F5.0400CS.3090MB	Enduralux Large	3000K	Casambi	77	Class I	133	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 300mA Casambi MelaGen Calm Ra90 ENLUXLL.F5.0300CS.RF90MA	Enduralux Large	2200K	Casambi	87	Class I	100	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 300mA Casambi MelaGen Active Ra90 ENLUXLL.F5.0300CS.BL90MA	Enduralux Large	4200K	Casambi	85	Class I	116	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 300mA Casambi 4000K Ra90 ENLUXLL.F5.0300CS.4090MB	Enduralux Large	4000K	Casambi	59	Class I	137	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 300mA Casambi 3000K Ra90 ENLUXLL.F5.0300CS.3090MB	Enduralux Large	3000K	Casambi	59	Class I	131	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 150mA Casambi MelaGen Calm Ra90 ENLUXLL.F5.0150CS.RF90MA	Enduralux Large	2200K	Casambi	49	Class I	93	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 150mA Casambi 4000K Ra90 ENLUXLL.F5.0150CS.4090MB	Enduralux Large	4000K	Casambi	34	Class I	126	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 150mA Casambi MelaGen Active Ra90 ENLUXLL.F5.0150CS.BL90MA	Enduralux Large	4200K	Casambi	48	Class I	107	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 150mA Casambi 3000K Ra90 ENLUXLL.F5.0150CS.3090MB	Enduralux Large	3000K	Casambi	34	Class I	120	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 400mA DALI DT8 Dimmable MelaGen ReGen Ra90 ENLUXLL.F5.0400D8.RG90MA	Enduralux Large	2200K/4200K	DALI DT8 Dimmable	—	Class I	—	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 400mA DALI Dimmable MelaGen Calm Ra90 ENLUXLL.F5.0400DD.RF90MA	Enduralux Large	2200K	DALI Dimmable	113	Class I	102	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 400mA DALI Dimmable MelaGen Active Ra90 ENLUXLL.F5.0400DD.BL90MA	Enduralux Large	4200K	DALI Dimmable	110	Class I	118	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 400mA DALI Dimmable 4000K Ra90 ENLUXLL.F5.0400DD.4090MB	Enduralux Large	4000K	DALI Dimmable	77	Class I	140	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 400mA DALI Dimmable 3000K Ra90 ENLUXLL.F5.0400DD.3090MB	Enduralux Large	3000K	DALI Dimmable	77	Class I	133	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 300mA DALI Dimmable MelaGen Calm Ra90 ENLUXLL.F5.0300DD.RF90MA	Enduralux Large	2200K	DALI Dimmable	87	Class I	100	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 300mA DALI Dimmable MelaGen Active Ra90 ENLUXLL.F5.0300DD.BL90MA	Enduralux Large	4200K	DALI Dimmable	85	Class I	116	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 300mA DALI Dimmable 4000K Ra90 ENLUXLL.F5.0300DD.4090MB	Enduralux Large	4000K	DALI Dimmable	59	Class I	137	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 300mA DALI Dimmable 3000K Ra90 ENLUXLL.F5.0300DD.3090MB	Enduralux Large	3000K	DALI Dimmable	59	Class I	131	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 150mA DALI Dimmable MelaGen Calm Ra90 ENLUXLL.F5.0150DD.RF90MA	Enduralux Large	2200K	DALI Dimmable	49	Class I	93	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 150mA DALI Dimmable MelaGen Active Ra90 ENLUXLL.F5.0150DD.BL90MA	Enduralux Large	4200K	DALI Dimmable	48	Class I	107	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 150mA DALI Dimmable 4000K Ra90 ENLUXLL.F5.0150DD.4090MB	Enduralux Large	4000K	DALI Dimmable	34	Class I	126	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 150mA DALI Dimmable 3000K Ra90 ENLUXLL.F5.0150DD.3090MB	Enduralux Large	3000K	DALI Dimmable	34	Class I	120	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 400mA Fixed Output MelaGen Calm Ra90 ENLUXLL.F5.0400FO.RF90MA	Enduralux Large	2200K	Fixed Output	113	Class I	102	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 400mA Fixed Output MelaGen Active Ra90 ENLUXLL.F5.0400FO.BL90MA	Enduralux Large	4200K	Fixed Output	110	Class I	118	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 400mA Fixed Output 4000K Ra90 ENLUXLL.F5.0400FO.4090MB	Enduralux Large	4000K	Fixed Output	77	Class I	140	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 400mA Fixed Output 3000K Ra90 ENLUXLL.F5.0400FO.3090MB	Enduralux Large	3000K	Fixed Output	77	Class I	133	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 300mA Fixed Output MelaGen Calm Ra90 ENLUXLL.F5.0300FO.RF90MA	Enduralux Large	2200K	Fixed Output	87	Class I	100	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 300mA Fixed Output MelaGen Active Ra90 ENLUXLL.F5.0300FO.BL90MA	Enduralux Large	4200K	Fixed Output	85	Class I	116	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 300mA Fixed Output 4000K Ra90 ENLUXLL.F5.0300FO.4090MB	Enduralux Large	4000K	Fixed Output	59	Class I	137	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 300mA Fixed Output 3000K Ra90 ENLUXLL.F5.0300FO.3090MB	Enduralux Large	3000K	Fixed Output	59	Class I	131	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 150mA Fixed Output MelaGen Calm Ra90 ENLUXLL.F5.0150FO.RF90MA	Enduralux Large	2200K	Fixed Output	49	Class I	93	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 150mA Fixed Output MelaGen Active Ra90 ENLUXLL.F5.0150FO.BL90MA	Enduralux Large	4200K	Fixed Output	48	Class I	107	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 150mA Fixed Output 4000K Ra90 ENLUXLL.F5.0150FO.4090MB	Enduralux Large	4000K	Fixed Output	34	Class I	126	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Large 5mm Frosted Lens 150mA Fixed Output 3000K Ra90 ENLUXLL.F5.0150FO.3090MB	Enduralux Large	3000K	Fixed Output	34	Class I	120	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Medium 5mm Frosted Lens 400mA Casambi MelaGen Calm Ra90 ENLUXLM.F5.0400CS.RF90MA	Enduralux Medium	2200K	Casambi	85	Class I	101	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Medium 5mm Frosted Lens 400mA Casambi MelaGen Active Ra90 ENLUXLM.F5.0400CS.BL90MA	Enduralux Medium	4200K	Casambi	83	Class I	117	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Medium 5mm Frosted Lens 400mA Casambi 4000K Ra90 ENLUXLM.F5.0400CS.4090MB	Enduralux Medium	4000K	Casambi	58	Class I	139	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Medium 5mm Frosted Lens 400mA Casambi 3000K Ra90 ENLUXLM.F5.0400CS.3090MB	Enduralux Medium	3000K	Casambi	58	Class I	132	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Medium 5mm Frosted Lens 300mA Casambi MelaGen Calm Ra90 ENLUXLM.F5.0300CS.RF90MA	Enduralux Medium	2200K	Casambi	66	Class I	99	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Medium 5mm Frosted Lens 300mA Casambi MelaGen Active Ra90 ENLUXLM.F5.0300CS.BL90MA	Enduralux Medium	4200K	Casambi	64	Class I	115	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Medium 5mm Frosted Lens 300mA Casambi 4000K Ra90 ENLUXLM.F5.0300CS.4090MB	Enduralux Medium	4000K	Casambi	45	Class I	135	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Medium 5mm Frosted Lens 300mA Casambi 3000K Ra90 ENLUXLM.F5.0300CS.3090MB	Enduralux Medium	3000K	Casambi	45	Class I	129	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Medium 5mm Frosted Lens 150mA Casambi MelaGen Calm Ra90 ENLUXLM.F5.0150CS.RF90MA	Enduralux Medium	2200K	Casambi	37	Class I	91	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Medium 5mm Frosted Lens 150mA Casambi MelaGen Active Ra90 ENLUXLM.F5.0150CS.BL90MA	Enduralux Medium	4200K	Casambi	36	Class I	106	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Medium 5mm Frosted Lens 150mA Casambi 4000K Ra90 ENLUXLM.F5.0150CS.4090MB	Enduralux Medium	4000K	Casambi	26	Class I	122	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Medium 5mm Frosted Lens 150mA Casambi 3000K Ra90 ENLUXLM.F5.0150CS.3090MB	Enduralux Medium	3000K	Casambi	26	Class I	117	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Enduralux Linear Medium 5mm Frosted Lens 400mA DALI DT8 Dimmable MelaGen ReGen Ra90 ENLUXLM.F5.0400D8.RG90MA	Enduralux Medium	2200K/4200K	DALI DT8 Dimmable	—	Class I	—	Ra90	Made To Order	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
