Premium decorative track mounted spotlight

Garda features a high-quality precision tooled specular faceted aluminium reflector, the latest generation COB technology with a serviceable module, and a High Efficiency integrated track driver with High Transmission glass as standard.

Three available sizes

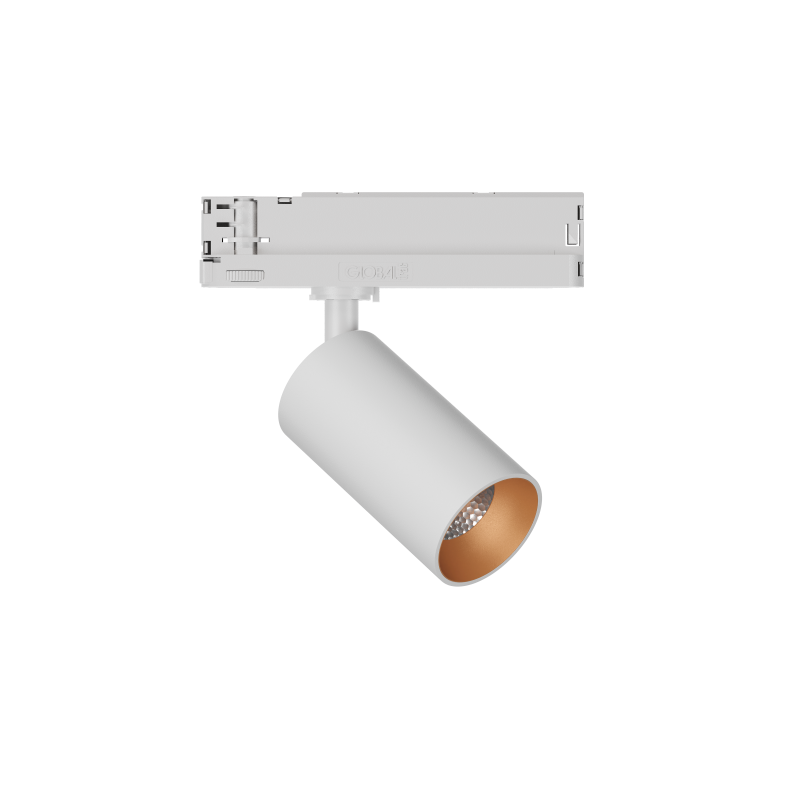

Garda S

Garda M

Garda L

Key features:

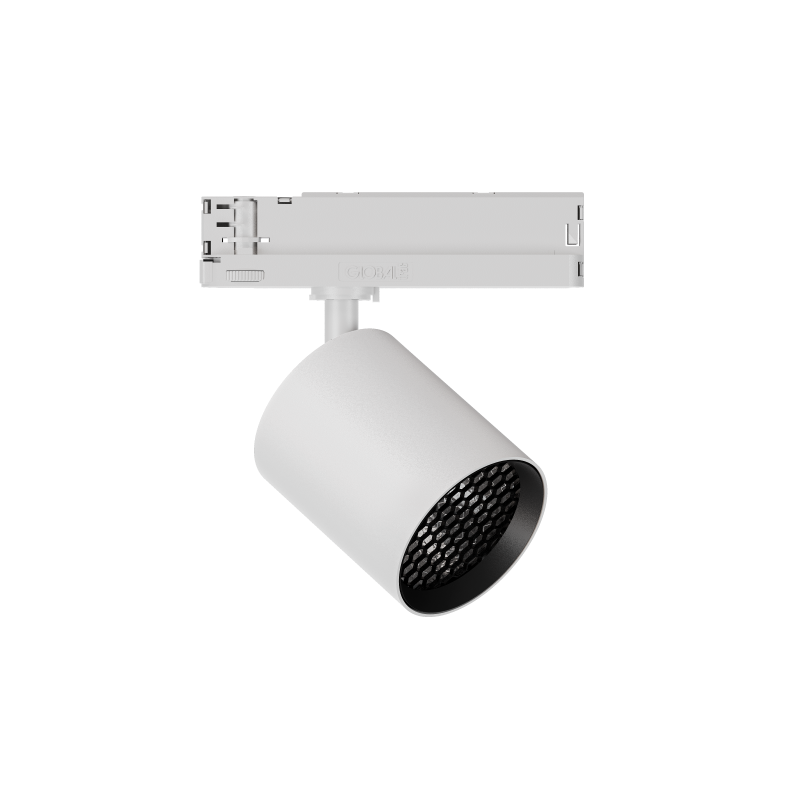

Choice between glass or honeycomb louvre
Spot, flood or medium-wide reflector
Up to 32W
Up to 4600lm
Up to 146lm/W efficacy

Luminaire overview

Design

Optical head in die cast aluminium. Optical head adjustable up to 90°. 3~ track adaptor in switched or dimmable versions.

Optic

High purity faceted aluminium reflector. Three optic options to choose from: SP 'Spot' beam, FL 'Flood' beam and MWFL 'Medium-Wide Flood' beam.

Electrical

Drivers integrated into 3~ track adaptor. Choice of Fixed Output, DALI Dimmable, or Casambi Wireless controlled versions.

Light source

Highly energy efficient LED module in 3000K or 4000K, Ra90.

Product Configurator

Product	Family	CCT	Output (lm)	Finish Colour	Beam Spread	Optic Finish	Optic Material	Control	Actions
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 350mA Casambi 4000K Ra90 Black Finish GRDTS.HGMW.350CS.4090A.2	Garda S	4000K	1340	Black	Medium wide flood	Gold Baffle	Honeycomb Louvre	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 350mA Casambi 4000K Ra90 White Finish GRDTS.HGMW.350CS.4090A.1	Garda S	4000K	1340	White	Medium wide flood	Gold Baffle	Honeycomb Louvre	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 350mA Casambi 3000K Ra90 Black Finish GRDTS.HGMW.350CS.3090A.2	Garda S	3000K	1320	Black	Medium wide flood	Gold Baffle	Honeycomb Louvre	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 350mA Casambi 3000K Ra90 White Finish GRDTS.HGMW.350CS.3090A.1	Garda S	3000K	1320	White	Medium wide flood	Gold Baffle	Honeycomb Louvre	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 350mA Phase Cut Dimmable 4000K Ra90 Black Finish GRDTS.HGMW.350PC.4090A.2	Garda S	4000K	1340	Black	Medium wide flood	Gold Baffle	Honeycomb Louvre	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 350mA Phase Cut Dimmable 4000K Ra90 White Finish GRDTS.HGMW.350PC.4090A.1	Garda S	4000K	1340	White	Medium wide flood	Gold Baffle	Honeycomb Louvre	Phase-cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 350mA Phase Cut Dimmable 3000K Ra90 Black Finish GRDTS.HGMW.350PC.3090A.2	Garda S	3000K	1320	Black	Medium wide flood	Gold Baffle	Honeycomb Louvre	Phase-cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 350mA Phase Cut Dimmable 3000K Ra90 White Finish GRDTS.HGMW.350PC.3090A.1	Garda S	3000K	1320	White	Medium wide flood	Gold Baffle	Honeycomb Louvre	Phase-cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 350mA DALI Dimmable 4000K Ra90 Black Finish GRDTS.HGMW.350DD.4090A.2	Garda S	4000K	1340	Black	Medium wide flood	Gold Baffle	Honeycomb Louvre	Phase-cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 350mA DALI Dimmable 4000K Ra90 White Finish GRDTS.HGMW.350DD.4090A.1	Garda S	4000K	1340	White	Medium wide flood	Gold Baffle	Honeycomb Louvre	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 350mA DALI Dimmable 3000K Ra90 Black Finish GRDTS.HGMW.350DD.3090A.2	Garda S	3000K	1320	Black	Medium wide flood	Gold Baffle	Honeycomb Louvre	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 350mA DALI Dimmable 3000K Ra90 White Finish GRDTS.HGMW.350DD.3090A.1	Garda S	3000K	1320	White	Medium wide flood	Gold Baffle	Honeycomb Louvre	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 350mA Fixed Output 4000K Ra90 Black Finish GRDTS.HGMW.350FO.4090A.2	Garda S	4000K	1340	Black	Medium wide flood	Gold Baffle	Honeycomb Louvre	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 350mA Fixed Output 4000K Ra90 White Finish GRDTS.HGMW.350FO.4090A.1	Garda S	4000K	1340	White	Medium wide flood	Gold Baffle	Honeycomb Louvre	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 350mA Fixed Output 3000K Ra90 Black Finish GRDTS.HGMW.350FO.3090A.2	Garda S	3000K	1320	Black	Medium wide flood	Gold Baffle	Honeycomb Louvre	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 350mA Fixed Output 3000K Ra90 White Finish GRDTS.HGMW.350FO.3090A.1	Garda S	3000K	1320	White	Medium wide flood	Gold Baffle	Honeycomb Louvre	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 200mA Casambi 4000K Ra90 Black Finish GRDTS.HGMW.200CS.4090A.2	Garda S	4000K	860	Black	Medium wide flood	Gold Baffle	Honeycomb Louvre	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 200mA Casambi 4000K Ra90 White Finish GRDTS.HGMW.200CS.4090A.1	Garda S	4000K	860	White	Medium wide flood	Gold Baffle	Honeycomb Louvre	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 200mA Casambi 3000K Ra90 Black Finish GRDTS.HGMW.200CS.3090A.2	Garda S	3000K	850	Black	Medium wide flood	Gold Baffle	Honeycomb Louvre	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 200mA Casambi 3000K Ra90 White Finish GRDTS.HGMW.200CS.3090A.1	Garda S	3000K	850	White	Medium wide flood	Gold Baffle	Honeycomb Louvre	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 200mA Phase Cut Dimmable 4000K Ra90 Black Finish GRDTS.HGMW.200PC.4090A.2	Garda S	4000K	860	Black	Medium wide flood	Gold Baffle	Honeycomb Louvre	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 200mA Phase Cut Dimmable 4000K Ra90 White Finish GRDTS.HGMW.200PC.4090A.1	Garda S	4000K	860	White	Medium wide flood	Gold Baffle	Honeycomb Louvre	Phase-cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 200mA Phase Cut Dimmable 3000K Ra90 Black Finish GRDTS.HGMW.200PC.3090A.2	Garda S	3000K	850	Black	Medium wide flood	Gold Baffle	Honeycomb Louvre	Phase-cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 200mA Phase Cut Dimmable 3000K Ra90 White Finish GRDTS.HGMW.200PC.3090A.1	Garda S	3000K	850	White	Medium wide flood	Gold Baffle	Honeycomb Louvre	Phase-cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 200mA DALI Dimmable 4000K Ra90 Black Finish GRDTS.HGMW.200DD.4090A.2	Garda S	4000K	860	Black	Medium wide flood	Gold Baffle	Honeycomb Louvre	Phase-cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 200mA DALI Dimmable 4000K Ra90 White Finish GRDTS.HGMW.200DD.4090A.1	Garda S	4000K	860	White	Medium wide flood	Gold Baffle	Honeycomb Louvre	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 200mA DALI Dimmable 3000K Ra90 Black Finish GRDTS.HGMW.200DD.3090A.2	Garda S	3000K	850	Black	Medium wide flood	Gold Baffle	Honeycomb Louvre	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 200mA DALI Dimmable 3000K Ra90 White Finish GRDTS.HGMW.200DD.3090A.1	Garda S	3000K	850	White	Medium wide flood	Gold Baffle	Honeycomb Louvre	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 200mA Fixed Output 4000K Ra90 Black Finish GRDTS.HGMW.200FO.4090A.2	Garda S	4000K	860	Black	Medium wide flood	Gold Baffle	Honeycomb Louvre	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 200mA Fixed Output 4000K Ra90 White Finish GRDTS.HGMW.200FO.4090A.1	Garda S	4000K	860	White	Medium wide flood	Gold Baffle	Honeycomb Louvre	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 200mA Fixed Output 3000K Ra90 Black Finish GRDTS.HGMW.200FO.3090A.2	Garda S	3000K	850	Black	Medium wide flood	Gold Baffle	Honeycomb Louvre	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle MWFL Beam 200mA Fixed Output 3000K Ra90 White Finish GRDTS.HGMW.200FO.3090A.1	Garda S	3000K	850	White	Medium wide flood	Gold Baffle	Honeycomb Louvre	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle FL Beam 350mA Casambi 4000K Ra90 Black Finish GRDTS.HGFL.350CS.4090A.2	Garda S	4000K	1440	Black	Flood	Gold Baffle	Honeycomb Louvre	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle FL Beam 350mA Casambi 4000K Ra90 White Finish GRDTS.HGFL.350CS.4090A.1	Garda S	4000K	1440	White	Flood	Gold Baffle	Honeycomb Louvre	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle FL Beam 350mA Casambi 3000K Ra90 Black Finish GRDTS.HGFL.350CS.3090A.2	Garda S	3000K	1410	Black	Flood	Gold Baffle	Honeycomb Louvre	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle FL Beam 350mA Casambi 3000K Ra90 White Finish GRDTS.HGFL.350CS.3090A.1	Garda S	3000K	1410	White	Flood	Gold Baffle	Honeycomb Louvre	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle FL Beam 350mA Phase Cut Dimmable 4000K Ra90 Black Finish GRDTS.HGFL.350PC.4090A.2	Garda S	4000K	1440	Black	Flood	Gold Baffle	Honeycomb Louvre	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle FL Beam 350mA Phase Cut Dimmable 4000K Ra90 White Finish GRDTS.HGFL.350PC.4090A.1	Garda S	4000K	1440	White	Flood	Gold Baffle	Honeycomb Louvre	Phase-cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle FL Beam 350mA Phase Cut Dimmable 3000K Ra90 Black Finish GRDTS.HGFL.350PC.3090A.2	Garda S	3000K	1410	Black	Flood	Gold Baffle	Honeycomb Louvre	Phase-cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle FL Beam 350mA Phase Cut Dimmable 3000K Ra90 White Finish GRDTS.HGFL.350PC.3090A.1	Garda S	3000K	1410	White	Flood	Gold Baffle	Honeycomb Louvre	Phase-cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle FL Beam 350mA DALI Dimmable 4000K Ra90 Black Finish GRDTS.HGFL.350DD.4090A.2	Garda S	4000K	1440	Black	Flood	Gold Baffle	Honeycomb Louvre	Phase-cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle FL Beam 350mA DALI Dimmable 4000K Ra90 White Finish GRDTS.HGFL.350DD.4090A.1	Garda S	4000K	1440	White	Flood	Gold Baffle	Honeycomb Louvre	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle FL Beam 350mA DALI Dimmable 3000K Ra90 Black Finish GRDTS.HGFL.350DD.3090A.2	Garda S	3000K	1410	Black	Flood	Gold Baffle	Honeycomb Louvre	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle FL Beam 350mA DALI Dimmable 3000K Ra90 White Finish GRDTS.HGFL.350DD.3090A.1	Garda S	3000K	1410	White	Flood	Gold Baffle	Honeycomb Louvre	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle FL Beam 350mA Fixed Output 4000K Ra90 Black Finish GRDTS.HGFL.350FO.4090A.2	Garda S	4000K	1440	Black	Flood	Gold Baffle	Honeycomb Louvre	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle FL Beam 350mA Fixed Output 4000K Ra90 White Finish GRDTS.HGFL.350FO.4090A.1	Garda S	4000K	1440	White	Flood	Gold Baffle	Honeycomb Louvre	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle FL Beam 350mA Fixed Output 3000K Ra90 Black Finish GRDTS.HGFL.350FO.3090A.2	Garda S	3000K	1410	Black	Flood	Gold Baffle	Honeycomb Louvre	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle FL Beam 350mA Fixed Output 3000K Ra90 White Finish GRDTS.HGFL.350FO.3090A.1	Garda S	3000K	1410	White	Flood	Gold Baffle	Honeycomb Louvre	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle FL Beam 200mA Casambi 4000K Ra90 Black Finish GRDTS.HGFL.200CS.4090A.2	Garda S	4000K	930	Black	Flood	Gold Baffle	Honeycomb Louvre	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
GARDA Trackspot Small Honeycomb Louvre Gold Baffle FL Beam 200mA Casambi 4000K Ra90 White Finish GRDTS.HGFL.200CS.4090A.1	Garda S	4000K	930	White	Flood	Gold Baffle	Honeycomb Louvre	Casambi	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
