Versatile extruded LED lighting system
Infiniti is a modular luminaire solution especially designed for mounting in long lengths. The product is exclusively developed for LED and is available in suspended, recessed and ceiling/wall surface mounted versions.
Infiniti can be delivered with 3 different optics, has options for direct or direct/indirect output, numerous module lengths, and all fixtures feature a wide range of lumen packages, making it well suited for a vast array of applications.
For professional results, Infiniti includes special 'light traps' to avoid light-leaks at linear joins in the extrusion. 90° modules can be used to create a wide variety of systems for most mounting applications. Infiniti also boasts options for integrated emergency and sensor solutions. It is an efficient and sophisticated system that is easy to configure and easy to mount.
Key features:
- Versatile extruded LED lighting system
- Wide range of choices for optics, outputs and mounting
- Easy, cost effective installation
- MelaGen® powered product for low, high, or transitional M/P ratios
- 3 colour options: White, silver & black
Three variations
Infiniti P

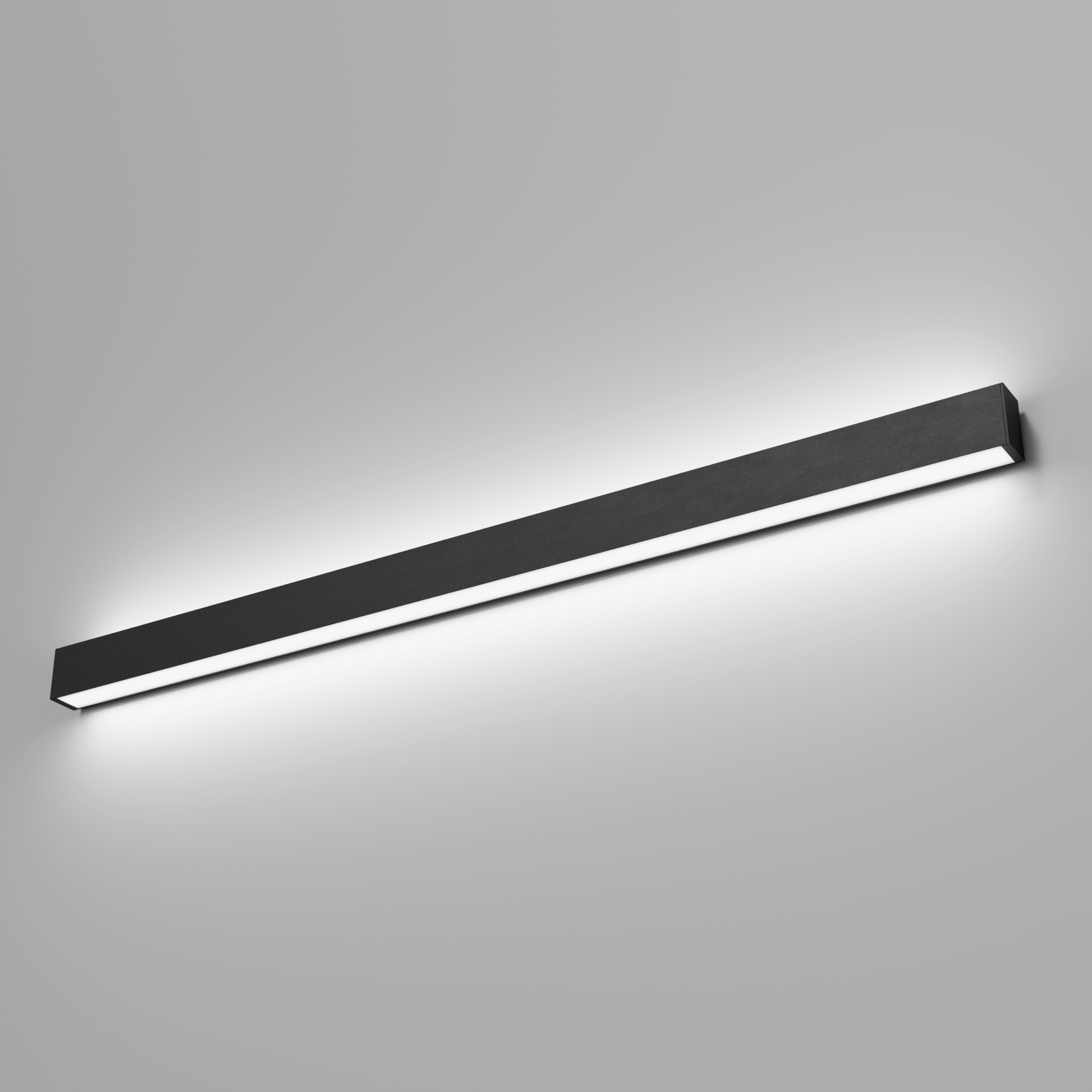

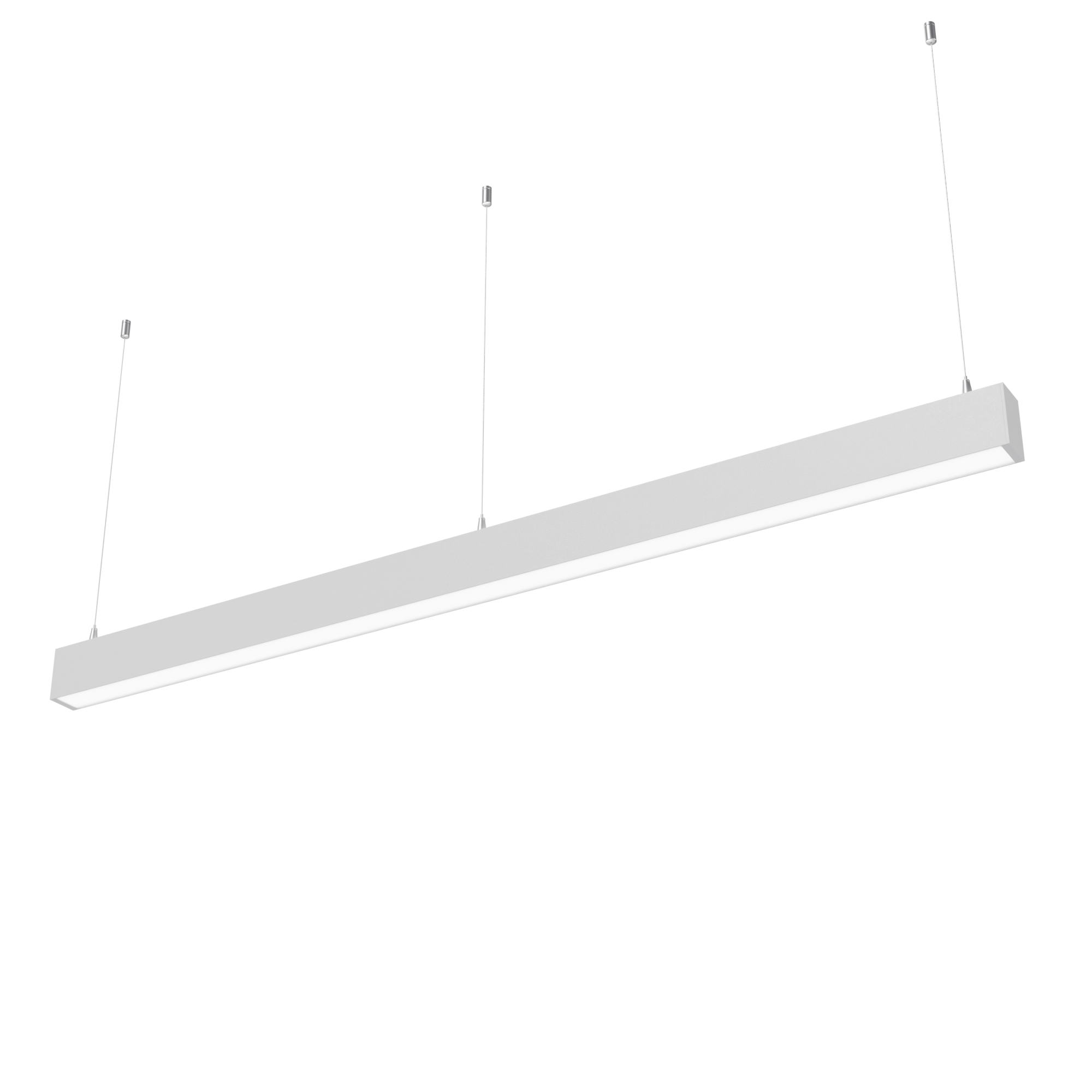

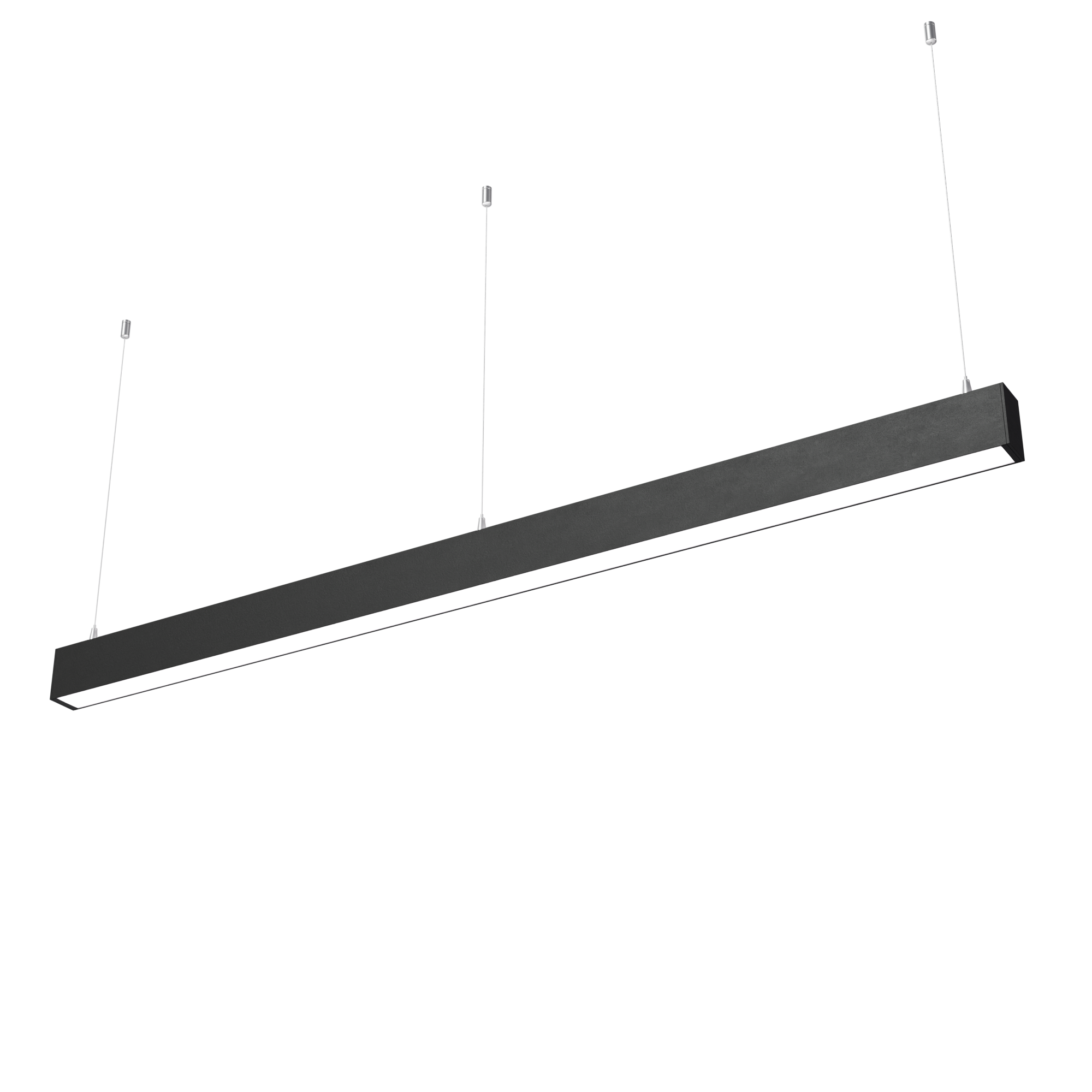

Pendant with direct, indirect or wall mounted direct and indirect lighting
Colour options: White, silver & black
Infiniti R

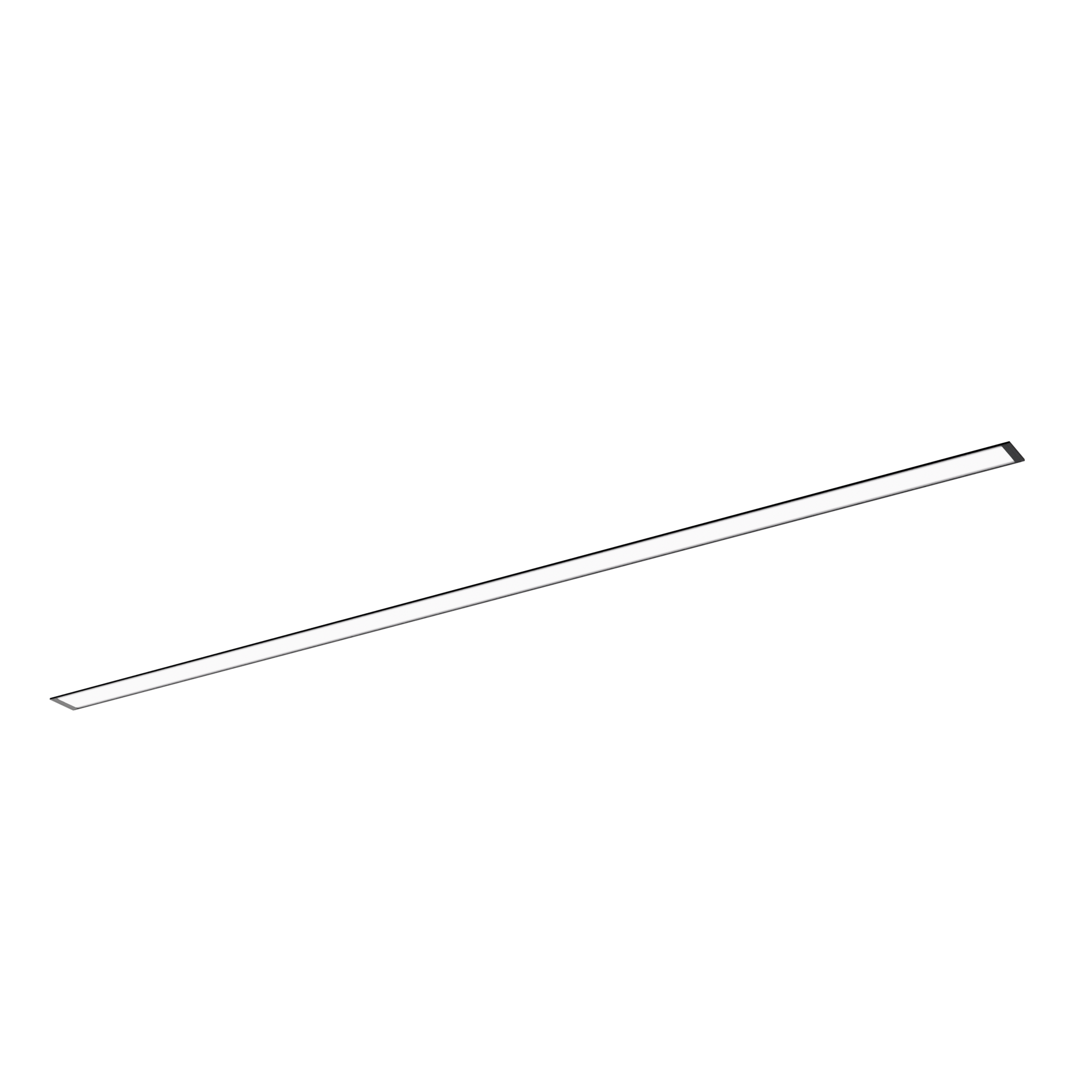

Recessed
Colour options: White, silver & black

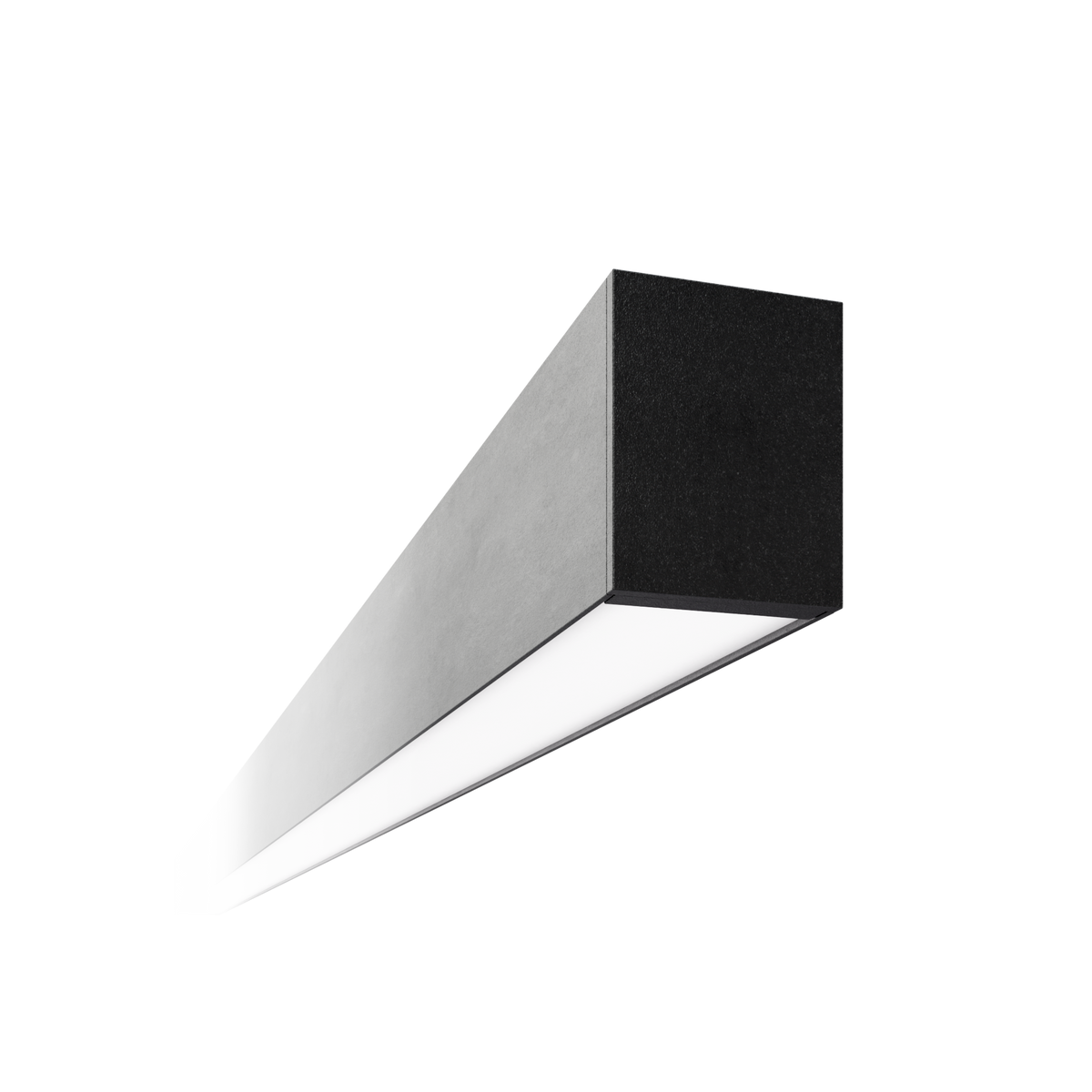

Infiniti S
Surface mounted or suspended
Colour options: White, silver & black

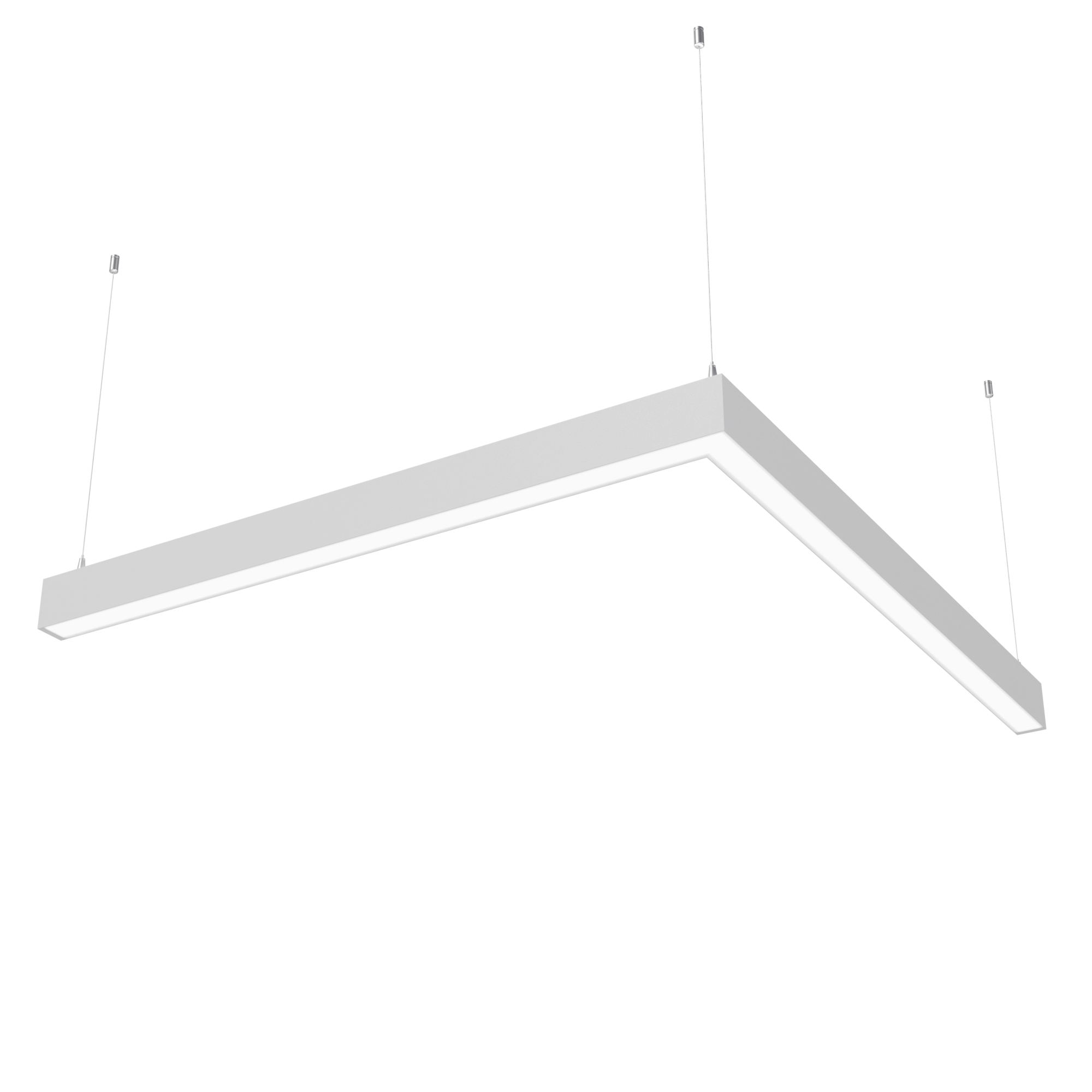

90° solid light corners
Dual output
Luminaire overview
Design

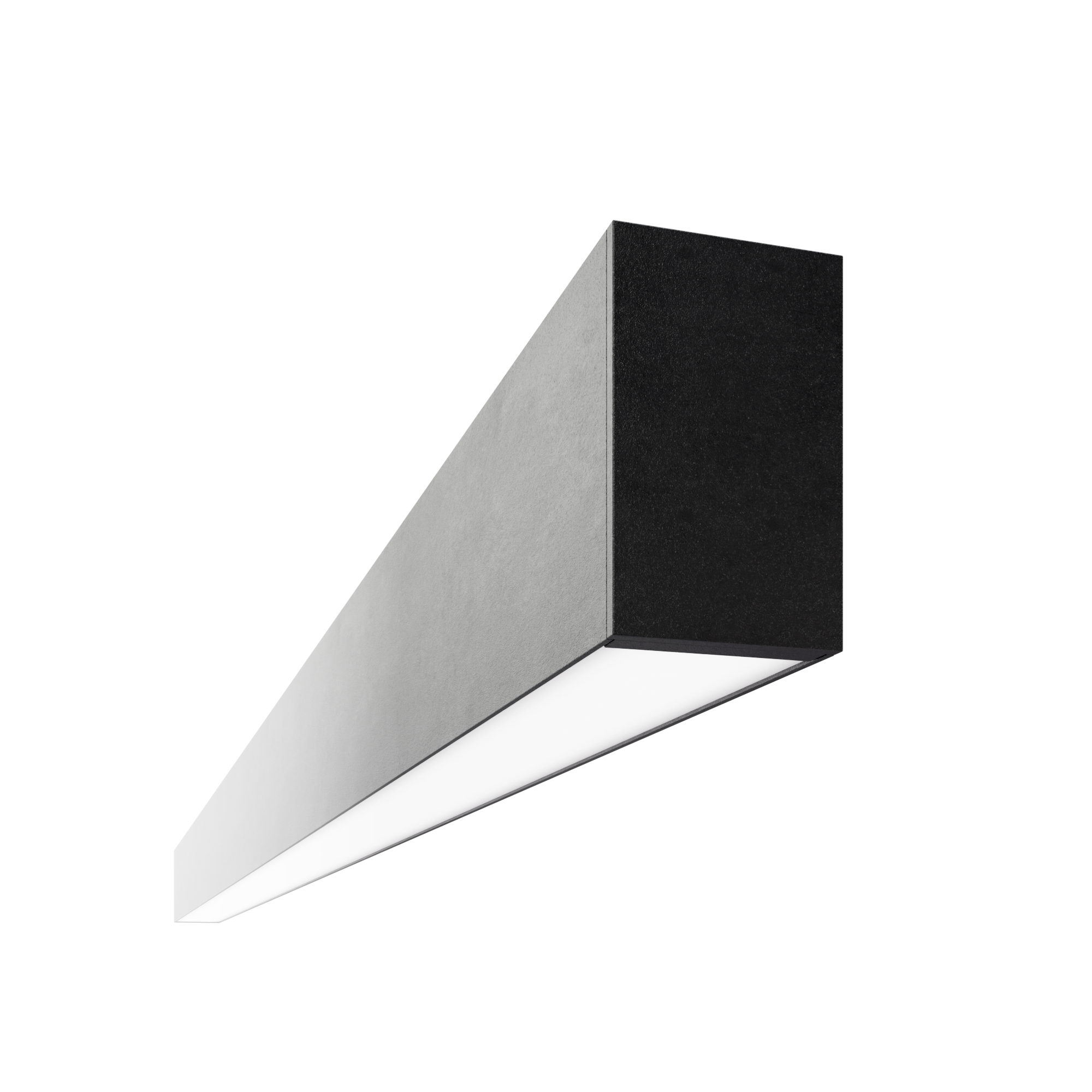

Extruded aluminium profiles and hybrid aluminium-polymer end caps, standard in white, black or silver finishes (special colours to project request). Wire suspensions and fabricated steel wall brackets as required.
Optic
Continuous appearance LED optics in a choice of three direct lens types - MicroPrismatic, Opal or Asymmetric. For suspended and wall mounted applications a continuous appearance Dispersive LED uplight option is available.
High, medium or low output levels are available for the direct optics, and where indirect optics are present these can be also be selected as high, medium or low output levels.
Electrical
Integral drivers, fixed output as standard, DALI optional as required.
Integral drivers; MelaGen® Active or MelaGen® Calm in fixed output as standard or optional DALI dimmable, MelaGen® ReGen with DALI DT8 as standard.
Wattage: 11W - 52W
Light Source
High efficiency LEDs in 3000K or 4000K, CRI80 or CRI90 (4000K CRI90 combination is Cyanosis Observation compliant).
MelaGen® Active, MelaGen® Calm, or MelaGen® ReGen LEDs.
Lumen output up: 0lm - 2800lm
Lumen output down: 1100lm - 4000lm
Product Configurator
| Product | Family | Output (lm) | CCT | Watts | Optical Description | Efficacy (lm/W) | Control | Finish Colour | Stock Status | Mounting Type | Actions |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Infiniti S | 2000 | 2200K | 28 | Direct Opal | 73 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 2400 | 4200K | 28 | Direct Opal | 85 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 2000 | 4000K | 20 | Direct Opal | 97 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 2300 | 4000K | 20 | Direct Opal | 115 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 1900 | 3000K | 20 | Direct Opal | 93 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 2200 | 3000K | 20 | Direct Opal | 110 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
Infiniti S Profile 1128mm (nom.) Direct Opal Optic Medium Power DALI DT8 Dimmable MelaGen® ReGen White
INFINITI.MG.S4.OM.RG.W.D8
| Infiniti S | 2400 | 2200K/4200K | 28 | Direct Opal | 85 | DALI DT8 Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
Infiniti S Profile 1128mm (nom.) Direct Opal Optic Medium Power DALI Dimmable MelaGen® Calm White
INFINITI.MG.S4.OM.RF.W.DD
| Infiniti S | 2000 | 2200K | 28 | Direct Opal | 73 | DALI Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
Infiniti S Profile 1128mm (nom.) Direct Opal Optic Medium Power DALI Dimmable MelaGen® Active White
INFINITI.MG.S4.OM.BL.W.DD
| Infiniti S | 2400 | 4200K | 28 | Direct Opal | 85 | DALI Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
| Infiniti S | 2000 | 4000K | 20 | Direct Opal | 97 | DALI Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 2300 | 4000K | 20 | Direct Opal | 115 | DALI Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 1900 | 3000K | 20 | Direct Opal | 93 | DALI Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 2200 | 3000K | 20 | Direct Opal | 110 | DALI Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 1100 | 2200K | 15 | Direct Opal | 73 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 1300 | 4200K | 15 | Direct Opal | 85 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 1000 | 4000K | 12 | Direct Opal | 85 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 1200 | 4000K | 12 | Direct Opal | 101 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 900 | 3000K | 12 | Direct Opal | 82 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 1100 | 3000K | 12 | Direct Opal | 96 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
Infiniti S Profile 1128mm (nom.) Direct Opal Optic Low Power DALI DT8 Dimmable MelaGen® ReGen White
INFINITI.MG.S4.OL.RG.W.D8
| Infiniti S | 1300 | 2200K/4200K | 15 | Direct Opal | 85 | DALI DT8 Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
Infiniti S Profile 1128mm (nom.) Direct Opal Optic Low Power DALI Dimmable MelaGen® Calm White
INFINITI.MG.S4.OL.RF.W.DD
| Infiniti S | 1100 | 2200K | 15 | Direct Opal | 73 | DALI Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
Infiniti S Profile 1128mm (nom.) Direct Opal Optic Low Power DALI Dimmable MelaGen® Active White
INFINITI.MG.S4.OL.BL.W.DD
| Infiniti S | 1300 | 4200K | 15 | Direct Opal | 85 | DALI Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
Infiniti S Profile 1128mm (nom.) Direct Opal Optic Low Power DALI Dimmable 4000K Ra90 White
INFINITI.S4.OL.94.W.DD
| Infiniti S | 1000 | 4000K | 12 | Direct Opal | 85 | DALI Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
Infiniti S Profile 1128mm (nom.) Direct Opal Optic Low Power DALI Dimmable 4000K Ra80 White
INFINITI.S4.OL.84.W.DD
| Infiniti S | 1200 | 4000K | 12 | Direct Opal | 101 | DALI Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
Infiniti S Profile 1128mm (nom.) Direct Opal Optic Low Power DALI Dimmable 3000K Ra90 White
INFINITI.S4.OL.93.W.DD
| Infiniti S | 900 | 3000K | 12 | Direct Opal | 82 | DALI Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
Infiniti S Profile 1128mm (nom.) Direct Opal Optic Low Power DALI Dimmable 3000K Ra80 White
INFINITI.S4.OL.83.W.DD
| Infiniti S | 1100 | 3000K | 12 | Direct Opal | 96 | DALI Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
| Infiniti S | 3400 | 2200K | 47 | Direct Opal | 73 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 3900 | 4200K | 47 | Direct Opal | 84 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 3300 | 4000K | 36 | Direct Opal | 91 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 3900 | 4000K | 36 | Direct Opal | 108 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 3100 | 3000K | 36 | Direct Opal | 87 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 3700 | 3000K | 36 | Direct Opal | 103 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
Infiniti S Profile 1128mm (nom.) Direct Opal Optic High Power DALI DT8 Dimmable MelaGen® ReGen White
INFINITI.MG.S4.OH.RG.W.D8
| Infiniti S | 3900 | 2200K/4200K | 47 | Direct Opal | 84 | DALI DT8 Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
Infiniti S Profile 1128mm (nom.) Direct Opal Optic High Power DALI Dimmable MelaGen® Calm White
INFINITI.MG.S4.OH.RF.W.DD
| Infiniti S | 3400 | 2200K | 47 | Direct Opal | 73 | DALI Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
Infiniti S Profile 1128mm (nom.) Direct Opal Optic High Power DALI Dimmable MelaGen® Active White
INFINITI.MG.S4.OH.BL.W.DD
| Infiniti S | 3900 | 4200K | 47 | Direct Opal | 84 | DALI Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
Infiniti S Profile 1128mm (nom.) Direct Opal Optic High Power DALI Dimmable 4000K Ra90 White
INFINITI.S4.OH.94.W.DD
| Infiniti S | 3300 | 4000K | 36 | Direct Opal | 91 | DALI Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
Infiniti S Profile 1128mm (nom.) Direct Opal Optic High Power DALI Dimmable 4000K Ra80 White
INFINITI.S4.OH.84.W.DD
| Infiniti S | 3900 | 4000K | 36 | Direct Opal | 108 | DALI Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
Infiniti S Profile 1128mm (nom.) Direct Opal Optic High Power DALI Dimmable 3000K Ra90 White
INFINITI.S4.OH.93.W.DD
| Infiniti S | 3100 | 3000K | 36 | Direct Opal | 87 | DALI Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
Infiniti S Profile 1128mm (nom.) Direct Opal Optic High Power DALI Dimmable 3000K Ra80 White
INFINITI.S4.OH.83.W.DD
| Infiniti S | 3700 | 3000K | 36 | Direct Opal | 103 | DALI Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
| Infiniti S | 2100 | 2200K | 28 | Direct MicroPrismatic | 76 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 2400 | 4200K | 28 | Direct MicroPrismatic | 88 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 2000 | 4000K | 20 | Direct MicroPrismatic | 100 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 2400 | 4000K | 20 | Direct MicroPrismatic | 119 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 1900 | 3000K | 20 | Direct MicroPrismatic | 96 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 2300 | 3000K | 20 | Direct MicroPrismatic | 113 | Fixed Output | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 2400 | 2200K/4200K | 28 | Direct MicroPrismatic | 88 | DALI DT8 Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 2100 | 2200K | 28 | Direct MicroPrismatic | 76 | DALI Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 2400 | 4200K | 28 | Direct MicroPrismatic | 88 | DALI Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 2000 | 4000K | 20 | Direct MicroPrismatic | 100 | DALI Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
|
| Infiniti S | 2400 | 4000K | 20 | Direct MicroPrismatic | 119 | DALI Dimmable | White | Made To Order | Surface or Suspended |
Add to Project Briefcase
|
