Body in die cast aluminium, with primary alloy and low copper content and rear cross-sectional cooling fins designed for optimal thermal dissipation. For its 'Integrated Driver' configuration, the cable box (body and rear cover) in die cast aluminium. For 'On Board' and 'Remote Driver configurations, the aluminium cable plate and power supply box in die cast aluminium. Aluminium castings powdercoated silver (RAL 9006). Heavy-duty, hot-dip galvanized steel fixing bracket. Gaskets in anti-aging rubber. Stainless-steel external screws.
For aiming, symmetrical versions with aluminium lateral protractor scale for tilt adjustment, asymmetrical versions with aluminium double-lateral protractor scale for tilt adjustment, with or without a visor. For more precise aiming, the Ledmaster can be requested with an easy-to-install stainless-steel sighting device; for a maximum precision it is possible to use an optional telescopic device. For smaller venues or for pre-aiming a standard mechanical sight with concentric circles can be requested

Symmetric optics custom-designed in nine different beam spreads, with vacuum-metallised technopolymer reflectors providing high efficiency and durability.
Asymmetric optics custom-designed in four different beam spreads, with three optics utilising vacuum-metallised reflectors and one optic utilising aluminium reflectors coated in purest silver. Asymmetric optics offered with a visor option to allow the raising of the peak intensity angle by 10°.
IP66 IK08 construction, with 4mm thick, extra-clear tempered glass, anti-aging rubber gaskets and Teflon pressure compensation filter to allow 'breathing' without drawing in moisture and dust.

Ledmaster is available in different electrical and mechanical configurations, to best meet the various site requirements:
• with 'integrated' drivers: electronic drivers mounted on cable plates, easily replaceable, complete with “Plug and Play” anti-inversion system;
• with 'on-board' external drivers: IP67 electronic drivers mounted externally to the body (available only in the symmetric version);

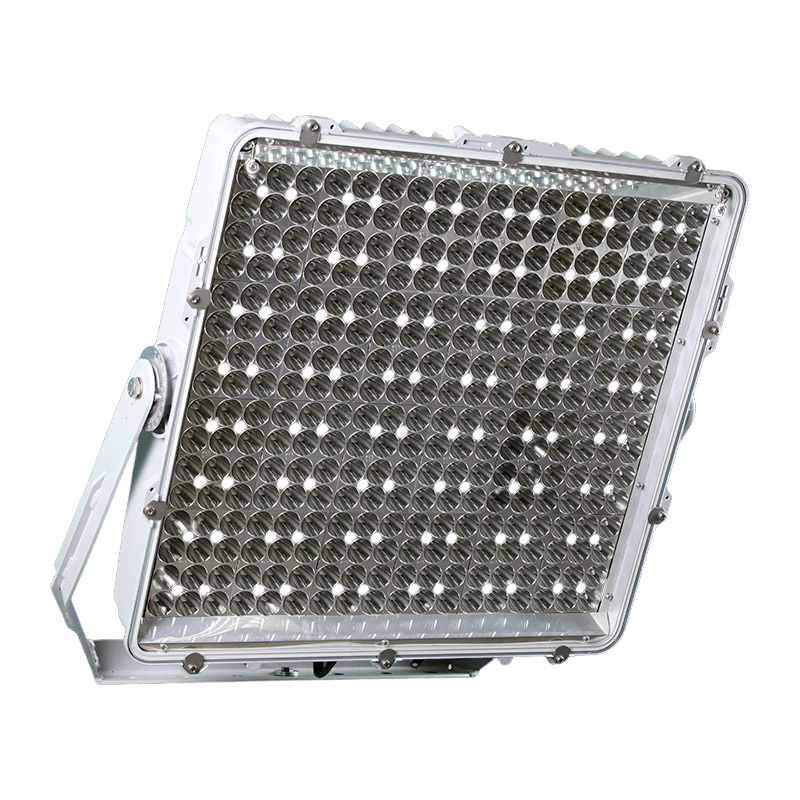

• with 'remote' drivers: separate drivers for mounting away from the fixture (e.g. base towers, cabinets or other remote locations).
The floodlight, in any configuration, uses DALI drivers. On request, for 'on-board' external driver and 'remote' driver configurations, DMX versions can be supplied.
Standard configuration for 220-240V AC 50-60Hz supply, pfc > 0.9.

High quality LED singlechips and multichips, with options of 5000K CRI>70, 5000K CRI>80, 5700K CRI>80 and 5700K CRI>90. All configurations are Ta35°C capable, most configurations have Ta50°C versions available also (see LEDMASTER 1 Specification Guide - link below - for effect on output and power loading in Ta50°C versions). Life expectancy of the LEDs: >70,000hr (L80 B10) and >50,000hr (L90 B10) for Ta35° versions, >50,000hr (L80 B10) for Ta50° versions.

Class I: up to 10kV/20kA, both in common and differential mode as in the gear box there’s a Surge Protection Device (SPD). In the configuration with separate driver there are 4 SPDs in direct current for the protection of the LED matrixes.
In the development of LED lighting systems with Ledmaster it is essential to introduce other surge protectors in the general panel (type 1), in the area panels (type 1-2 or 2-3) and coordinate them with the surge protector of the projector.

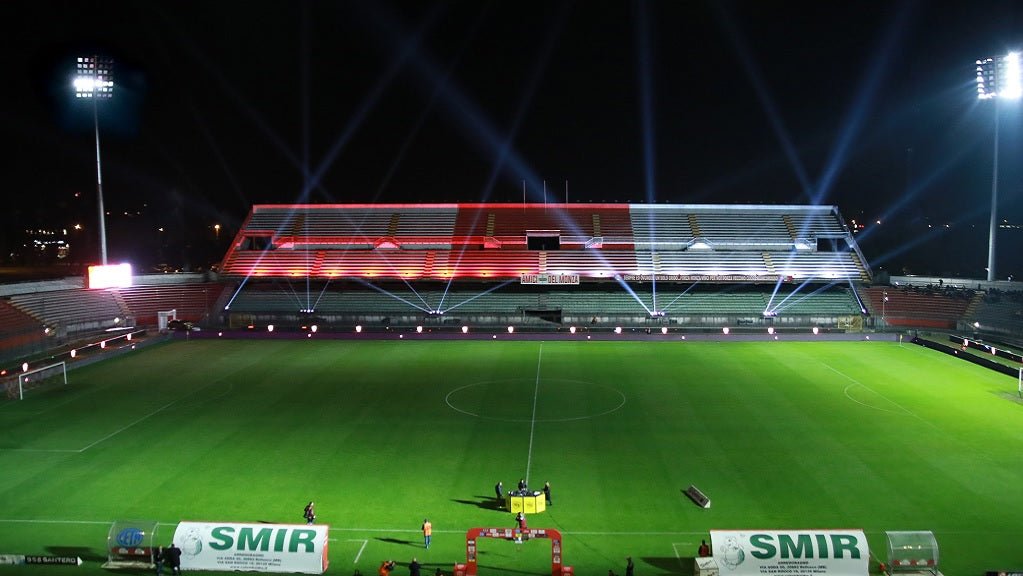

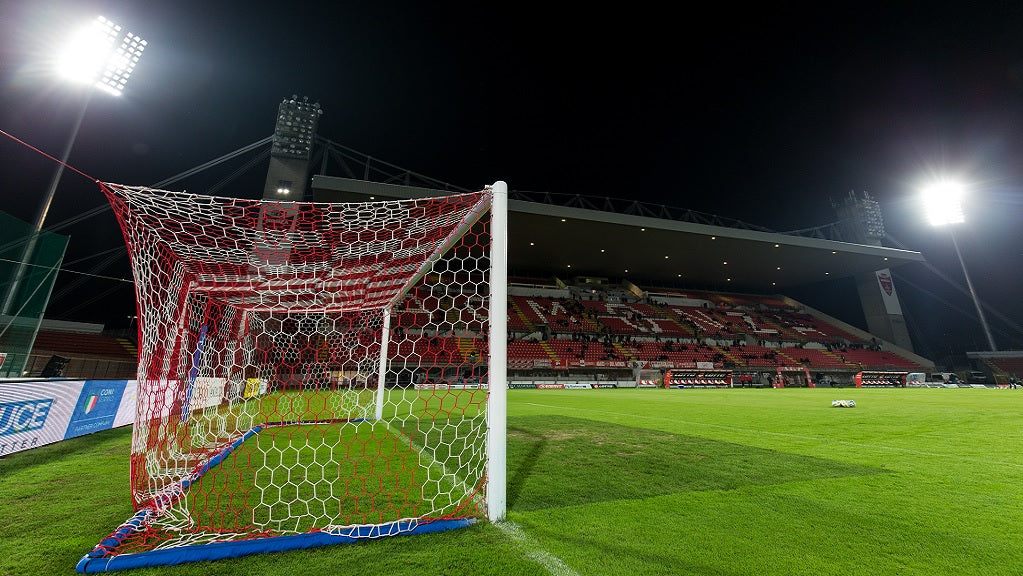

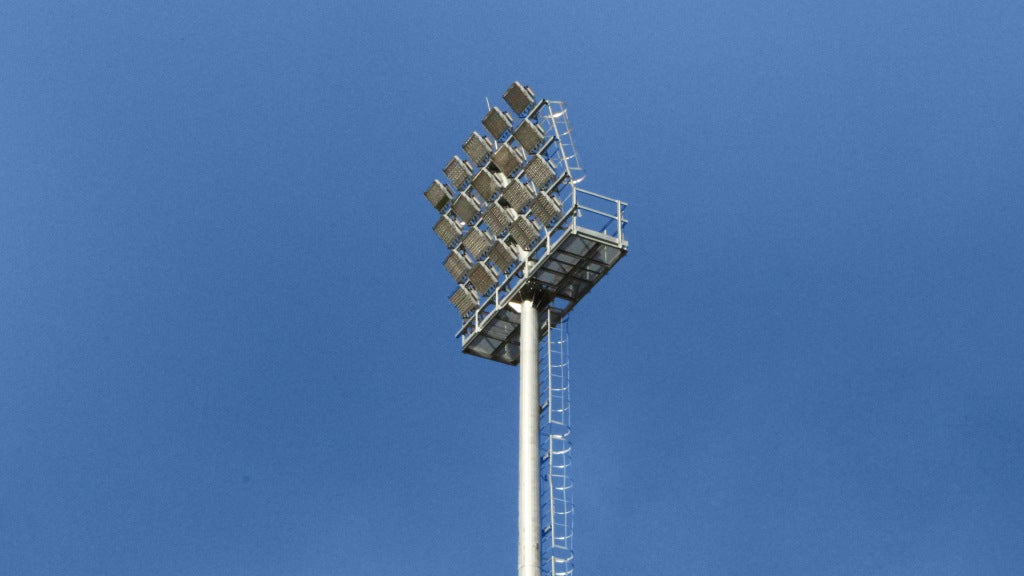

Ledmaster - The premium approach to world-class stadium sports facilities, offering the ultimate in performance, versatility, and construction.

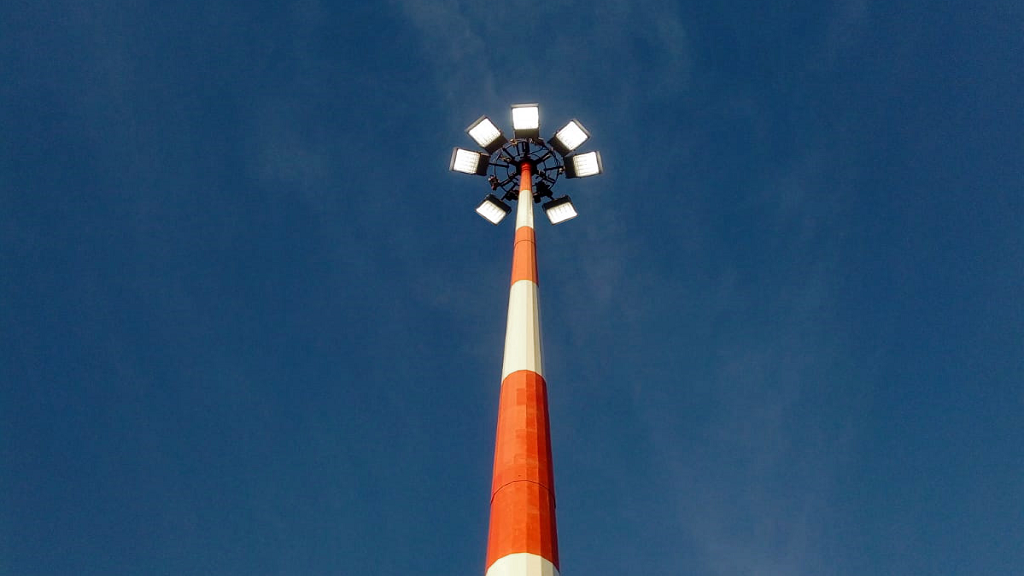

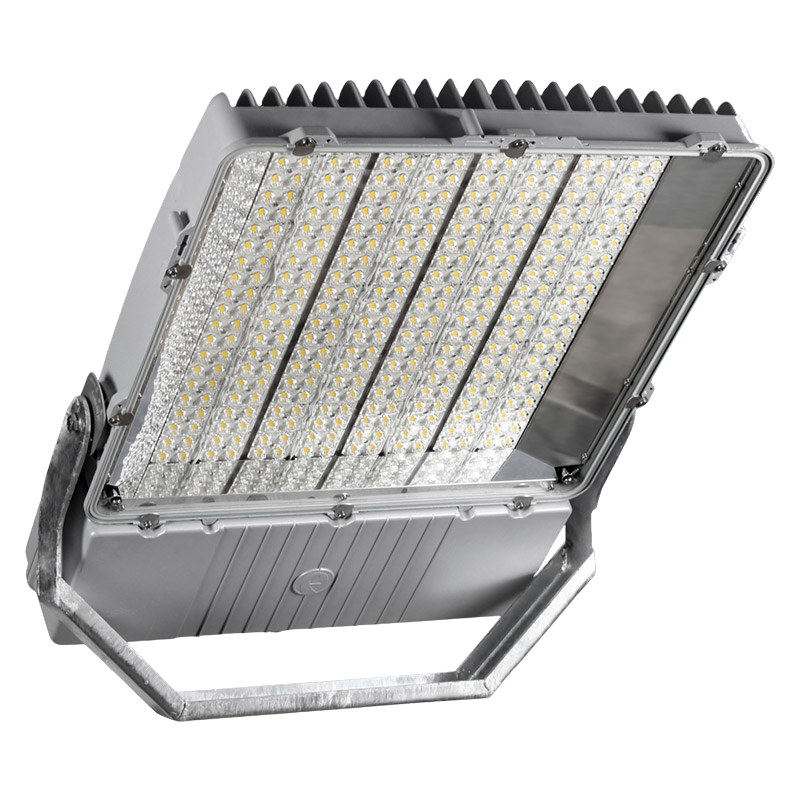

Ledmaster Air - Narrow-focused on a small set of horizontal cutoff versions, optimised to meet a broad range of commercial and infrastructure high-mast projects including airports, sports grounds, and large spaces.

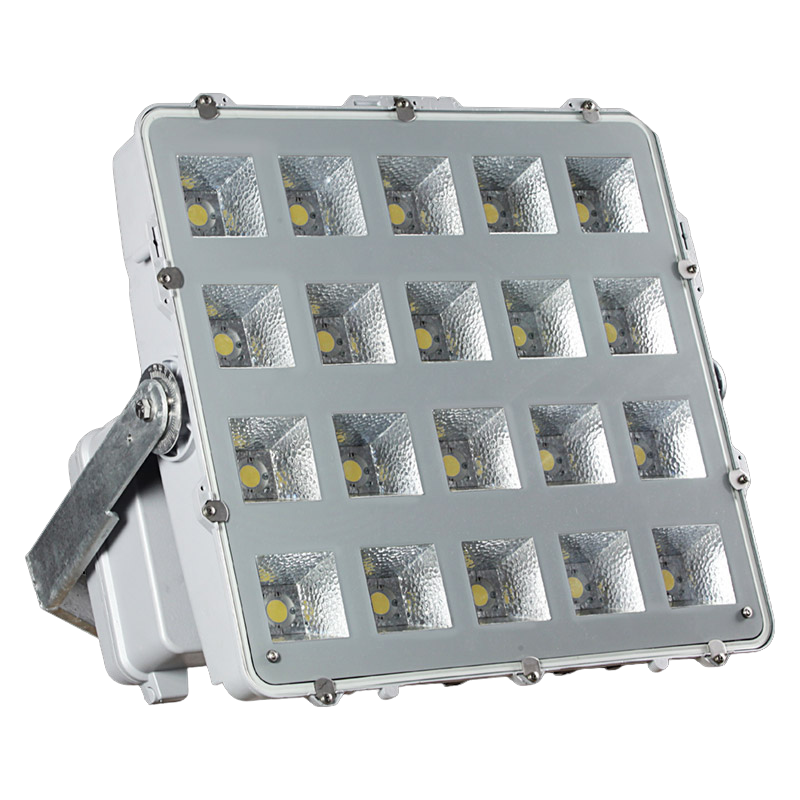

Ledmaster Just - A set of physical and optical features specialising in the needs of amateur sports facilities and mid-to-large scale projects.
