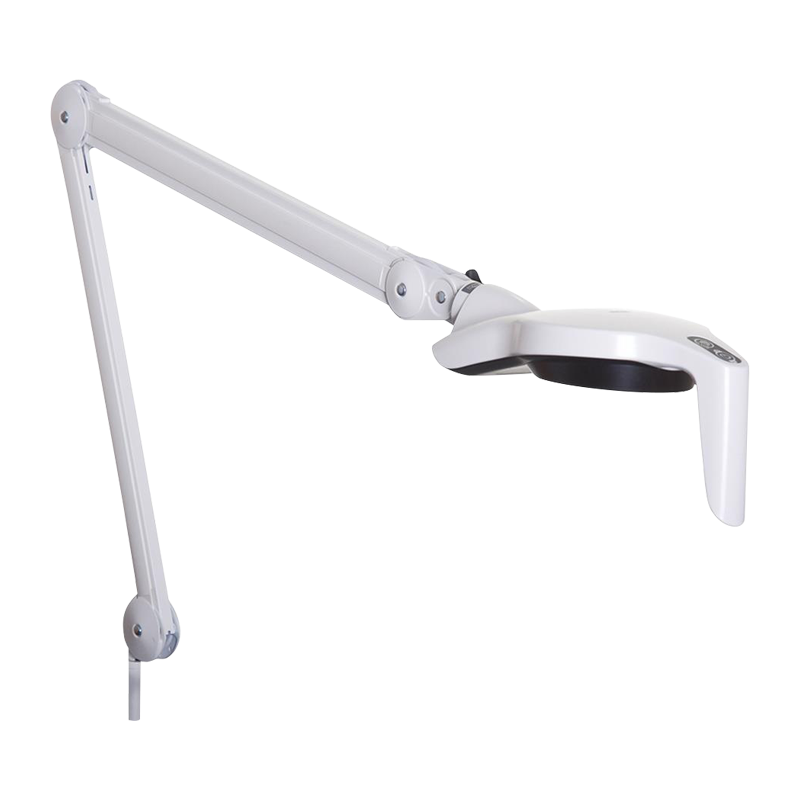

Next-generation LED examination light
The LHH G2 is a natural development of the original medical examination luminaire, which is in daily use by medical professionals all over the world.
Its highly flexible self-balancing arm in conjunction with excellent light output gives the LHH G2 diagnostic luminaires vast popularity among medical professionals.
Available in tuneable white illumination which has obvious benefits for examination lighting. The LHH G2-TW offers a high output LED module that can be adjusted to one of three colour temperatures.
The frictionless 3d movement and ease of use make the LHH G2 TW the most flexible examination luminaire on the market and the best in its class.
Key features:
- SteriTouch® anti-microbial finish
- Wall, ceiling, table or trolley mounting
- The frictionless 3d movement and ease of use make
- The most flexible examination luminaire on the market and the best in its class.
- Available in standard and tuneable white versions
Luminaire overview
Design
SteriTouch® antimicrobial white powder-coated aluminium and steel construction. 3D positioning with 3-axis movement and perfect balance. Protective covers on arms to prevent crush-points. Smooth membrane switch for ease of use and cleaning. Fully dimmable with night light function.
Optic
High output LEDs with refractor lenses for increased light output. LEDs are protected by tempered glass.
Electrical
Integral electronic gear.
Max 20W
Light source
Standard:
4000K CCT LED, Ra95 (R9:98).
35,000lx @ 1000mm.
120,000lx @ 500mm.
Light Field Ø160mm (d50) / Ø300mm (d10)
Tuneable white:
3500K / 4000K / 4500K CCT LED, Ra95 (R9:98 - 4000K).
25,000lx @ 1000mm.
65,000lx @ 500mm.
Light Field Ø160mm (d50) / Ø350mm (d10)
Product Configurator
| Product | Family | Optical Description | CCT | Watts | Mounting Type | CRI | Actions |
|---|---|---|---|---|---|---|---|
| LHH G2 | 35,000lx @ 1m, Ø160mm D50, Ø300mm D10 | 4000K | 9 | Ceiling surface | Ra95 (R9:98) |
Add to Project Briefcase
|
|
LHH G2 adjustable reading light, 4000K Ra95 (R9:98), with wall bracket
LHG026531/BRK017516
| LHH G2 | 35,000lx @ 1m, Ø160mm D50, Ø300mm D10 | 4000K | 9 | Wall surface | Ra95 (R9:98) |
Add to Project Briefcase
|
LHH G2 adjustable reading light, 4000K Ra95 (R9:98), with trolley mount
LHG026531/BRK025205
| LHH G2 | 35,000lx @ 1m, Ø160mm D50, Ø300mm D10 | 4000K | 9 | Trolley | Ra95 (R9:98) |
Add to Project Briefcase
|
| LHH G2 | 35,000lx @ 1m, Ø160mm D50, Ø300mm D10 | 4000K | 9 | Ceiling surface | Ra95 (R9:98) |
Add to Project Briefcase
|
