Lucca Family

Quick links

Download family photometry Go to product configurator

Low-profile circular luminaire

A range of low-profile circular LED luminaires in six sizes, designed for general purpose illumination. Surface or pendant mounting options with direct/indirect optics created from two separated LED arrays. At time of installation the indirect LEDs can be disengaged to create a fixture with direct-only illumination.

Surface or pendant mounted

6 sizes: 250mm - 1200mm

Surface

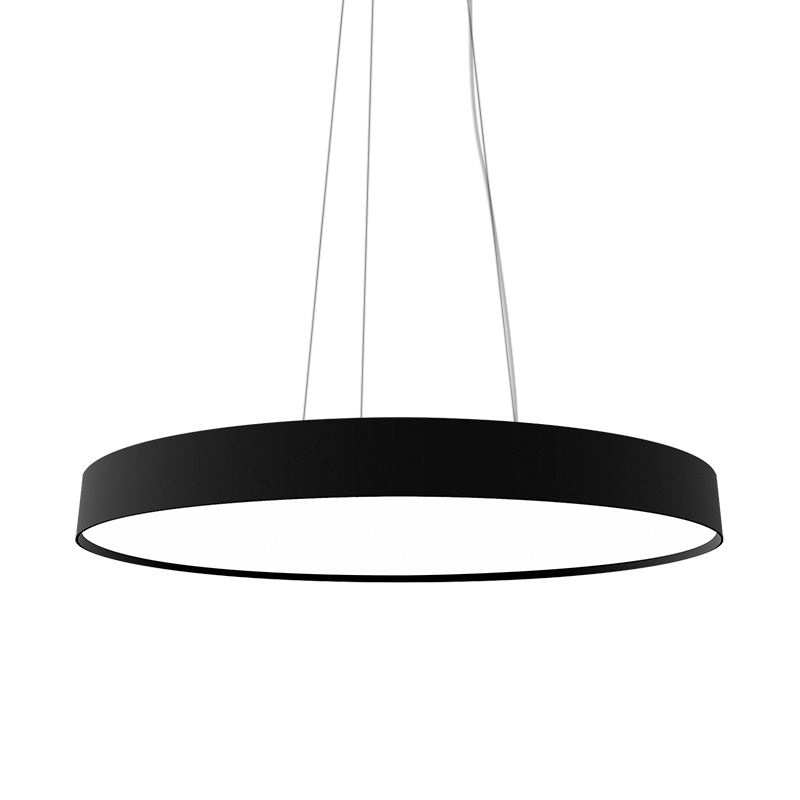

Pendant

Luminaire overview

Design

Aluminium primary housing, with formed steel mounting plate.

Optic

Low glare opalescent primary diffuser for direct illumination. Secondary 'halo' diffused led array for indirect illumination.

Electrical

All versions include a choice of either Fixed Output or DALI drivers. Versions up to Ø450mm also available with Phase-Cut dimmable drivers.

Wattage: 19W - 150W

Light source

Energy efficient 3000K or 4000K LEDs CRI Ra90.

Lumen output: 1550lm - 11200lm

Product Configurator

Product	Family	CCT	Output (lm)	Finish Colour	Mounting Type	Control	Actions
LUCCA 350 Phase-Cut Dimmable MelaGen Calm Wire Suspended White Finish LUMG.350HPC.RF.1-WS	Lucca Suspended	2200K	1980	White	Wire suspended	Phase-cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 350 DALI Dimmable MelaGen Calm Wire Suspended White Finish LUMG.350HDD.RF.1-WS	Lucca Suspended	2200K	1980	White	Wire suspended	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 350 Fixed Output MelaGen Calm Wire Suspended White Finish LUMG.350HFO.RF.1-WS	Lucca Suspended	2200K	1980	White	Wire suspended	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 350 DALI DT8 Dimmable MelaGen ReGen Wire Suspended White Finish LUMG.350HD8.RG.1-WS	Lucca Suspended	2200K/4200K	2320	White	Wire suspended	DALI DT8 Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 350 Phase-Cut Dimmable MelaGen Active Wire Suspended White Finish LUMG.350HPC.BL.1-WS	Lucca Suspended	4200K	2320	White	Wire suspended	Phase-cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 350 DALI Dimmable MelaGen Active Wire Suspended White Finish LUMG.350HDD.BL.1-WS	Lucca Suspended	4200K	2320	White	Wire suspended	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 350 Fixed Output MelaGen Active Wire Suspended White Finish LUMG.350HFO.BL.1-WS	Lucca Suspended	4200K	2320	White	Wire suspended	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 350 Phase-Cut Dimmable MelaGen Calm Surface Mounted White Finish LUMG.350HPC.RF.1-SM	Lucca Surface	2200K	1980	White	Surface mounted	Phase-cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 350 DALI Dimmable MelaGen Calm Surface Mounted White Finish LUMG.350HDD.RF.1-SM	Lucca Surface	2200K	1980	White	Surface mounted	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 350 Fixed Output MelaGen Calm Surface Mounted White Finish LUMG.350HFO.RF.1-SM	Lucca Surface	2200K	1980	White	Surface mounted	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 350 DALI DT8 Dimmable MelaGen ReGen Surface Mounted White Finish LUMG.350HD8.RG.1-SM	Lucca Surface	2200K/4200K	2320	White	Surface mounted	DALI DT8 Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 350 Phase-Cut Dimmable MelaGen Active Surface Mounted White Finish LUMG.350HPC.BL.1-SM	Lucca Surface	4200K	2320	White	Surface mounted	Phase-cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 350 DALI Dimmable MelaGen Active Surface Mounted White Finish LUMG.350HDD.BL.1-SM	Lucca Surface	4200K	2320	White	Surface mounted	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 350 Fixed Output MelaGen Active Surface Mounted White Finish LUMG.350HFO.BL.1-SM	Lucca Surface	4200K	2320	White	Surface mounted	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 1200 DALI Dimmable 4000K Ra90 Wire Suspended White Finish LUO.120015UDD.4090.1-WS	Lucca Suspended	4000K	11240	White	Wire suspended	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 1200 DALI Dimmable 3000K Ra90 Wire Suspended White Finish LUO.120015UDD.3090.1-WS	Lucca Suspended	3000K	10670	White	Wire suspended	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 1200 Fixed Output 4000K Ra90 Wire Suspended White Finish LUO.120015UFO.4090.1-WS	Lucca Suspended	4000K	11240	White	Wire suspended	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 1200 Fixed Output 3000K Ra90 Wire Suspended White Finish LUO.120015UFO.3090.1-WS	Lucca Suspended	3000K	10670	White	Wire suspended	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 950 DALI Dimmable 4000K Ra90 Wire Suspended White Finish LUO.95015UDD.4090.1-WS	Lucca Suspended	4000K	10210	White	Wire suspended	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 950 DALI Dimmable 3000K Ra90 Wire Suspended White Finish LUO.95015UDD.3090.1-WS	Lucca Suspended	3000K	9700	White	Wire suspended	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 950 Fixed Output 4000K Ra90 Wire Suspended White Finish LUO.95015UFO.4090.1-WS	Lucca Suspended	4000K	10210	White	Wire suspended	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 950 Fixed Output 3000K Ra90 Wire Suspended White Finish LUO.95015UFO.3090.1-WS	Lucca Suspended	3000K	9700	White	Wire suspended	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 650 DALI Dimmable 4000K Ra90 Wire Suspended White Finish LUO.65010UDD.4090.1-WS	Lucca Suspended	4000K	9030	White	Wire suspended	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 650 DALI Dimmable 3000K Ra90 Wire Suspended White Finish LUO.65010UDD.3090.1-WS	Lucca Suspended	3000K	8580	White	Wire suspended	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 650 Fixed Output 4000K Ra90 Wire Suspended White Finish LUO.65010UFO.4090.1-WS	Lucca Suspended	4000K	9030	White	Wire suspended	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 650 Fixed Output 3000K Ra90 Wire Suspended White Finish LUO.65010UFO.3090.1-WS	Lucca Suspended	3000K	8580	White	Wire suspended	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 450 Phase-Cut Dimmable 4000K Ra90 Wire Suspended White Finish LUO.45040PCD.4090.1-WS	Lucca Suspended	4000K	3810	White	Wire suspended	Phase-cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 450 Phase-Cut Dimmable 3000K Ra90 Wire Suspended White Finish LUO.45040PCD.3090.1-WS	Lucca Suspended	3000K	3520	White	Wire suspended	Phase-cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 450 DALI Dimmable 4000K Ra90 Wire Suspended White Finish LUO.45040DD.4090.1-WS	Lucca Suspended	4000K	3810	White	Wire suspended	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 450 DALI Dimmable 3000K Ra90 Wire Suspended White Finish LUO.45040DD.3090.1-WS	Lucca Suspended	3000K	3520	White	Wire suspended	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 450 Fixed Output 4000K Ra90 Wire Suspended White Finish LUO.45040FO.4090.1-WS	Lucca Suspended	4000K	3810	White	Wire suspended	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 450 Fixed Output 3000K Ra90 Wire Suspended White Finish LUO.45040FO.3090.1-WS	Lucca Suspended	3000K	3520	White	Wire suspended	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 350 Phase-Cut Dimmable 4000K Ra90 Wire Suspended White Finish LUO.35030PCD.4090.1-WS	Lucca Suspended	4000K	2320	White	Wire suspended	Phase-cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 350 Phase-Cut Dimmable 3000K Ra90 Wire Suspended White Finish LUO.35030PCD.3090.1-WS	Lucca Suspended	3000K	2150	White	Wire suspended	Phase-cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 350 DALI Dimmable 4000K Ra90 Wire Suspended White Finish LUO.35030DD.4090.1-WS	Lucca Suspended	4000K	2320	White	Wire suspended	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 350 DALI Dimmable 3000K Ra90 Wire Suspended White Finish LUO.35030DD.3090.1-WS	Lucca Suspended	3000K	2150	White	Wire suspended	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 350 Fixed Output 4000K Ra90 Wire Suspended White Finish LUO.35030FO.4090.1-WS	Lucca Suspended	4000K	2320	White	Wire suspended	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 350 Fixed Output 3000K Ra90 Wire Suspended White Finish LUO.35030FO.3090.1-WS	Lucca Suspended	3000K	2150	White	Wire suspended	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 250 Phase-Cut Dimmable 4000K Ra90 Wire Suspended White Finish LUO.25020PCD.4090.1-WS	Lucca Suspended	4000K	1680	White	Wire suspended	Phase-cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 250 Phase-Cut Dimmable 3000K Ra90 Wire Suspended White Finish LUO.25020PCD.3090.1-WS	Lucca Suspended	3000K	1550	White	Wire suspended	Phase-cut Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 250 DALI Dimmable 4000K Ra90 Wire Suspended White Finish LUO.25020DD.4090.1-WS	Lucca Suspended	4000K	1680	White	Wire suspended	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 250 DALI Dimmable 3000K Ra90 Wire Suspended White Finish LUO.25020DD.3090.1-WS	Lucca Suspended	3000K	1550	White	Wire suspended	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 250 Fixed Output 4000K Ra90 Wire Suspended White Finish LUO.25020FO.4090.1-WS	Lucca Suspended	4000K	1680	White	Wire suspended	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 250 Fixed Output 3000K Ra90 Wire Suspended White Finish LUO.25020FO.3090.1-WS	Lucca Suspended	3000K	1550	White	Wire suspended	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 1200 DALI Dimmable 4000K Ra90 Surface Mounted White Finish LUO.120015UDD.4090.1-SM	Lucca Surface	4000K	11240	White	Surface mounted	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 1200 DALI Dimmable 3000K Ra90 Surface Mounted White Finish LUO.120015UDD.3090.1-SM	Lucca Surface	3000K	10670	White	Surface mounted	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 1200 Fixed Output 4000K Ra90 Surface Mounted White Finish LUO.120015UFO.4090.1-SM	Lucca Surface	4000K	11240	White	Surface mounted	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 1200 Fixed Output 3000K Ra90 Surface Mounted White Finish LUO.120015UFO.3090.1-SM	Lucca Surface	3000K	10670	White	Surface mounted	Fixed Output	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 950 DALI Dimmable 4000K Ra90 Surface Mounted White Finish LUO.95015UDD.4090.1-SM	Lucca Surface	4000K	10210	White	Surface mounted	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
LUCCA 950 DALI Dimmable 3000K Ra90 Surface Mounted White Finish LUO.95015UDD.3090.1-SM	Lucca Surface	3000K	9700	White	Surface mounted	DALI Dimmable	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes

Loading all products…
