Robust luminaire for intense environments
Heavy duty luminaire designed for Zone 1/21 and Zone 2/22 areas. Made of AISI 316L one-piece deep-drawn Stainless Steel housing and nickel-plated brass gland
Key features:
- IP66/IP67
- IK10
- IECEx
- Ta-30 to Ta50
Approvals
- Gas classification: II 2GD Ex e mb op is IIC T4 Gb
- Dust classification: II 2D Ex tb IIIC T81°C
Two sizes available

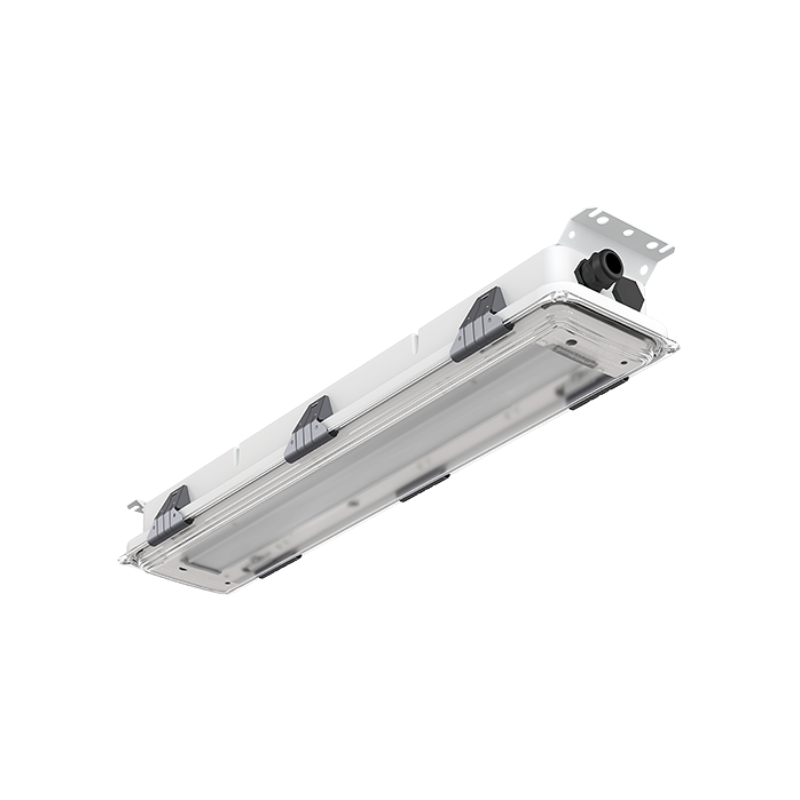

600mm

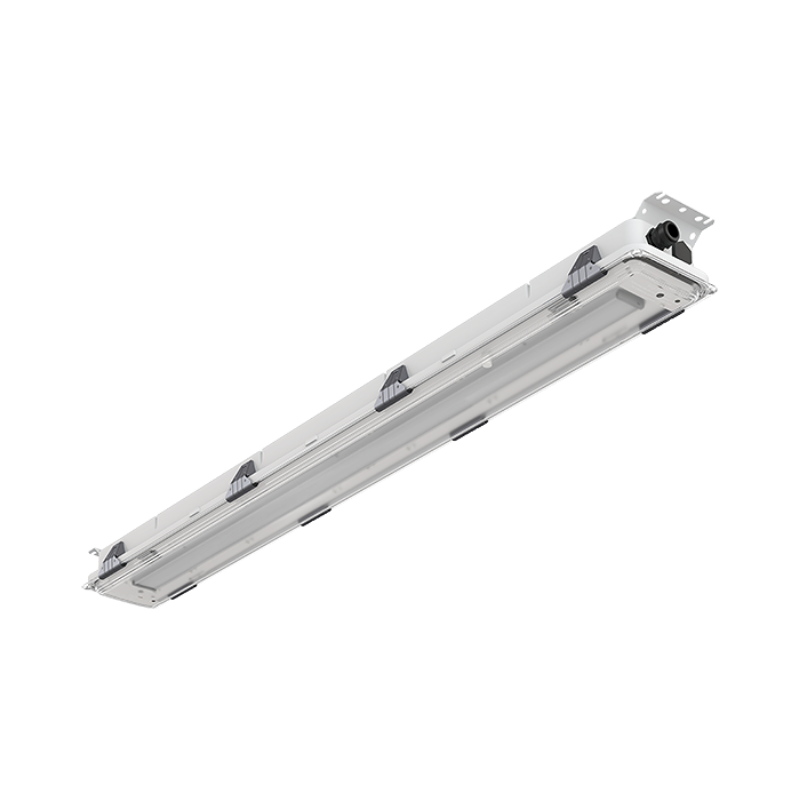

1200mm
Luminaire overview
Design
Housings one-piece deep-drawn construction, in AISI 316L stainless steel with nickel-plated glands & blind plugs; the size and material of the glands & plugs can be selected as desired. Standard with external mounting feet for quick installation without compromising fixture integrity. Finished in RAL9016 white stove enamelled epoxy/polyester powder finish. Moulded UV-resistant polycarbonate diffuser with moulded silicone gasket.
Minimum ambient temperature -30°C.
Optic
Internal diffuser with clear, smooth outer diffuser.
Electrical
Designed for 110-254V 50/60Hz or 220-250V DC supply. All electrical components mounted on hinged geartray for easy maintenance and installation.
One 6-way Ex screw terminal block 6mm² each end. Through wiring (TW) 6x2.5mm².
Light Source
4000K CIE Ra>80, SDCM 3.5, 80,000hr @ 25°C ambient, 50,000hr @ 45°C ambient.
