• Low glare acrylic or polycarbonate refractor
• Anodised faceted aluminium reflector
• Closed loop heavy-duty eye bolt for suspended applications
• Wide range of usable mounting heights (4-20m)

• High ambient temperature rated
• Broad photometric distributions
• 3% upward light
• Four outputs between 16,000lm to 80,000lm
• COB LED technology with integral driver
• Constant Light Output version available (CLO) (OLC)
• DALI Dim versions available

• IP65 construction
• IP rated 3 core flex (5 core on dimming versions)
• Ball sport impact rated with polycarbonate lens option
• 5 year warranty

VEET, iPART and REES SA approvals for CMW320 and CMW210 versions

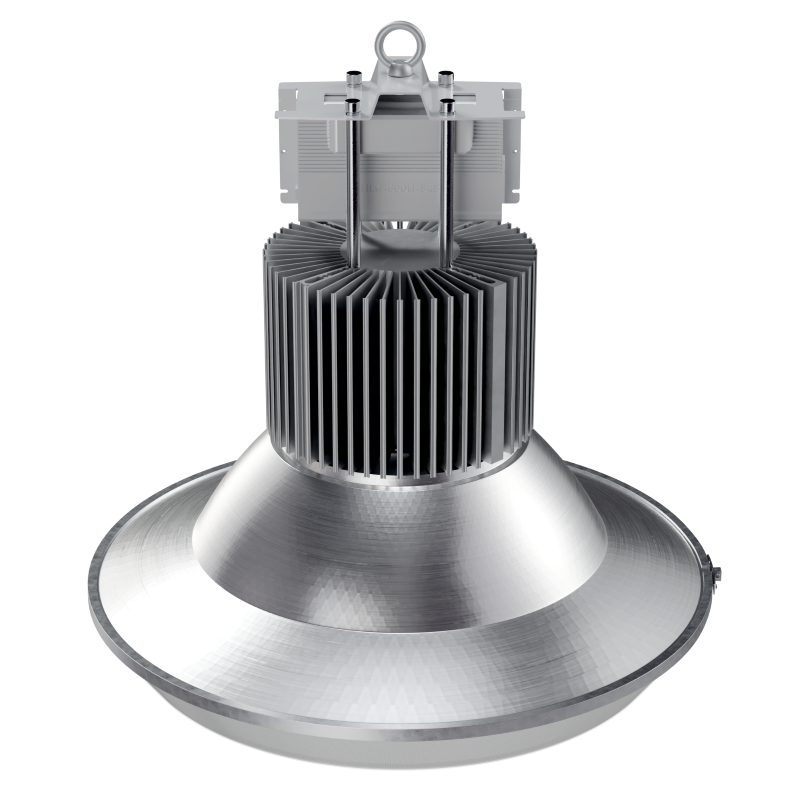

Integral driver in sealed, die-cast aluminium housing with LED modules mounted on highly-efficient extruded aluminium heat-sink. Heavy duty eyebolt supplied, with supplementary lanyard system, for secure suspension and fixture support.

The Bondor recessing trims are available in four different depths to suit a variety of Bondor ceiling thicknesses.

Optional wire guard for protection of the refractor.

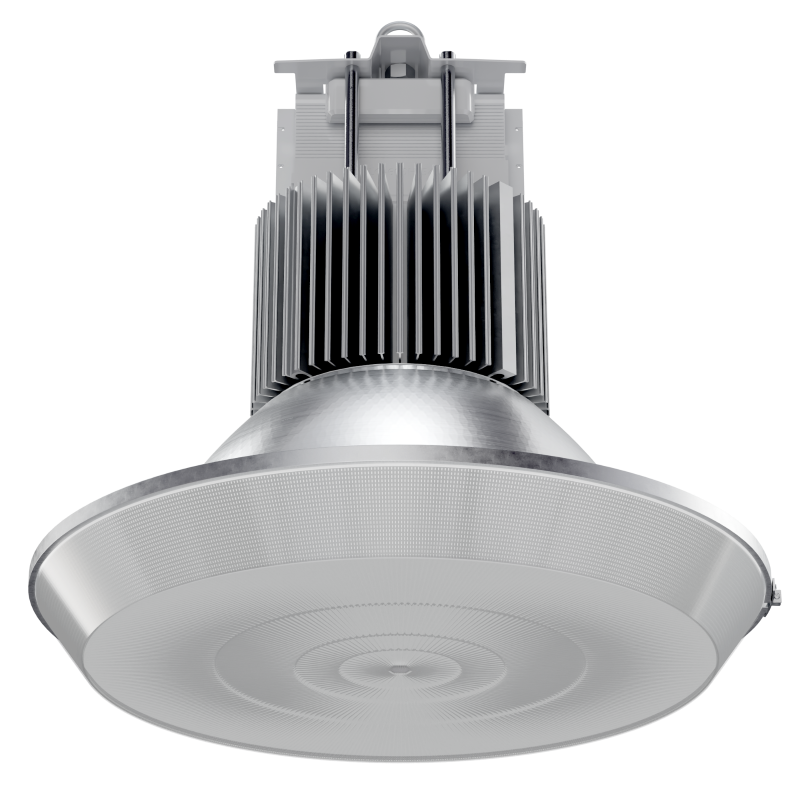

Impact resistant acrylic (polycarbonate on project request) prismatic refractor lens combined with high-performance, high-output LED source and precision engineered spun aluminium reflector. Distribution of 1.75:1.

Integral electronic driver available in fixed output and DALI dimmable versions. DALI versions available with Constant Light Output feature where lumen depreciation is negated and therefore maintenance factors can be significantly improved.

Fixed output versions supplied with 2m, IP65-rated flexible 3-core lead (no plugtop). DALI dimmable versions supplied with 2m, IP65-rated flexible 5-core lead (no plugtop).

For simple, cost-effective adjustment of lighting levels to 100%/50%/0% or 100%/66.7%/33.3%/0% lighting levels, combine with the Versalux KISS series of DALI controllers.

Battery backup options available on request – please contact your local Versalux office to discuss requirements

Highly-efficient 4000K neutral-white LED module, CRI>80.
210W – 32,051 lumens
320W – 49,576 lumens
600W – 81,954 lumens
