Bi-emission surface mounted luminaire

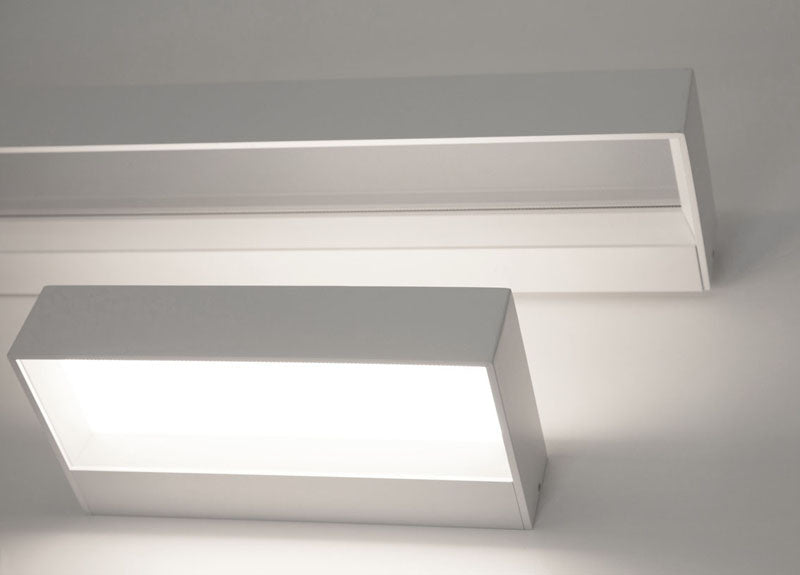

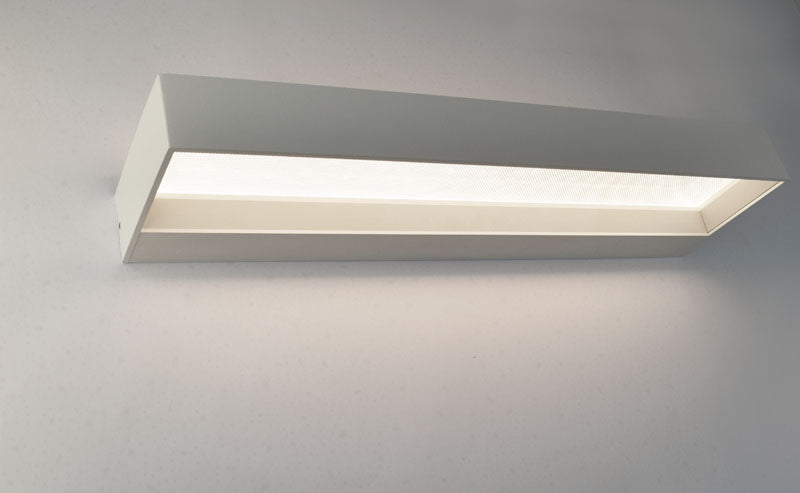

A range of wall mounted LED luminaires featuring a timeless design for use in residential and commercial indoor areas. The Milano offers a bi-directional diffused light effect, through innovative optic lens and vertical LEDs. The micro-optics are set into a transparent panel, appearing to float unobtrusively in the air.
Designed primarily as a wall mounted up/down light, it may however be mounted on any surface in any orientation, allowing for a wide variety of innovative uses.
Four sizes available
Milano S
Milano M

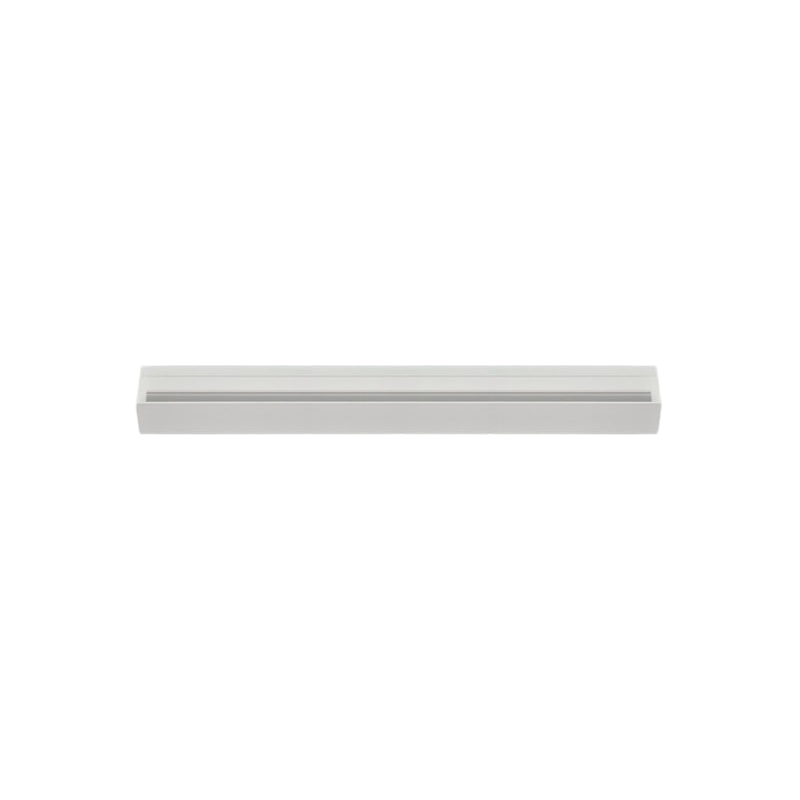

Milano L

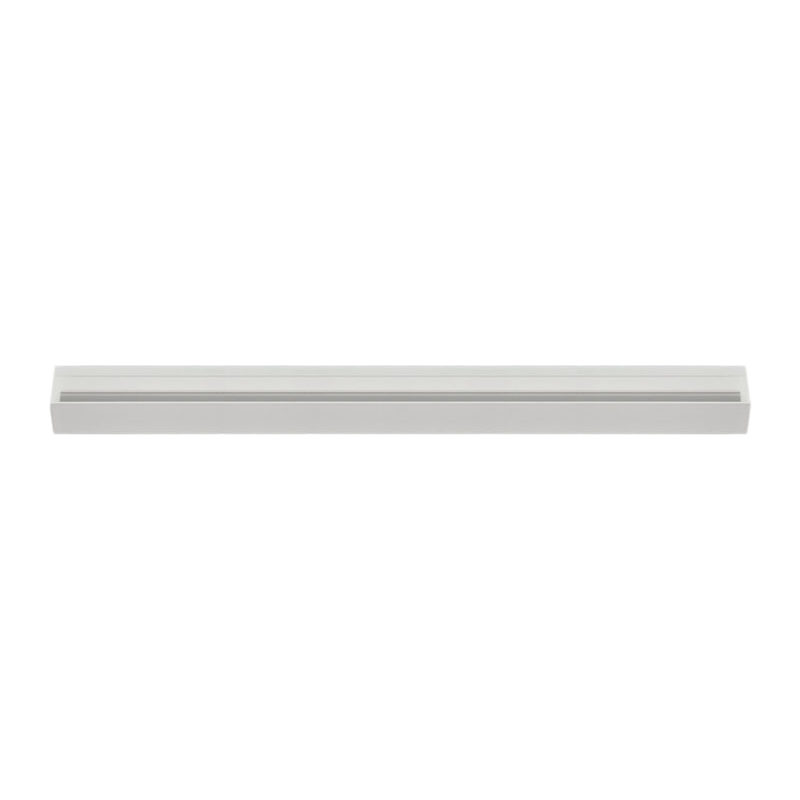

Milano XL
Luminaire overview
Design
Cast and extruded aluminium housing with solid, clear acrylic lens.
Optic

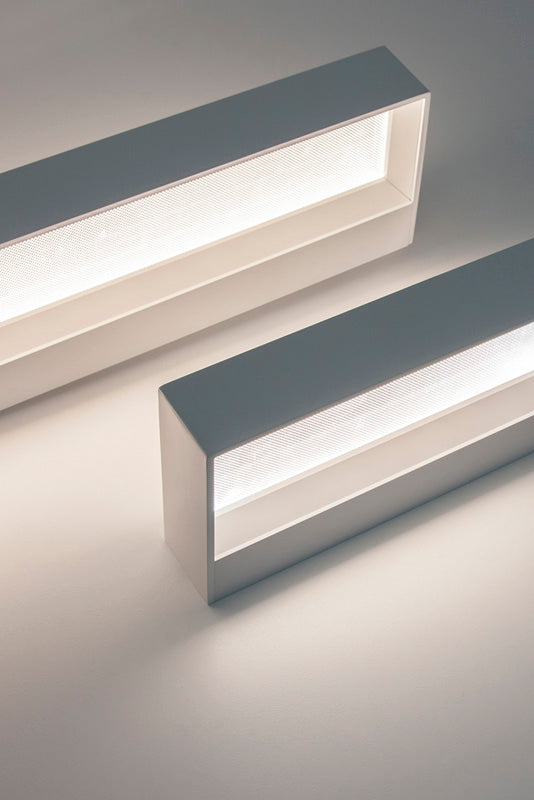

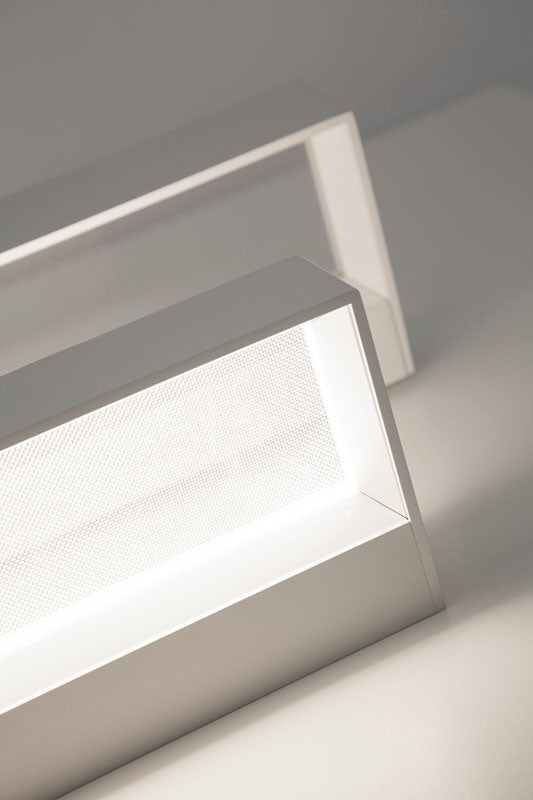

'Floating' acrylic panel with high-performance micro-control optical deflector array, illuminated via concealed sources and providing balanced illumination on both sides of the panel.
A choice of two levels of output per version, allowing either effect or illumination purposes.
Electrical
Integral driver, fixed output or dimmable.
Wattage: 15W - 120W
Light source
Energy efficient 3000K Warm White or 4000K Neutral White LEDs module, CRI 90.
Lumen output: 880lm - 3800lm
Product Configurator
| Product | Family | Output (lm) | CCT | Watts | Dimensions | Driver Setting (mA) | Actions |
|---|---|---|---|---|---|---|---|
Milano XL DALI Dimmable 3000K Ra90 White
MX13.1260.3090.1
| Milano XL | 3600 | 3000K | 60 | 1140mm x 152mm x 60mm | — |
Add to Project Briefcase
|
Milano XL Fixed Output 4000K Ra90 White
MX13.1160.4090.1
| Milano XL | 3800 | 4000K | 60 | 1140mm x 152mm x 60mm | — |
Add to Project Briefcase
|
Milano XL DALI Dimmable 4000K Ra90 White
MX13.1260.4090.1
| Milano XL | 3800 | 4000K | 60 | 1140mm x 152mm x 60mm | — |
Add to Project Briefcase
|
Milano S Fixed Output 4000K Ra90 White
MS13.1115.4090.1
| Milano S | 900 | 4000K | 14 | 300mm x 152mm x 60mm | — |
Add to Project Briefcase
|
Milano S DALI Dimmable 4000K Ra90 White
MS13.1215.4090.1
| Milano S | 900 | 4000K | 14 | 300mm x 152mm x 60mm | — |
Add to Project Briefcase
|
Milano S DALI Dimmable 3000K Ra90 White
MS13.1215.3090.1
| Milano S | 900 | 3000K | 14 | 300mm x 152mm x 60mm | — |
Add to Project Briefcase
|
Milano XL Fixed Output 3000K Ra90 White
MX13.1160.3090.1
| Milano XL | 3600 | 3000K | 60 | 1140mm x 152mm x 60mm | — |
Add to Project Briefcase
|
Milano S Fixed Output 3000K Ra90 White
MS13.1115.3090.1
| Milano S | 900 | 3000K | 14 | 300mm x 152mm x 60mm | — |
Add to Project Briefcase
|
Milano M Fixed Output 4000K Ra90 White
MM13.1130.4090.1
| Milano M | 2000 | 4000K | 31 | 580mm x 152mm x 60mm | — |
Add to Project Briefcase
|
Milano M DALI Dimmable 3000K Ra90 White
MM13.1230.3090.1
| Milano M | 1900 | 3000K | 31 | 580mm x 152mm x 60mm | — |
Add to Project Briefcase
|
Milano L Fixed Output 3000K Ra90 White
ML13.1145.3090.1
| Milano L | 2700 | 3000K | 46 | 960mm x 152mm x 60mm | — |
Add to Project Briefcase
|
Milano L Fixed Output 4000K Ra90 White
ML13.1145.4090.1
| Milano L | 2900 | 4000K | 46 | 960mm x 152mm x 60mm | — |
Add to Project Briefcase
|
Milano L DALI Dimmable 3000K Ra90 White
ML13.1245.3090.1
| Milano L | 2700 | 3000K | 46 | 960mm x 152mm x 60mm | — |
Add to Project Briefcase
|
Milano M Fixed Output 3000K Ra90 White
MM13.1130.3090.1
| Milano M | 1900 | 3000K | 31 | 580mm x 152mm x 60mm | — |
Add to Project Briefcase
|
Milano M DALI Dimmable 4000K Ra90 White
MM13.1230.4090.1
| Milano M | 2000 | 4000K | 31 | 580mm x 152mm x 60mm | — |
Add to Project Briefcase
|
Milano L DALI Dimmable 4000K Ra90 White
ML13.1245.4090.1
| Milano L | 2900 | 4000K | 46 | 960mm x 152mm x 60mm | — |
