Mini

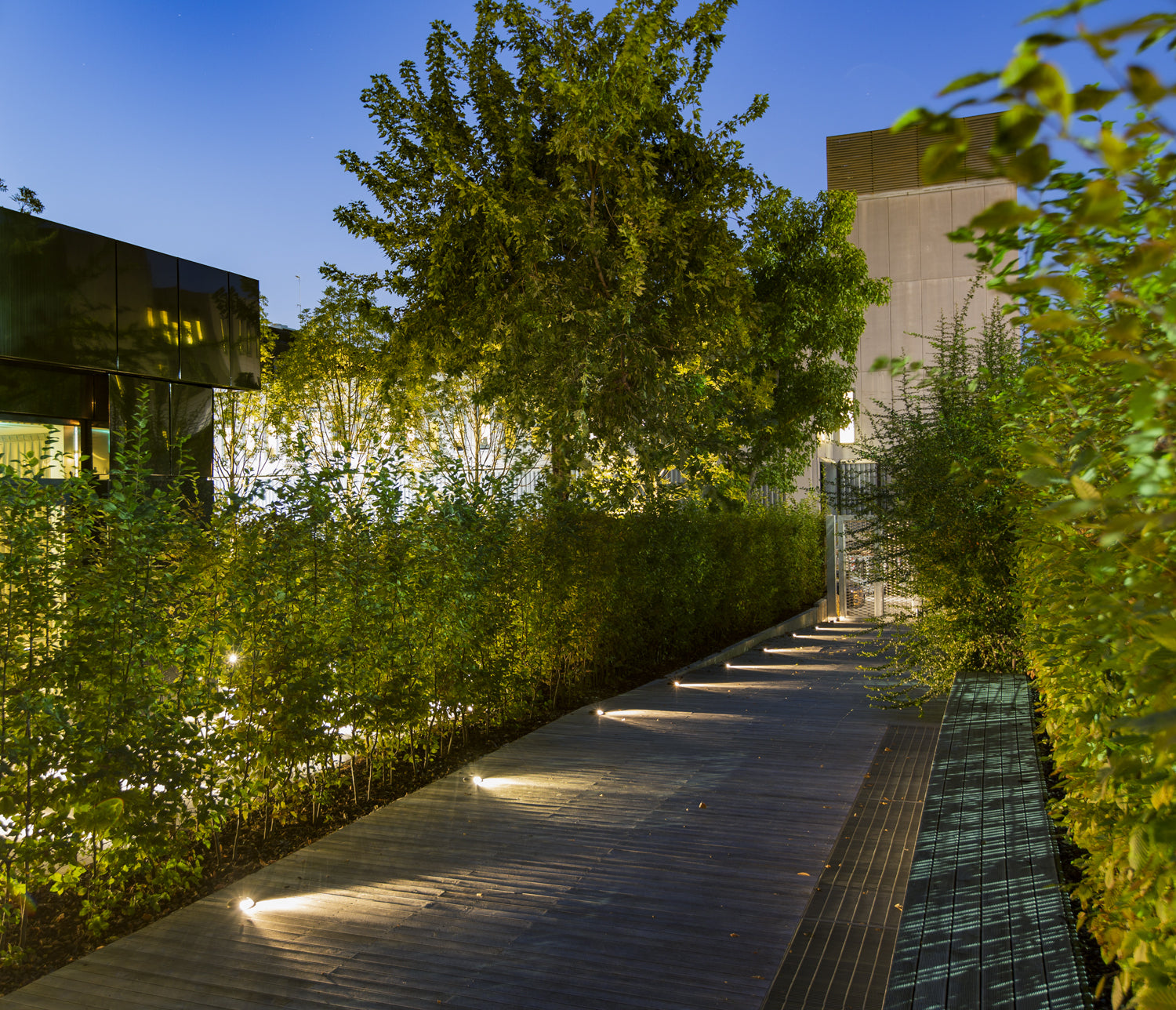

A compact exterior architectural projector designed for precise accent and landscape lighting applications. Its streamlined form and adjustable construction allow the fixture to direct light exactly where required, making it ideal for highlighting planting, pathways, and driveways.
Built around Platek’s technical outdoor lighting philosophy, the fitting combines durable construction, LED efficiency and adaptable optical control. The result is a versatile lighting tool suited to both residential and commercial projects where performance and discreet design are equally important.
Key features:
- Drive-over capacity: 2000kg
- Impact resistance: IK10
- IP66 / IP68 Full Dry (2m)
- Adjustable head for precise aiming
- Multiple gang options
Available in three variations
Mini 1
Mini 2
Mini 4
Luminaire overview
Design
Ceiling recessed luminaire designed for exterior use. Fully sealed construction (front and back) for durability. Clean, integrated architectural appearance. Suitable for soffits, canopies and covered outdoor ceilings
Optic
Purpose-designed for downlight applications. Multiple beam options including: Narrow, Wider distributions, Asymmetrical beam for directional lighting.
RGBW versions available for dynamic lighting effects
Electrical
Two main configurations: Basic: 220–240V integrated driver. Professional: remote power supply.
Professional version supports: Adjustable output current (300mA – 1050mA). ON/OFF and dimmable configurations.
Remote driver option allows greater flexibility in installation and control
Up to 50W
Light source
LED light source 2700K, 3000K, 4000K, RGBW
Up to 4000lm
CRI > 80
Multiple optical and output configurations depending on model selection. Designed for controlled, high-efficiency illumination.
After data on Mini Rollover?
We recognise there is no data here. The Mini Rollover data will be available shortly.
In the meantime, if you're after a data sheet or more information please fill out the form below and we will be in contact.
