Robust luminaires for Zone 2/22 areas
The Mix has a wide variety of installation options, minimal maintenance and excellent overall economy. The luminaire housing is manufactured in 316L - acid-proof stainless steel or aluminium/zinc treated steel with a white epoxy/polyester powder-coated finish. Alternatively, it’s available in unpainted acid-proof steel. It’s supplied with a diffuser in self-extinguishing (V0) and impact-proof frosted polycarbonate with one-piece silicone gasket and clips in 316 L acid-proof steel. MIX G2 has a hinged gear tray with a quick connector to facilitate maintenance. An emergency solution for 1.5- or 3-hour duration is available. It’s supplied with a fixed external battery box to achieve optimal working conditions.
Key features:
- IP66/IP67
- IK10
- IECEx
- Ta-30 to Ta55
Approvals
- Gas classification: II 3GD Ex ec nA IIC T5 Gc
- Dust classification: II 3GD Ex tc IIIC81°C Dc
3 sizes

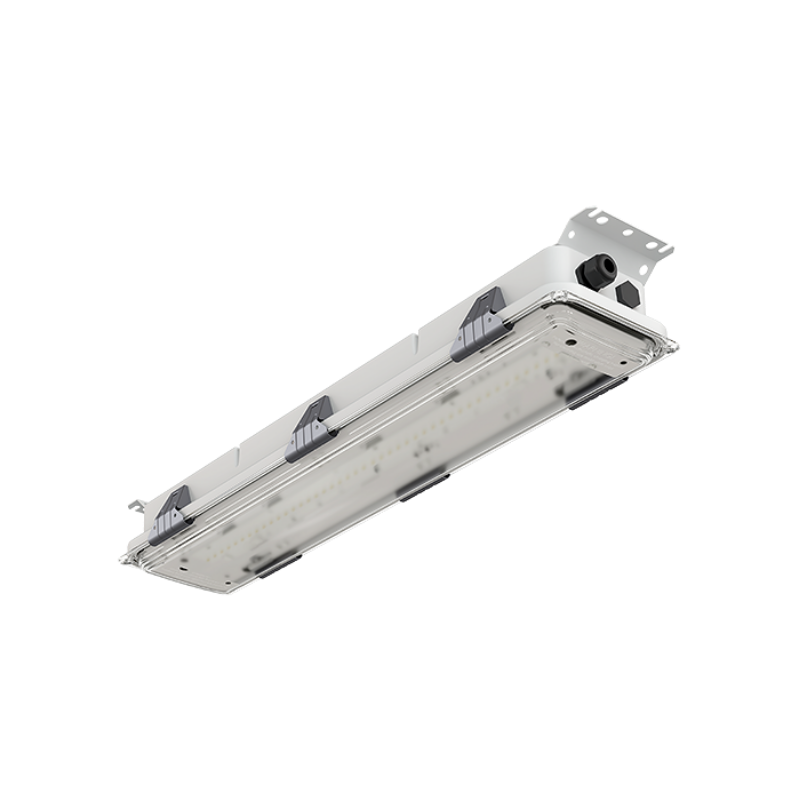

600mm

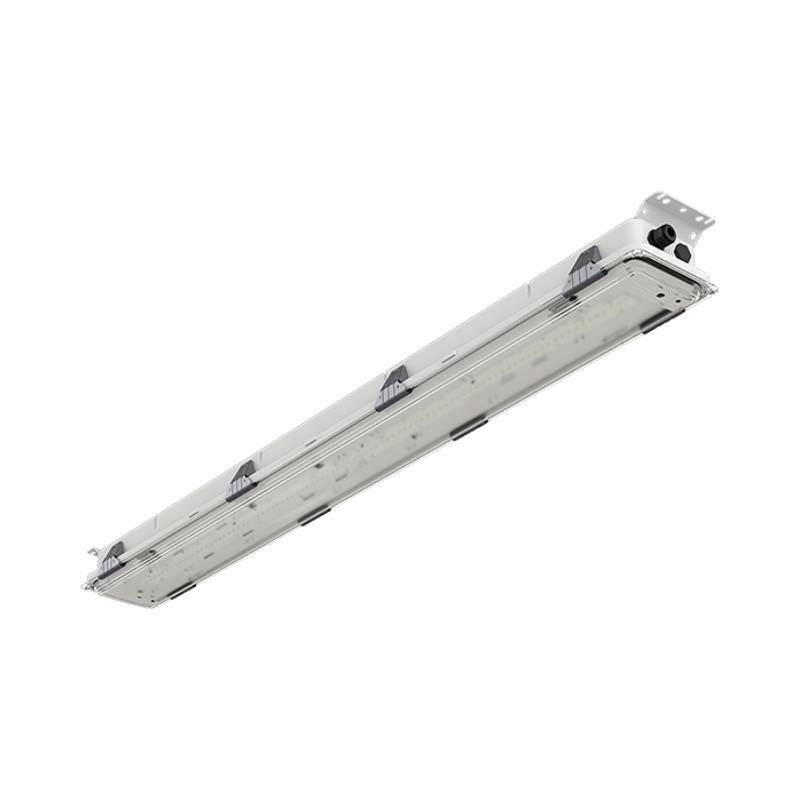

1200mm

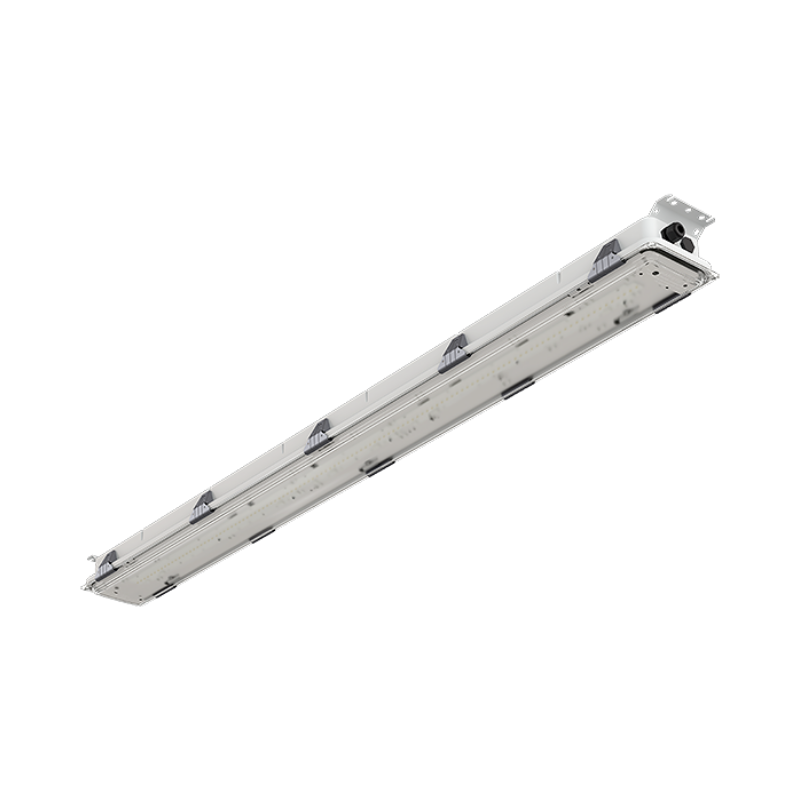

1500mm
Luminaire overview
Design
Housings one-piece deep-drawn AISI 316L stainless steel. Standard with nickel-plated gland & blind plugs; the size and material of the glands & plugs can be selected. Standard with external mounting feet for quick installation without compromising fixture integrity. Finished in RAL9016 white stove enamelled epoxy/polyester powder finish. Moulded UV-resistant polycarbonate diffuser with moulded silicone gasket.
Optic
Internal diffuser with clear, smooth outer diffuser.
Electrical
Designed for 220-240V 50/60Hz supply.
One 5-way terminal block 6mm² each end. Through wiring (TW) 5x2.5mm².
Wattage: 20W - 54W
Light Source
4000K Ra>80, SDCM 3, 80,000hr @ 25°C ambient, 60,000hr @ 45°C ambient.
Lumen output: 2700lm - 8400lm
