Endless application opportunities!
A technical luminaire that, thanks to its outstanding lighting properties and good looks, has endless application opportunities – hence the name!
IP65 industrial LED luminaire with a specialised optical system for improved performance and visual comfort. cost-effective, low-maintenance and low-glare design minimises shadowing and delivers multiple benefits to the client and occupants. Fully surface mounted with smooth vertical-sided housing for Primary Industry applications.
Key features:
- Uses a Versalux, unique faceted refractor for outstanding light output, low-glare properties and broad distribution.
- IP65 construction for wet, cold or humid environments.
- Integrated pressure compensation filter eliminates condensation and contaminants.
- Shallow profile to suit lower mounting heights.
- Available with MelaGen® Active.
- Comes surface mounted as standard, option for suspension kit.
Accessories

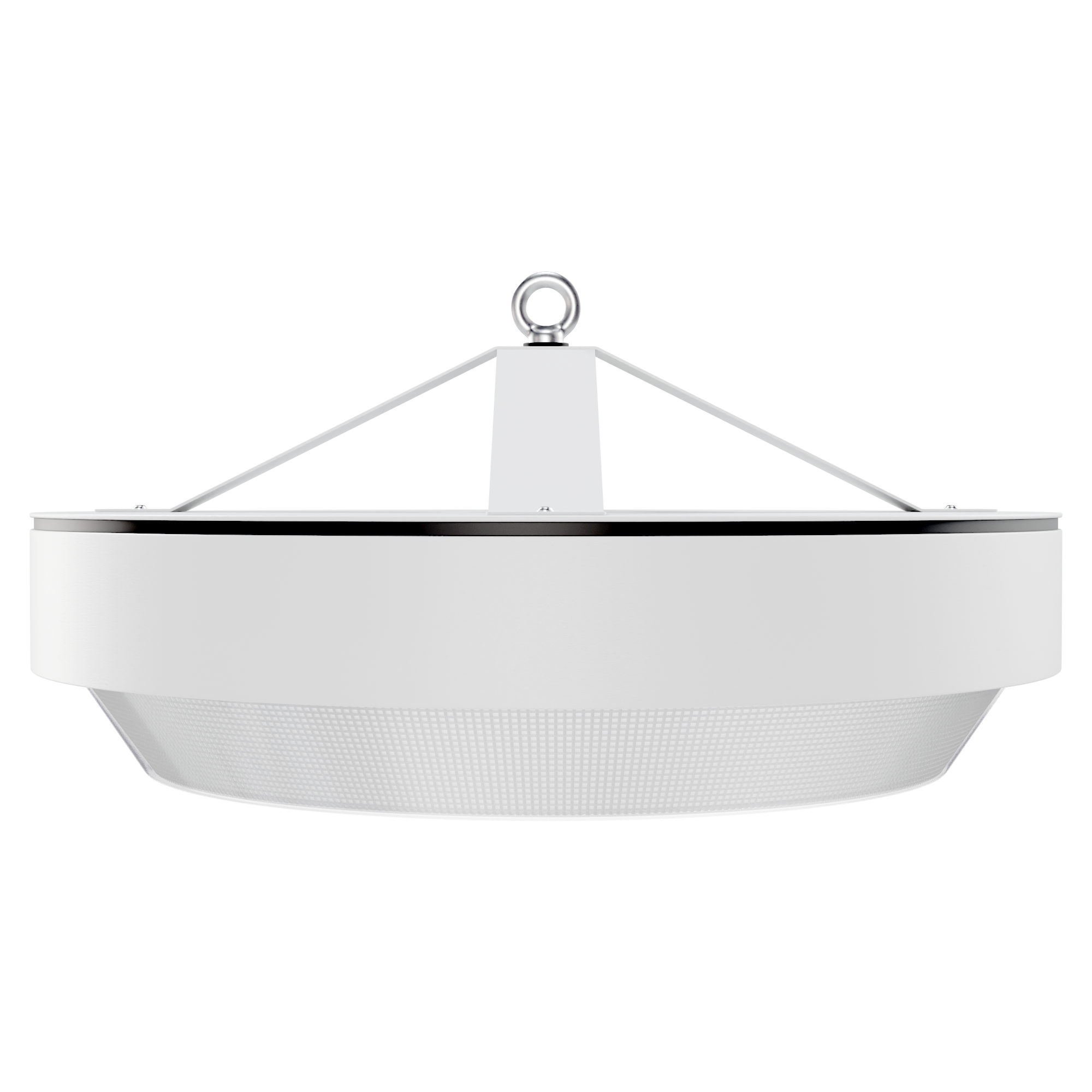

Suspension Kit
Suspended applications

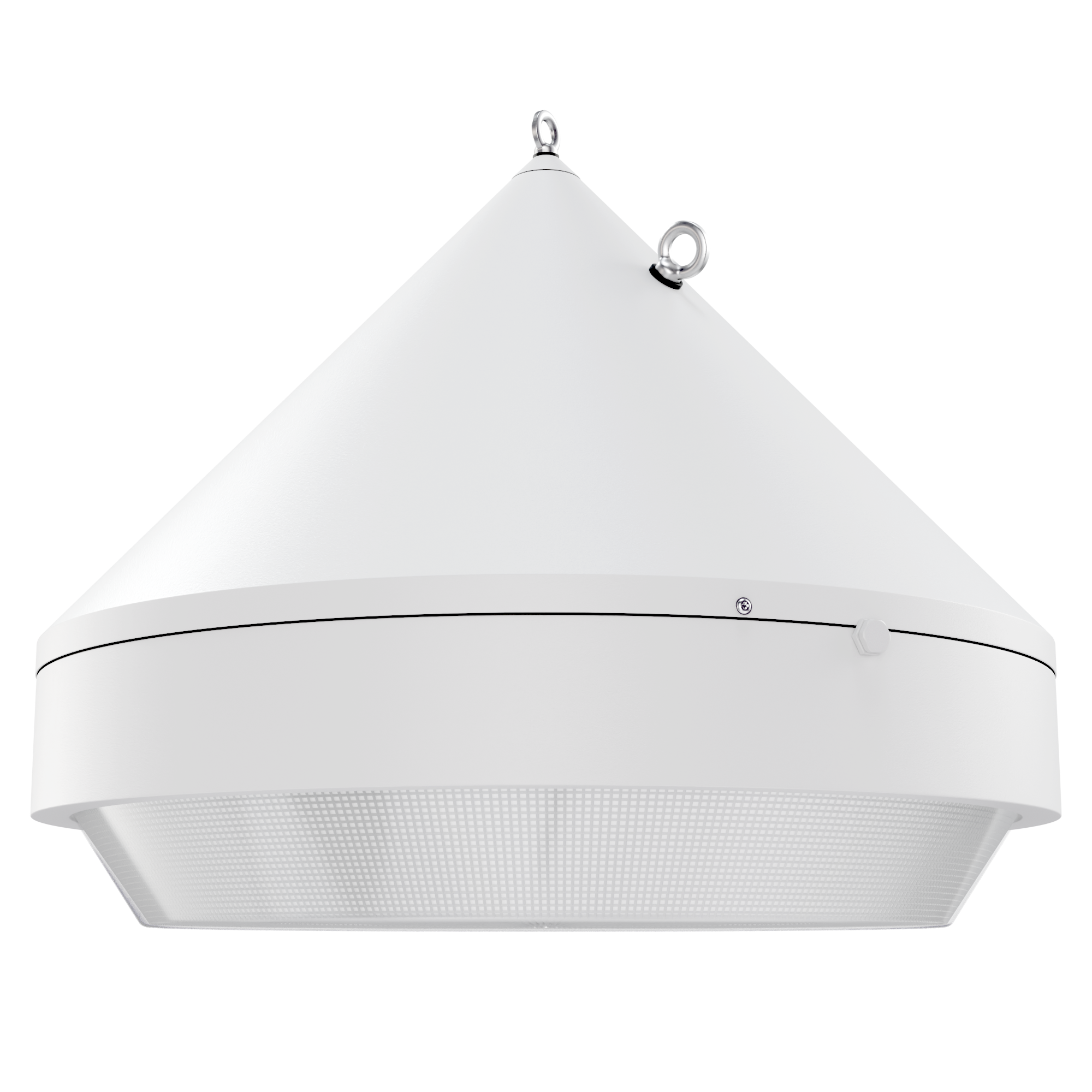

DPI Suspension Kit
Protect the top of the multi from harsh environments with a high ingress protection 'hat'.
Luminaire overview
Design
Low-profile, extruded, rolled and welded aluminium housing, sealed and powder coated white. Aluminium body and backplate with unique 'twist and lock' mounting method for simple installation, including IP68 cable entry gland and integrated cord grip.
Optic
Customised LED array combined with shallow-dish radial refractor with seven-part prism system. Choice of acrylic or polycarbonate refractor for IK06 or IK10 protection respectively.
Electrical
Integral electronic driver in choice of fixed output or DALI dimmable control. Three standard fixture outputs, other output levels to project request.
Options for Bluetooth receiver and integrated microwave sensor.
Wattage: 75W - 150W
Light Source
Highly efficient LED 4000K sources, CRI Ra80 as standard. Optional Melagen® Active chips on project request for efficient, Ra90, blue-spectrum enriched illumination.
Lumen output: 11,000lm - 23,000lm
Product Configurator
| Product | Output (lm) | CCT | Control | Optic Material | Watts | Efficacy (lm/W) | CRI | Stock Status | Actions |
|---|---|---|---|---|---|---|---|---|---|
| 11030 | 4000K | Bluetooth Dimmable | Customised LED array combined with shallow-dish radial refractor with seven-part prism system. Polycarbonate refractor providing IK10 protection. | 75 | 146 | 80 | Made To Order |
Add to Project Briefcase
|
|
| 11030 | 4000K | DALI Dimmable | Customised LED array combined with shallow-dish radial refractor with seven-part prism system. Polycarbonate refractor providing IK10 protection. | 75 | 146 | 80 | Made To Order |
Add to Project Briefcase
|
|
Multi Polycarbonate Lens Low Power Fixed Output 4000K Ra80 White
MULTI.PLFO.4080
| 11030 | 4000K | Fixed Output | Customised LED array combined with shallow-dish radial refractor with seven-part prism system. Polycarbonate refractor providing IK10 protection. | 75 | 146 | 80 | Made To Order |
Add to Project Briefcase
|
| 15600 | 4000K | Bluetooth Dimmable | Customised LED array combined with shallow-dish radial refractor with seven-part prism system. Polycarbonate refractor providing IK10 protection. | 109 | 143 | 80 | Made To Order |
Add to Project Briefcase
|
|
| 15600 | 4000K | DALI Dimmable | Customised LED array combined with shallow-dish radial refractor with seven-part prism system. Polycarbonate refractor providing IK10 protection. | 109 | 143 | 80 | Made To Order |
Add to Project Briefcase
|
|
| 15600 | 4000K | Fixed Output | Customised LED array combined with shallow-dish radial refractor with seven-part prism system. Polycarbonate refractor providing IK10 protection. | 109 | 143 | 80 | Made To Order |
Add to Project Briefcase
|
|
| 20660 | 4000K | Bluetooth Dimmable | Customised LED array combined with shallow-dish radial refractor with seven-part prism system. Polycarbonate refractor providing IK10 protection. | 149 | 139 | 80 | Made To Order |
Add to Project Briefcase
|
|
| 20660 | 4000K | DALI Dimmable | Customised LED array combined with shallow-dish radial refractor with seven-part prism system. Polycarbonate refractor providing IK10 protection. | 149 | 139 | 80 | Made To Order |
Add to Project Briefcase
|
|
| 20660 | 4000K | Fixed Output | Customised LED array combined with shallow-dish radial refractor with seven-part prism system. Polycarbonate refractor providing IK10 protection. | 149 | 139 | 80 | Made To Order |
Add to Project Briefcase
|
|
|
Multi Acrylic Lens Low Power Bluetooth Dimmable 4000K Ra80 White
MULTI.ALBT.4080
| 11930 | 4000K | Bluetooth Dimmable | Customised LED array combined with shallow-dish radial refractor with seven-part prism system. Acrylic refractor. | 75 | 158 | 80 | Made To Order |
Add to Project Briefcase
|
| 16880 | 4000K | Bluetooth Dimmable | Customised LED array combined with shallow-dish radial refractor with seven-part prism system. Acrylic refractor. | 109 | 155 | 80 | Made To Order |
Add to Project Briefcase
|
|
|
Multi Acrylic Lens Low Power Fixed Output 4000K Ra80 White
MULTI.ALFO.4080
| 11930 | 4000K | Fixed Output | Customised LED array combined with shallow-dish radial refractor with seven-part prism system. Acrylic refractor. | 75 | 158 | 80 | Made To Order |
Add to Project Briefcase
|
|
Multi Acrylic Lens Low Power DALI Dimmable 4000K Ra80 White
MULTI.ALDD.4080
| 11930 | 4000K | DALI Dimmable | Customised LED array combined with shallow-dish radial refractor with seven-part prism system. Acrylic refractor. | 75 | 158 | 80 | Made To Order |
Add to Project Briefcase
|
|
Multi Acrylic Lens Medium Power DALI Dimmable 4000K Ra80 White
MULTI.AMDD.4080
| 16880 | 4000K | DALI Dimmable | Customised LED array combined with shallow-dish radial refractor with seven-part prism system. Acrylic refractor. | 109 | 155 | 80 | Made To Order |
Add to Project Briefcase
|
|
Multi Acrylic Lens Medium Power Fixed Output 4000K Ra80 White
MULTI.AMFO.4080
| 16880 | 4000K | Fixed Output | Customised LED array combined with shallow-dish radial refractor with seven-part prism system. Acrylic refractor. | 109 | 155 | 80 | Made To Order |
Add to Project Briefcase
|
|
Multi Acrylic Lens High Power DALI Dimmable 4000K Ra80 White
MULTI.AHDD.4080
| 22360 | 4000K | DALI Dimmable | Customised LED array combined with shallow-dish radial refractor with seven-part prism system. Acrylic refractor. | 149 | 150 | 80 | Made To Order |
Add to Project Briefcase
|
|
Multi Acrylic Lens High Power Fixed Output 4000K Ra80 White
MULTI.AHFO.4080
| 22360 | 4000K | Fixed Output | Customised LED array combined with shallow-dish radial refractor with seven-part prism system. Acrylic refractor. | 149 | 150 | 80 | Made To Order |
Add to Project Briefcase
|
| 22360 | 4000K | Bluetooth Dimmable | Customised LED array combined with shallow-dish radial refractor with seven-part prism system. Acrylic refractor. | 149 | 150 | 80 | Made To Order |
Add to Project Briefcase
|
