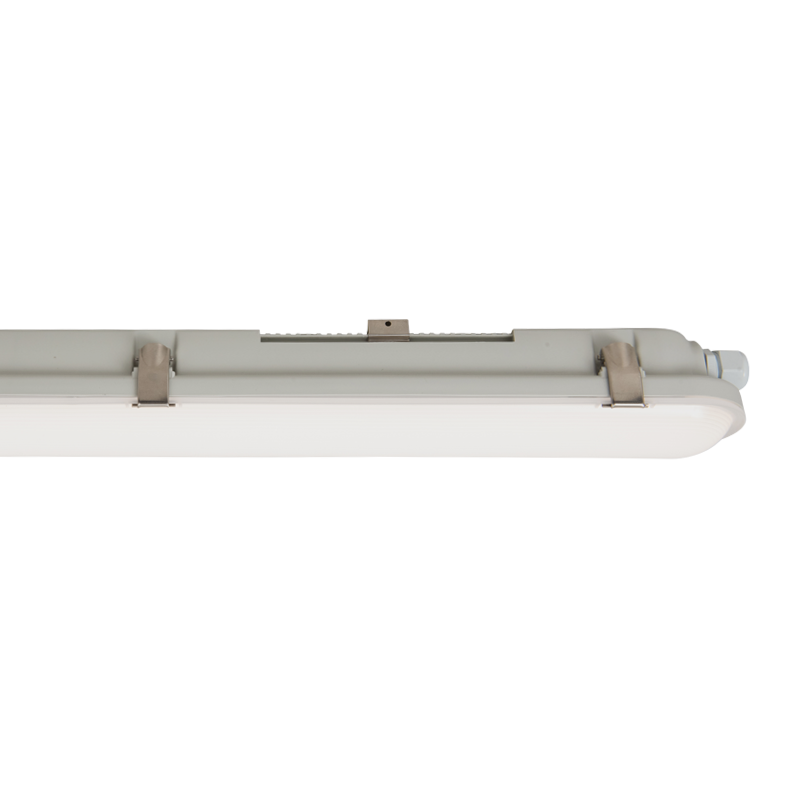

IP66 linear LED luminaire
IP66 linear LED surface mounted luminaires suitable for civil, commercial, industrial and public areas where dust and moisture may be present.
Key features
- V0 Polycarbonate body & diffuser
- Emergency, motion sensor or motion sensor plus PE cell functions available (some versions)
- IK08
- Up to 47W
- Up to 6500lm
Luminaire overview
Design
Impact resistant, self-extinguishing, V0 polycarbonate body and diffuser. 304 stainless steel hinging diffuser clips with anti-vandal screw system. 304 stainless steel fixing brackets and hangers supplied for surface mounting or suspension via generous mounting 'rails' in the housing, allowing for a wide choice of mounting bracket locations.
Optic
Opalescent diffuser for high performance with reduced glare, seated against premium neoprene gasket.
Electrical
Integral driver with a choice of fixed output or DALI dimmable, through wired with 5-pole terminal blocks, and supplied with multiple knockouts and an end entry. Fitted with a cable gland and removable bung and supplied with a second cable gland to facilitate through wiring as required.
To automatically switch the fixture on via presence detection regardless of general illumination level, specify the NAUTILUS with microwave motion sensor option (nominal 1200mm or 1500mm versions only).
To automatically switch the fixture on via presence detection in dark conditions only (e.g. night-time, or dark rooms), specify the NAUTILUS with microwave motion sensor plus PE Cell function (nominal 1200mm or 1500mm versions only).
Wattage: 16W - 47W
Light Source
Highly efficient neutral white 4000K LED, CRI Ra80.
Lumen output: 2000lm - 6500lm
Product Configurator
| Product | Family | Dimensions | Output (lm) | Watts | Control | CCT | Actions |
|---|---|---|---|---|---|---|---|
![]()
NAUTILUS 1500mm (nom.) DALI Dimmable 4000K Ra80
NAUTILUS.15DD
| Nautilus 1500mm | 1507mm x 75mm x 70mm | 6400 | 47 | DALI Dimmable | 4000K | |
![]()
NAUTILUS 600mm (nom.) DALI Dimmable 4000K Ra80
NAUTILUS.06DD
| Nautilus 600mm | 607mm x 75mm x 70mm | 2000 | 16 | DALI Dimmable | 4000K | |
![]()
NAUTILUS 1200mm (nom.) DALI Dimmable 4000K Ra80 Maintained Emergency
NAUTILUS.12DD.EM
| Nautilus 1200mm | 1207mm x 75mm x 70mm | 4500 | 33 | DALI Dimmable | 4000K | |
![]()
NAUTILUS 1200mm (nom.) DALI Dimmable 4000K Ra80
NAUTILUS.12DD
| Nautilus 1200mm | 1207mm x 75mm x 70mm | 4500 | 33 | DALI Dimmable | 4000K | |
![]()
NAUTILUS 1500mm (nom.) Fixed Output 4000K Ra80
NAUTILUS.15FO
| Nautilus 1500mm | 1507mm x 75mm x 70mm | 6400 | 47 | Fixed Output | 4000K | |
![]()
NAUTILUS 1200mm (nom.) Fixed Output 4000K Ra80
NAUTILUS.12FO
| Nautilus 1200mm | 1207mm x 75mm x 70mm | 4500 | 33 | Fixed Output | 4000K | |
![]()
NAUTILUS 1200mm (nom.) Fixed Output 4000K Ra80 Maintained Emergency
NAUTILUS.12FO.EM
| Nautilus 1200mm | 1207mm x 75mm x 70mm | 4500 | 33 | Fixed Output | 4000K | |
![]()
NAUTILUS 600mm (nom.) Fixed Output 4000K Ra80
NAUTILUS.06FO
| Nautilus 600mm | 607mm x 75mm x 70mm | 2000 | 16 | Fixed Output | 4000K |
