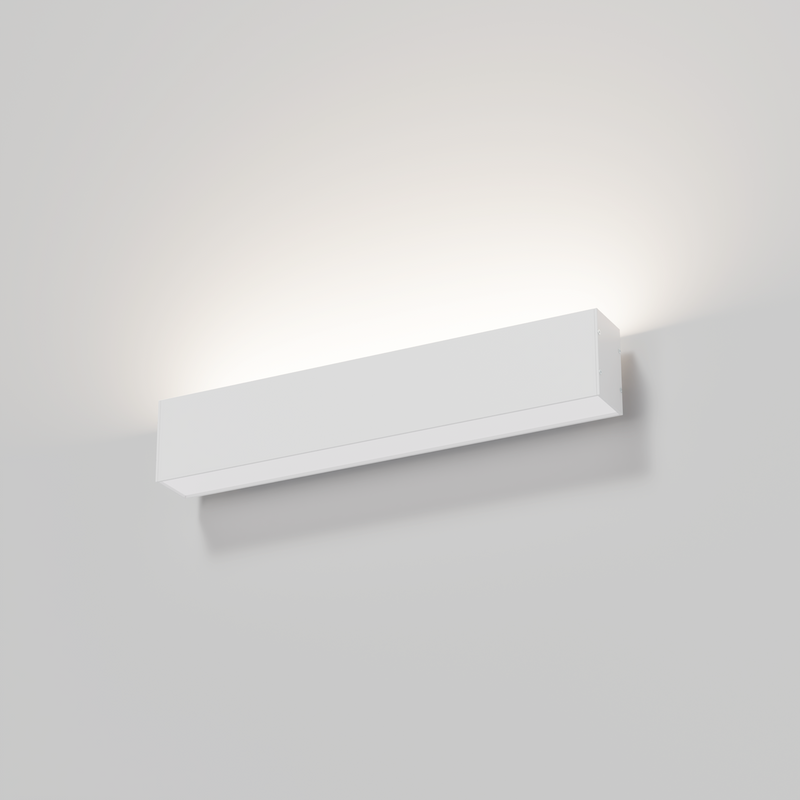

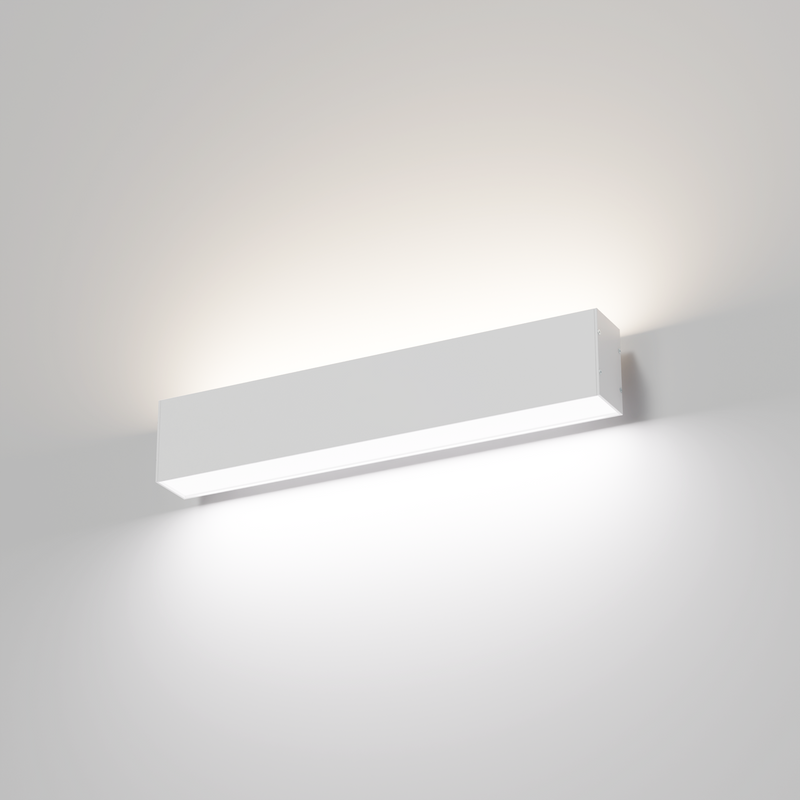

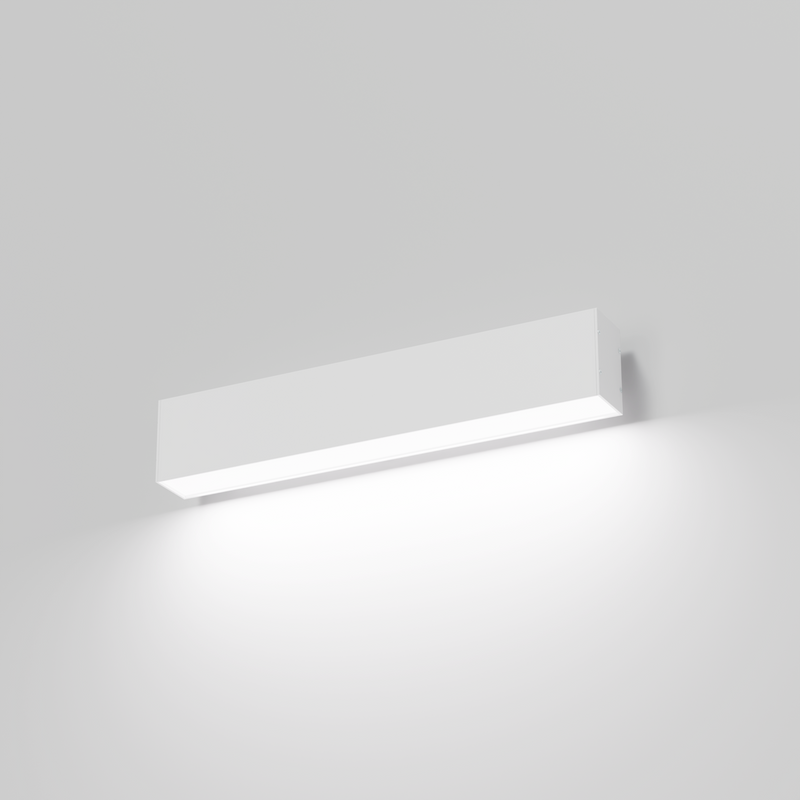

Dual output overhead luminaire

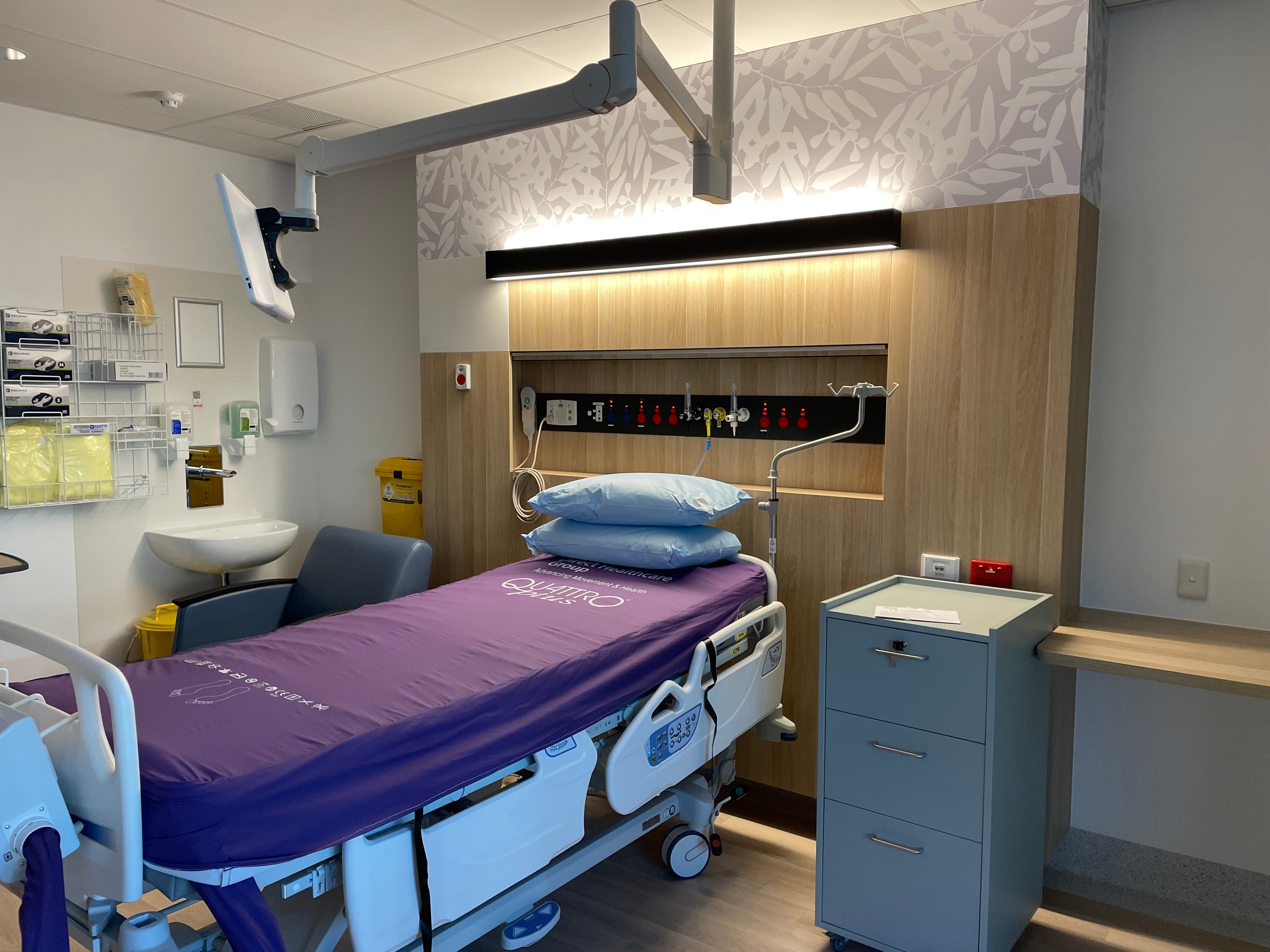

IP44 overbed luminaire with dual opalescent optics designed for separate control of the direct and indirect distribution.
Key features
- IP44 overbed luminaire
- Low glare optics
- Separate control of the direct and indirect output
- Multiple sizes, LED colour, and finish options
- MelaGen® powered product for low, high, or transitional M/P ratios
Luminaire overview
Design

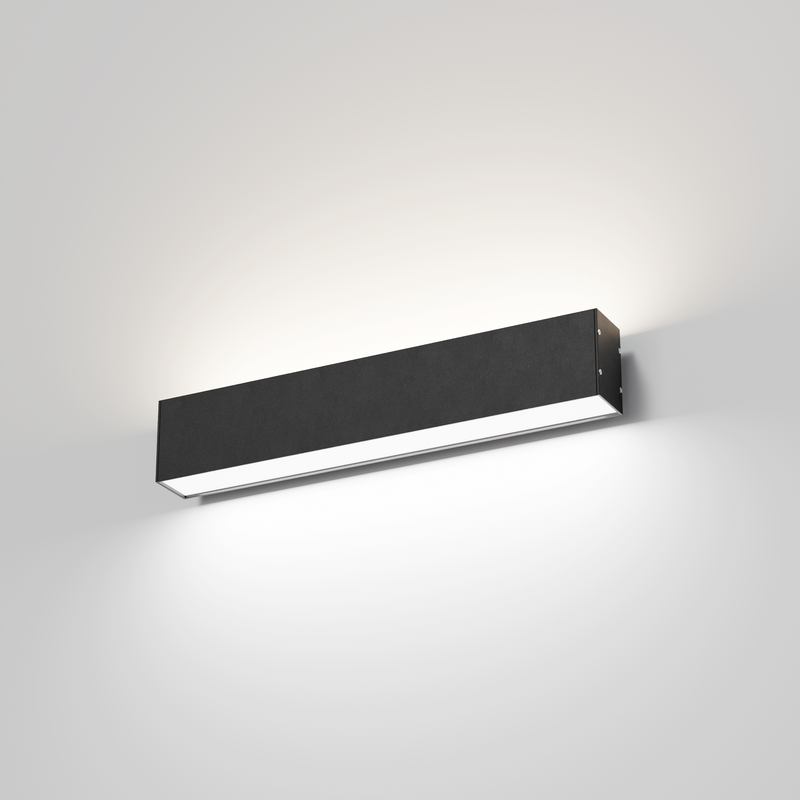

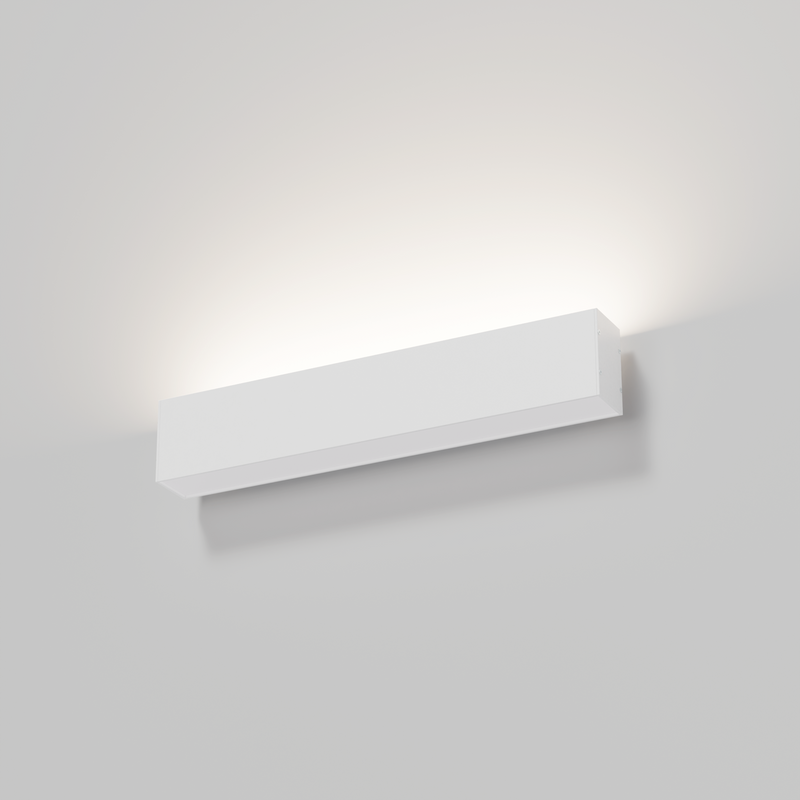

Extruded aluminium housing with centralised steel wall-mounting bracket, powdercoated in white or silver finish.
Optic
Flat, full cutoff direct opalescent lens. Indirect translucent lens.
Electrical
Integral fixed output or DALI dimmable drivers, configured for separate control of upward and downward lighting components.
Wattage: 20W - 55W
Light source
Highly efficient LEDs in 3000K or 4000K, CRI 90.
For full colour: MelaGen® Active, MelaGen® Calm, or MelaGen® Regen LEDs.
Lumen output: 950lm - 2500lm
After data on Nico?
We recognise there is no data here. The Nico data will be available shortly.
In the meantime, if you're after a data sheet or more information please fill out the form below and we will be in contact.
