Orta Family

Quick links

Download brochure Download family photometry Go to product configurator

High-performance

Orta is a high-performance LED back-lit luminaire designed to deliver exceptional visual comfort, flexibility, and efficiency across commercial and healthcare spaces. With its ultra-slim profile and sleek, understated aesthetic, Orta integrates seamlessly into modern interiors while concealing advanced lighting technology beneath the surface.

Offering a choice of optics, outputs, sizes, and mounting configurations, Orta adapts effortlessly to offices, hospitals, and other demanding environments. Uniform illumination, low glare performance, and high colour rendering ensure comfortable, high-quality light, while optional MelaGen® technology supports occupant wellbeing where it matters most. Versatile, refined, and built for long-term performance, Orta is a lighting solution designed around people and the spaces they use every day.

Key features

Suitable for IC-4 application.
IP65
IK04
Microprismatic or opal optics

Three available sizes

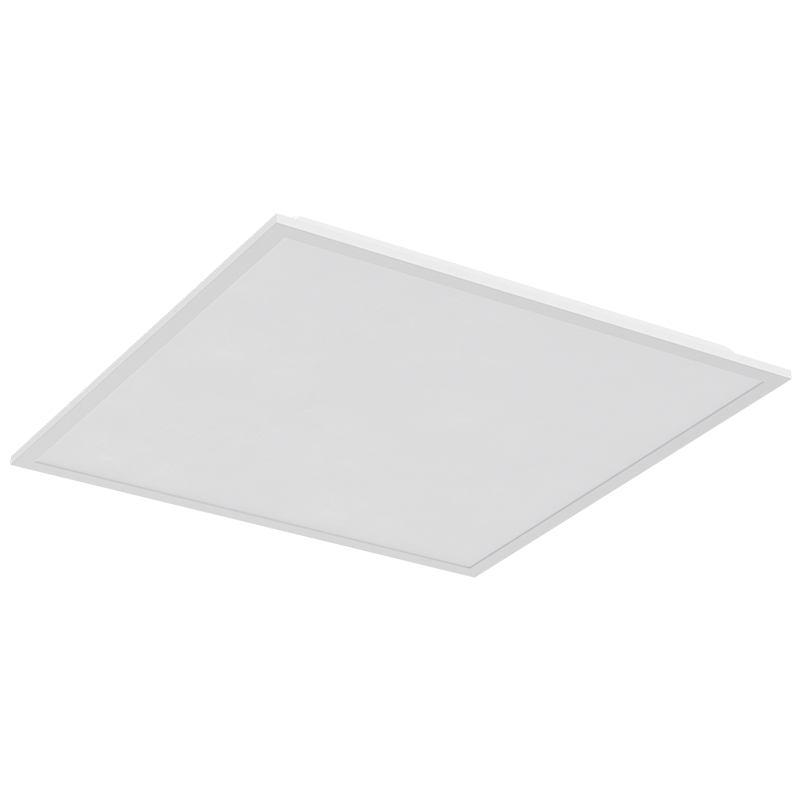

Orta M

600mm x 600mm

Orta R

300mm x 600mm

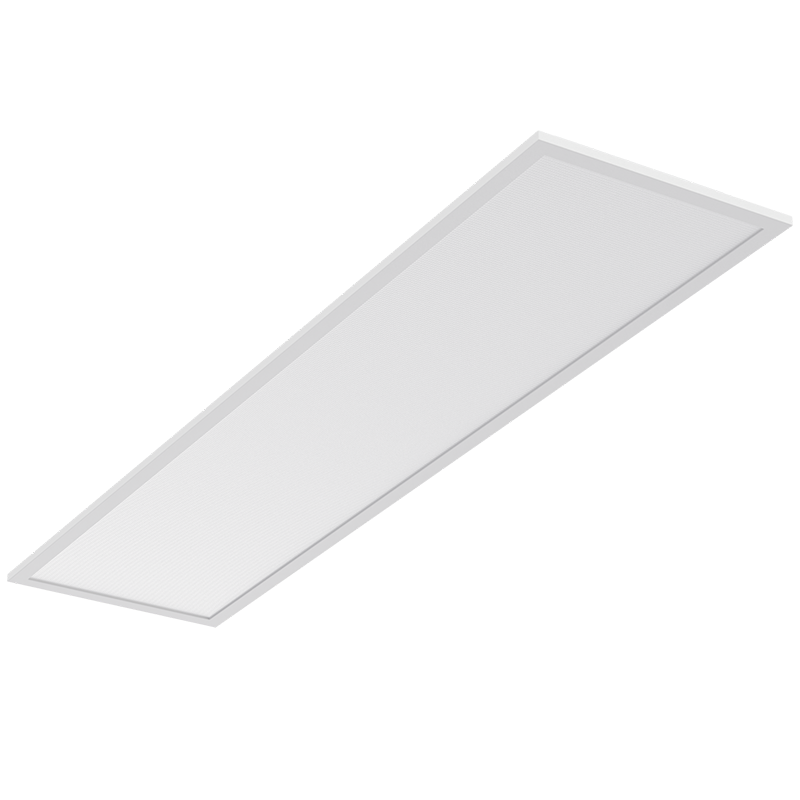

Orta L

300mm x 1200mm

Luminaire overview

Design

Dust tight, low profile pressed aluminium body and frame, powdercoated satin white.

Optic

Low glare, high output microprismatic optic.

Electrical

A wide range of light outputs are available, in a choice of fixed output, phase-cut dimmable or DALI dimmable configurations. Supplied with a remote electronic driver with quick-connect plug.

Wattage: 8W - 41W

Light source

Highly efficient LED source, L90 > 50,000hrs.
Selectable colour temperature of 3000K / 3500K / 4000K. CRI90 for standard Orta.
Orta MelaGen Active version in 4200K, CRI90, COI compliant with M/P ratio >90.
Orta MelaGen Regen versions in transitional 2200K - 4200K, CRI90.

Lumen output: 700lm - 4600lm

Product Configurator

Product	Family	CCT	Output (lm)	Mounting Type	Control	Optic Material	Watts	Actions
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 180mA Phase-Cut Dimmable MelaGen Active ORTAR.22.0180PC.BL90A.1/SM	Orta R	4200K	800	Surface mounted	Phase-cut Dimmable	Opal Diffuser	9	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 350mA Phase-Cut Dimmable MelaGen Active ORTAR.22.0350PC.BL90A.1/SM	Orta R	4200K	1420	Surface mounted	Phase-cut Dimmable	Opal Diffuser	15	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 500mA Phase-Cut Dimmable MelaGen Active ORTAR.22.0500PC.BL90A.1/SM	Orta R	4200K	2010	Surface mounted	Phase-cut Dimmable	Opal Diffuser	21	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 180mA Phase-Cut Dimmable 4000K Ra90 ORTAR.22.0180PC.4090A.1/SM	Orta R	4000K	920	Surface mounted	Phase-cut Dimmable	Opal Diffuser	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 350mA Phase-Cut Dimmable 4000K Ra90 ORTAR.22.0350PC.4090A.1/SM	Orta R	4000K	1650	Surface mounted	Phase-cut Dimmable	Opal Diffuser	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 500mA Phase-Cut Dimmable 4000K Ra90 ORTAR.22.0500PC.4090A.1/SM	Orta R	4000K	2320	Surface mounted	Phase-cut Dimmable	Opal Diffuser	19	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 180mA Phase-Cut Dimmable 3500K Ra90 ORTAR.22.0180PC.3590A.1/SM	Orta R	3500K	910	Surface mounted	Phase-cut Dimmable	Opal Diffuser	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 350mA Phase-Cut Dimmable 3500K Ra90 ORTAR.22.0350PC.3590A.1/SM	Orta R	3500K	1620	Surface mounted	Phase-cut Dimmable	Opal Diffuser	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 500mA Phase-Cut Dimmable 3500K Ra90 ORTAR.22.0500PC.3590A.1/SM	Orta R	3500K	2280	Surface mounted	Phase-cut Dimmable	Opal Diffuser	19	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 180mA Phase-Cut Dimmable 3000K Ra90 ORTAR.22.0180PC.3090A.1/SM	Orta R	3000K	890	Surface mounted	Phase-cut Dimmable	Opal Diffuser	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 350mA Phase-Cut Dimmable 3000K Ra90 ORTAR.22.0350PC.3090A.1/SM	Orta R	3000K	1590	Surface mounted	Phase-cut Dimmable	Opal Diffuser	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 500mA Phase-Cut Dimmable 3000K Ra90 ORTAR.22.0500PC.3090A.1/SM	Orta R	3000K	2230	Surface mounted	Phase-cut Dimmable	Opal Diffuser	19	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 180mA Casambi MelaGen Active ORTAR.22.0180CS.BL90A.1/SM	Orta R	4200K	800	Surface mounted	Casambi	Opal Diffuser	9	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 350mA Casambi MelaGen Active ORTAR.22.0350CS.BL90A.1/SM	Orta R	4200K	1420	Surface mounted	Casambi	Opal Diffuser	15	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 500mA Casambi MelaGen Active ORTAR.22.0500CS.BL90A.1/SM	Orta R	4200K	2010	Surface mounted	Casambi	Opal Diffuser	21	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 180mA Casambi 4000K Ra90 ORTAR.22.0180CS.4090A.1/SM	Orta R	4000K	920	Surface mounted	Casambi	Opal Diffuser	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 350mA Casambi 4000K Ra90 ORTAR.22.0350CS.4090A.1/SM	Orta R	4000K	1650	Surface mounted	Casambi	Opal Diffuser	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 500mA Casambi 4000K Ra90 ORTAR.22.0500CS.4090A.1/SM	Orta R	4000K	2320	Surface mounted	Casambi	Opal Diffuser	19	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 180mA Casambi 3500K Ra90 ORTAR.22.0180CS.3590A.1/SM	Orta R	3500K	910	Surface mounted	Casambi	Opal Diffuser	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 350mA Casambi 3500K Ra90 ORTAR.22.0350CS.3590A.1/SM	Orta R	3500K	1620	Surface mounted	Casambi	Opal Diffuser	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 500mA Casambi 3500K Ra90 ORTAR.22.0500CS.3590A.1/SM	Orta R	3500K	2280	Surface mounted	Casambi	Opal Diffuser	19	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 180mA Casambi 3000K Ra90 ORTAR.22.0180CS.3090A.1/SM	Orta R	3000K	890	Surface mounted	Casambi	Opal Diffuser	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 350mA Casambi 3000K Ra90 ORTAR.22.0350CS.3090A.1/SM	Orta R	3000K	1590	Surface mounted	Casambi	Opal Diffuser	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 500mA Casambi 3000K Ra90 ORTAR.22.0500CS.3090A.1/SM	Orta R	3000K	2230	Surface mounted	Casambi	Opal Diffuser	19	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 180mA DALI DT8 Dimmable MelaGen ReGen ORTAR.22.0180D8.RG90A.1/SM	Orta R	2200K/4200K	—	Surface mounted	DALI DT8 Dimmable	Opal Diffuser	—	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 350mA DALI DT8 Dimmable MelaGen ReGen ORTAR.22.0350D8.RG90A.1/SM	Orta R	2200K/4200K	—	Surface mounted	DALI DT8 Dimmable	Opal Diffuser	—	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 500mA DALI DT8 Dimmable MelaGen ReGen ORTAR.22.0500D8.RG90A.1/SM	Orta R	2200K/4200K	—	Surface mounted	DALI DT8 Dimmable	Opal Diffuser	—	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 180mA DALI Dimmable MelaGen Active ORTAR.22.0180DD.BL90A.1/SM	Orta R	4200K	800	Surface mounted	DALI Dimmable	Opal Diffuser	9	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 350mA DALI Dimmable MelaGen Active ORTAR.22.0350DD.BL90A.1/SM	Orta R	4200K	1420	Surface mounted	DALI Dimmable	Opal Diffuser	15	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 500mA DALI Dimmable MelaGen Active ORTAR.22.0500DD.BL90A.1/SM	Orta R	4200K	2010	Surface mounted	DALI Dimmable	Opal Diffuser	21	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 180mA DALI Dimmable 4000K Ra90 ORTAR.22.0180DD.4090A.1/SM	Orta R	4000K	920	Surface mounted	DALI Dimmable	Opal Diffuser	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 350mA DALI Dimmable 4000K Ra90 ORTAR.22.0350DD.4090A.1/SM	Orta R	4000K	1650	Surface mounted	DALI Dimmable	Opal Diffuser	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 500mA DALI Dimmable 4000K Ra90 ORTAR.22.0500DD.4090A.1/SM	Orta R	4000K	2320	Surface mounted	DALI Dimmable	Opal Diffuser	19	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 180mA DALI Dimmable 3500K Ra90 ORTAR.22.0180DD.3590A.1/SM	Orta R	3500K	910	Surface mounted	DALI Dimmable	Opal Diffuser	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 350mA DALI Dimmable 3500K Ra90 ORTAR.22.0350DD.3590A.1/SM	Orta R	3500K	1620	Surface mounted	DALI Dimmable	Opal Diffuser	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 500mA DALI Dimmable 3500K Ra90 ORTAR.22.0500DD.3590A.1/SM	Orta R	3500K	2280	Surface mounted	DALI Dimmable	Opal Diffuser	19	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 180mA DALI Dimmable 3000K Ra90 ORTAR.22.0180DD.3090A.1/SM	Orta R	3000K	890	Surface mounted	DALI Dimmable	Opal Diffuser	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 350mA DALI Dimmable 3000K Ra90 ORTAR.22.0350DD.3090A.1/SM	Orta R	3000K	1590	Surface mounted	DALI Dimmable	Opal Diffuser	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 500mA DALI Dimmable 3000K Ra90 ORTAR.22.0500DD.3090A.1/SM	Orta R	3000K	2230	Surface mounted	DALI Dimmable	Opal Diffuser	19	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 180mA Fixed Output MelaGen Active ORTAR.22.0180FO.BL90A.1/SM	Orta R	4200K	800	Surface mounted	Fixed Output	Opal Diffuser	9	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 350mA Fixed Output MelaGen Active ORTAR.22.0350FO.BL90A.1/SM	Orta R	4200K	1420	Surface mounted	Fixed Output	Opal Diffuser	15	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 500mA Fixed Output MelaGen Active ORTAR.22.0500FO.BL90A.1/SM	Orta R	4200K	2010	Surface mounted	Fixed Output	Opal Diffuser	21	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 180mA Fixed Output 4000K Ra90 ORTAR.22.0180FO.4090A.1/SM	Orta R	4000K	920	Surface mounted	Fixed Output	Opal Diffuser	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 350mA Fixed Output 4000K Ra90 ORTAR.22.0350FO.4090A.1/SM	Orta R	4000K	1650	Surface mounted	Fixed Output	Opal Diffuser	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 500mA Fixed Output 4000K Ra90 ORTAR.22.0500FO.4090A.1/SM	Orta R	4000K	2320	Surface mounted	Fixed Output	Opal Diffuser	19	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 180mA Fixed Output 3500K Ra90 ORTAR.22.0180FO.3590A.1/SM	Orta R	3500K	910	Surface mounted	Fixed Output	Opal Diffuser	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 350mA Fixed Output 3500K Ra90 ORTAR.22.0350FO.3590A.1/SM	Orta R	3500K	1620	Surface mounted	Fixed Output	Opal Diffuser	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 500mA Fixed Output 3500K Ra90 ORTAR.22.0500FO.3590A.1/SM	Orta R	3500K	2280	Surface mounted	Fixed Output	Opal Diffuser	19	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 180mA Fixed Output 3000K Ra90 ORTAR.22.0180FO.3090A.1/SM	Orta R	3000K	890	Surface mounted	Fixed Output	Opal Diffuser	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA R 600x300 (nom. ) Surface Mounted Opalescent 350mA Fixed Output 3000K Ra90 ORTAR.22.0350FO.3090A.1/SM	Orta R	3000K	1590	Surface mounted	Fixed Output	Opal Diffuser	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
