Orta Health Family

Quick links

Download brochure Download family photometry Go to product configurator

Anti-microbial treated luminaire

The Orta Health series of LED back lit luminaires combines performance and visual comfort in a sleek package that is COI compliant. Designed to meet a variety of applications without compromise, its simple aesthetic conceals numerous technological features. The incredibly uniform illumination of the panel is achieved with an opalescent optic with antimicrobial finish. A choice of square or rectangular aspect and a variety of sizes allows for a wide range of applications. Extremely low profile, it is standard as a T-bar recessed configuration, and with accessories most sizes and shapes can be either plaster recessed, surface mounted or wire suspended, for deployment in a broad range of environments.

Key features

IP65
IK04
Anti-microbial treated fixture with IP65 protection - COI Compliant
CRI 95 LED back lit luminaire with choice of outputs and sizes
T-bar recessed as standard with frame accessory for plaster recessing

Three available sizes

600mm x 600mm

300mm x 600mm

300mm x 1200mm

Luminaire overview

Design

Dust tight, low profile pressed aluminium body and frame, powdercoated satin white.

Optic

Low glare, high output microprismatic optic.

Electrical

A wide range of light outputs are available, in a choice of fixed output, phase-cut dimmable or DALI dimmable configurations. Supplied with a remote electronic driver with quick-connect plug.

Wattage: 8W - 34W

Light source

Highly efficient LED source, L90 > 50,000hrs.
Orta Health 4000K, CRI95, COI compliant and anti-microbial finish.

Lumen output: 650lm - 4500lm

Product Configurator

Product	Family	CCT	Output (lm)	Mounting Type	Control	Optic Material	Watts	Actions
ORTA HEALTH L 1200x300 (nom. ) Surface Mounted Opalescent 700mA Fixed Output 4000K Ra95 ORTAHL.22.0700FO.4095A.1/SM	Orta Health L	4000K	3260	Surface mounted	Fixed Output	Opal Diffuser with Antimicrobial Finish	25	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH L 1200x300 (nom. ) Surface Mounted Opalescent 950mA Fixed Output 4000K Ra95 ORTAHL.22.0950FO.4095A.1/SM	Orta Health L	4000K	4330	Surface mounted	Fixed Output	Opal Diffuser with Antimicrobial Finish	34	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH R 600x300 (nom. ) Plaster Recessed Opalescent 180mA Phase-Cut Dimmable 4000K Ra95 ORTAHR.22.0180PC.4095A.1/PF	Orta Health R	4000K	660	Plaster recessed	Phase-cut Dimmable	Opal Diffuser with Antimicrobial Finish	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH R 600x300 (nom. ) Plaster Recessed Opalescent 350mA Phase-Cut Dimmable 4000K Ra95 ORTAHR.22.0350PC.4095A.1/PF	Orta Health R	4000K	1170	Plaster recessed	Phase-cut Dimmable	Opal Diffuser with Antimicrobial Finish	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH R 600x300 (nom. ) Plaster Recessed Opalescent 500mA Phase-Cut Dimmable 4000K Ra95 ORTAHR.22.0500PC.4095A.1/PF	Orta Health R	4000K	2260	Plaster recessed	Phase-cut Dimmable	Opal Diffuser with Antimicrobial Finish	20	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH R 600x300 (nom. ) Plaster Recessed Opalescent 180mA Casambi 4000K Ra95 ORTAHR.22.0180CS.4095A.1/PF	Orta Health R	4000K	660	Plaster recessed	Casambi	Opal Diffuser with Antimicrobial Finish	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH R 600x300 (nom. ) Plaster Recessed Opalescent 350mA Casambi 4000K Ra95 ORTAHR.22.0350CS.4095A.1/PF	Orta Health R	4000K	1170	Plaster recessed	Casambi	Opal Diffuser with Antimicrobial Finish	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH R 600x300 (nom. ) Plaster Recessed Opalescent 500mA Casambi 4000K Ra95 ORTAHR.22.0500CS.4095A.1/PF	Orta Health R	4000K	2260	Plaster recessed	Casambi	Opal Diffuser with Antimicrobial Finish	20	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH R 600x300 (nom. ) Plaster Recessed Opalescent 180mA DALI Dimmable 4000K Ra95 ORTAHR.22.0180DD.4095A.1/PF	Orta Health R	4000K	660	Plaster recessed	DALI Dimmable	Opal Diffuser with Antimicrobial Finish	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH R 600x300 (nom. ) Plaster Recessed Opalescent 350mA DALI Dimmable 4000K Ra95 ORTAHR.22.0350DD.4095A.1/PF	Orta Health R	4000K	1170	Plaster recessed	DALI Dimmable	Opal Diffuser with Antimicrobial Finish	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH R 600x300 (nom. ) Plaster Recessed Opalescent 500mA DALI Dimmable 4000K Ra95 ORTAHR.22.0500DD.4095A.1/PF	Orta Health R	4000K	2260	Plaster recessed	DALI Dimmable	Opal Diffuser with Antimicrobial Finish	20	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH R 600x300 (nom. ) Plaster Recessed Opalescent 180mA Fixed Output 4000K Ra95 ORTAHR.22.0180FO.4095A.1/PF	Orta Health R	4000K	660	Plaster recessed	Fixed Output	Opal Diffuser with Antimicrobial Finish	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH R 600x300 (nom. ) Plaster Recessed Opalescent 350mA Fixed Output 4000K Ra95 ORTAHR.22.0350FO.4095A.1/PF	Orta Health R	4000K	1170	Plaster recessed	Fixed Output	Opal Diffuser with Antimicrobial Finish	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH R 600x300 (nom. ) Plaster Recessed Opalescent 500mA Fixed Output 4000K Ra95 ORTAHR.22.0500FO.4095A.1/PF	Orta Health R	4000K	2260	Plaster recessed	Fixed Output	Opal Diffuser with Antimicrobial Finish	20	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH M 600x600 (nom. ) Plaster Recessed Opalescent 180mA Phase-Cut Dimmable 4000K Ra95 ORTAHM.22.0180PC.4095A.1/PF	Orta Health M	4000K	970	Plaster recessed	Phase-cut Dimmable	Opal Diffuser with Antimicrobial Finish	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH M 600x600 (nom. ) Plaster Recessed Opalescent 350mA Phase-Cut Dimmable 4000K Ra95 ORTAHM.22.0350PC.4095A.1/PF	Orta Health M	4000K	1720	Plaster recessed	Phase-cut Dimmable	Opal Diffuser with Antimicrobial Finish	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH M 600x600 (nom. ) Plaster Recessed Opalescent 500mA Phase-Cut Dimmable 4000K Ra95 ORTAHM.22.0500PC.4095A.1/PF	Orta Health M	4000K	2420	Plaster recessed	Phase-cut Dimmable	Opal Diffuser with Antimicrobial Finish	18	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH M 600x600 (nom. ) Plaster Recessed Opalescent 700mA Phase-Cut Dimmable 4000K Ra95 ORTAHM.22.0700PC.4095A.1/PF	Orta Health M	4000K	3320	Plaster recessed	Phase-cut Dimmable	Opal Diffuser with Antimicrobial Finish	25	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH M 600x600 (nom. ) Plaster Recessed Opalescent 950mA Phase-Cut Dimmable 4000K Ra95 ORTAHM.22.0950PC.4095A.1/PF	Orta Health M	4000K	4400	Plaster recessed	Phase-cut Dimmable	Opal Diffuser with Antimicrobial Finish	34	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH M 600x600 (nom. ) Plaster Recessed Opalescent 180mA Casambi 4000K Ra95 ORTAHM.22.0180CS.4095A.1/PF	Orta Health M	4000K	970	Plaster recessed	Casambi	Opal Diffuser with Antimicrobial Finish	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH M 600x600 (nom. ) Plaster Recessed Opalescent 350mA Casambi 4000K Ra95 ORTAHM.22.0350CS.4095A.1/PF	Orta Health M	4000K	1720	Plaster recessed	Casambi	Opal Diffuser with Antimicrobial Finish	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH M 600x600 (nom. ) Plaster Recessed Opalescent 500mA Casambi 4000K Ra95 ORTAHM.22.0500CS.4095A.1/PF	Orta Health M	4000K	2420	Plaster recessed	Casambi	Opal Diffuser with Antimicrobial Finish	18	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH M 600x600 (nom. ) Plaster Recessed Opalescent 700mA Casambi 4000K Ra95 ORTAHM.22.0700CS.4095A.1/PF	Orta Health M	4000K	3320	Plaster recessed	Casambi	Opal Diffuser with Antimicrobial Finish	25	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH M 600x600 (nom. ) Plaster Recessed Opalescent 950mA Casambi 4000K Ra95 ORTAHM.22.0950CS.4095A.1/PF	Orta Health M	4000K	4400	Plaster recessed	Casambi	Opal Diffuser with Antimicrobial Finish	34	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH M 600x600 (nom. ) Plaster Recessed Opalescent 180mA DALI Dimmable 4000K Ra95 ORTAHM.22.0180DD.4095A.1/PF	Orta Health M	4000K	970	Plaster recessed	DALI Dimmable	Opal Diffuser with Antimicrobial Finish	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH M 600x600 (nom. ) Plaster Recessed Opalescent 350mA DALI Dimmable 4000K Ra95 ORTAHM.22.0350DD.4095A.1/PF	Orta Health M	4000K	1720	Plaster recessed	DALI Dimmable	Opal Diffuser with Antimicrobial Finish	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH M 600x600 (nom. ) Plaster Recessed Opalescent 500mA DALI Dimmable 4000K Ra95 ORTAHM.22.0500DD.4095A.1/PF	Orta Health M	4000K	2420	Plaster recessed	DALI Dimmable	Opal Diffuser with Antimicrobial Finish	18	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH M 600x600 (nom. ) Plaster Recessed Opalescent 700mA DALI Dimmable 4000K Ra95 ORTAHM.22.0700DD.4095A.1/PF	Orta Health M	4000K	3320	Plaster recessed	DALI Dimmable	Opal Diffuser with Antimicrobial Finish	25	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH M 600x600 (nom. ) Plaster Recessed Opalescent 950mA DALI Dimmable 4000K Ra95 ORTAHM.22.0950DD.4095A.1/PF	Orta Health M	4000K	4400	Plaster recessed	DALI Dimmable	Opal Diffuser with Antimicrobial Finish	34	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH M 600x600 (nom. ) Plaster Recessed Opalescent 180mA Fixed Output 4000K Ra95 ORTAHM.22.0180FO.4095A.1/PF	Orta Health M	4000K	970	Plaster recessed	Fixed Output	Opal Diffuser with Antimicrobial Finish	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH M 600x600 (nom. ) Plaster Recessed Opalescent 350mA Fixed Output 4000K Ra95 ORTAHM.22.0350FO.4095A.1/PF	Orta Health M	4000K	1720	Plaster recessed	Fixed Output	Opal Diffuser with Antimicrobial Finish	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH M 600x600 (nom. ) Plaster Recessed Opalescent 500mA Fixed Output 4000K Ra95 ORTAHM.22.0500FO.4095A.1/PF	Orta Health M	4000K	2420	Plaster recessed	Fixed Output	Opal Diffuser with Antimicrobial Finish	18	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH M 600x600 (nom. ) Plaster Recessed Opalescent 700mA Fixed Output 4000K Ra95 ORTAHM.22.0700FO.4095A.1/PF	Orta Health M	4000K	3320	Plaster recessed	Fixed Output	Opal Diffuser with Antimicrobial Finish	25	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH M 600x600 (nom. ) Plaster Recessed Opalescent 950mA Fixed Output 4000K Ra95 ORTAHM.22.0950FO.4095A.1/PF	Orta Health M	4000K	4400	Plaster recessed	Fixed Output	Opal Diffuser with Antimicrobial Finish	34	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH L 1200x300 (nom. ) Plaster Recessed Opalescent 180mA Phase-Cut Dimmable 4000K Ra95 ORTAHL.22.0180PC.4095A.1/PF	Orta Health L	4000K	950	Plaster recessed	Phase-cut Dimmable	Opal Diffuser with Antimicrobial Finish	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH L 1200x300 (nom. ) Plaster Recessed Opalescent 350mA Phase-Cut Dimmable 4000K Ra95 ORTAHL.22.0350PC.4095A.1/PF	Orta Health L	4000K	1690	Plaster recessed	Phase-cut Dimmable	Opal Diffuser with Antimicrobial Finish	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH L 1200x300 (nom. ) Plaster Recessed Opalescent 500mA Phase-Cut Dimmable 4000K Ra95 ORTAHL.22.0500PC.4095A.1/PF	Orta Health L	4000K	2380	Plaster recessed	Phase-cut Dimmable	Opal Diffuser with Antimicrobial Finish	18	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH L 1200x300 (nom. ) Plaster Recessed Opalescent 700mA Phase-Cut Dimmable 4000K Ra95 ORTAHL.22.0700PC.4095A.1/PF	Orta Health L	4000K	3260	Plaster recessed	Phase-cut Dimmable	Opal Diffuser with Antimicrobial Finish	25	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH L 1200x300 (nom. ) Plaster Recessed Opalescent 950mA Phase-Cut Dimmable 4000K Ra95 ORTAHL.22.0950PC.4095A.1/PF	Orta Health L	4000K	4330	Plaster recessed	Phase-cut Dimmable	Opal Diffuser with Antimicrobial Finish	34	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH L 1200x300 (nom. ) Plaster Recessed Opalescent 180mA Casambi 4000K Ra95 ORTAHL.22.0180CS.4095A.1/PF	Orta Health L	4000K	950	Plaster recessed	Casambi	Opal Diffuser with Antimicrobial Finish	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH L 1200x300 (nom. ) Plaster Recessed Opalescent 350mA Casambi 4000K Ra95 ORTAHL.22.0350CS.4095A.1/PF	Orta Health L	4000K	1690	Plaster recessed	Casambi	Opal Diffuser with Antimicrobial Finish	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH L 1200x300 (nom. ) Plaster Recessed Opalescent 500mA Casambi 4000K Ra95 ORTAHL.22.0500CS.4095A.1/PF	Orta Health L	4000K	2380	Plaster recessed	Casambi	Opal Diffuser with Antimicrobial Finish	18	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH L 1200x300 (nom. ) Plaster Recessed Opalescent 700mA Casambi 4000K Ra95 ORTAHL.22.0700CS.4095A.1/PF	Orta Health L	4000K	3260	Plaster recessed	Casambi	Opal Diffuser with Antimicrobial Finish	25	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH L 1200x300 (nom. ) Plaster Recessed Opalescent 950mA Casambi 4000K Ra95 ORTAHL.22.0950CS.4095A.1/PF	Orta Health L	4000K	4330	Plaster recessed	Casambi	Opal Diffuser with Antimicrobial Finish	34	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes

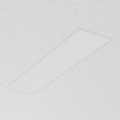

ORTA HEALTH L 1200x300 (nom. ) Plaster Recessed Opalescent 180mA DALI Dimmable 4000K Ra95 ORTAHL.22.0180DD.4095A.1/PF	Orta Health L	4000K	950	Plaster recessed	DALI Dimmable	Opal Diffuser with Antimicrobial Finish	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH L 1200x300 (nom. ) Plaster Recessed Opalescent 350mA DALI Dimmable 4000K Ra95 ORTAHL.22.0350DD.4095A.1/PF	Orta Health L	4000K	1690	Plaster recessed	DALI Dimmable	Opal Diffuser with Antimicrobial Finish	13	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH L 1200x300 (nom. ) Plaster Recessed Opalescent 500mA DALI Dimmable 4000K Ra95 ORTAHL.22.0500DD.4095A.1/PF	Orta Health L	4000K	2380	Plaster recessed	DALI Dimmable	Opal Diffuser with Antimicrobial Finish	18	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH L 1200x300 (nom. ) Plaster Recessed Opalescent 700mA DALI Dimmable 4000K Ra95 ORTAHL.22.0700DD.4095A.1/PF	Orta Health L	4000K	3260	Plaster recessed	DALI Dimmable	Opal Diffuser with Antimicrobial Finish	25	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH L 1200x300 (nom. ) Plaster Recessed Opalescent 950mA DALI Dimmable 4000K Ra95 ORTAHL.22.0950DD.4095A.1/PF	Orta Health L	4000K	4330	Plaster recessed	DALI Dimmable	Opal Diffuser with Antimicrobial Finish	34	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
ORTA HEALTH L 1200x300 (nom. ) Plaster Recessed Opalescent 180mA Fixed Output 4000K Ra95 ORTAHL.22.0180FO.4095A.1/PF	Orta Health L	4000K	950	Plaster recessed	Fixed Output	Opal Diffuser with Antimicrobial Finish	8	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
