High risk correctional facility cell luminaire
Surface-mounted IP65 prison cell luminaire approved for ceiling & wall fixing, available in two linear lengths and a circular bulkhead with heavy-duty opal or clear frosted lenses.
Key features:
- IP54, 50 joule impact resistance (IK10 'plus') construction
- Multiple options for lenses, sizes and more
- Anti-ligature design
- Up to 96W
- Up to 13200lm
- Opal or clear frosted glass
Available in 3 variations
Protectalux
Size 820mm to 1420mm
Frosted or opal

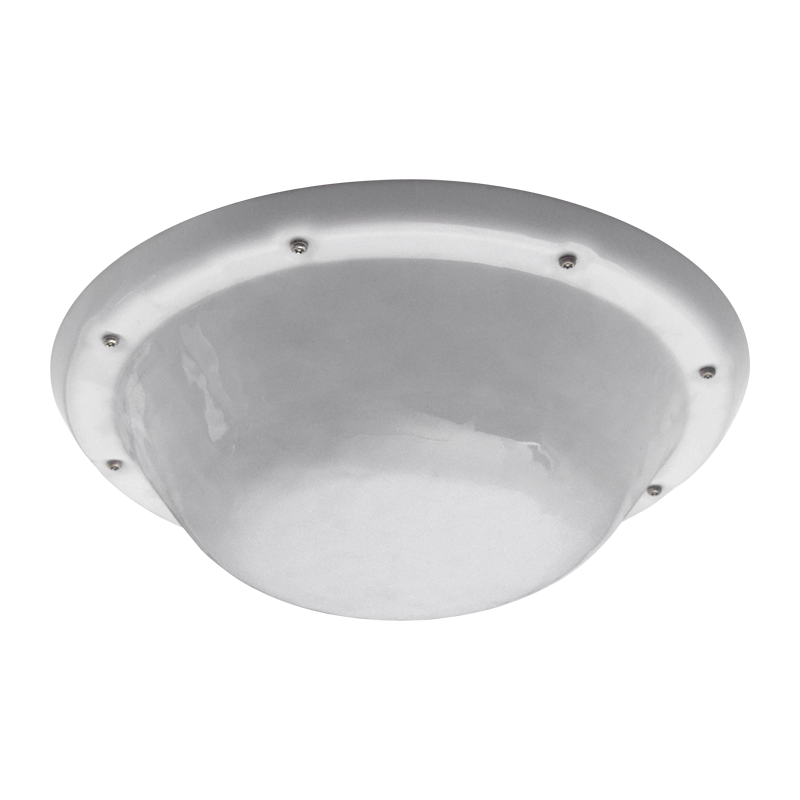

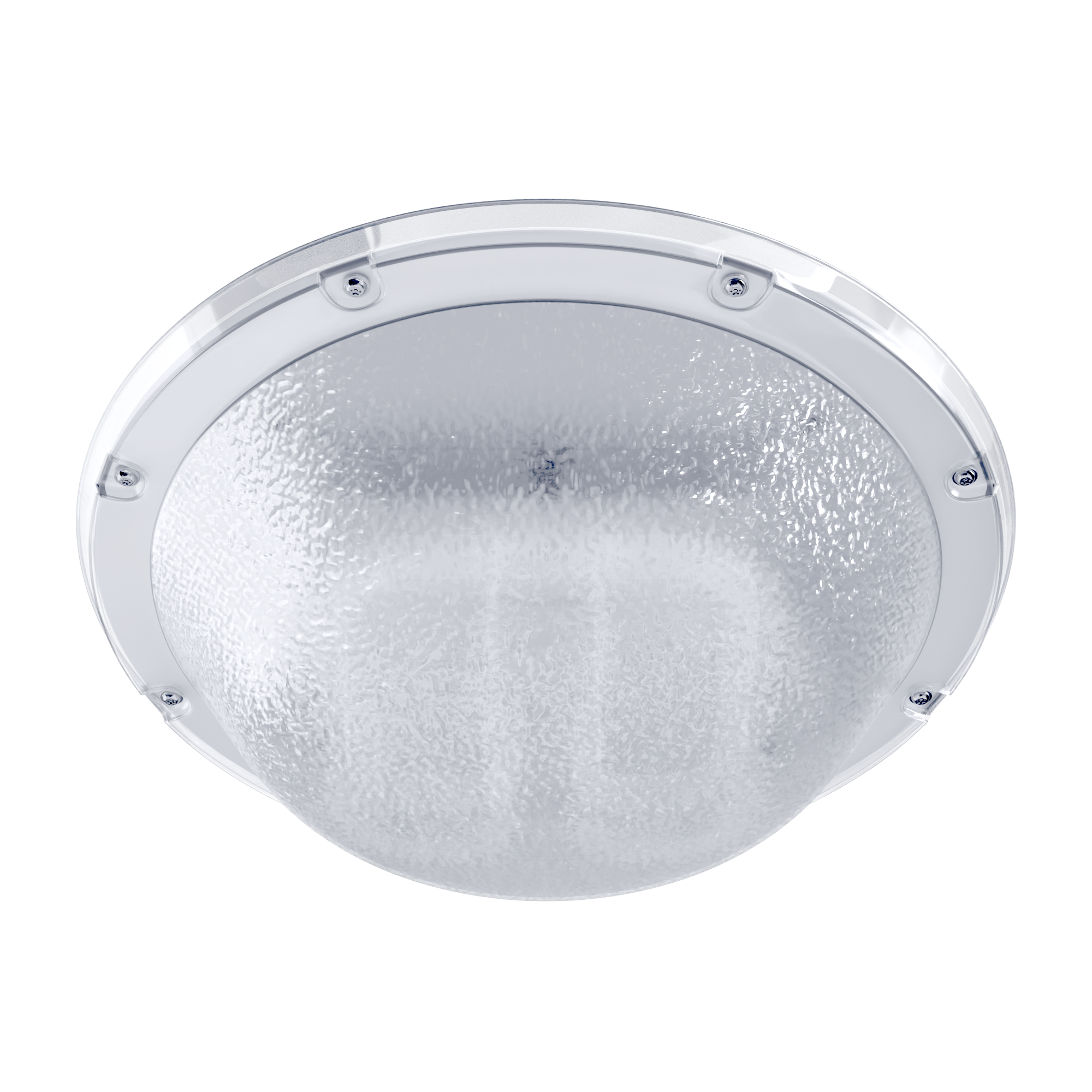

Protectalux R
460mm diameter
Frosted or opal

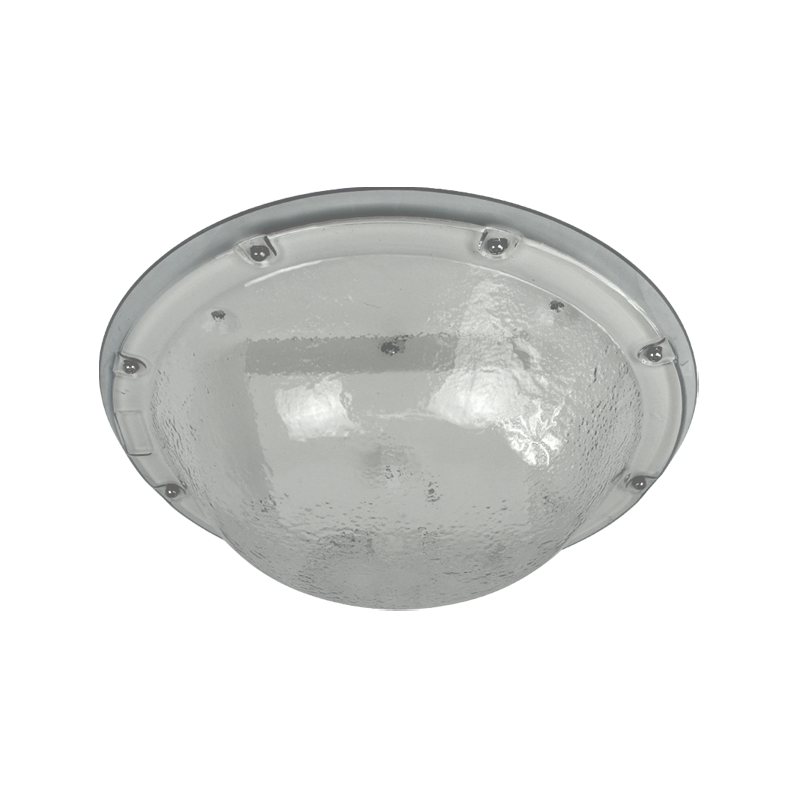

Protectalux Modular Cell WAP enclosure
460mm diameter
Luminaire overview
Design
Body constructed from 1.5mm pre-treated mild steel and powder coated to RAL9010 semi-gloss encapsulated by lens, c/w 1.2mm pre-treated and powder-coated mild steel demountable geartray.
Optic
5mm UV-certified polycarbonate lens (50 joule impact resistant IK10+) in clear frosted or opal, fastened by TORX stainless steel fasteners. 8mm lens options available (50 joule impact resistant IK10+).
Electrical
Integral fixed output drivers as standard. Dimmable options available. Emergency, night-light, and remote gear options available.
Wattage: 24W - 96W
Light Source
Highly efficient LED 4000K sources, CRI Ra80.
Lumen output: 3200lm - 13,200lm
