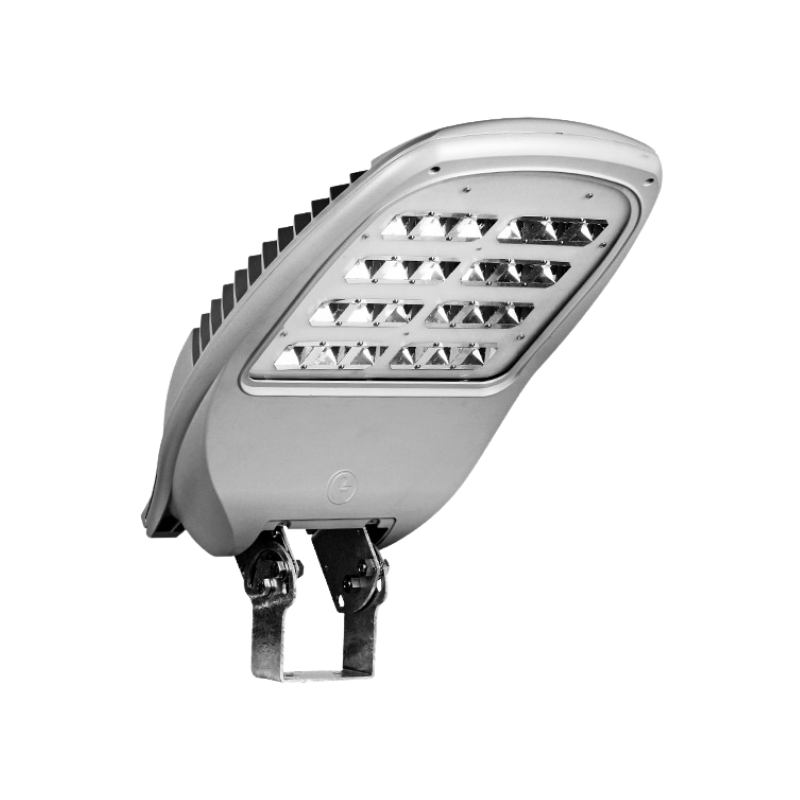

Die-cast aluminium housing with silver polyester powder-coat (RAL 9006) and stainless-steel external screws. Sealed to IP66 via anti-aging rubber gaskets and a Teflon pressure compensation filter to avoid internal condensation due to thermal expansion. External cast-aluminium high-performance heat-sink cooling-fin system. Hot-dip galvanised steel fixing bracket, with aluminium lateral protractor scale for accurate on-site adjustment.

Custom-designed, multi-part, aluminium reflector systems, protected by extra-clear, 4mm thick, flat, tempered glass, IK08 impact resistance.
Symmetric optics in choice of either vacuum-metallised 2x13° or 2x30° reflectors, or purest silver coated aluminium 2x35° reflectors.
Asymmetric optics in 52° peak intensity version in choice of either vacuum-metallised Intensive, Semi-Intensive or Wide beam options, or purest silver coated aluminium Semi-Wide beam option - an optional visor accessory allows tilting for 60° peak intensity whilst maintaining horizontal cutoff.

Integral programmable driver for 220-240V 50/60Hz supply. Power-interrupt knife-switch and automatic anti-closing system on fixture-access door for safe maintenance.
Minimum 6kV surge protection.

Wattage: 290W - 340W

Multi-chip LED technology on a pressed aluminium circuit, highly heat dissipating MCPCB (Metal Core Printed Circuit Board, with XHP-70 LED chips, standard in 5000K CRI 70, with 4000K upon request (same light-output), Ta35° or Ta50° as shown per product.

Lumen output: 37,000lm - 57,000lm
