IK08

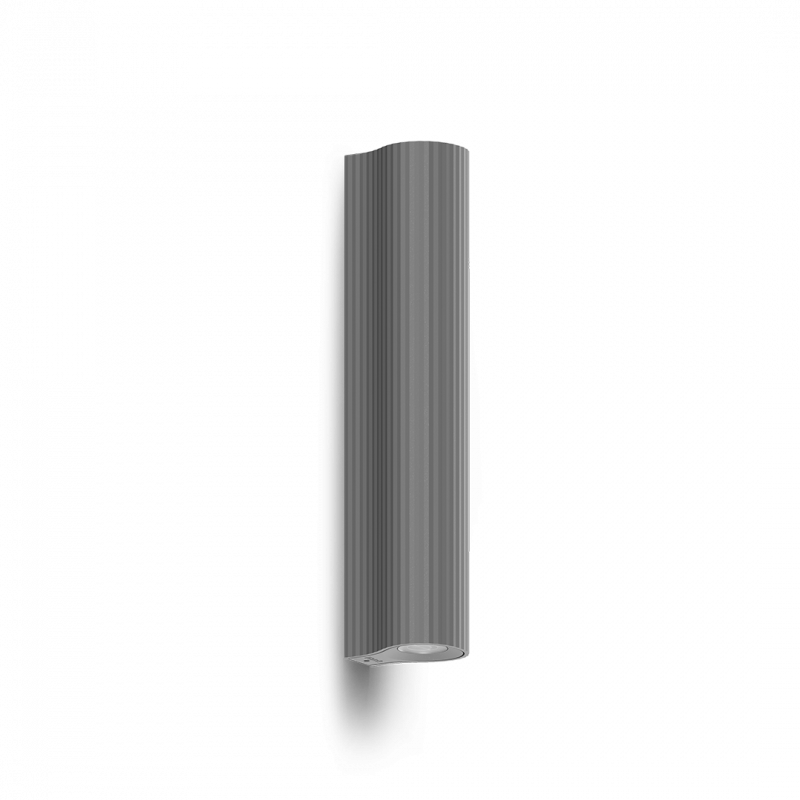

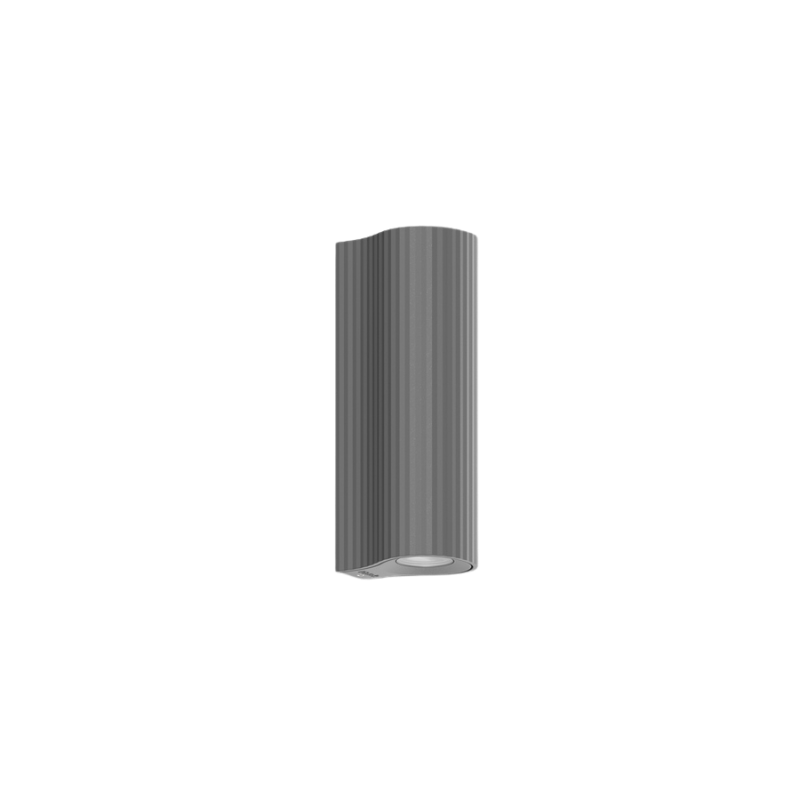

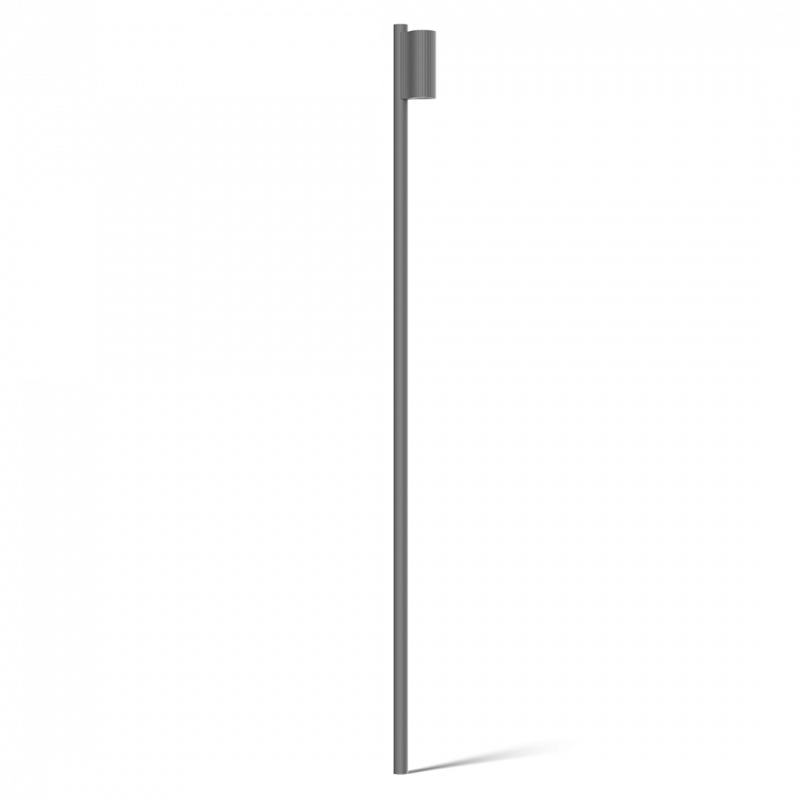

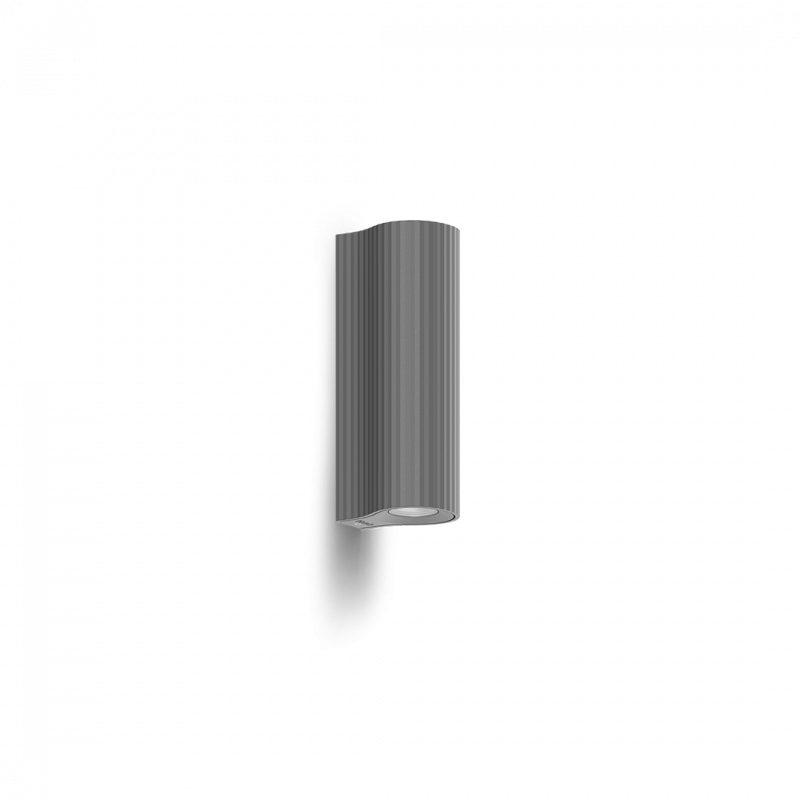

Extruded aluminium alloy body. Opticals bodies manufactured in EN 44300 aluminium alloy with very low copper content. No visible screws. A4 Stainless steel screws. Subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and final sealing. The product is painted following a continuous two step paint process (epoxy-based primer + polyester-based colour finish), which allows to generate a single thick protective coating which then generates aprotective barrier against atmospheric agents and UV rays. Before fixing the diffuser on the Platek products a Pre-treatment using an atmospheric pressure plasma process is carried out on the surface. The process activates the ionic load on the surface exactly where it is needed, thus promoting the best silicone grip possible and removing any residual release of agents for a longer lasting seal. The next steps are the coating of silicone and the assembly of the diffuser on the lighting fixture, with an automated process to guarantee the perfect sealing of the lamp.

Silk-screened extra-clear glass diffuser.

Up to 37°

Or Asymmetrical

Option of single or double emission

Up to 20W

2700K, 3000K
CRI>90
Up to 1000lm
