Susa Family

Quick links

Download family photometry Go to product configurator

Exceptional accent lighting

Susa is a series of LED downlights designed for usage in a wide range of accenting and general lighting applications. Featuring a powdercoated or faceted reflector and a choice of narrow and wide beams, Susa complements the smaller Susa S series to give designers a wide palette of quality luminaires to meet their lighting needs. Added to this is the Susa's IP65 luminaire housing, also able to be supplied with an optional 2m pendant mounting kit (IP20 connection), allowing Susa to deliver an affordable, useful, and austere luminaire for both interior and exterior applications.

Key features:

Wide or narrow beam options
Surface mounted or suspended
IP65 housing
2 sizes
Up to 30W
Up to 2900lm

2 sizes, 2 colours, 2 mounting options

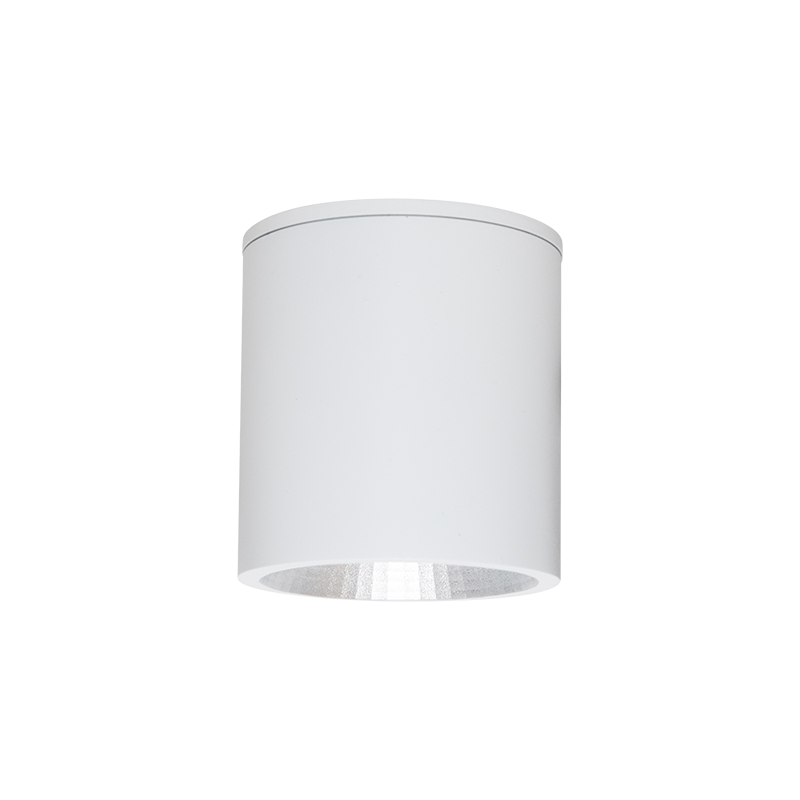

Susa S

105mm diameter
112mm depth

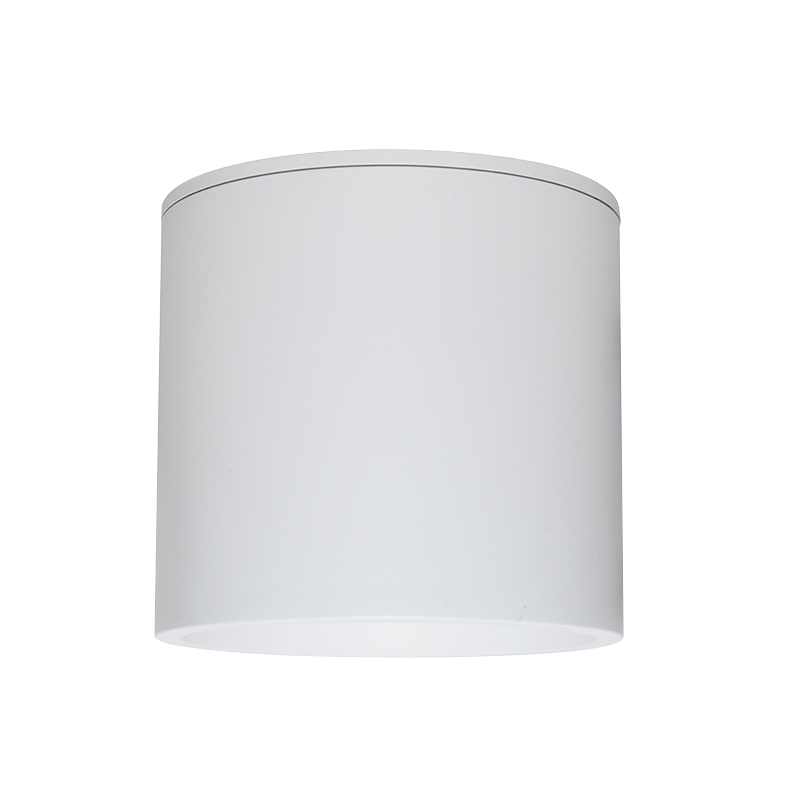

Susa

160mm diameter
150mm depth

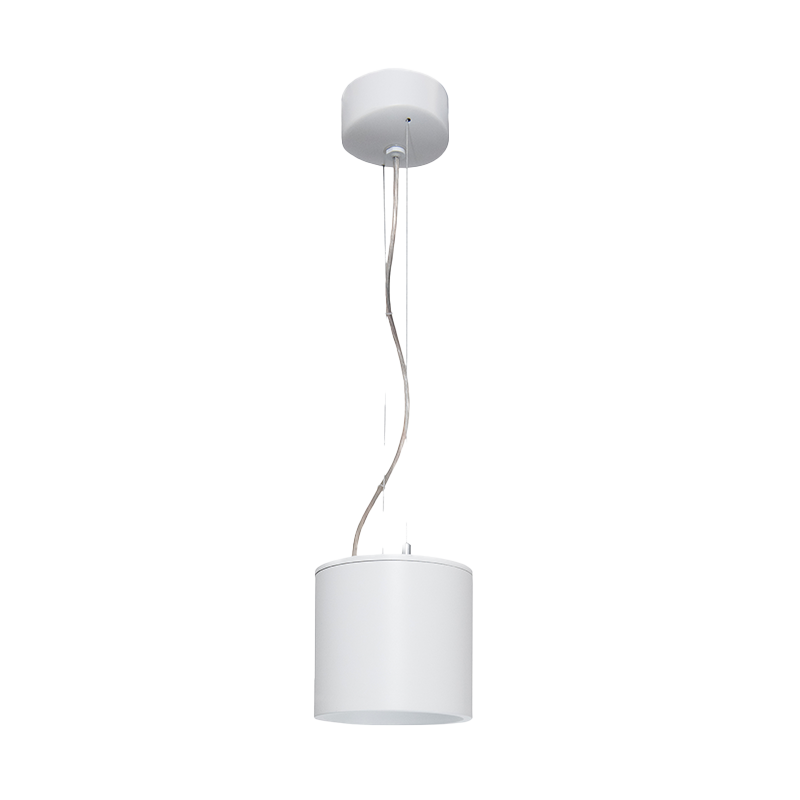

Susa suspended white

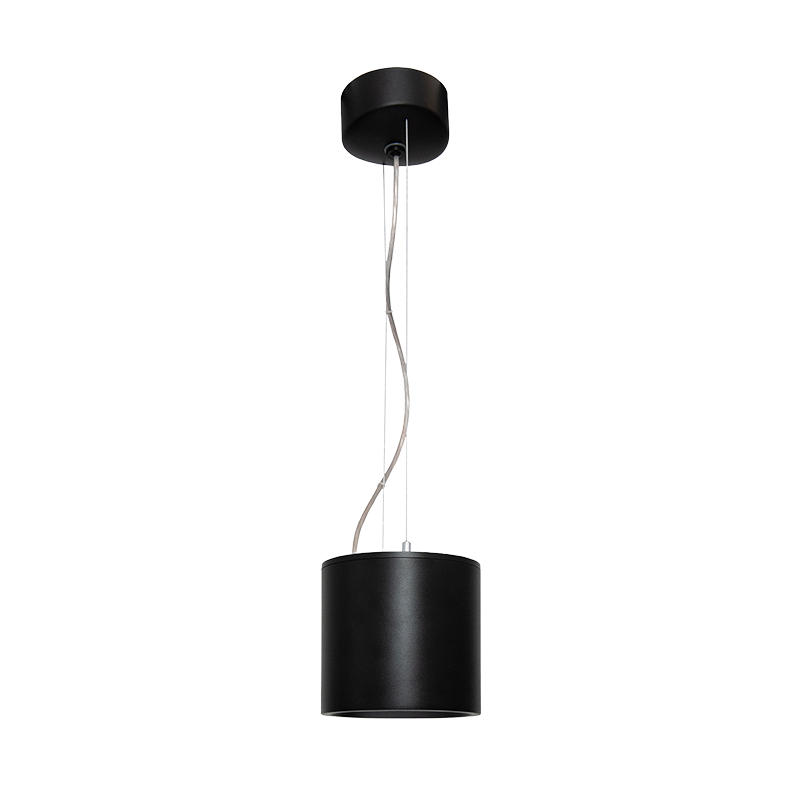

Susa suspended black

Luminaire overview

Design

Die-cast aluminium luminaire housing with excellent thermal management via its integrated heat-sinking system.

Optic

Shallow secondary reflector, standard as powdercoated with optional faceted reflector for low glare, both configurations with choice of narrow or wide beam distributions.

Electrical

Integral electronic high frequency driver in choice of fixed output, phase-cut dimmable or DALI dimmable. Four standard power settings providing highly functional lumen output packages, with the option to extend to another five intermediate power settings upon special request.

Example title

Highly energy efficient LED module, 4000K neutral white and 3000K warm white, CRI Ra90, SDCM3.

Product Configurator

Product	Family	Optical Description	Output (lm)	Beam Spread	Watts	Control	CCT	CRI	Finish Colour	Actions
Susa S Wide Beam 350mA Phase-Cut Dimmable 4000K Ra80 White Housing & Reflector with 1.2m Suspension Kit in White SUSAS.2.WB.PC.4K.WSKW	Susa S	White Reflector	1250	Wide Beam	14	Phase-Cut Dimmable	4000K	80	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA Phase-Cut Dimmable 4000K Ra80 White Housing & Reflector SUSAS.2.WB.PC.4K.W	Susa S	White Reflector	1250	Wide Beam	14	Phase-Cut Dimmable	4000K	80	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA Phase-Cut Dimmable 4000K Ra80 Black Housing & Reflector with 1.2m Suspension Kit in Black SUSAS.2.WB.PC.4K.BSKB	Susa S	Black Reflector	830	Wide Beam	14	Phase-Cut Dimmable	4000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA Phase-Cut Dimmable 4000K Ra80 Black Housing Faceted Reflector SUSAS.2.WB.PC.4K.BFR	Susa S	Faceted Reflector	1260	Wide Beam	15	Phase-Cut Dimmable	4000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA Phase-Cut Dimmable 4000K Ra80 Black Housing & Reflector SUSAS.2.WB.PC.4K.B	Susa S	Black Reflector	830	Wide Beam	14	Phase-Cut Dimmable	4000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA Phase-Cut Dimmable 4000K Ra80 White Housing & Reflector with 1.2m Suspension Kit in White SUSAS.1.WB.PC.4K.WSKW	Susa S	White Reflector	890	Wide Beam	10	Phase-Cut Dimmable	4000K	80	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA Phase-Cut Dimmable 4000K Ra80 White Housing & Reflector SUSAS.1.WB.PC.4K.W	Susa S	White Reflector	890	Wide Beam	10	Phase-Cut Dimmable	4000K	80	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA Phase-Cut Dimmable 4000K Ra80 Black Housing & Reflector with 1.2m Suspension Kit in Black SUSAS.1.WB.PC.4K.BSKB	Susa S	Black Reflector	590	Wide Beam	10	Phase-Cut Dimmable	4000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA Phase-Cut Dimmable 4000K Ra80 Black Housing Faceted Reflector SUSAS.1.WB.PC.4K.BFR	Susa S	Faceted Reflector	900	Wide Beam	11	Phase-Cut Dimmable	4000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA Phase-Cut Dimmable 4000K Ra80 Black Housing & Reflector SUSAS.1.WB.PC.4K.B	Susa S	Black Reflector	590	Wide Beam	10	Phase-Cut Dimmable	4000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA Fixed Output 4000K Ra80 White Housing & Reflector with 1.2m Suspension Kit in White SUSAS.2.WB.FO.4K.WSKW	Susa S	White Reflector	1250	Wide Beam	14	Fixed Output	4000K	80	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA Fixed Output 4000K Ra80 White Housing & Reflector SUSAS.2.WB.FO.4K.W	Susa S	White Reflector	1250	Wide Beam	14	Fixed Output	4000K	80	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA Fixed Output 4000K Ra80 Black Housing & Reflector with 1.2m Suspension Kit in Black SUSAS.2.WB.FO.4K.BSKB	Susa S	Black Reflector	830	Wide Beam	14	Fixed Output	4000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA Fixed Output 4000K Ra80 Black Housing Faceted Reflector SUSAS.2.WB.FO.4K.BFR	Susa S	Faceted Reflector	1260	Wide Beam	15	Fixed Output	4000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA Fixed Output 4000K Ra80 Black Housing & Reflector SUSAS.2.WB.FO.4K.B	Susa S	Black Reflector	830	Wide Beam	14	Fixed Output	4000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA Fixed Output 4000K Ra80 White Housing & Reflector with 1.2m Suspension Kit in White SUSAS.1.WB.FO.4K.WSKW	Susa S	White Reflector	890	Wide Beam	10	Fixed Output	4000K	80	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA Fixed Output 4000K Ra80 White Housing & Reflector SUSAS.1.WB.FO.4K.W	Susa S	White Reflector	890	Wide Beam	10	Fixed Output	4000K	80	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA Fixed Output 4000K Ra80 Black Housing & Reflector with 1.2m Suspension Kit in Black SUSAS.1.WB.FO.4K.BSKB	Susa S	Black Reflector	590	Wide Beam	10	Fixed Output	4000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA Fixed Output 4000K Ra80 Black Housing Faceted Reflector SUSAS.1.WB.FO.4K.BFR	Susa S	Faceted Reflector	900	Wide Beam	11	Fixed Output	4000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA Fixed Output 4000K Ra80 Black Housing & Reflector SUSAS.1.WB.FO.4K.B	Susa S	Black Reflector	590	Wide Beam	10	Fixed Output	4000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA DALI Dimmable 4000K Ra80 White Housing & Reflector with 1.2m Suspension Kit in White SUSAS.2.WB.DD.4K.WSKW	Susa S	White Reflector	1250	Wide Beam	14	DALI Dimmable	4000K	80	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA DALI Dimmable 4000K Ra80 White Housing & Reflector SUSAS.2.WB.DD.4K.W	Susa S	White Reflector	1250	Wide Beam	14	DALI Dimmable	4000K	80	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA DALI Dimmable 4000K Ra80 Black Housing & Reflector with 1.2m Suspension Kit in Black SUSAS.2.WB.DD.4K.BSKB	Susa S	Black Reflector	830	Wide Beam	14	DALI Dimmable	4000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA DALI Dimmable 4000K Ra80 Black Housing Faceted Reflector SUSAS.2.WB.DD.4K.BFR	Susa S	Faceted Reflector	1260	Wide Beam	15	DALI Dimmable	4000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA DALI Dimmable 4000K Ra80 Black Housing & Reflector SUSAS.2.WB.DD.4K.B	Susa S	Black Reflector	830	Wide Beam	14	DALI Dimmable	4000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA DALI Dimmable 4000K Ra80 White Housing & Reflector with 1.2m Suspension Kit in White SUSAS.1.WB.DD.4K.WSKW	Susa S	White Reflector	890	Wide Beam	10	DALI Dimmable	4000K	80	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA DALI Dimmable 4000K Ra80 White Housing & Reflector SUSAS.1.WB.DD.4K.W	Susa S	White Reflector	890	Wide Beam	10	DALI Dimmable	4000K	80	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA DALI Dimmable 4000K Ra80 Black Housing & Reflector with 1.2m Suspension Kit in Black SUSAS.1.WB.DD.4K.BSKB	Susa S	Black Reflector	590	Wide Beam	10	DALI Dimmable	4000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA DALI Dimmable 4000K Ra80 Black Housing & Reflector SUSAS.1.WB.DD.4K.B	Susa S	Black Reflector	590	Wide Beam	10	DALI Dimmable	4000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA DALI Dimmable 4000K Ra80 Black Housing Faceted Reflector SUSAS.1.WB.DD.4K.BFR	Susa S	Faceted Reflector	900	Wide Beam	11	DALI Dimmable	4000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA Phase-Cut Dimmable 3000K Ra80 White Housing & Reflector with 1.2m Suspension Kit in White SUSAS.2.WB.PC.3K.WSKW	Susa S	White Reflector	1200	Wide Beam	14	Phase-Cut Dimmable	3000K	80	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA Phase-Cut Dimmable 3000K Ra80 White Housing & Reflector SUSAS.2.WB.PC.3K.W	Susa S	White Reflector	1200	Wide Beam	14	Phase-Cut Dimmable	3000K	80	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA Phase-Cut Dimmable 3000K Ra80 Black Housing & Reflector with 1.2m Suspension Kit in Black SUSAS.2.WB.PC.3K.BSKB	Susa S	Black Reflector	790	Wide Beam	14	Phase-Cut Dimmable	3000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA Phase-Cut Dimmable 3000K Ra80 Black Housing Faceted Reflector SUSAS.2.WB.PC.3K.BFR	Susa S	Faceted Reflector	1200	Wide Beam	15	Phase-Cut Dimmable	3000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA Phase-Cut Dimmable 3000K Ra80 Black Housing & Reflector SUSAS.2.WB.PC.3K.B	Susa S	Black Reflector	790	Wide Beam	14	Phase-Cut Dimmable	3000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA Phase-Cut Dimmable 3000K Ra80 White Housing & Reflector with 1.2m Suspension Kit in White SUSAS.1.WB.PC.3K.WSKW	Susa S	White Reflector	860	Wide Beam	10	Phase-Cut Dimmable	3000K	80	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA Phase-Cut Dimmable 3000K Ra80 White Housing & Reflector SUSAS.1.WB.PC.3K.W	Susa S	White Reflector	860	Wide Beam	10	Phase-Cut Dimmable	3000K	80	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA Phase-Cut Dimmable 3000K Ra80 Black Housing & Reflector with 1.2m Suspension Kit in Black SUSAS.1.WB.PC.3K.BSKB	Susa S	Black Reflector	570	Wide Beam	10	Phase-Cut Dimmable	3000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA Phase-Cut Dimmable 3000K Ra80 Black Housing Faceted Reflector SUSAS.1.WB.PC.3K.BFR	Susa S	Faceted Reflector	860	Wide Beam	11	Phase-Cut Dimmable	3000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA Phase-Cut Dimmable 3000K Ra80 Black Housing & Reflector SUSAS.1.WB.PC.3K.B	Susa S	Black Reflector	570	Wide Beam	10	Phase-Cut Dimmable	3000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA Fixed Output 3000K Ra80 White Housing & Reflector with 1.2m Suspension Kit in White SUSAS.2.WB.FO.3K.WSKW	Susa S	White Reflector	1200	Wide Beam	14	Fixed Output	3000K	80	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA Fixed Output 3000K Ra80 White Housing & Reflector SUSAS.2.WB.FO.3K.W	Susa S	White Reflector	1200	Wide Beam	14	Fixed Output	3000K	80	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA Fixed Output 3000K Ra80 Black Housing & Reflector with 1.2m Suspension Kit in Black SUSAS.2.WB.FO.3K.BSKB	Susa S	Black Reflector	790	Wide Beam	14	Fixed Output	3000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA Fixed Output 3000K Ra80 Black Housing Faceted Reflector SUSAS.2.WB.FO.3K.BFR	Susa S	Faceted Reflector	1200	Wide Beam	15	Fixed Output	3000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 350mA Fixed Output 3000K Ra80 Black Housing & Reflector SUSAS.2.WB.FO.3K.B	Susa S	Black Reflector	790	Wide Beam	14	Fixed Output	3000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA Fixed Output 3000K Ra80 White Housing & Reflector with 1.2m Suspension Kit in White SUSAS.1.WB.FO.3K.WSKW	Susa S	White Reflector	860	Wide Beam	10	Fixed Output	3000K	80	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA Fixed Output 3000K Ra80 White Housing & Reflector SUSAS.1.WB.FO.3K.W	Susa S	White Reflector	860	Wide Beam	10	Fixed Output	3000K	80	White	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA Fixed Output 3000K Ra80 Black Housing & Reflector with 1.2m Suspension Kit in Black SUSAS.1.WB.FO.3K.BSKB	Susa S	Black Reflector	570	Wide Beam	10	Fixed Output	3000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA Fixed Output 3000K Ra80 Black Housing Faceted Reflector SUSAS.1.WB.FO.3K.BFR	Susa S	Faceted Reflector	860	Wide Beam	11	Fixed Output	3000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
Susa S Wide Beam 180mA Fixed Output 3000K Ra80 Black Housing & Reflector SUSAS.1.WB.FO.3K.B	Susa S	Black Reflector	570	Wide Beam	10	Fixed Output	3000K	80	Black	Add to Project Briefcase Add project information? Type Number Project Name Architect / Designer Notes
