Multiple light sources. Precise directional control.
The Venezia Box is a recessed multi-element downlight designed for architectural spaces requiring flexible, directional accent lighting. Available in single, double and triple configurations across selected sizes, its individually gimballed light sources allow illumination to be precisely directed towards displays, features and key areas within a space. The deeply recessed design creates a distinctive sense of depth within the ceiling, giving the luminaires an almost floating appearance while maintaining a clean architectural finish. With multiple beam options and flexible configurations, Venezia Box is particularly suited to retail, commercial and display environments where lighting layouts need to adapt to the space.
Luminaire highlights
- Single, double and triple configurations. Multiple arrangements allow the lighting solution to be adjusted to suit different spaces and applications.
- Individually adjustable light sources. Gimballed downlights provide directional control for highlighting displays, products and architectural features.
- Spot, flood and medium wide flood distributions provide beam spreads from approximately 10° to 50°.
- 700lm - 6,700lm output range. A broad output range supports everything from focused accent lighting through to higher-output commercial applications.
- Up to 159lm/W efficacy
- Multiple size options: Venezia 3, Venezia 7 and Venezia 20 configurations provide different scales and outputs for varying architectural requirements.
- The recessed arrangement creates visual depth and a refined floating appearance within the ceiling.
- Available with Fixed Output, DALI dimming and Phase Cut dimming.
- Available in white or black finishes
- Designed for commercial and retail spaces. Particularly suited to environments where products, displays or specific areas require precise emphasis.
Three sizes

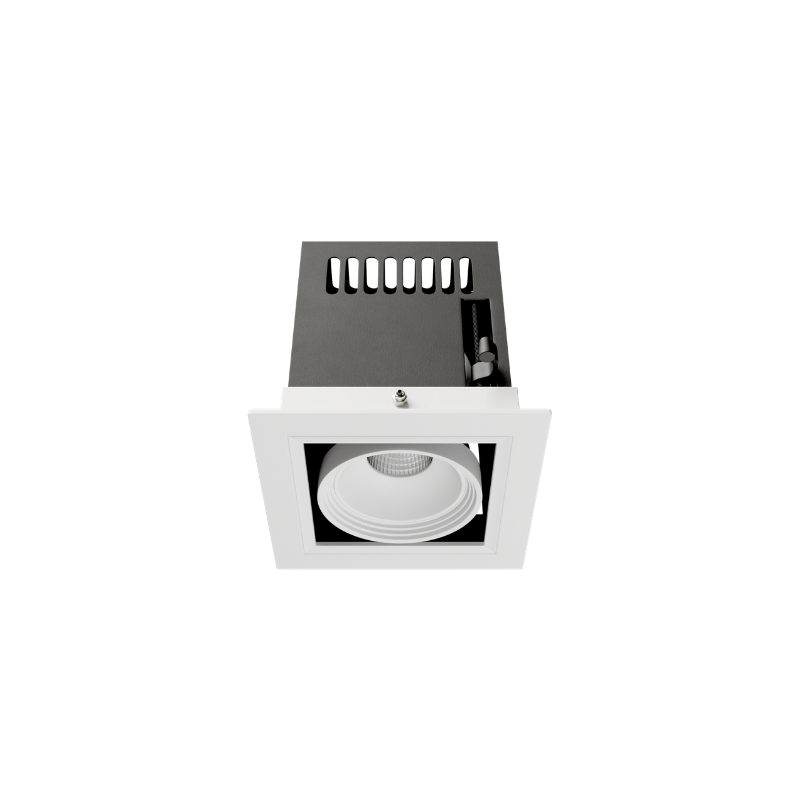

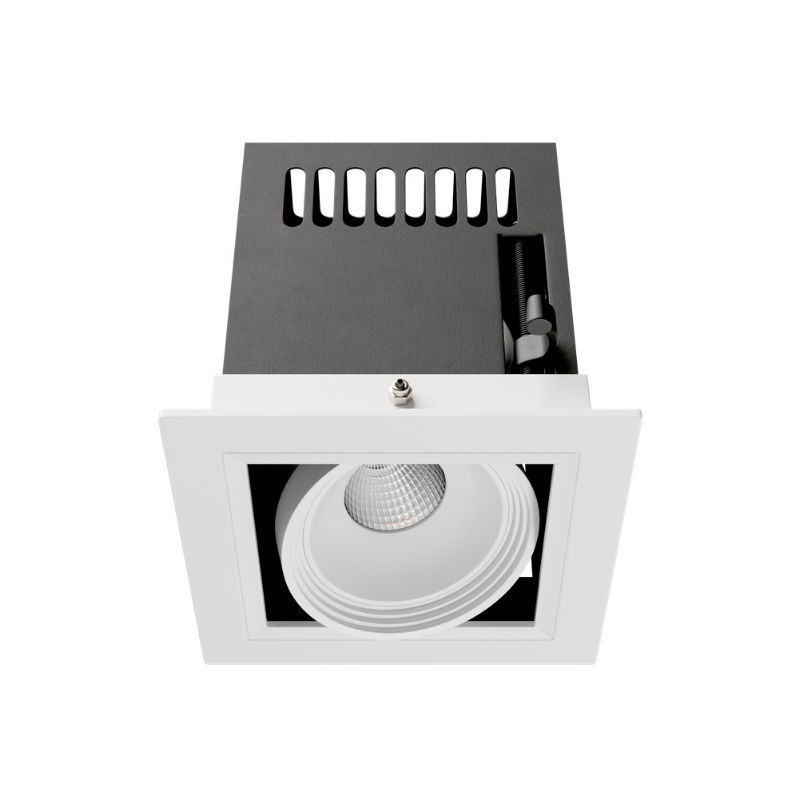

Venezia 3 Box
Configuration
Single | Double | Triple
Electrical
7W-22W
Output
700lm–3,300lm
Up to 153lm/W
CCT
2700K | 3000K | 4000K
CRI Ra90

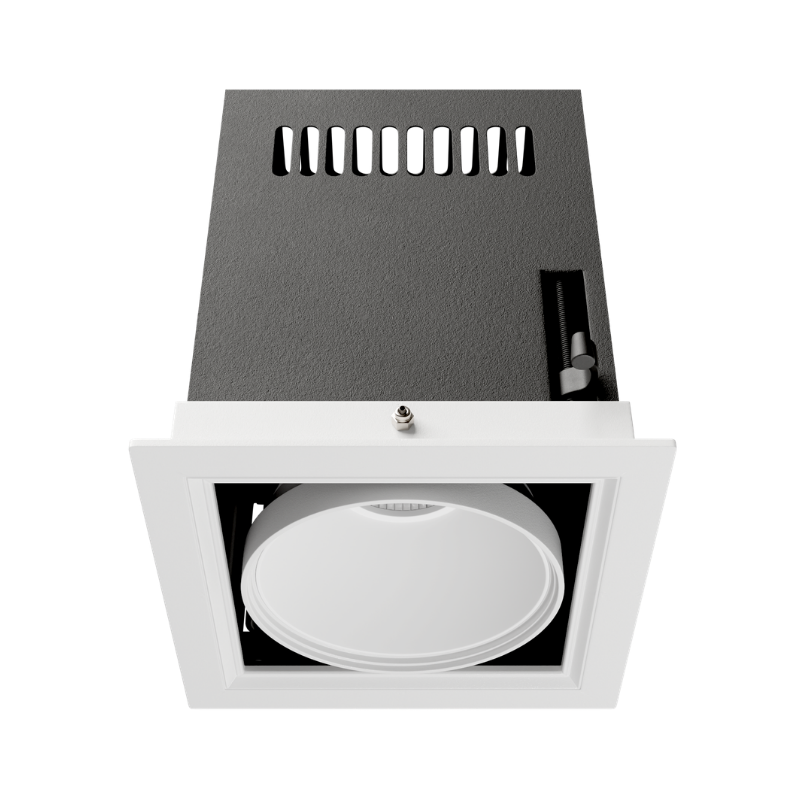

Venezia 7 Box
Configuration
Single | Double | Triple
Electrical
7W-37W
Output
800lm–5,800lm
Up to 159lm/W
CCT
2700K | 3000K | 4000K
CRI Ra90

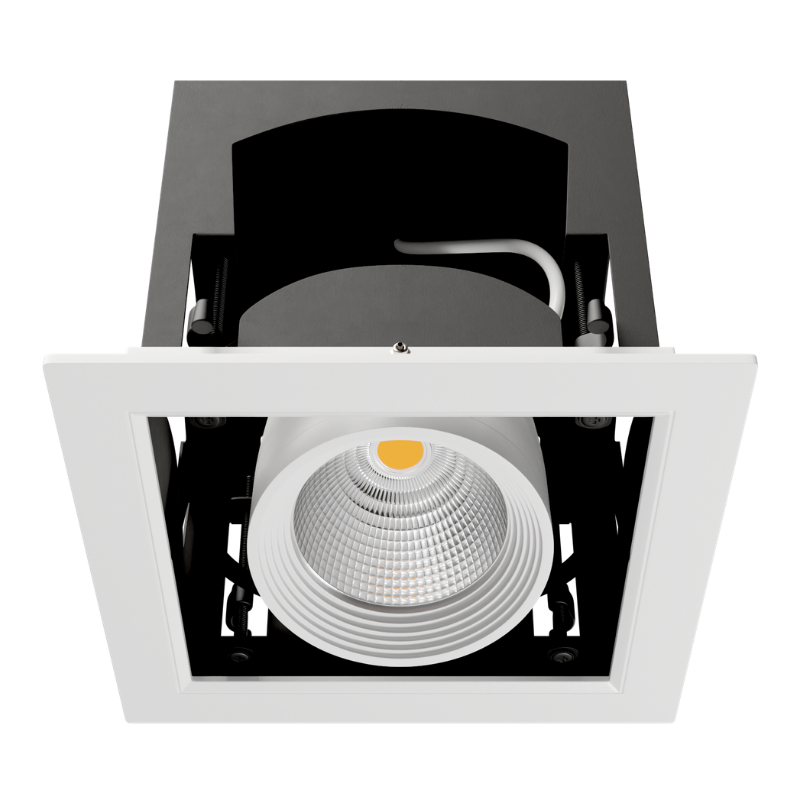

Venezia 20 Box
Configuration
Single | Double
Electrical
7W-49W
Output
700lm–6,700lm
Up to 145lm/W
CCT
2700K | 3000K | 4000K
CRI Ra90
Multi element configurations
Single

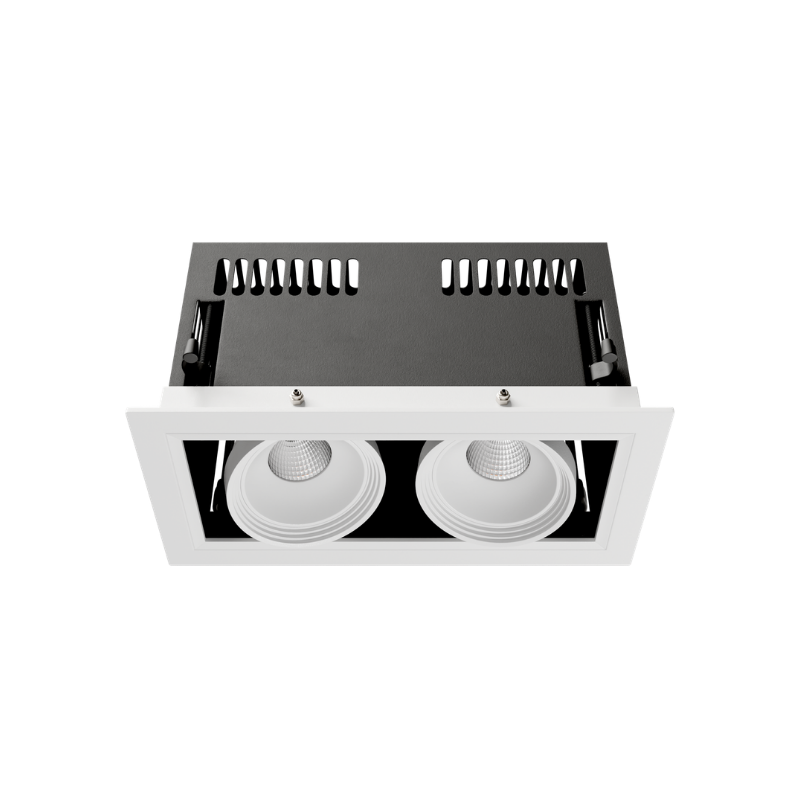

Double

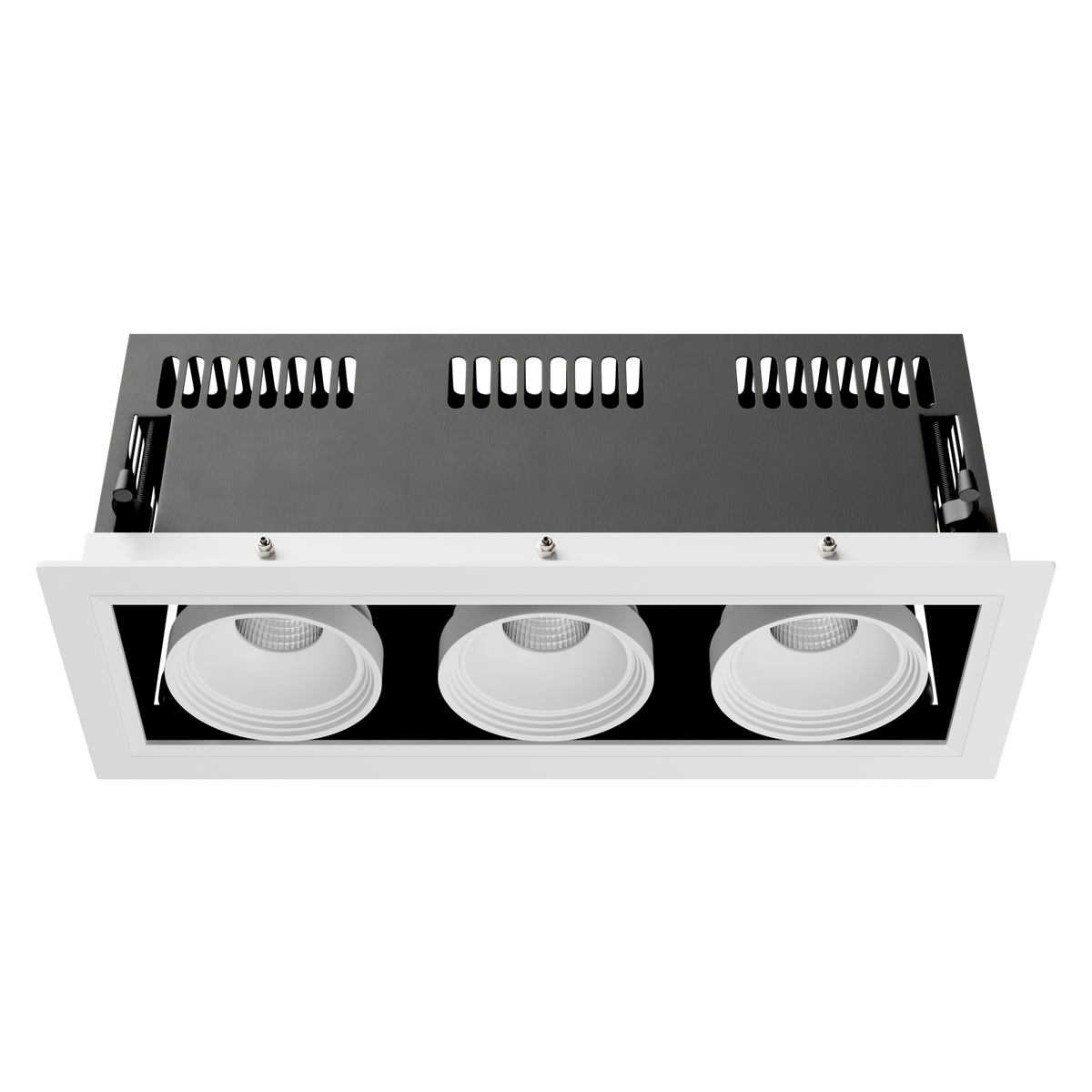

Triple
More in the Venezia family
The 6 Venezia sizes come in a range of alternative luminaires for consistent illumination and more ideas to include into design.
