Seamless ceiling integration, precise directional light.
The Venezia Box Trimless is a recessed multi-element downlight designed for architectural spaces where the luminaire should feel integrated into the ceiling rather than applied to it. Plastered directly into the ceiling surface, the trimless construction removes the visible frame and creates a clean, recessed opening with a distinctive floating effect. Available in single, double and triple configurations, each light source can be individually directed to highlight displays, architectural features and focal points while maintaining a minimal, refined ceiling aesthetic.
Luminaire highlights
- Seamless trimless installation. Plastered directly into the ceiling for a clean, integrated architectural finish.
- Distinctive floating effect. Deeply recessed light sources appear suspended within the ceiling opening.
- Individually adjustable light sources. Gimballed downlights provide directional control for highlighting displays, products and architectural features.
- Spot, flood and medium wide flood distributions provide beam spreads from approximately 10° to 50°.
- 700lm - 6,700lm output range. A broad output range supports everything from focused accent lighting through to higher-output commercial applications.
- Up to 159lm/W efficacy
- Two size options: Venezia 3 and Venezia 7 configurations provide different scales and outputs for varying architectural requirements.
- The recessed arrangement creates visual depth and a refined floating appearance within the ceiling.
- Available with Fixed Output, DALI dimming and Phase Cut dimming.
- Available in white or black finishes

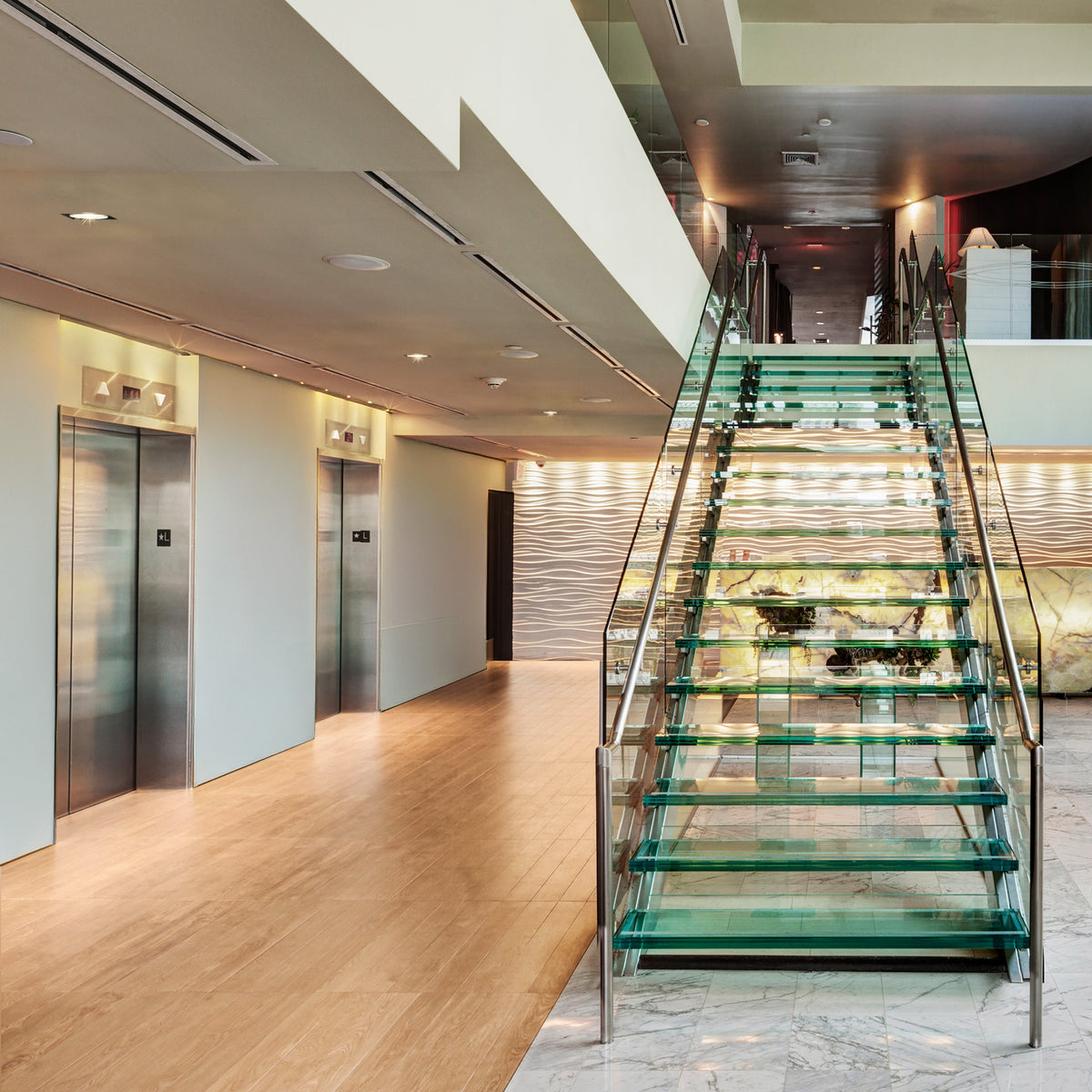

- Designed for commercial and retail spaces. Particularly suited to environments where products, displays or specific areas require precise emphasis.
Two sizes

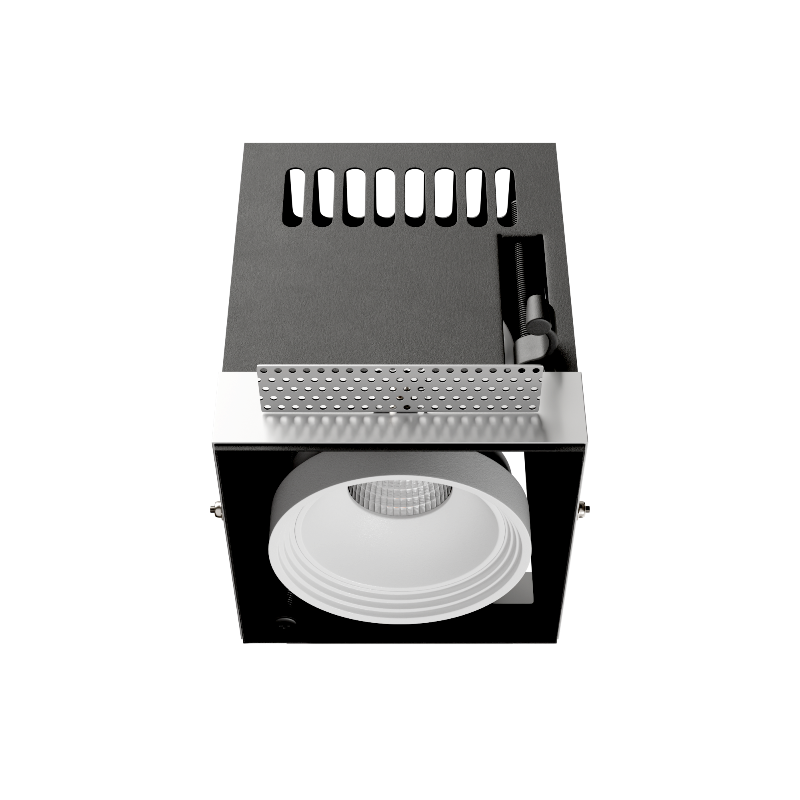

Venezia 3 Box Trimless
Configuration
Single | Double | Triple
Electrical
7W-22W
Output
700lm–3,300lm
Up to 153lm/W
CCT
2700K | 3000K | 4000K
CRI Ra90

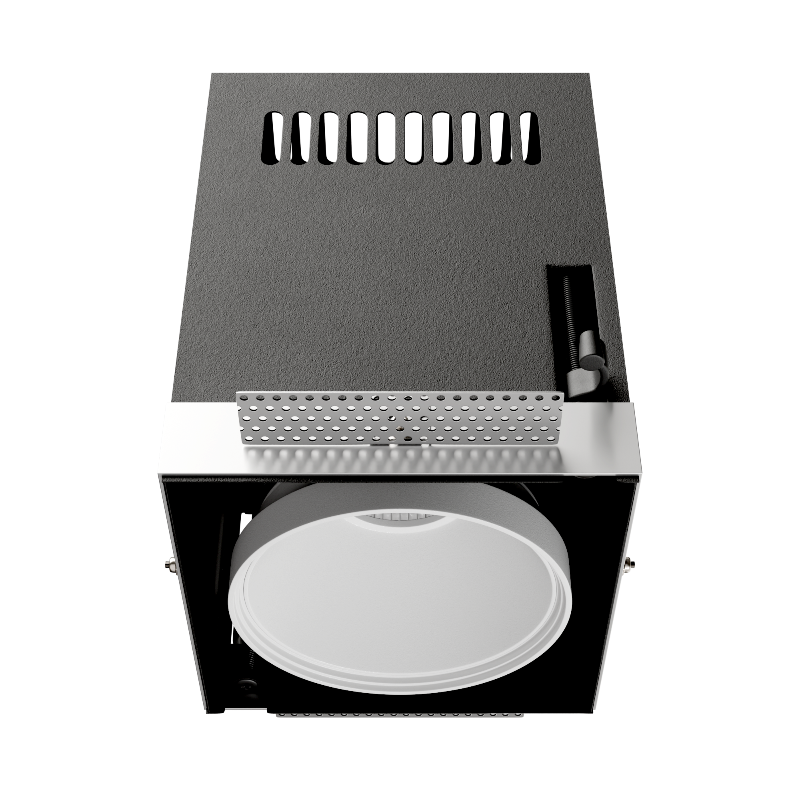

Venezia 7 Box Trimless
Configuration
Single | Double | Triple
Electrical
7W-37W
Output
800lm–5,800lm
Up to 159lm/W
CCT
2700K | 3000K | 4000K
CRI Ra90
Multi element configurations

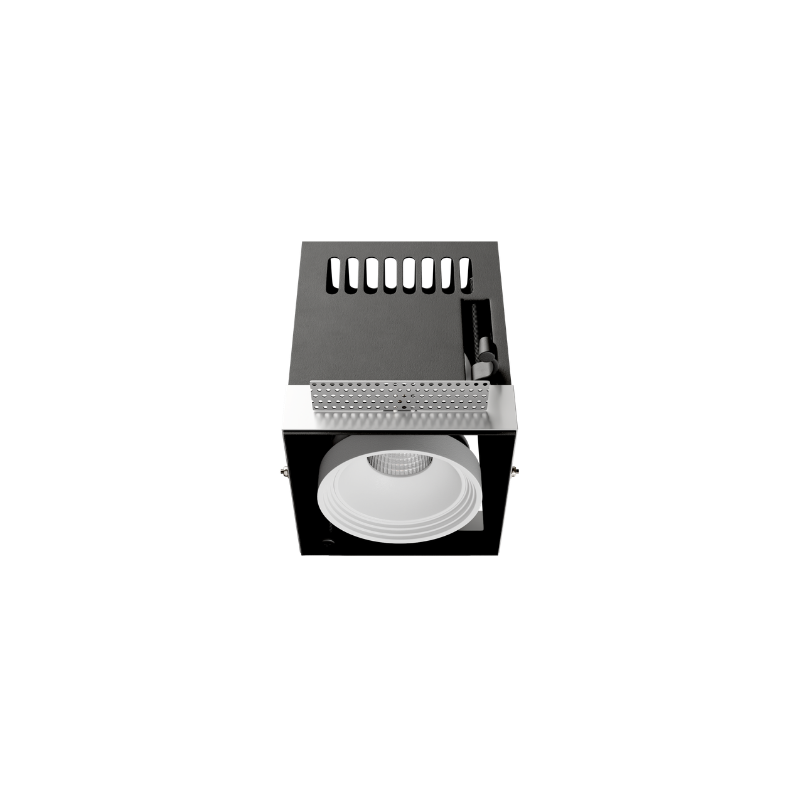

Single

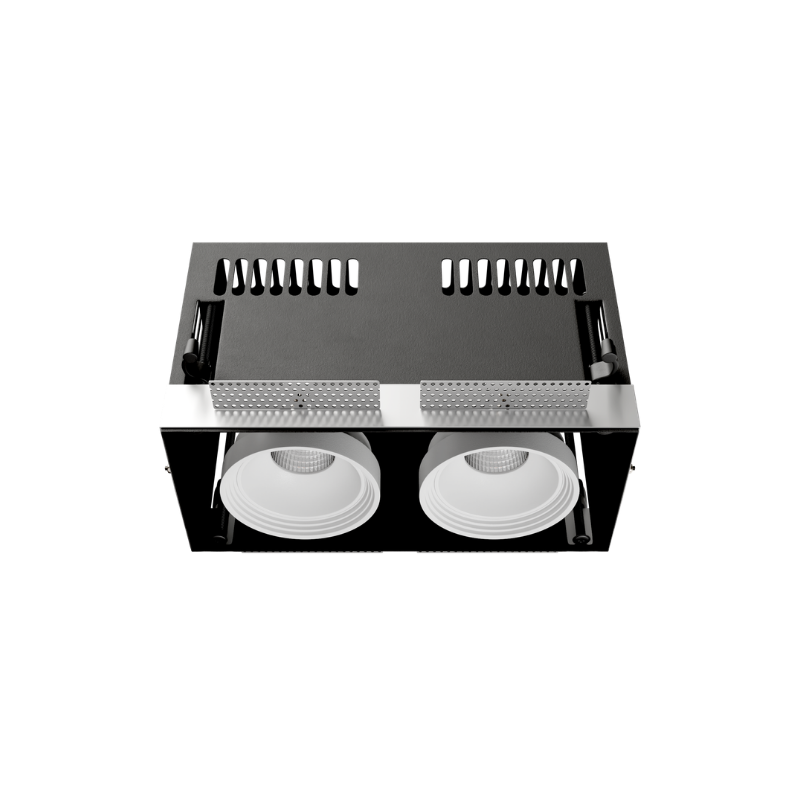

Double

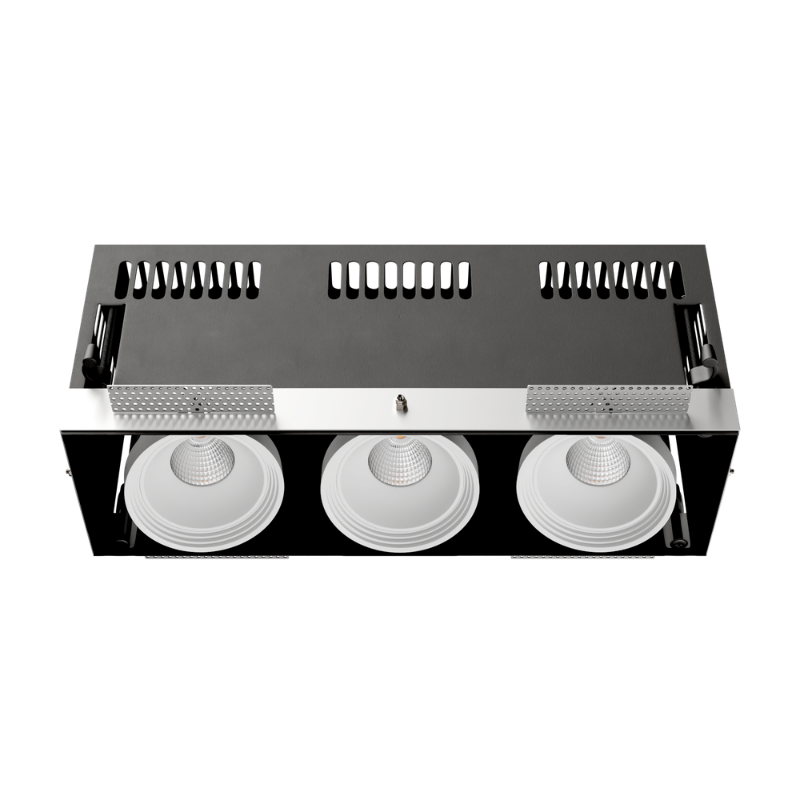

Triple
Recessed floating design
Plastered directly into the ceiling, the trimless design creates a clean, integrated architectural finish with minimal visual interruption. The deeply recessed light sources appear suspended within the ceiling opening, creating a floating effect that adds depth and refinement to the space.
More in the Venezia family
The 6 Venezia sizes come in a range of alternative luminaires for consistent illumination and more ideas to include into design.
