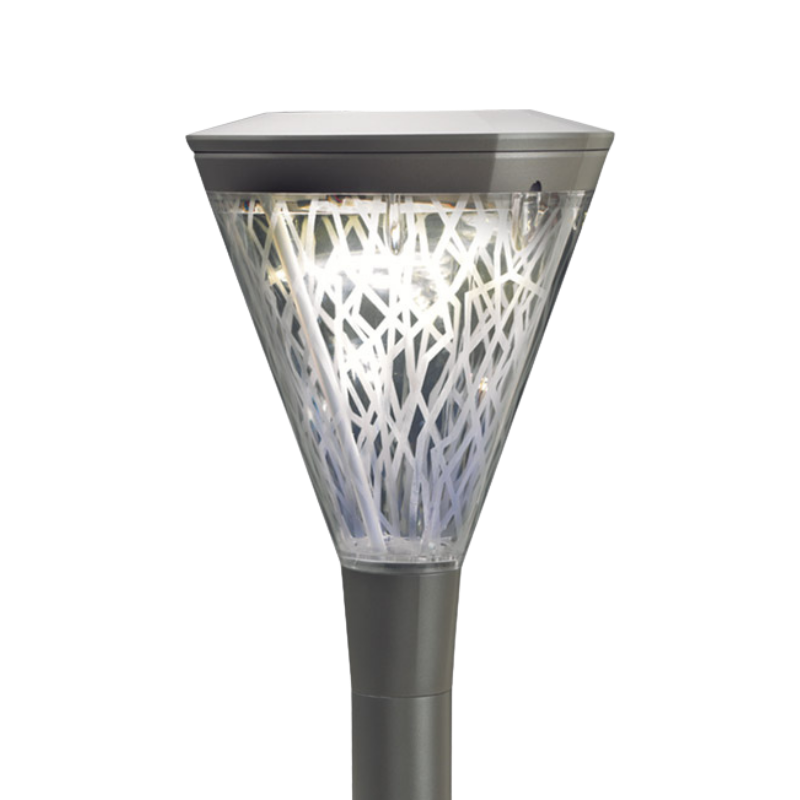

Distinctive pole-top area luminaire
Verso is designed to bring together architectural form, visual comfort and dependable outdoor performance. Suitable for applications ranging from parks and promenades to pathways, streets and car parks, Verso offers multiple beam distributions, output options and intelligent control capabilities. Its unique optical design delivers effective illumination while helping to minimise critical angle brightness and unwanted sky-glow, making it well suited to contemporary outdoor environments where both performance and appearance matter.
Key features:
- Compatible with Versalux Spectral Transitioning technology
- Multiple Type II, III, IV and V beam distributions

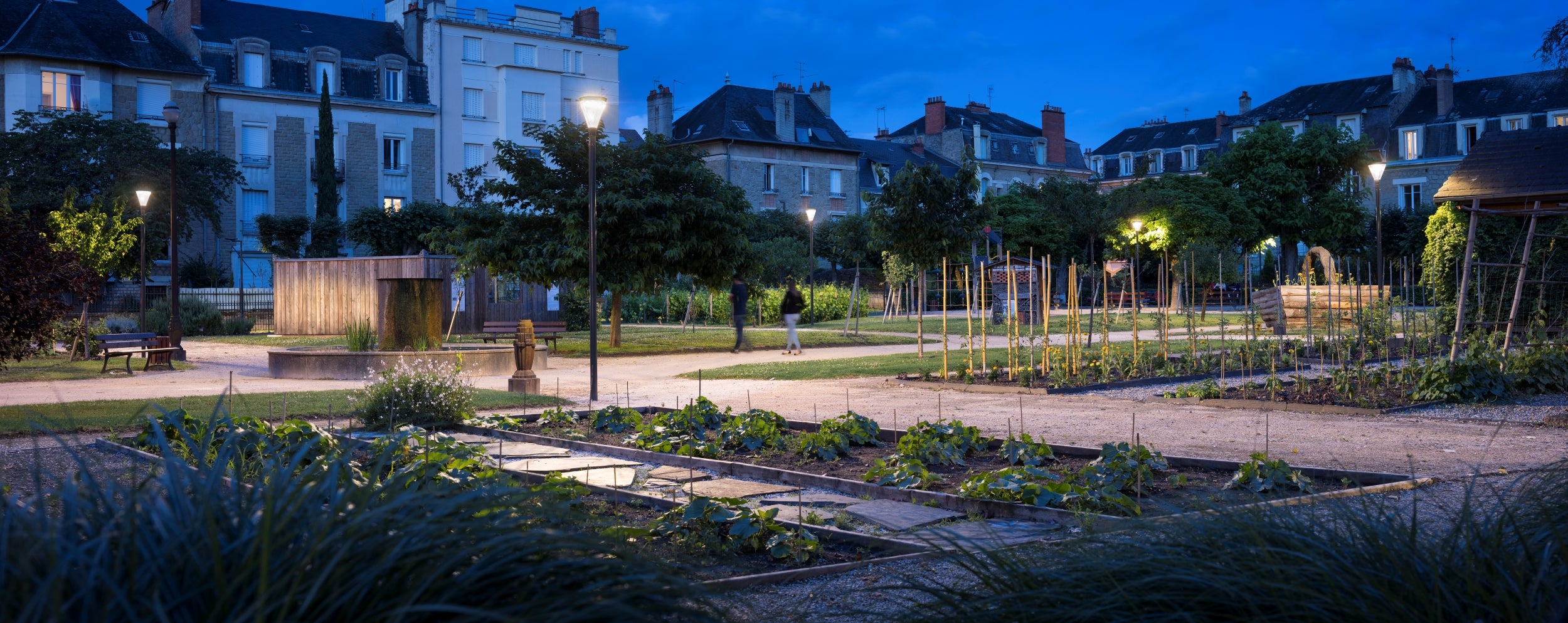

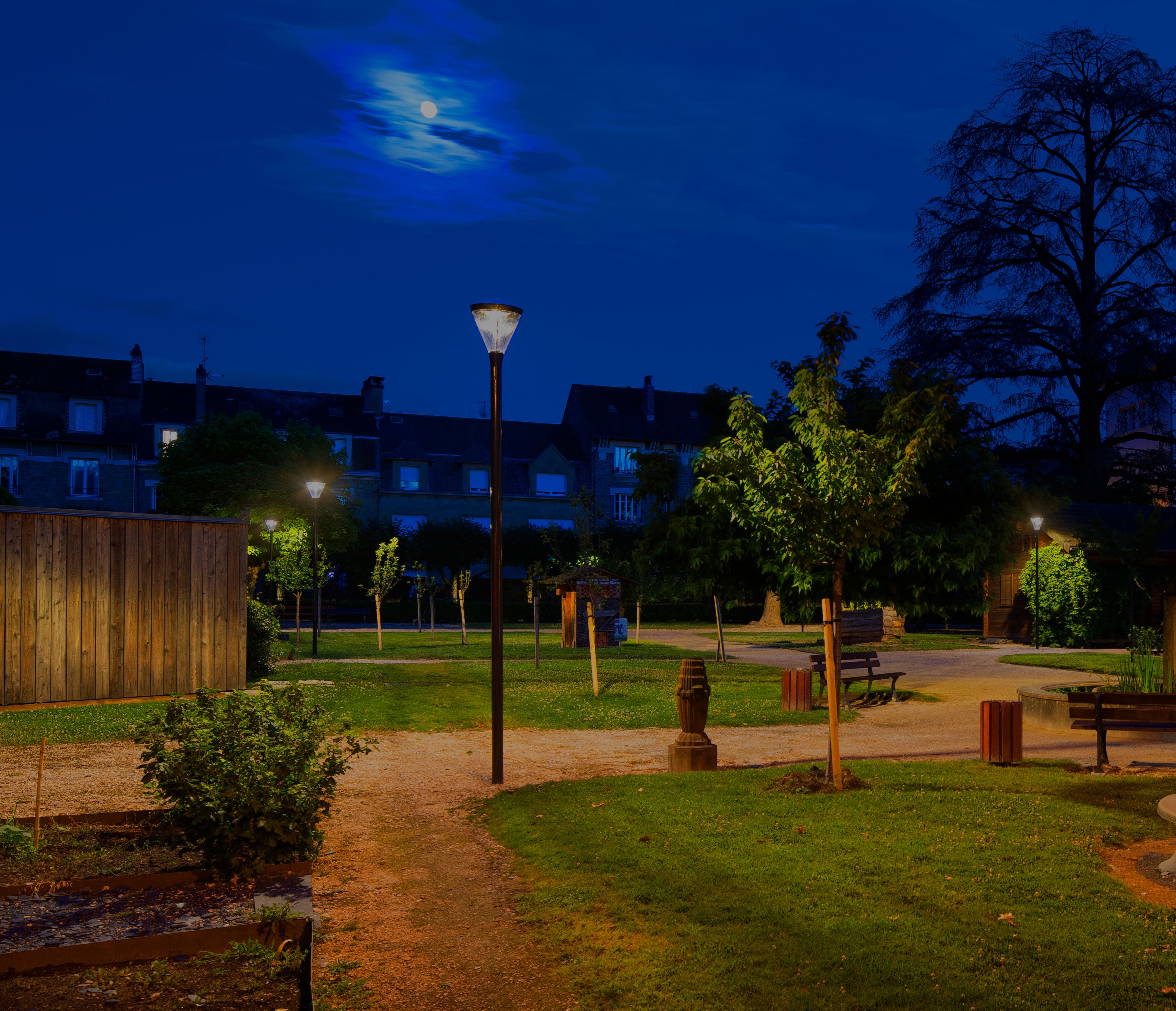

- Suitable for pathways, streets, parks, promenades, car parks and public spaces
- Optical design helps minimise critical angle brightness and sky-glow
- IP66 weather protection
- IK10 impact resistance

Outdoor lighting increasingly needs to do more than simply illuminate a space. It needs to create safe and comfortable environments after dark while responding to the surrounding architecture, community and natural environment.
Verso was designed around this balance. Its distinctive pole-top form gives public spaces an architectural presence during the day, while its carefully engineered optical system provides controlled and effective illumination at night. With Type II, III, IV and V distributions available, the same luminaire family can be adapted to narrow pathways, roadways, car parks, parks, promenades and larger open areas.
Where greater environmental control is required, Verso can also incorporate Versalux Spectral Transitioning technology. This allows the colour and spectral characteristics of the light to change throughout the night, providing functional white light when activity is highest before transitioning to a warmer, reduced-blue spectrum during quieter periods. The result is an outdoor lighting solution that can respond intelligently to how a space is being used while helping reduce unnecessary environmental impact.
Luminaire overview
Design
AS12 injected aluminium body with baked (220°C) polyester powder-coat finish, with enhanced treatment option available for coast projects. 7kg, 0.07m² surface scx.
Mount accepts Ø60mm OD pole top spigots.
Optic
Clear, impact resistant (IK10) PMMA conical bowl with internal patterning to reduce LED striations and simulate natural illumination through foliage.
Integrated specialised shielding allows VERSO to take the urban appeal of a post-top lantern into the modern era requiring reduced sky-glow. An extremely low Upward Waste Light Ratio and critical angle brightness for this style of luminaire gives designers a powerful tool for meeting both the aesthetic and technical requirements of their spaces.
Four different output levels delivered into a choice of three asymmetrical and one symmetrical beam spreads allow for a wide range of locations and applications.
Electrical
Integrated, replaceable DALI smart driver, programmable for various intelligent control options including Constant Light Output (CLO) feature designed to negate lumen depreciation by small increases in the forward current to the LEDs over lifetime. When implemented correctly, CLO allows designers to create a lighting layout that never requires more power or luminaires than is needed to illuminate the project to design levels.
6kV surge protection between phase-neutral and earth.
SPD (surge protection device) 10kV-5kA between phase-neutral and earth to be provided by installer at the base of the pole.
Wattage: XW - XW
Light Source
High quality, high efficiency Zhaga standard LED modules in 2200K Ra70, 2700K Ra80, 3000K Ra80, 4000K Ra70, or Blue Depleted. L80 @ 120,000hr+ for @350mA @Tq=25°C.
Lumen output: xx00lm - xx000lm
Product Configurator
| Product | Output (lm) | CCT | Watts | CRI | Control | Finish Colour | BUG Rating | Beam Spread | Actions |
|---|---|---|---|---|---|---|---|---|---|
![]()
Verso 16 LED Symmetric 5-1 Optic 1000mA PC Amber Dark Grey
VERSOA.16S51.1000DD.PCXXAA.5
| 3800 | 1700K | 51 | 50 | DALI Dimmable | Sable Grey 2900 | N.A. - No Uplight | 100° x 140° | |
![]()
Verso 16 LED Symmetric 5-1 Optic 1000mA 4000K Ra80 Dark Grey
VERSOA.16S51.1000DD.4080AA.5
| 5400 | 4000K | 51 | 80 | DALI Dimmable | Sable Grey 2900 | N.A. - No Uplight | 100° x 140° | |
![]()
Verso 16 LED Symmetric 5-1 Optic 1000mA 3000K Ra80 Dark Grey
VERSOA.16S51.1000DD.3080AA.5
| 5300 | 3000K | 51 | 80 | DALI Dimmable | Sable Grey 2900 | N.A. - No Uplight | 100° x 140° | |
![]()
Verso 16 LED Symmetric 5-1 Optic 1000mA 2700K Ra80 Dark Grey
VERSOA.16S51.1000DD.2780AA.5
| 4700 | 2700K | 51 | 80 | DALI Dimmable | Sable Grey 2900 | N.A. - No Uplight | 100° x 140° | |
![]()
Verso 16 LED Symmetric 5-1 Optic 1000mA 2200K Ra70 Dark Grey
VERSOA.16S51.1000DD.2270AA.5
| 4700 | 2200K | 51 | 70 | DALI Dimmable | Sable Grey 2900 | N.A. - No Uplight | 100° x 140° | |
![]()
Verso 16 LED Symmetric 5-1 Optic 700mA PC Amber Dark Grey
VERSOA.16S51.0700DD.PCXXAA.5
| 2800 | 1700K | 36 | 50 | DALI Dimmable | Sable Grey 2900 | N.A. - No Uplight | 100° x 140° | |
![]()
Verso 16 LED Symmetric 5-1 Optic 700mA 4000K Ra80 Dark Grey
VERSOA.16S51.0700DD.4080AA.5
| 4000 | 4000K | 36 | 80 | DALI Dimmable | Sable Grey 2900 | N.A. - No Uplight | 100° x 140° | |
![]()
Verso 16 LED Symmetric 5-1 Optic 700mA 3000K Ra80 Dark Grey
VERSOA.16S51.0700DD.3080AA.5
| 3900 | 3000K | 36 | 80 | DALI Dimmable | Sable Grey 2900 | N.A. - No Uplight | 100° x 140° | |
![]()
Verso 16 LED Symmetric 5-1 Optic 700mA 2700K Ra80 Dark Grey
VERSOA.16S51.0700DD.2780AA.5
| 3500 | 2700K | 36 | 80 | DALI Dimmable | Sable Grey 2900 | N.A. - No Uplight | 100° x 140° | |
![]()
Verso 16 LED Symmetric 5-1 Optic 700mA 2200K Ra70 Dark Grey
VERSOA.16S51.0700DD.2270AA.5
| 3400 | 2200K | 36 | 70 | DALI Dimmable | Sable Grey 2900 | N.A. - No Uplight | 100° x 140° | |
![]()
Verso 16 LED Symmetric 5-1 Optic 530mA PC Amber Dark Grey
VERSOA.16S51.0530DD.PCXXAA.5
| 2200 | 1700K | 27 | 50 | DALI Dimmable | Sable Grey 2900 | N.A. - No Uplight | 100° x 140° | |
![]()
Verso 16 LED Symmetric 5-1 Optic 530mA 4000K Ra80 Dark Grey
VERSOA.16S51.0530DD.4080AA.5
| 3100 | 4000K | 27 | 80 | DALI Dimmable | Sable Grey 2900 | N.A. - No Uplight | 100° x 140° | |
![]()
Verso 16 LED Symmetric 5-1 Optic 530mA 3000K Ra80 Dark Grey
VERSOA.16S51.0530DD.3080AA.5
| 3000 | 3000K | 27 | 80 | DALI Dimmable | Sable Grey 2900 | N.A. - No Uplight | 100° x 140° | |
![]()
Verso 16 LED Symmetric 5-1 Optic 530mA 2700K Ra80 Dark Grey
VERSOA.16S51.0530DD.2780AA.5
| 2700 | 2700K | 27 | 80 | DALI Dimmable | Sable Grey 2900 | N.A. - No Uplight | 100° x 140° | |
![]()
Verso 16 LED Symmetric 5-1 Optic 530mA 2200K Ra70 Dark Grey
VERSOA.16S51.0530DD.2270AA.5
| 2700 | 2200K | 27 | 70 | DALI Dimmable | Sable Grey 2900 | N.A. - No Uplight | 100° x 140° | |
![]()
Verso 16 LED Symmetric 5-1 Optic 350mA PC Amber Dark Grey
VERSOA.16S51.0350DD.PCXXAA.5
| 1500 | 1700K | 18 | 50 | DALI Dimmable | Sable Grey 2900 | N.A. - No Uplight | 100° x 140° | |
![]()
Verso 16 LED Symmetric 5-1 Optic 350mA 4000K Ra80 Dark Grey
VERSOA.16S51.0350DD.4080AA.5
| 2200 | 4000K | 18 | 80 | DALI Dimmable | Sable Grey 2900 | N.A. - No Uplight | 100° x 140° | |
![]()
Verso 16 LED Symmetric 5-1 Optic 350mA 3000K Ra80 Dark Grey
VERSOA.16S51.0350DD.3080AA.5
| 2100 | 3000K | 18 | 80 | DALI Dimmable | Sable Grey 2900 | N.A. - No Uplight | 100° x 140° | |
![]()
Verso 16 LED Symmetric 5-1 Optic 350mA 2700K Ra80 Dark Grey
VERSOA.16S51.0350DD.2780AA.5
| 1900 | 2700K | 18 | 80 | DALI Dimmable | Sable Grey 2900 | N.A. - No Uplight | 100° x 140° | |
![]()
Verso 16 LED Symmetric 5-1 Optic 350mA 2200K Ra70 Dark Grey
VERSOA.16S51.0350DD.2270AA.5
| 1800 | 2200K | 18 | 70 | DALI Dimmable | Sable Grey 2900 | N.A. - No Uplight | 100° x 140° | |
![]()
Verso 16 LED Asymmetric 4-0 Optic 1000mA PC Amber Dark Grey
VERSOA.16A40.1000DD.PCXXAA.5
| 3800 | 1700K | 51 | 50 | DALI Dimmable | Sable Grey 2900 | B1-U2-G1 | 95° x 65° | |
![]()
Verso 16 LED Asymmetric 4-0 Optic 1000mA 4000K Ra80 Dark Grey
VERSOA.16A40.1000DD.4080AA.5
| 5400 | 4000K | 51 | 80 | DALI Dimmable | Sable Grey 2900 | B1-U2-G1 | 95° x 65° | |
![]()
Verso 16 LED Asymmetric 4-0 Optic 1000mA 3000K Ra80 Dark Grey
VERSOA.16A40.1000DD.3080AA.5
| 5300 | 3000K | 51 | 80 | DALI Dimmable | Sable Grey 2900 | B1-U2-G1 | 95° x 65° | |
![]()
Verso 16 LED Asymmetric 4-0 Optic 1000mA 2700K Ra80 Dark Grey
VERSOA.16A40.1000DD.2780AA.5
| 4700 | 2700K | 51 | 80 | DALI Dimmable | Sable Grey 2900 | B1-U2-G1 | 95° x 65° | |
![]()
Verso 16 LED Asymmetric 4-0 Optic 1000mA 2200K Ra70 Dark Grey
VERSOA.16A40.1000DD.2270AA.5
| 4700 | 2200K | 51 | 70 | DALI Dimmable | Sable Grey 2900 | B1-U2-G1 | 95° x 65° | |
![]()
Verso 16 LED Asymmetric 4-0 Optic 700mA PC Amber Dark Grey
VERSOA.16A40.0700DD.PCXXAA.5
| 2800 | 1700K | 36 | 50 | DALI Dimmable | Sable Grey 2900 | B1-U1-G1 | 95° x 65° | |
![]()
Verso 16 LED Asymmetric 4-0 Optic 700mA 4000K Ra80 Dark Grey
VERSOA.16A40.0700DD.4080AA.5
| 4000 | 4000K | 36 | 80 | DALI Dimmable | Sable Grey 2900 | B1-U2-G1 | 95° x 65° | |
![]()
Verso 16 LED Asymmetric 4-0 Optic 700mA 3000K Ra80 Dark Grey
VERSOA.16A40.0700DD.3080AA.5
| 3900 | 3000K | 36 | 80 | DALI Dimmable | Sable Grey 2900 | B1-U2-G1 | 95° x 65° | |
![]()
Verso 16 LED Asymmetric 4-0 Optic 700mA 2700K Ra80 Dark Grey
VERSOA.16A40.0700DD.2780AA.5
| 3500 | 2700K | 36 | 80 | DALI Dimmable | Sable Grey 2900 | B1-U2-G1 | 95° x 65° | |
![]()
Verso 16 LED Asymmetric 4-0 Optic 700mA 2200K Ra70 Dark Grey
VERSOA.16A40.0700DD.2270AA.5
| 3400 | 2200K | 36 | 70 | DALI Dimmable | Sable Grey 2900 | B1-U2-G1 | 95° x 65° | |
![]()
Verso 16 LED Asymmetric 4-0 Optic 530mA PC Amber Dark Grey
VERSOA.16A40.0530DD.PCXXAA.5
| 2200 | 1700K | 27 | 50 | DALI Dimmable | Sable Grey 2900 | B1-U1-G1 | 95° x 65° | |
![]()
Verso 16 LED Asymmetric 4-0 Optic 530mA 4000K Ra80 Dark Grey
VERSOA.16A40.0530DD.4080AA.5
| 3100 | 4000K | 27 | 80 | DALI Dimmable | Sable Grey 2900 | B1-U2-G1 | 95° x 65° | |
![]()
Verso 16 LED Asymmetric 4-0 Optic 530mA 3000K Ra80 Dark Grey
VERSOA.16A40.0530DD.3080AA.5
| 3000 | 3000K | 27 | 80 | DALI Dimmable | Sable Grey 2900 | B1-U1-G1 | 95° x 65° | |
![]()
Verso 16 LED Asymmetric 4-0 Optic 530mA 2700K Ra80 Dark Grey
VERSOA.16A40.0530DD.2780AA.5
| 2700 | 2700K | 27 | 80 | DALI Dimmable | Sable Grey 2900 | B1-U1-G1 | 95° x 65° | |
![]()
Verso 16 LED Asymmetric 4-0 Optic 530mA 2200K Ra70 Dark Grey
VERSOA.16A40.0530DD.2270AA.5
| 2700 | 2200K | 27 | 70 | DALI Dimmable | Sable Grey 2900 | B1-U1-G1 | 95° x 65° | |
![]()
Verso 16 LED Asymmetric 4-0 Optic 350mA PC Amber Dark Grey
VERSOA.16A40.0350DD.PCXXAA.5
| 1500 | 1700K | 18 | 50 | DALI Dimmable | Sable Grey 2900 | B0-U1-G1 | 95° x 65° | |
![]()
Verso 16 LED Asymmetric 4-0 Optic 350mA 4000K Ra80 Dark Grey
VERSOA.16A40.0350DD.4080AA.5
| 2200 | 4000K | 18 | 80 | DALI Dimmable | Sable Grey 2900 | B0-U1-G1 | 95° x 65° | |
![]()
Verso 16 LED Asymmetric 4-0 Optic 350mA 3000K Ra80 Dark Grey
VERSOA.16A40.0350DD.3080AA.5
| 2100 | 3000K | 18 | 80 | DALI Dimmable | Sable Grey 2900 | B0-U1-G1 | 95° x 65° | |
![]()
Verso 16 LED Asymmetric 4-0 Optic 350mA 2700K Ra80 Dark Grey
VERSOA.16A40.0350DD.2780AA.5
| 1900 | 2700K | 18 | 80 | DALI Dimmable | Sable Grey 2900 | B0-U1-G1 | 95° x 65° | |
![]()
Verso 16 LED Asymmetric 4-0 Optic 350mA 2200K Ra70 Dark Grey
VERSOA.16A40.0350DD.2270AA.5
| 1800 | 2200K | 18 | 70 | DALI Dimmable | Sable Grey 2900 | B0-U1-G1 | 95° x 65° | |
![]()
Verso 16 LED Asymmetric 3-1 Optic 1000mA PC Amber Dark Grey
VERSOA.16A31.1000DD.PCXXAA.5
| 3800 | 1700K | 51 | 50 | DALI Dimmable | Sable Grey 2900 | B1-U2-G1 | 110° x 45° | |
![]()
Verso 16 LED Asymmetric 3-1 Optic 1000mA 4000K Ra80 Dark Grey
VERSOA.16A31.1000DD.4080AA.5
| 5400 | 4000K | 51 | 80 | DALI Dimmable | Sable Grey 2900 | B1-U2-G1 | 110° x 45° | |
![]()
Verso 16 LED Asymmetric 3-1 Optic 1000mA 3000K Ra80 Dark Grey
VERSOA.16A31.1000DD.3080AA.5
| 5300 | 3000K | 51 | 80 | DALI Dimmable | Sable Grey 2900 | B1-U2-G1 | 110° x 45° | |
![]()
Verso 16 LED Asymmetric 3-1 Optic 1000mA 2700K Ra80 Dark Grey
VERSOA.16A31.1000DD.2780AA.5
| 4700 | 2700K | 51 | 80 | DALI Dimmable | Sable Grey 2900 | B1-U2-G1 | 110° x 45° | |
![]()
Verso 16 LED Asymmetric 3-1 Optic 1000mA 2200K Ra70 Dark Grey
VERSOA.16A31.1000DD.2270AA.5
| 4700 | 2200K | 51 | 70 | DALI Dimmable | Sable Grey 2900 | B1-U2-G1 | 110° x 45° | |
![]()
Verso 16 LED Asymmetric 3-1 Optic 700mA PC Amber Dark Grey
VERSOA.16A31.0700DD.PCXXAA.5
| 2800 | 1700K | 36 | 50 | DALI Dimmable | Sable Grey 2900 | B1-U1-G1 | 110° x 45° | |
![]()
Verso 16 LED Asymmetric 3-1 Optic 700mA 4000K Ra80 Dark Grey
VERSOA.16A31.0700DD.4080AA.5
| 4000 | 4000K | 36 | 80 | DALI Dimmable | Sable Grey 2900 | B1-U2-G1 | 110° x 45° | |
![]()
Verso 16 LED Asymmetric 3-1 Optic 700mA 3000K Ra80 Dark Grey
VERSOA.16A31.0700DD.3080AA.5
| 3900 | 3000K | 36 | 80 | DALI Dimmable | Sable Grey 2900 | B1-U2-G1 | 110° x 45° | |
![]()
Verso 16 LED Asymmetric 3-1 Optic 700mA 2700K Ra80 Dark Grey
VERSOA.16A31.0700DD.2780AA.5
| 3500 | 2700K | 36 | 80 | DALI Dimmable | Sable Grey 2900 | B1-U2-G1 | 110° x 45° | |
![]()
Verso 16 LED Asymmetric 3-1 Optic 700mA 2200K Ra70 Dark Grey
VERSOA.16A31.0700DD.2270AA.5
| 3400 | 2200K | 36 | 70 | DALI Dimmable | Sable Grey 2900 | B1-U2-G1 | 110° x 45° |
