60,000+ Australia Wide
From approximately 1990 through to 2015, it was available in 70W High Pressure Sodium (HPS) and 100W Metal Halide (MH) versions.
With over 60,000 fixtures and a legacy dating back to 1990, Versalux has become the leading provider of extreme-duty lighting solutions for the mining and resource sector. Trusted across Australia’s most challenging environments, our lighting systems deliver unmatched durability, energy efficiency, and compliance with Australian Standards. Still going strong after 3 decades, the EBH remains a dependable solution for harsh and corrosive environments.

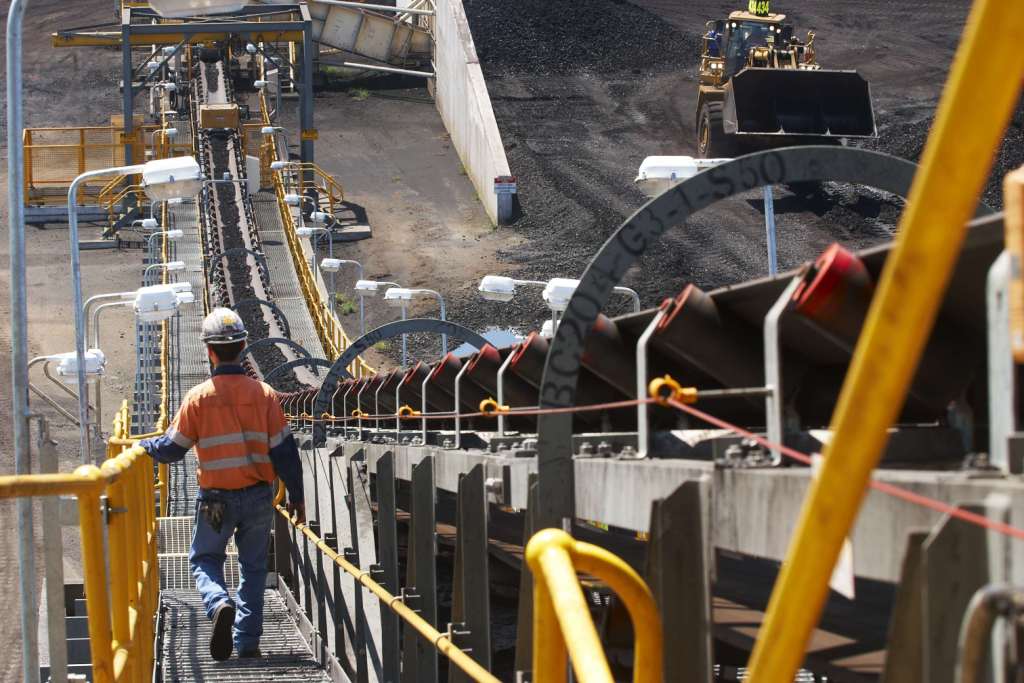

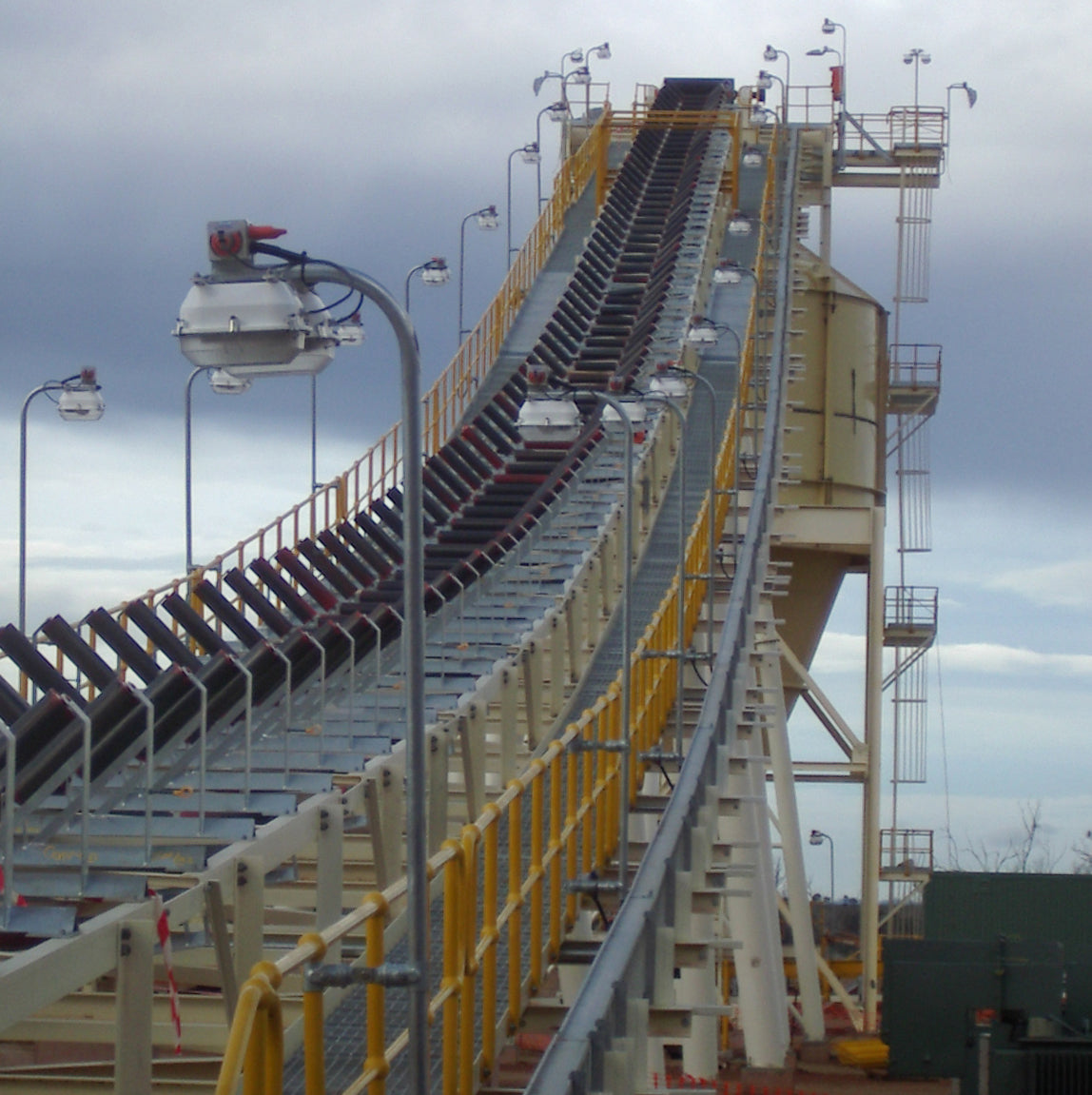

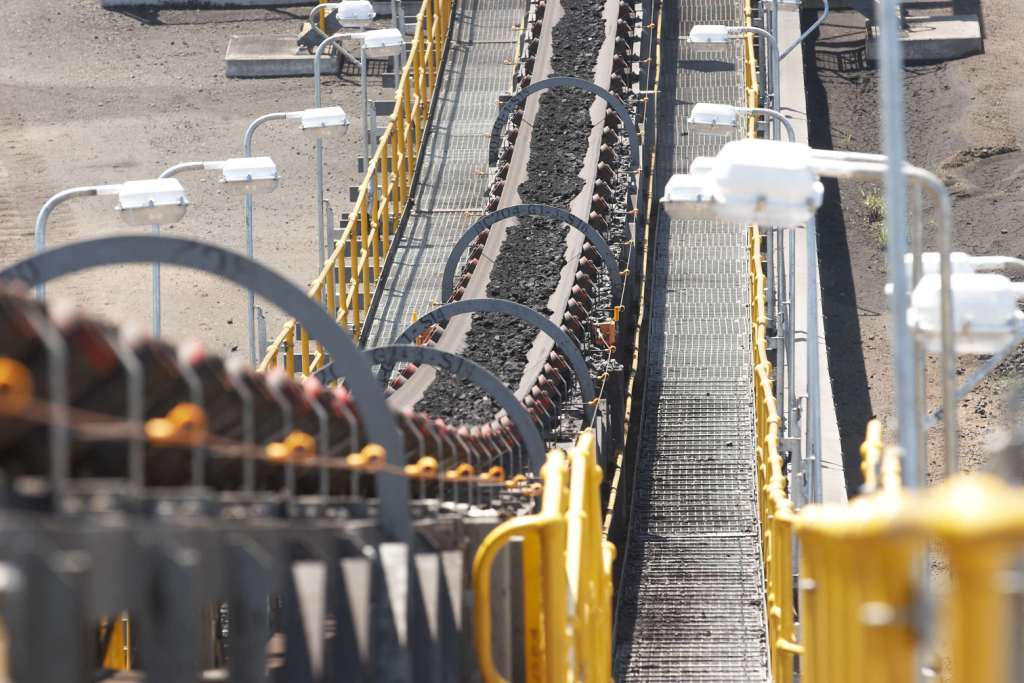

Today mine sites are opting to upgrade the original 1990s EBH units with today's LED technology, saving both time and money - proving undeniable longevity.
Luminaire highlights
- IP66, IP67
- PC Amber and DarkSky compliant version available
- Over 35 years of development and 60,000+ sold Australia wide
- Deep drawn 316 stainless-steel housing
- Heavy duty luminaire designed for a range of harsh & corrosive environments between -20°C and +40°C.
- Available in a range of colour temperatures to suit specific site requirements
- Supplied as standard with a 4-metre terminated cable with flex fixed to fitting
- 2C+E 2.5mm² for standard fittings
- 3C+E 2.5mm² for emergency versions
- The emergency version is now fully integrated within the luminaire and operates in maintained mode, utilising the main LED array at a reduced output during emergency operation.
- The battery enclosure is mounted beneath the spigot, providing additional protection from falling objects.
Two sizes. Two lenses.

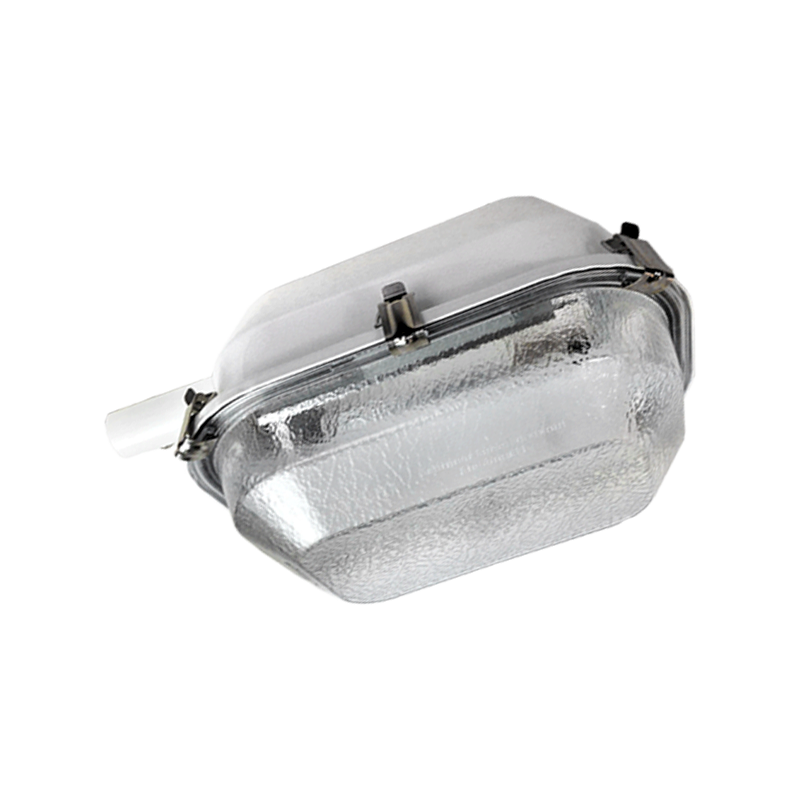

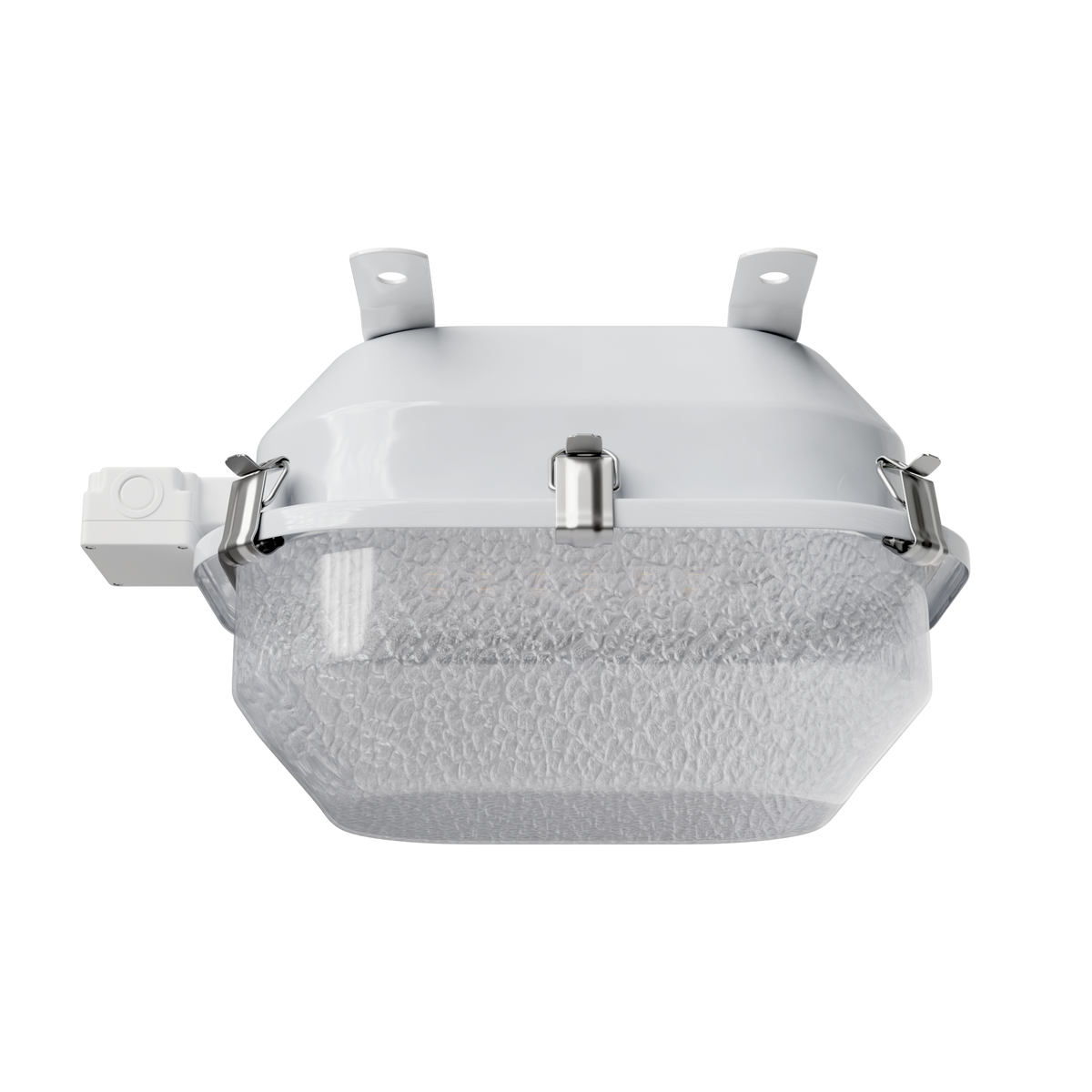

EBH. Polycarbonate lens
Electrical
24W
Output
PC Amber up to 2,600lm
2200K up to 3,100lm
3000K up to 3,700lm
4000K up to 3,800lm
Up to 158lm/W

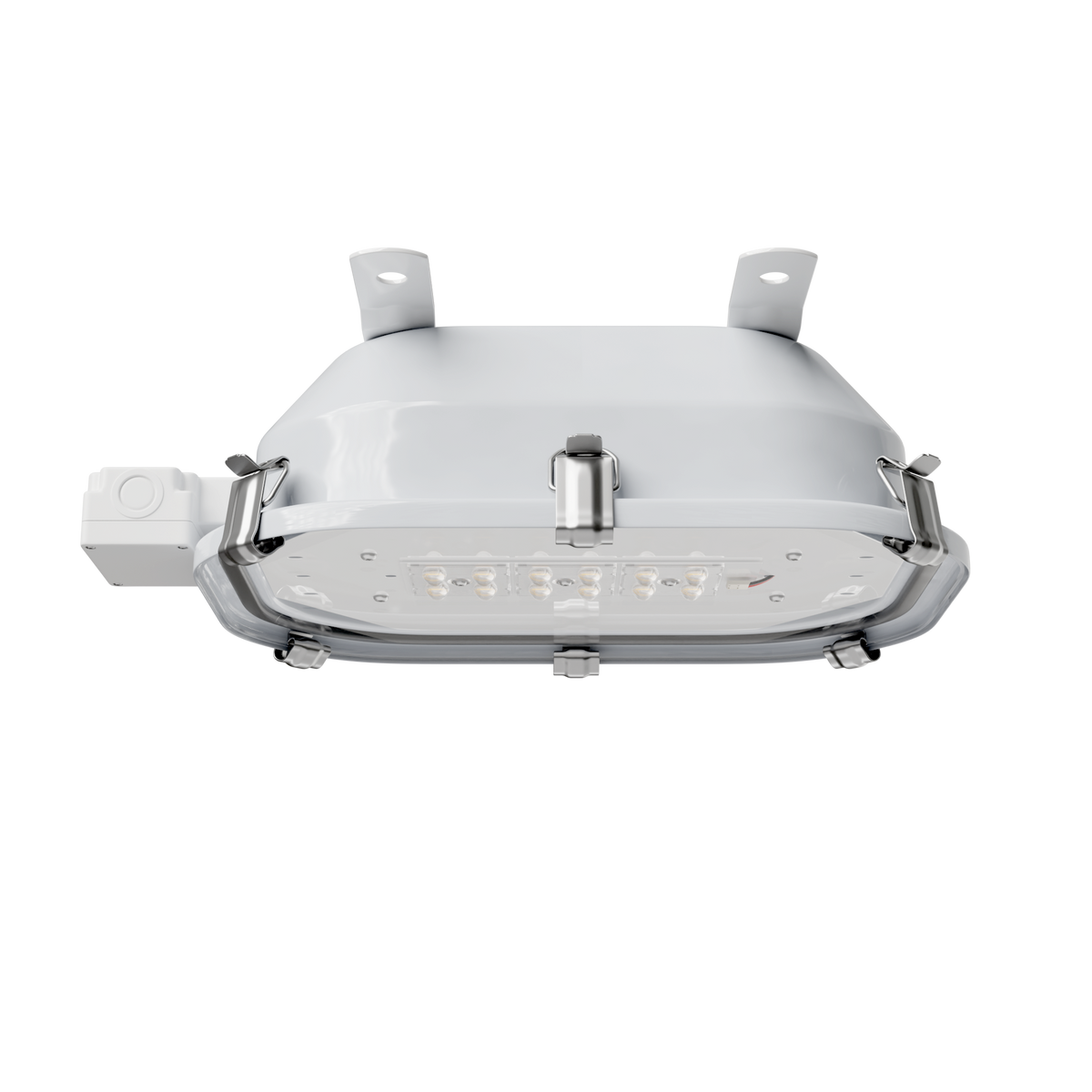

EBH. Flat glass
DarkSky compliant
Electrical
24W
Output
PC Amber up to 2,600lm
2200K up to 3,100lm
3000K up to 3,600lm
4000K up to 3,700lm
Up to 154lm/W

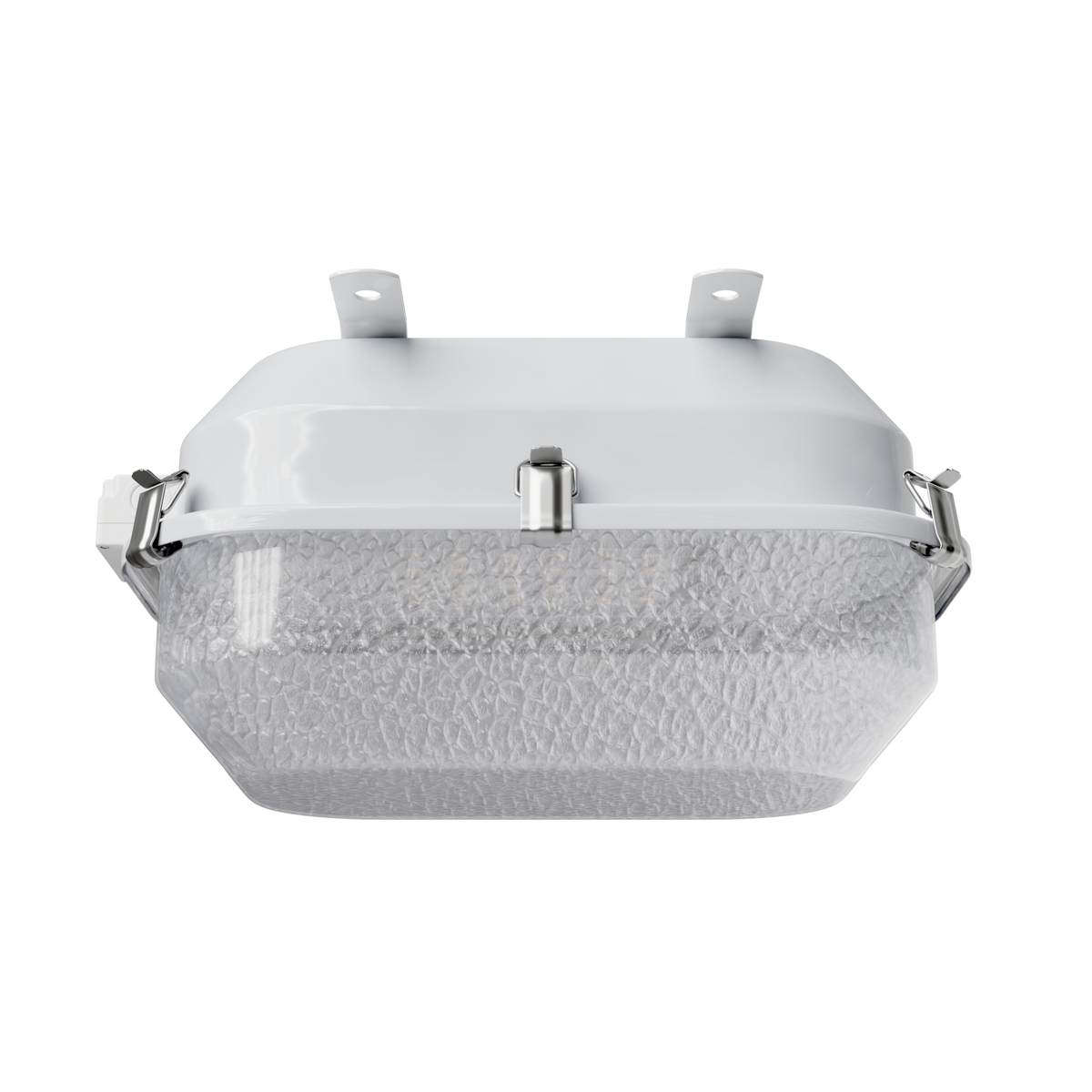

EBH Large. Polycarbonate lens
Electrical
40W
Output
PC Amber up to 4,300lm
2200K up to 5,200lm
3000K up to 6,300lm
4000K up to 6,300lm
Up to 158lm/W

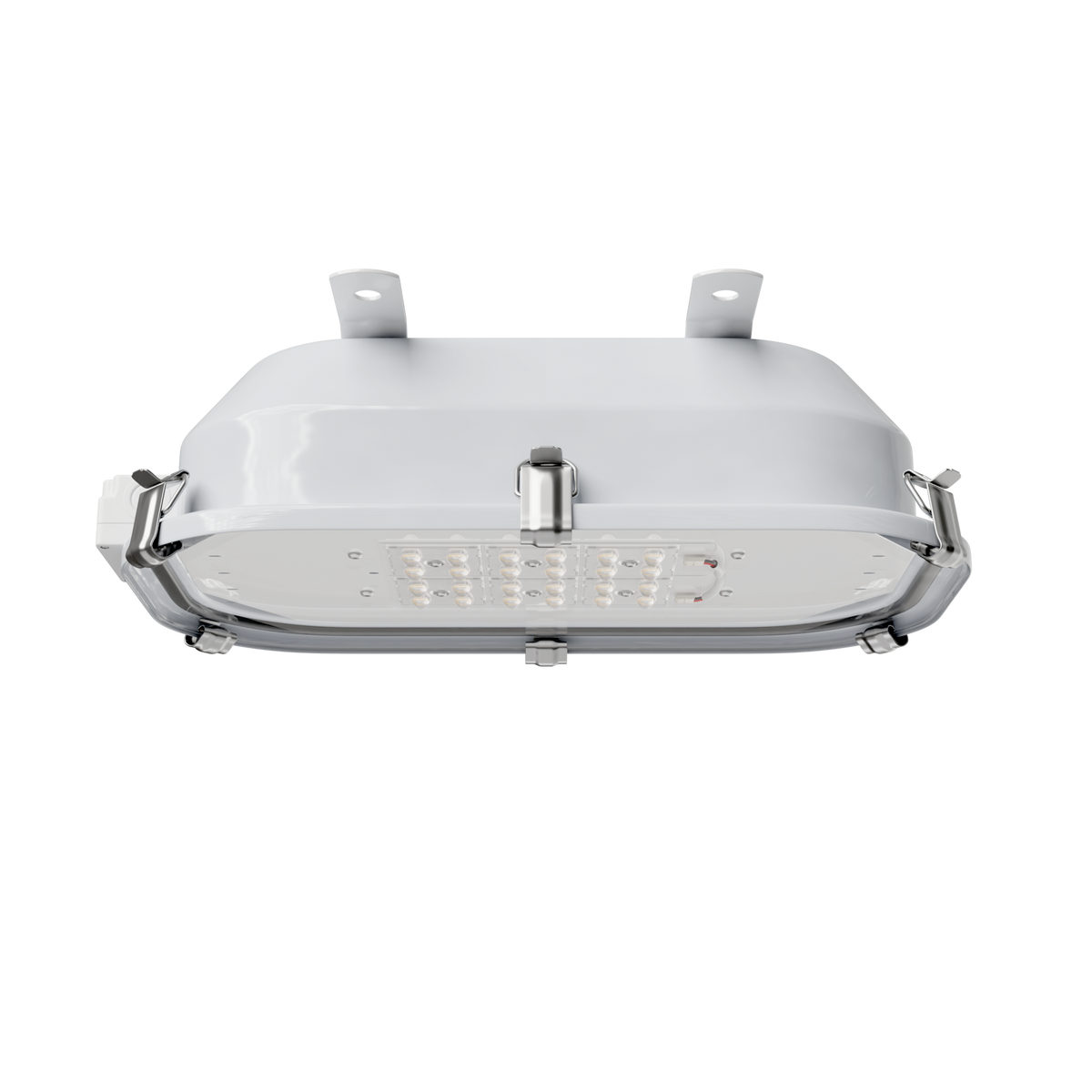

EBH Large. Flat glass
DarkSky compliant
Electrical
40W
Output
PC Amber up to 4,100lm
2200K up to 5,000lm
3000K up to 6,000lm
4000K up to 6,100lm
Up to 153lm/W
Two mounting options.

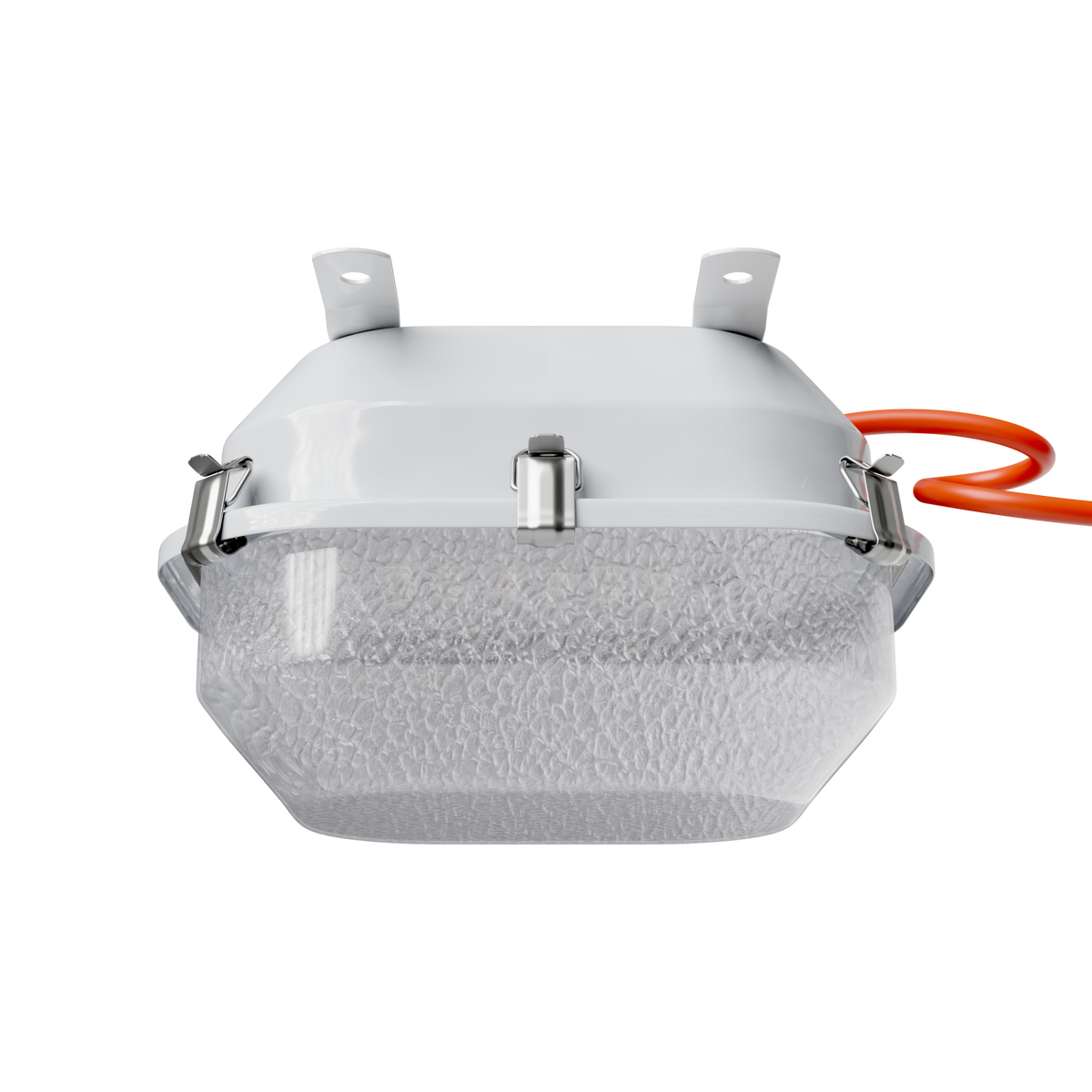

Foot mount

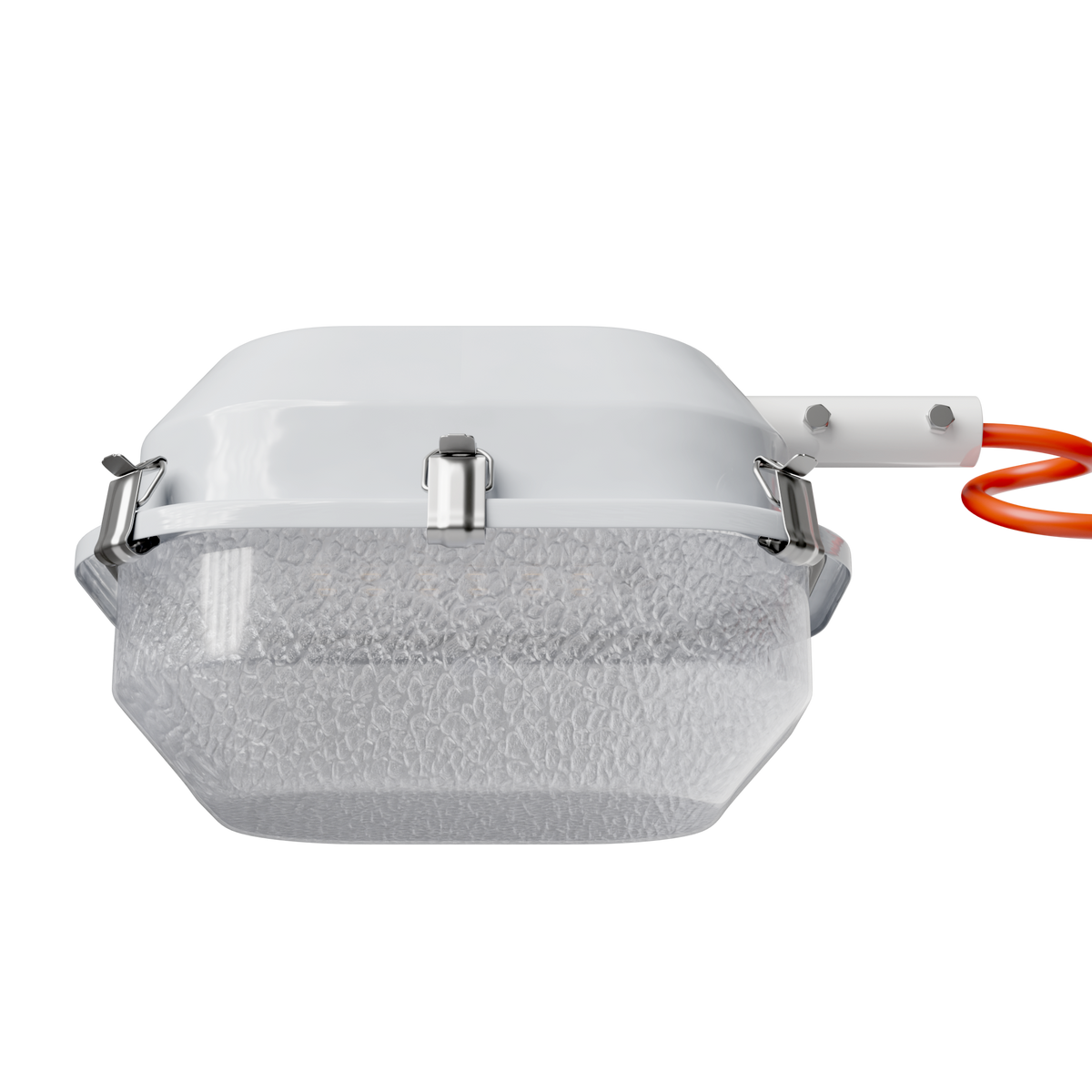

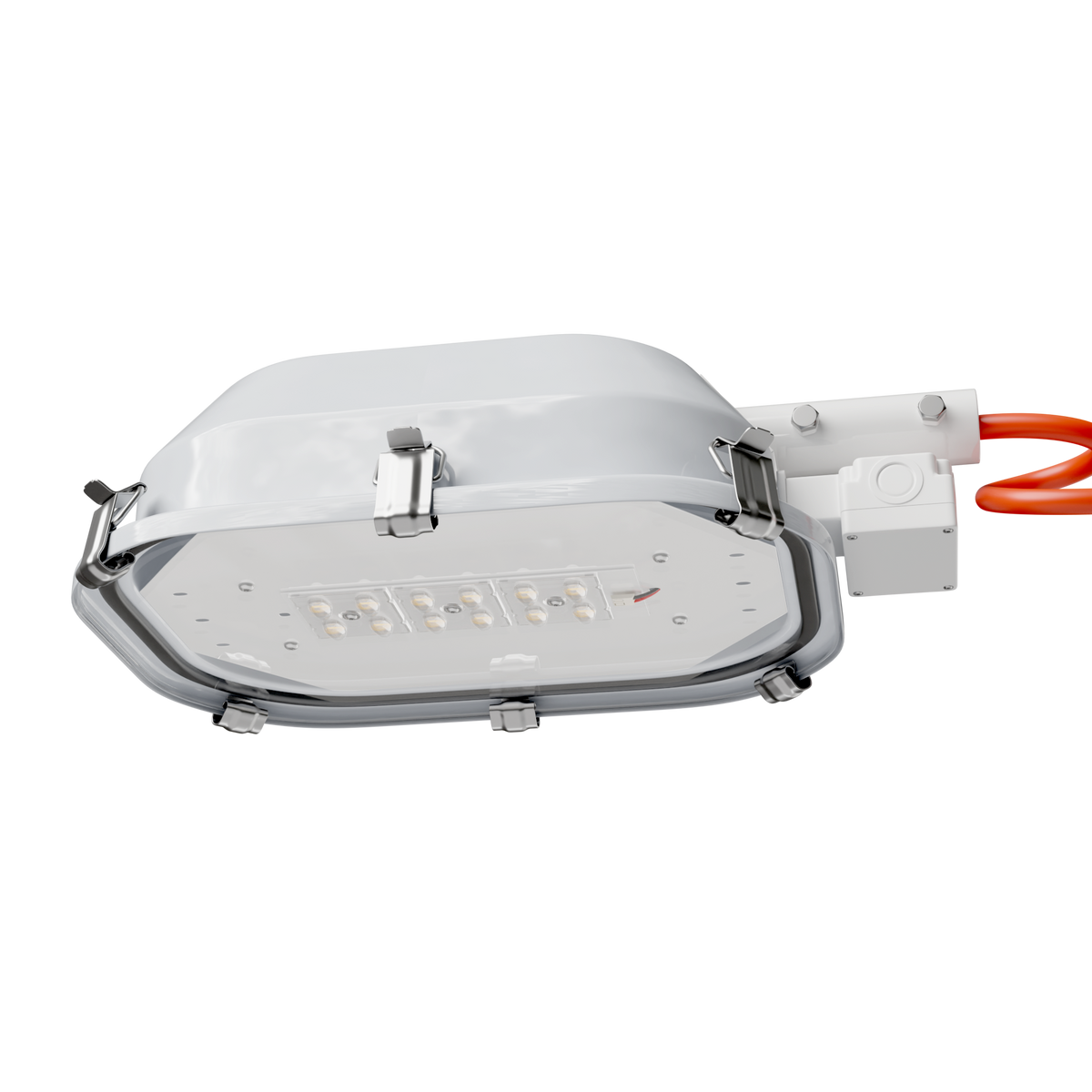

Pole mount
DarkSky compliant

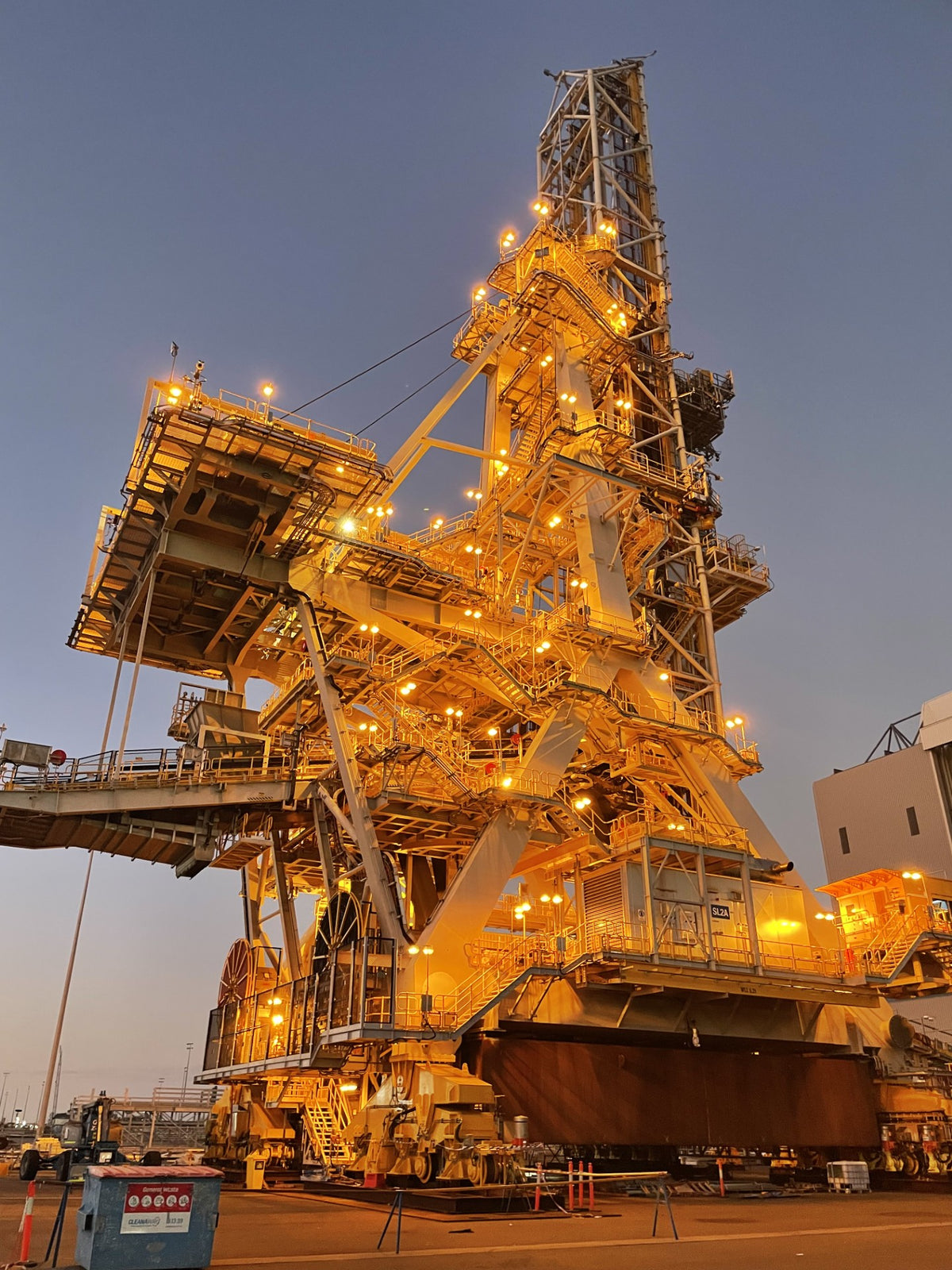

Featuring a clear glass flat lens, the EBH is DarkSky compliant and, when paired with our PC Amber colour temperature, provides an environmentally conscious lighting solution ideal for mine sites and other sensitive outdoor environments.
Built for the life of the mine
Designed with longevity and sustainability in mind, the EBH features a durable 316 stainless steel enclosure engineered to remain in service for the life of the mine, with all internal components covered by a five-year warranty.

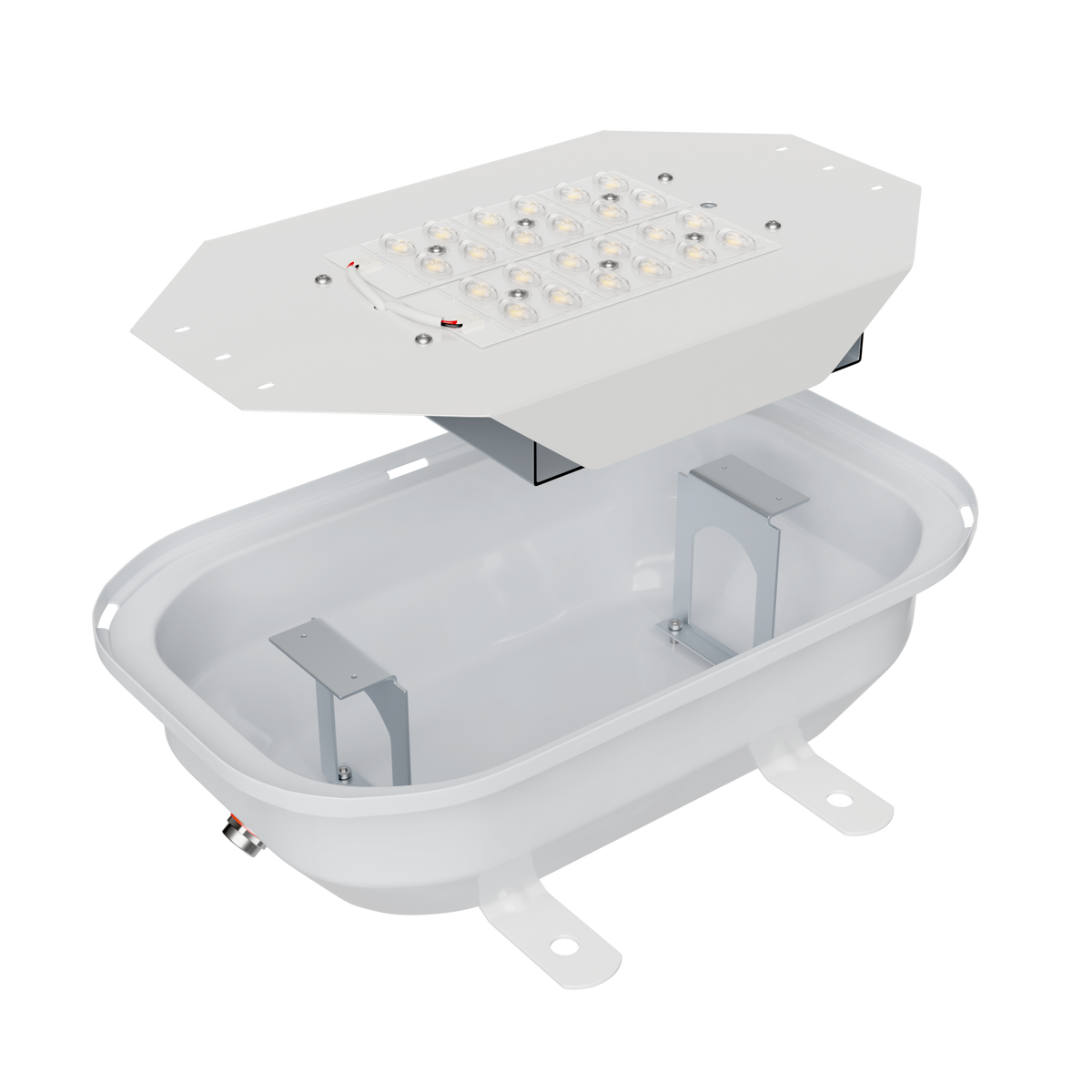

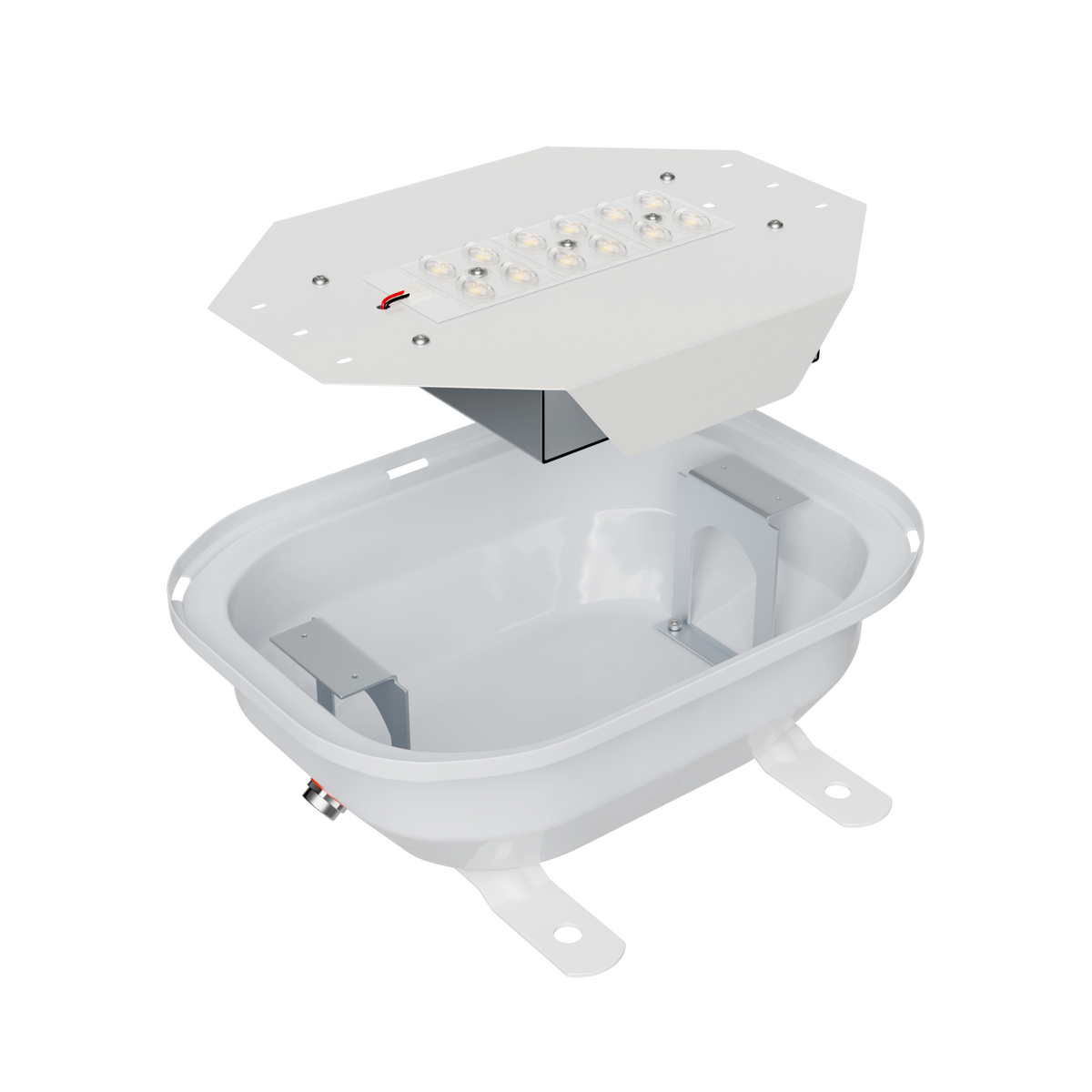

Rather than replacing the complete luminaire when maintenance is required or technology advances, the internal gear tray can be removed, serviced or upgraded independently. This modular approach extends the usable life of the fitting, reduces material waste and provides mine operators with a more sustainable and cost-effective long-term lighting solution.

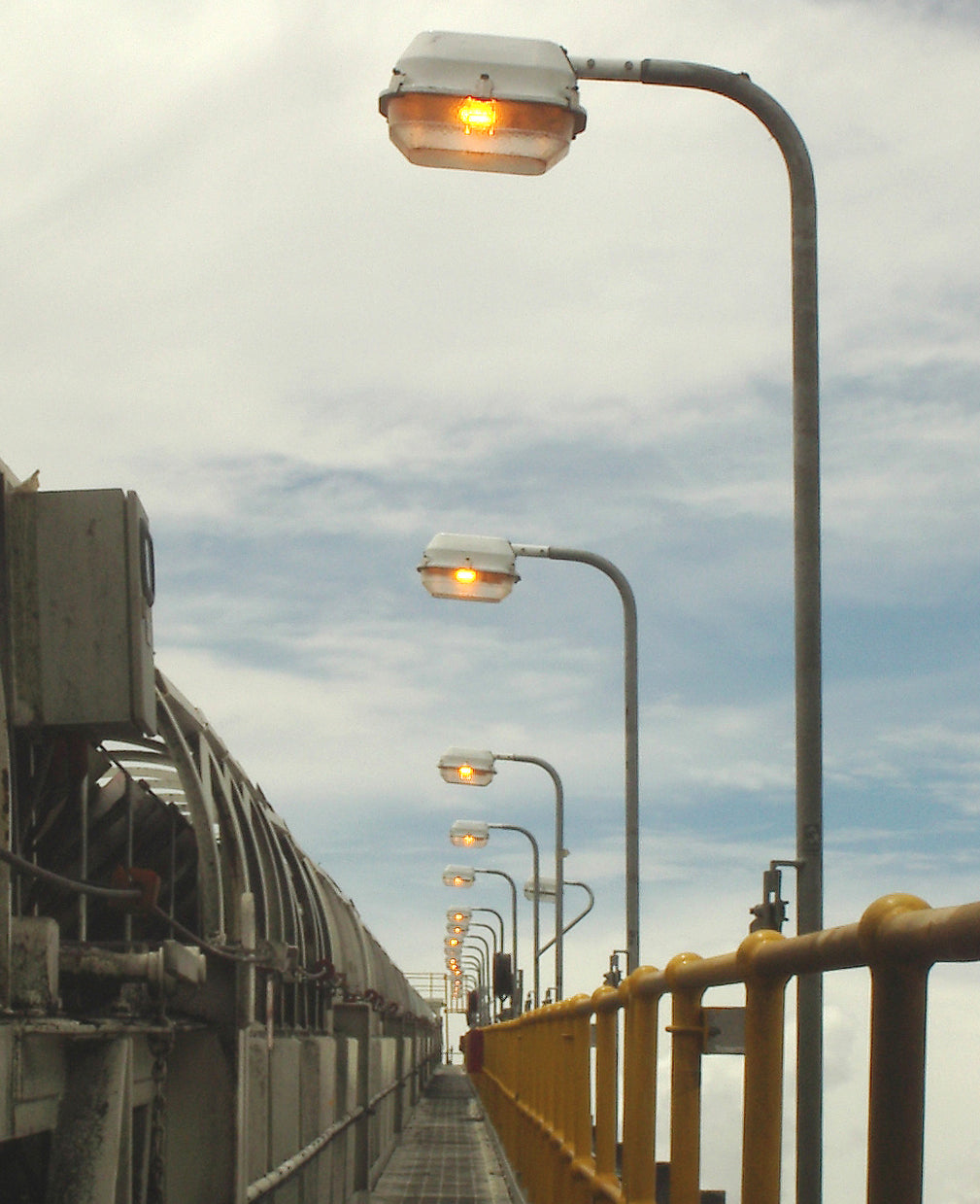

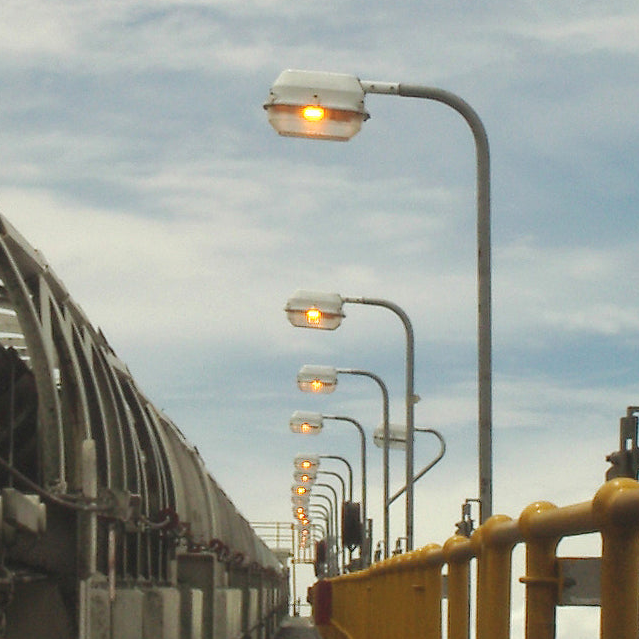

Late 90s EBH on site due for an upgrade to LED
Mine maintenance.

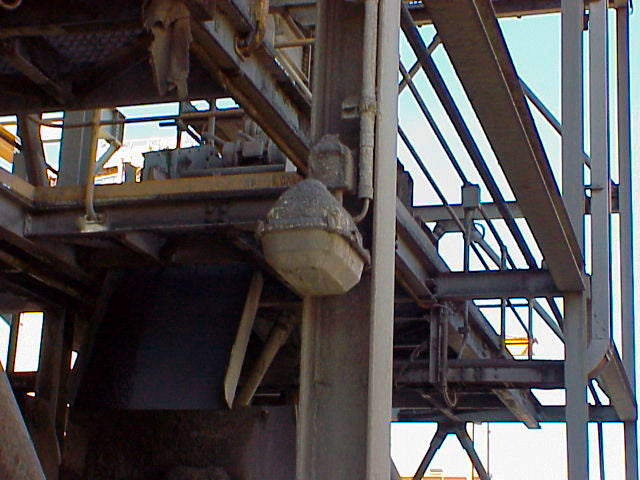

BEFORE CLEANING: A standard Versalux EBH Bulkhead fixture overdue for its monthly hose blasting.

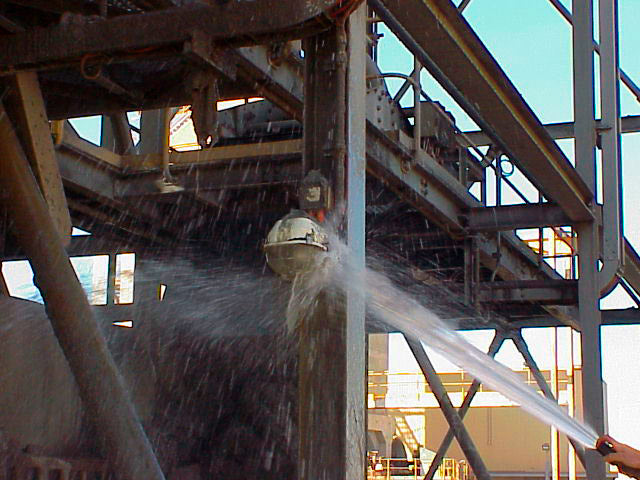

DURING CLEANING: Multiple high-compression clips and multi-tongue gaskets completely block ingress of dust and water.

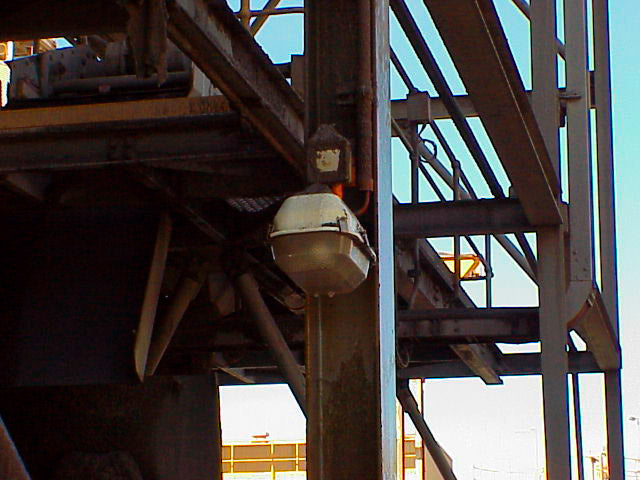

AFTER CLEANING: Smooth outer surfaces allow the removal of caked on product for a full return to the original efficiencies.
Product Configurator
| Product | Family | Control | CCT | Output (lm) | Mounting Type | Actions |
|---|---|---|---|---|---|---|
| EBH | Fixed Output | 2200K | 2250 | Footmount brackets |
Add to Project Briefcase
|
|
EBH Size 2 High Power Standard Lens Fixed Output 4000K Foot Mount
EBHLED2H.0FO.4KFM
| EBH | Fixed Output | 4000K | 3600 | Footmount brackets |
Add to Project Briefcase
|
|
EBH Size 2 High Power Standard Lens Fixed Output 3000K Foot Mount
EBHLED2H.0FO.3KFM
| EBH | Fixed Output | 3000K | 3450 | Footmount brackets |
Add to Project Briefcase
|
| EBH | Fixed Output | 2200K | 2250 | Pole mount |
Add to Project Briefcase
|
|
| EBH | Fixed Output | 4000K | 3600 | Pole mount |
Add to Project Briefcase
|
|
| EBH | Fixed Output | 3000K | 3450 | Pole mount |
Add to Project Briefcase
|
