Robust utility luminaire
The Next series of floodlights, designed for indoor and outdoor areas, has been created with a focus on the different characteristics of the various environments. Thanks to the refined and essential design, the Next series is able to communicate in the best way with any type of environment. Next is the high-performance lighting solution that combines technology, modernity, flexibility and efficiency for really revolutionary lighting!
Key features:
- High-performance floodlight range for both indoor and outdoor applications.
- Low copper content for excellent corrosion resistance.
- Silver polyester powder coating with advanced AION treatment for UV, salt spray and C5HD corrosion protection.
- IP66 protection rating
- IK08 impact resistance.
- High output range up to 115,500 lumens depending on model and optic.
- Symmetrical, asymmetrical and circular optics
Eight sizes available

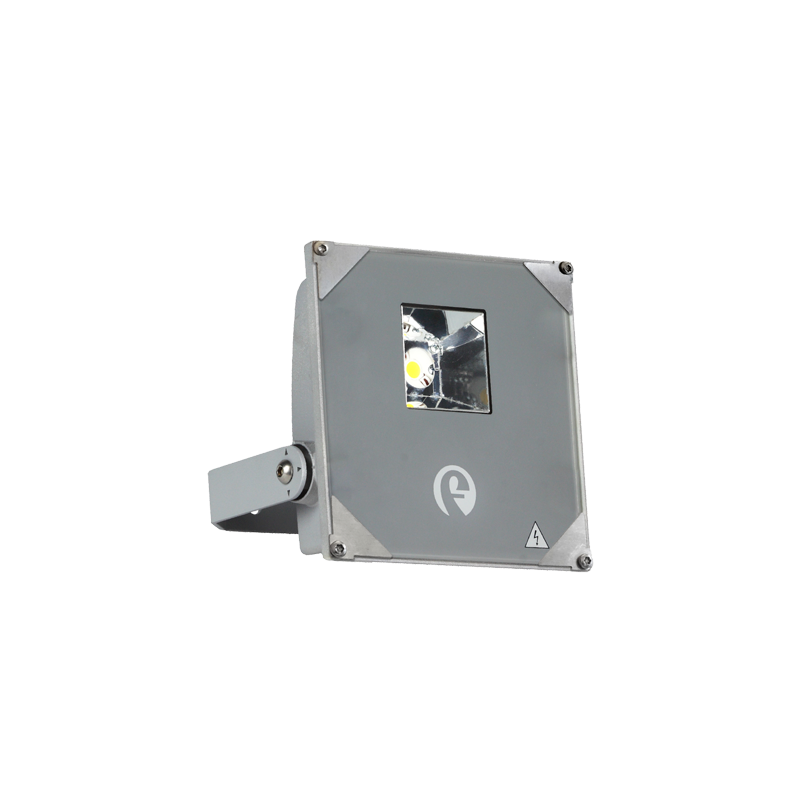

Next 0
Optics: Symmetrical & asymmetrical

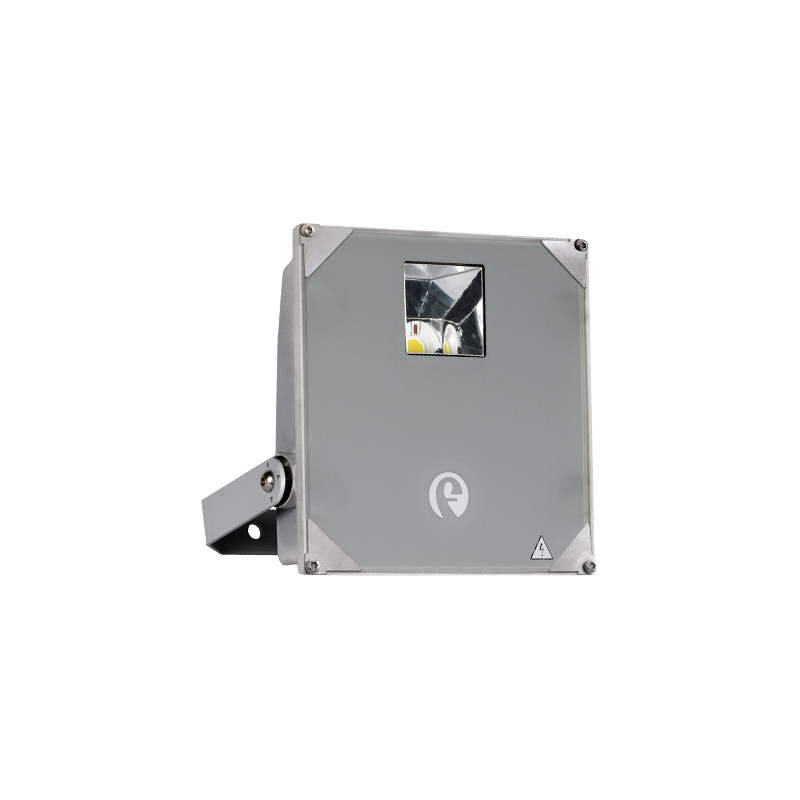

Next 1
Optics: Symmetrical & asymmetrical
Next 2
Optics: Symmetrical & asymmetrical
Next 3
Optics: Symmetrical, asymmetrical & circle

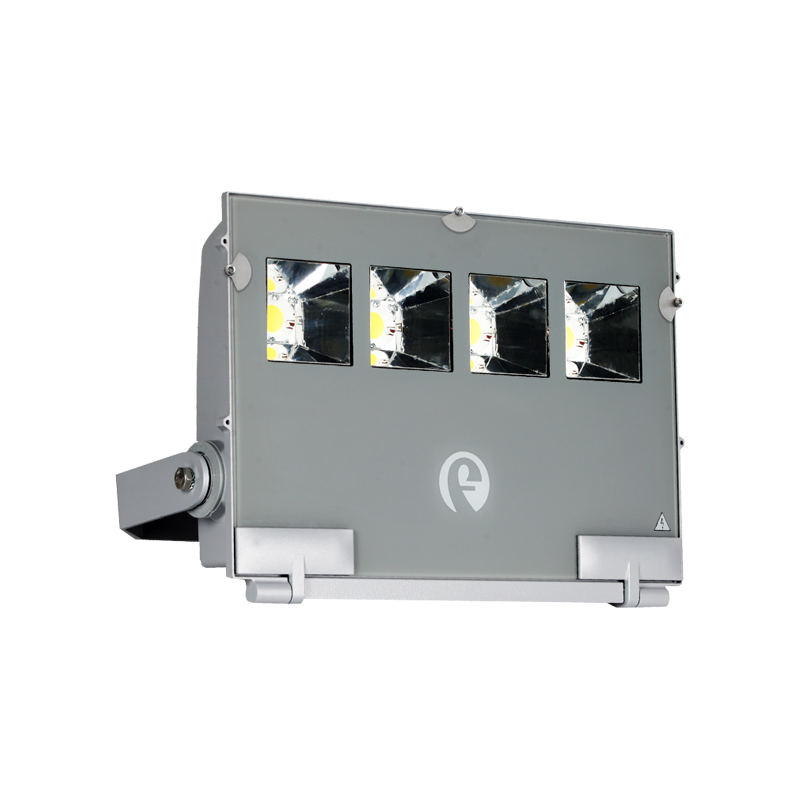

Next 4
Optics: Symmetrical, asymmetrical & circle
Next 6
Optics: Symmetrical, asymmetrical & circle
Next 8
Optics: Symmetrical, asymmetrical & circle

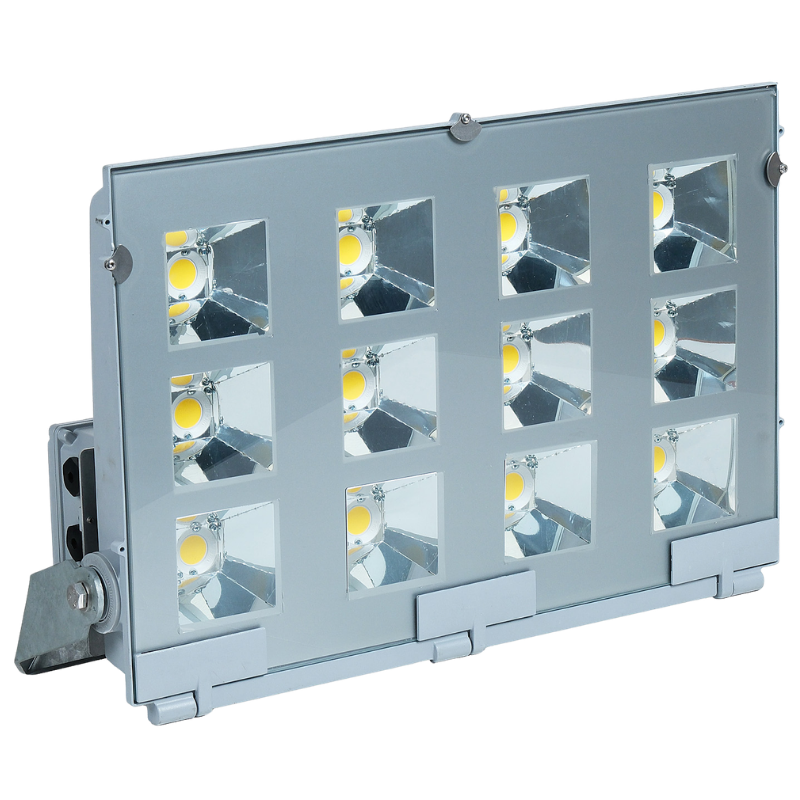

Next 12
Optics: Symmetrical, asymmetrical & circle
Luminaire overview
Design

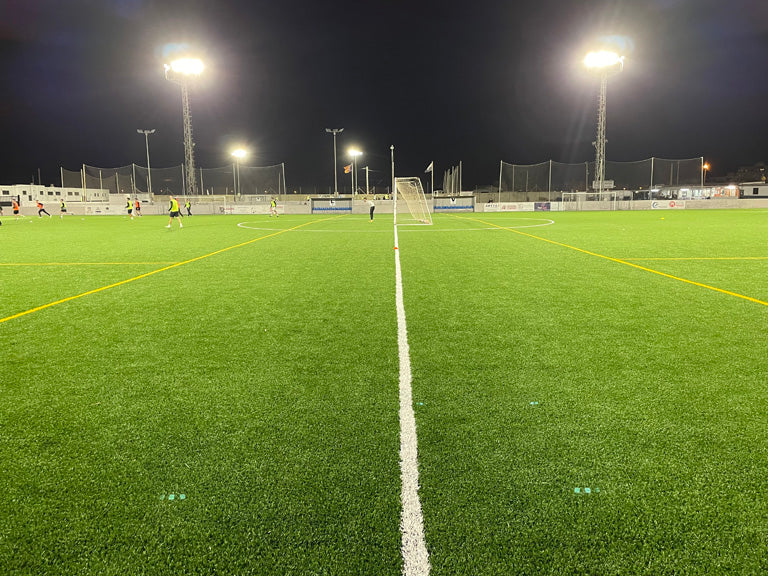

Engineered with a clean, essential form that integrates easily into architectural, industrial and sporting environments. Constructed from robust die-cast aluminium, the fittings are designed to withstand harsh outdoor conditions while maintaining a sleek modern appearance. Stainless steel hardware, tempered extra-clear glass and durable powder-coated finishes enhance both longevity and aesthetics.
Optic
Featuring advanced reflector-based optics designed for high efficiency, glare control and precise light distribution. Each LED is paired with an individual reflector made from high-purity aluminium or vacuum-metallised aluminium for superior performance. Available beam options include symmetric medium and wide beam, asymmetric distributions, and circular optics for specialised applications.
Electrical
The range uses high-efficiency programmable electronic drivers rated for over 100,000 hours of operation. All versions include protection against overloads, surges and overcurrent to safeguard components and LEDs. Standard input voltage is 220–240V / 50–60Hz, with power factor above 0.9 at full load. NEXT 12 models are available with onboard or remote power supply systems for added installation flexibility.
Wattage range: 13W - 746W
Light Source
Highly efficient LED
3000K (CRI > 80)
4000K (CRI > 70)
Lumen output: 4700lm - 47,500lm
Product Configurator
| Product | Output (lm) | CCT | Watts | CRI | Family | Finish Colour | Control | BUG Rating | Actions |
|---|---|---|---|---|---|---|---|---|---|
| 47220 | 4000K | 334 | 70 | NEXT 8 | Grey | DALI Dimmable | N.A. - No Uplight |
Add to Project Briefcase
|
|
| 47220 | 4000K | 334 | 70 | NEXT 8 | Grey | 1-10V Dimmable | N.A. - No Uplight |
Add to Project Briefcase
|
|
| 47230 | 4000K | 334 | 70 | NEXT 8 | Grey | DALI Dimmable | B3-U0-G2 |
Add to Project Briefcase
|
|
| 47230 | 4000K | 334 | 70 | NEXT 8 | Grey | 1-10V Dimmable | B3-U0-G2 |
Add to Project Briefcase
|
|
| 36510 | 4000K | 270 | 70 | NEXT 6 | Grey | DALI Dimmable | N.A. - No Uplight |
Add to Project Briefcase
|
|
| 36510 | 4000K | 270 | 70 | NEXT 6 | Grey | 1-10V Dimmable | N.A. - No Uplight |
Add to Project Briefcase
|
|
| 36520 | 4000K | 270 | 70 | NEXT 6 | Grey | DALI Dimmable | B3-U0-G2 |
Add to Project Briefcase
|
|
| 36520 | 4000K | 270 | 70 | NEXT 6 | Grey | 1-10V Dimmable | B3-U0-G2 |
Add to Project Briefcase
|
|
| 25410 | 4000K | 192 | 70 | NEXT 4 | Grey | DALI Dimmable | N.A. - No Uplight |
Add to Project Briefcase
|
|
| 25410 | 4000K | 192 | 70 | NEXT 4 | Grey | 1-10V Dimmable | N.A. - No Uplight |
Add to Project Briefcase
|
|
| 21810 | 4000K | 162 | 70 | NEXT 3 | Grey | DALI Dimmable | N.A. - No Uplight |
Add to Project Briefcase
|
|
| 21810 | 4000K | 162 | 70 | NEXT 3 | Grey | 1-10V Dimmable | N.A. - No Uplight |
Add to Project Briefcase
|
|
| 21810 | 4000K | 162 | 70 | NEXT 3 | Grey | DALI Dimmable | B3-U0-G1 |
Add to Project Briefcase
|
|
| 21810 | 4000K | 162 | 70 | NEXT 3 | Grey | 1-10V Dimmable | B3-U0-G1 |
Add to Project Briefcase
|
|
| 10810 | 4000K | 93 | 70 | NEXT 2 | Grey | DALI Dimmable | B2-U0-G1 |
Add to Project Briefcase
|
|
| 10800 | 4000K | 93 | 70 | NEXT 2 | Grey | DALI Dimmable | N.A. - No Uplight |
Add to Project Briefcase
|
|
| 10800 | 4000K | 93 | 70 | NEXT 2 | Grey | 1-10V Dimmable | N.A. - No Uplight |
Add to Project Briefcase
|
|
| 10810 | 4000K | 93 | 70 | NEXT 2 | Grey | 1-10V Dimmable | B2-U0-G1 |
Add to Project Briefcase
|
|
| 6810 | 4000K | 50 | 70 | NEXT 1 | Grey | Fixed Output | N.A. - No Uplight |
Add to Project Briefcase
|
|
| 4760 | 4000K | 38 | 70 | NEXT 1 | Grey | Fixed Output | B1-U0-G0 |
Add to Project Briefcase
|
|
| 6510 | 4000K | 50 | 70 | NEXT 1 | Grey | Fixed Output | B2-U0-G0 |
Add to Project Briefcase
|
|
| 5010 | 4000K | 38 | 70 | NEXT 1 | Grey | Fixed Output | N.A. - No Uplight |
