P34089

Product status: Normally Stocked

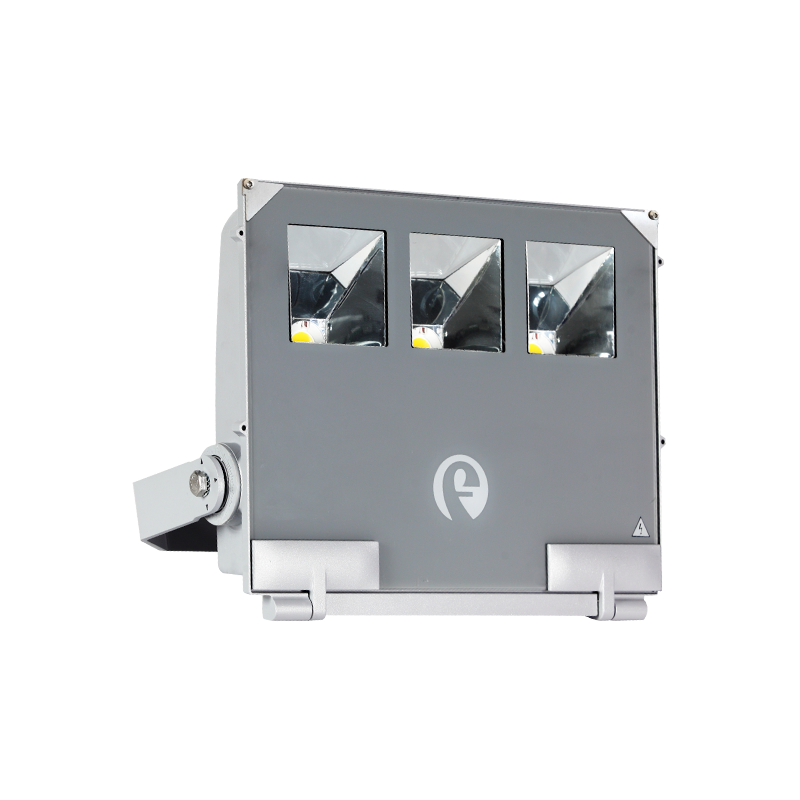

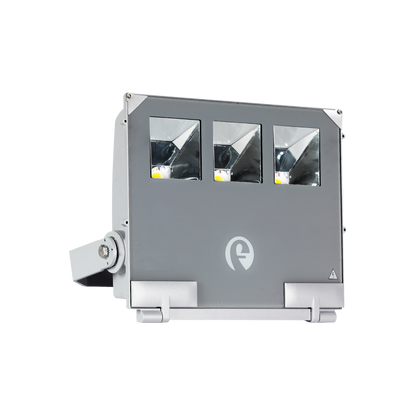

NEXT 3 Asymmetric Wide Beam High Power

Name: NEXT 3 Asymmetric Wide Beam High Power
Brand: Versalux
SKU: P34089
Availability: InStock

Download Photometry

Product variants

Share:

Share

NEXT 3 Asymmetric Wide Beam High Power

Product details

Optical

Asymmetric

Optic Finish Type

5mm extra-clear tempered glass with RAL 9006 silkscreen print. High purity aluminium (99.99%) reflectors, asymmetric or symmetric beam, individual optic per CoB LED. Lateral aluminium protractor scale. Optional aluminium visor for asymmetrical versions to maintain horizontal cutoff with 12° fixture tilt.

Output Lm

21,810

Efficacy (lm/W)

135

Downward Output

21810

Upward Output

0

Light Distribution Up %

0

Light Distribution Down %

100

CCT

4000K

CRI

70

Beam Spread

47 x 53

Horizontal Beam Angle

45

IES Classification

Type III

BUG Rating

N.A. - No Uplight

Max Intensity (cd)

29,340

Max UGR

46

Luminous Length (X)

255

Luminous Width (Y)

85

Luminous Height (Z)

0

Physical

Finish Colour

Grey

Finish Type

RAL 9006 silver polyester powdercoated

Housing Material

Compact, die-cast, low-copper content aluminium (EN AB 47100) housing

Optic Material

5mm extra-clear tempered glass with RAL 9006 silkscreen print. High purity aluminium (99.99%) reflectors

Luminaire Weight (Net)

6.5kg

Mounting Type

Fixing bracket

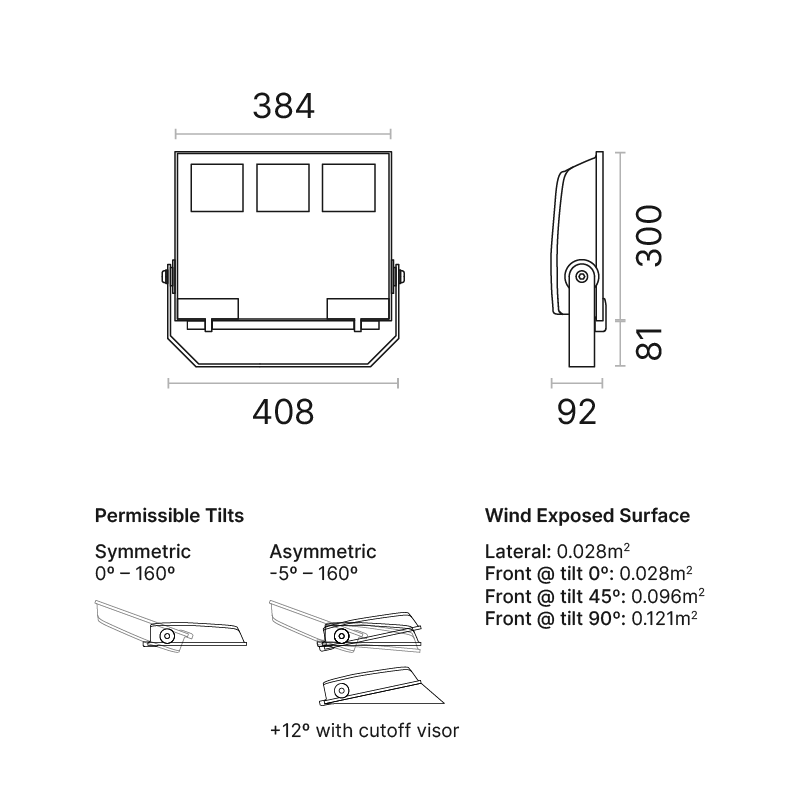

Dimensions

408mm x 300mm + 81mm x 92mm

IP Rating

IP66

IK Rating

IK09

Electrical

Watts

162

Rated Voltage

220-240Vac

Electrical Class

Class I

Driver Description

220-240Vac 50-60Hz Integral 1-10V Dimmable Driver

Control

1-10V Dimmable

Forward Current Rating

1,000

Driver Mounting

Integral

Certifications

Warranty

5 Years
