Product details

Optical

Precision designed spun aluminium reflector. Prismatic refractor for reduced glare.

Output Lm
9,830
Efficacy (lm/W)
91
Downward Output
9830lm
Upward Output
0lm
Light Distribution Up %
0
Light Distribution Down %
100
CCT
4000K
CRI
Ra80
L70
>55,000hr
L80
>55,000hr
L90
48,100hr
TM-21 @ 50,000hr
0.894
Beam Spread
92 x 94
Horizontal Beam Angle
90
Vertical Beam Angle
95
IES Classification
Type VS
BUG Rating
N.A. - No Uplight
Max Intensity (cd)
4,310
Max UGR
25
Luminous Length (X)
550
Luminous Width (Y)
550
Luminous Height (Z)
60mm
Physical
Finish Colour
Black
Finish Type
Die cast aluminium housing in matte powdercoat finish
Housing Material
Die-cast aluminium LED module housing with highly-efficient heat sink, finished in black powdercoat. Spun aluminium reflector.
Optic Material
Precision designed spun aluminium reflector. Prismatic refractor with IP65 upgrade.
Luminaire Weight (Net)
6.6kg
Mounting Type
Suspended

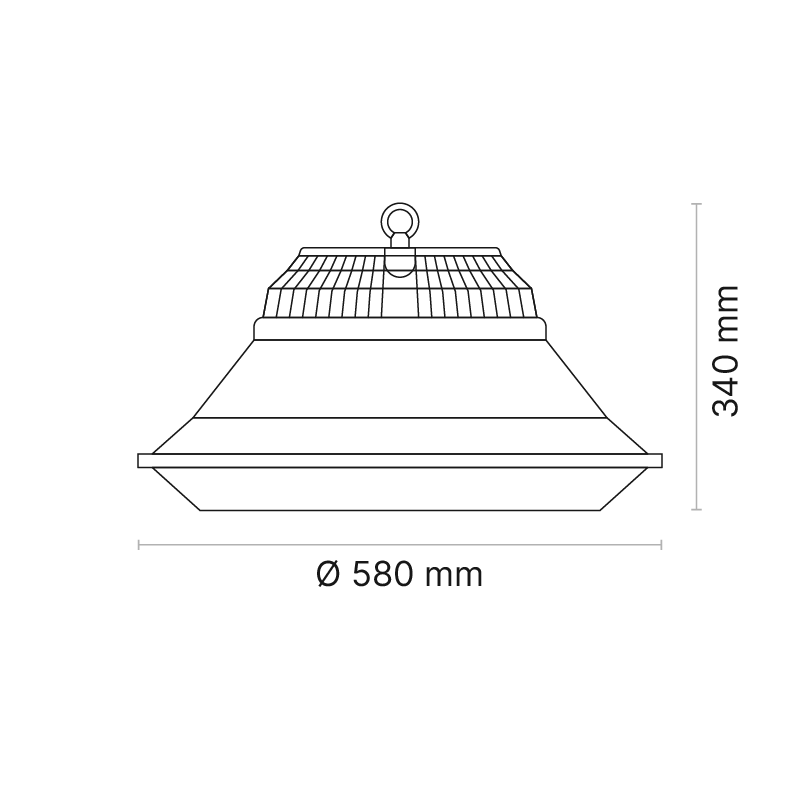

Dimensions
580mm x 340mm
IP Rating
IP52
Electrical
Watts
108
Electrical Class
Class I
Driver Description
Integral 1-10V Dimmable Driver
Control
1-10V Dimmable
Forward Current Rating
2,600
Driver Mounting
Integral
Driver IP Rating
67
Number of Drivers
1
Certifications
Warranty
5 Years
