Product details

Optical

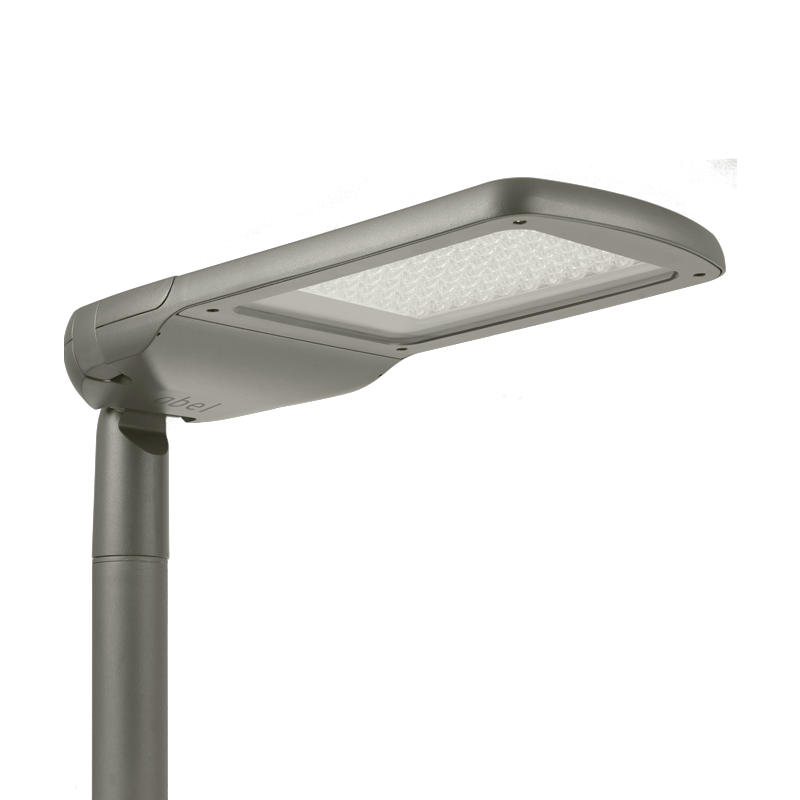

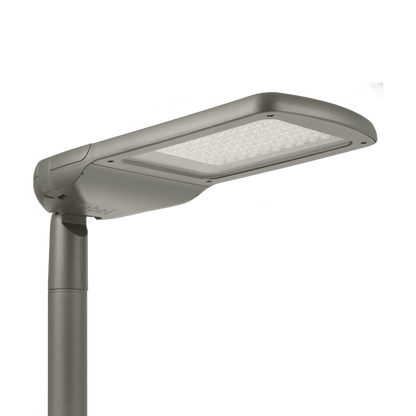

The Type IV distribution produces a forward light distribution. It is suitable to illuminate areas of parking and other general outdoor illumination. FEEZE ASYM 4 luminaires are usually located in car parks, hardstands, and on building infrastructure.

Output Lm
11,050
Efficacy (lm/W)
81
Downward Output
11050
Upward Output
0
Light Distribution Up %
0
Light Distribution Down %
100
CCT
1700K
CRI
50
Beam Spread
127 x 42
Horizontal Beam Angle
125
IES Classification
Type II
BUG Rating
B2-U1-G2
Max Intensity (cd)
8,380
Max UGR
37
Luminous Length (X)
330
Luminous Width (Y)
240
Luminous Height (Z)
0
Physical
Finish Colour
Grey
Finish Type
Die-cast aluminium body with baked polyester powder-coat finish
Housing Material
Die-cast aluminium body
Optic Material
Flat tempered glass
Luminaire Weight (Net)
9.2kg
Mounting Type
Spigots
Dimensions
794mm x 320mm x 125mm
IP Rating
IP66
IK Rating
IK09
Electrical
Watts
136
Rated Voltage
220-240VAC
Electrical Class
Class II
Electrical Miscellaneous Info
CLO
Driver Description
Integral DALI Dimmable Driver
Control
DALI Dimmable
Forward Current Rating
700
Driver Mounting
Integral
Driver IP Rating
20
CLO
1
Number of Drivers
1
Certifications
Warranty
5 Years
