Product details

Optical

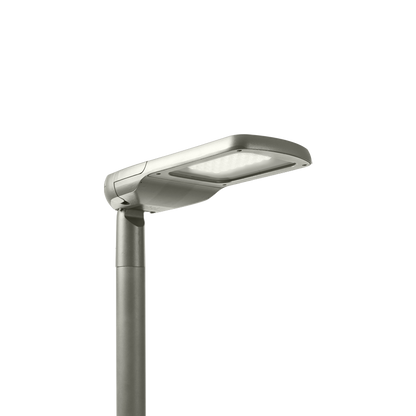

The Type II distribution is used for aisles, ramps and entrance pathways, as well as other long streets and narrow. FEEZE ASYM 2 luminaires are usually located near the road, on small streets, secondary schools, trails, or paths.

Output Lm
2,760
Efficacy (lm/W)
78
Downward Output
2760
Upward Output
0
Light Distribution Up %
0
Light Distribution Down %
100
CCT
1700K
CRI
50
Beam Spread
154 x 59
Horizontal Beam Angle
155
IES Classification
Type II
BUG Rating
B1-U1-G1
Max Intensity (cd)
2,165
Max UGR
37
Luminous Length (X)
235
Luminous Width (Y)
200
Luminous Height (Z)
0
Physical
Finish Colour
Grey
Finish Type
Die-cast aluminium body with baked polyester powder-coat finish
Housing Material
Die-cast aluminium body
Optic Material
Flat tempered glass
Luminaire Weight (Net)
6.2kg
Mounting Type
Spigots
Dimensions
673mm x 261mm x 122mm
IP Rating
IP66
IK Rating
IK09
Electrical
Watts
36
Rated Voltage
220-240VAC
Electrical Class
Class II
Electrical Miscellaneous Info
CLO
Driver Description
Integral DALI Dimmable Driver
Control
DALI Dimmable
Forward Current Rating
700
Driver Mounting
Integral
Driver IP Rating
20
CLO
1
Number of Drivers
1
Certifications
Warranty
5 Years
