Product details

Optical

Direct Indirect

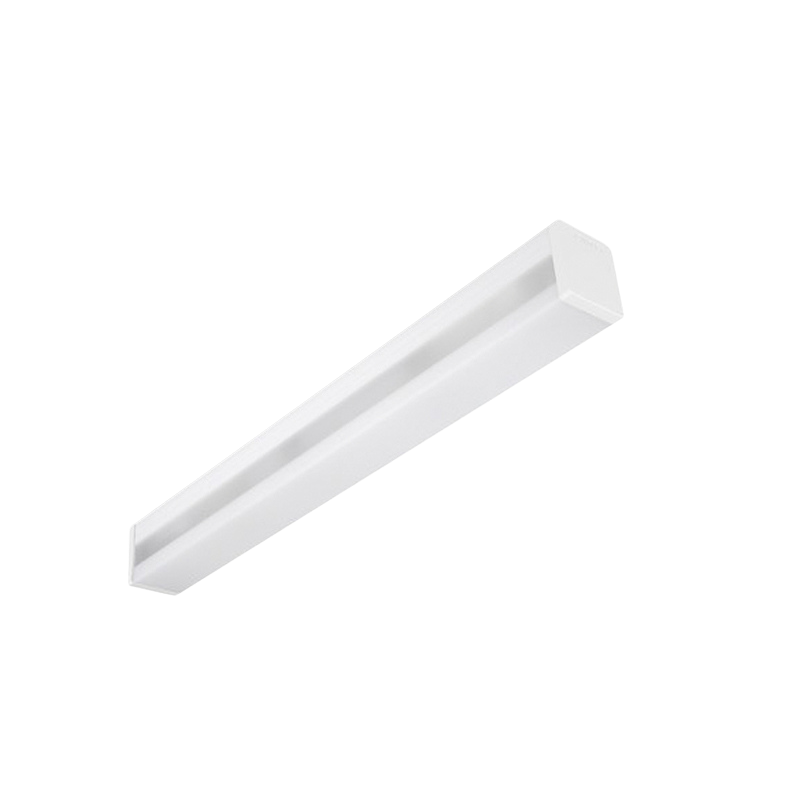

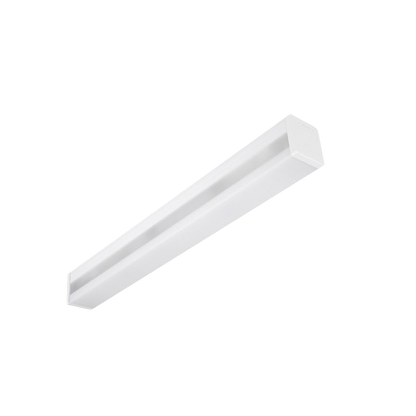

Versalux LED Array Description
LED
Output Lm
1,000
Efficacy (lm/W)
90
Downward Output
830
Upward Output
160
Light Distribution Up %
16
Light Distribution Down %
84
CCT
4000K
CRI
80
Beam Spread
110° x 140°
Horizontal Beam Angle
110
Vertical Beam Angle
140
IES Classification
Type VS
BUG Rating
B0-U3-G1
Max Intensity (cd)
240
Luminous Length (X)
57
Luminous Width (Y)
573
Luminous Height (Z)
40
Physical
Finish Colour
White
Finish Type
Powdercoat
Housing Material
Steel body and technopolymer end-caps
Optic Material
Tri-part extruded acrylic
Mounting Type
Wall surface
Mounts
Surface wall bracket
Dimensions
596mm x 72mm x 57mm
IP Rating
44
Electrical
Watts
11
Rated Voltage
220-240VAC
Electrical Class
Class I
Driver Description
Integral electronic driver
Control
Fixed Output
Certifications
Warranty
5 years
