Product details

Optical

Specialised LED lensing system regressed above concentric multi-step reflector.

Output Lm
150
Efficacy (lm/W)
38
Downward Output
150
Upward Output
0
Light Distribution Up %
0
Light Distribution Down %
100
CCT
3000K
CRI
90
L70
>60,000hr
L80
>60,000hr
L90
>60,000hr
TM-21 @ 50,000hr
0.9213
Beam Spread
30 x 30
Horizontal Beam Angle
30
Vertical Beam Angle
30
IES Classification
Type V
BUG Rating
B0-U0-G0
Max Intensity (cd)
435
Max UGR
10
Luminous Length (X)
32
Luminous Width (Y)
32
Luminous Height (Z)
0
Physical
Finish Colour
Black
Finish Type
Mattee powdercoat finish aluminium
Housing Material
Luminaire housing and trim in aluminium
Optic Material
Specialised LED lensing system regressed above concentric multi-step reflector
Luminaire Weight (Net)
0.14kg
Mounting Type
Recessed
Cut Out Size
41mm

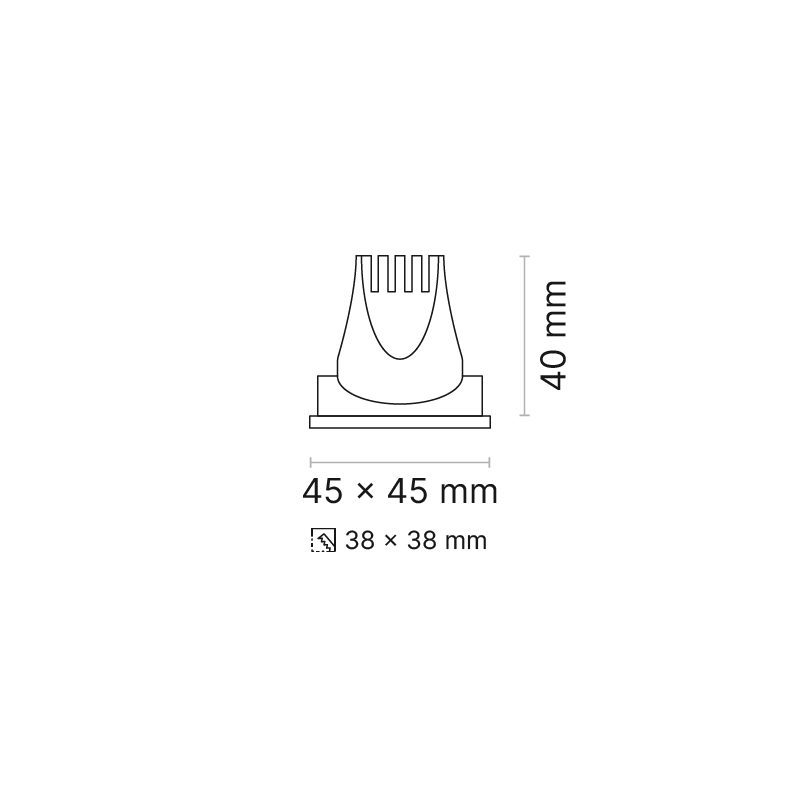

Dimensions
45mm x 45mm x 40mm
IP Rating
IP44
Electrical
Watts
4
Rated Voltage
220-240Vac
Electrical Class
Class II
Driver Description
Remote Fixed Output Driver
Control
Fixed Output
Forward Current Rating
700
Driver Mounting
Remote
Certifications
Warranty
5 Years
F Mark
Yes
