Product details

Optical

Asymmetrical Aisle-Lighter

Optic MiscellaneousOptic Miscellaneous
Note: Lumen output displayed is in MelaGen® Active setting. Refer to photometry for MelaGen® ReGen outputs.
Versalux LED Array Description
1x560mm LED SCSp strip centred
Output Lm
2,000
Efficacy (lm/W)
127
Downward Output
1890
Upward Output
70
Light Distribution Up %
96
Light Distribution Down %
4
CCT
4000K
CRI
90
Beam Spread
85° x 40°
Horizontal Beam Angle
85
Vertical Beam Angle
40
IES Classification
Type I
BUG Rating
B1-U2-G1
Max Intensity (cd)
1,410
Max UGR
27
Luminous Length (X)
64
Luminous Width (Y)
585
Luminous Height (Z)
32
Physical
Finish Colour
White
Housing Material
V0 self-extinguishing polycarbonate body, technopolymer end-caps
Mounting Type
Surface / Suspended
Mounts
Technopolymer Surface Mounting Collars

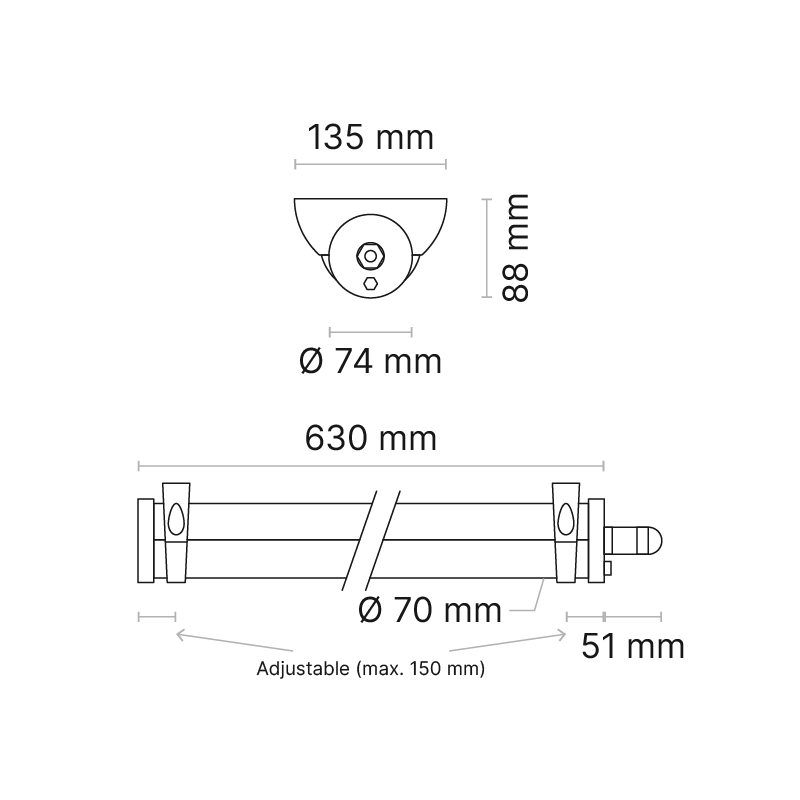

Dimensions
681mm x 135mm x 88mm
IP Rating
66
IK Rating
IK09
Electrical
Watts
16
Rated Voltage
220-240VAC
Connection Description
1.7m 3 core IP flex via IP68 gland
Electrical Class
Class I
Electrical Miscellaneous Info
Single point
Driver Description
Electronic Driver set to 200mA
Control
Fixed Output
Certifications
Warranty
5 years
