Product details

Optical

Low glare, wide spread polycarbonate refractor.

Output Lm
5,300
Efficacy (lm/W)
113
Downward Output
4810lm
Upward Output
520lm
Light Distribution Up %
10
Light Distribution Down %
90
CCT
3000K
CRI
Ra80
L70
>90,000hr
L80
>90,000hr
L90
54,600hr
TM-21 @ 50,000hr
0.9083
Beam Spread
138 x 142
Horizontal Beam Angle
140
Vertical Beam Angle
140
IES Classification
Type V
BUG Rating
B2-U3-G2
Max Intensity (cd)
1,205
Luminous Length (X)
300mm
Luminous Width (Y)
300mm
Luminous Height (Z)
160mm
Physical
Finish Colour
Black
Finish Type
Black powdercoat housing
Housing Material
Die-cast aluminium LED module housing with highly-efficient heat sink
Optic Material
Precision engineered and high-impact resistant polycarbonate refractor
Luminaire Weight (Net)
4.6kg
Mounting Type
Surface mounted

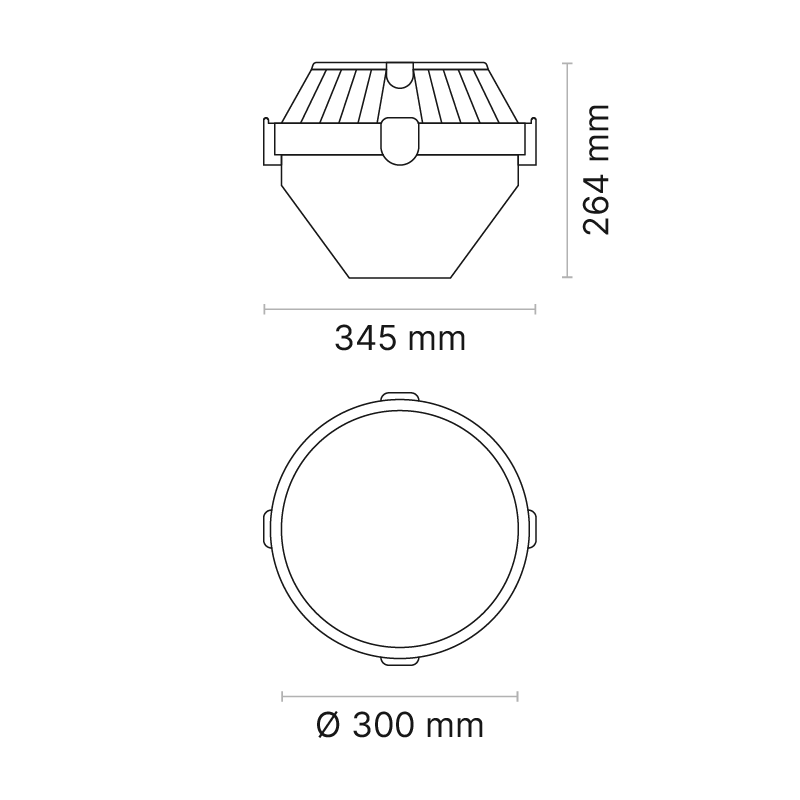

Dimensions
345mm x 264mm
IP Rating
IP65
IK Rating
IK10
Electrical
Watts
47
Rated Voltage
220-240VAC
Electrical Class
Class I
Control
Fixed Output
Forward Current Rating
1,100
Driver Mounting
Integral
Driver IP Rating
20
Number of Drivers
1
Certifications
Warranty
5 Years
