Product details

Optical

Low glare, wide spread polycarbonate refractor.

Output Lm
5,700
Efficacy (lm/W)
122
Downward Output
5170lm
Upward Output
560lm
Light Distribution Up %
10
Light Distribution Down %
90
CCT
4000K
CRI
Ra80
L70
>90,000hr
L80
>90,000hr
L90
54,600hr
TM-21 @ 50,000hr
0.9083
Beam Spread
138 x 142
Horizontal Beam Angle
140
Vertical Beam Angle
140
IES Classification
Type V
BUG Rating
B2-U3-G2
Max Intensity (cd)
1,295
Max UGR
28
Luminous Length (X)
300mm
Luminous Width (Y)
300mm
Luminous Height (Z)
160mm
Physical
Finish Colour
Black
Finish Type
Black powdercoat housing
Housing Material
Die-cast aluminium LED module housing with highly-efficient heat sink
Optic Material
Precision engineered and high-impact resistant polycarbonate refractor
Luminaire Weight (Net)
4.6kg
Mounting Type
Suspended

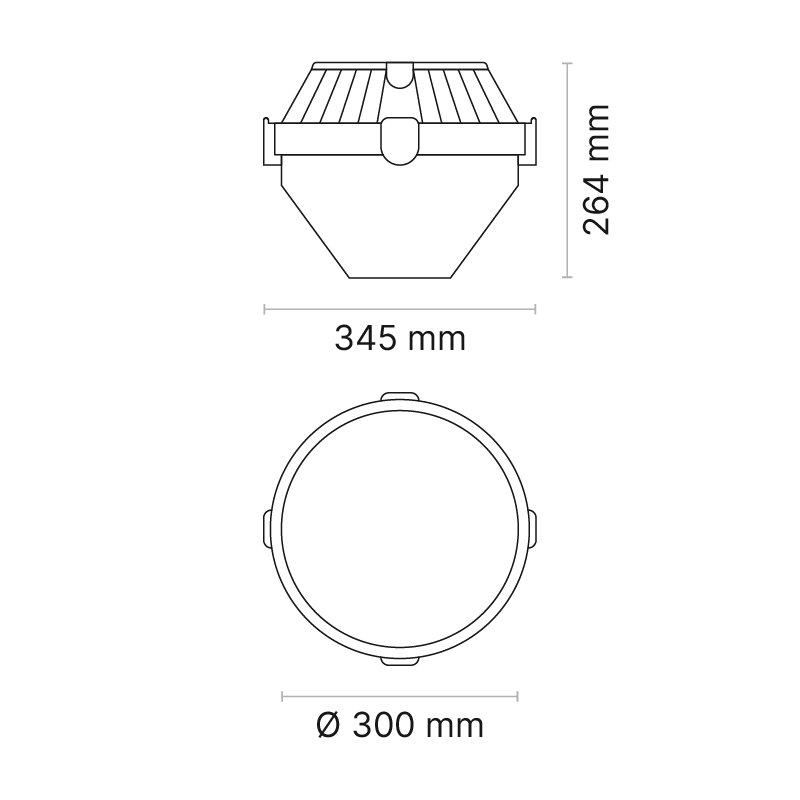

Dimensions
345mm x 264mm
IP Rating
IP65
IK Rating
IK10
Electrical
Watts
47
Rated Voltage
220-240VAC
Electrical Class
Class I
Control
DALI Dimmable
Forward Current Rating
1,100
Driver Mounting
Integral
Driver IP Rating
20
Number of Drivers
1
Certifications
Warranty
5 Years
